POWER CONDITIONER/DISTRIBUTION UNIT WITH IEC POWER CORD AND LAMP

by
ATLASIED
PCN#
SE2334
MFG#
AP-S15LA
$180.94
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • AC Noise, Spike protection
  • AC Power
  • 120 V AC Input6 W

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 7 lbs.

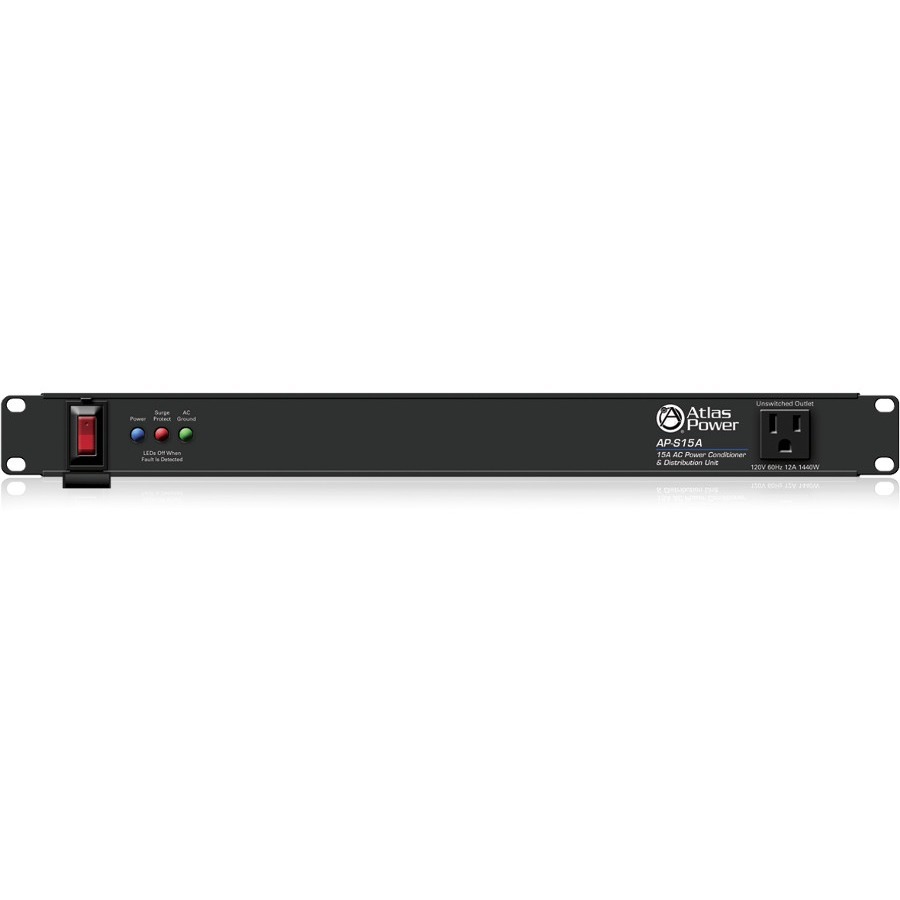

AtlasIED AP-S15LA 9 Outlets Line Conditioner
Tech Specs
Specifications

Manufacturer

AtlasIED

Manufacturer Part Number

AP-S15LA

Manufacturer Website Address

http://www.atlassound.com

Brand Name

AtlasIED

Product Model

AP-S15LA

Product Name

AP-S15LA 9 Outlets Line Conditioner

Marketing Information

The AP-S15LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15LA's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15LA includes a pull out from lamp, 12 foot removable IEC cord with retainer

Product Type

Line Conditioner
Technical Information

Protection Type

  • AC Noise
  • Spike

Receptacle Type

AC Power

Receptacles Detail

9 x AC Power
Power Description

Load Capacity (Watt)

6 W

Input Voltage

120 V AC

Input Voltage Range

102 V AC - 132 V AC

Maximum Line Current

15 A

Surge Energy Rating

200 J
Physical Characteristics

Cord Length

12 ft

Rack Height

1U

Mount Type

Rack-mountable

Height

1.8"

Width

19"

Depth

5"

Weight (Approximate)

5 lb
Miscellaneous

Package Contents

  • AP-S15LA 9 Outlets Line Conditioner
  • Manual
  • IEC Power Cord 14 Gauge 12ft (4M)
  • IEC Power Cord Retainer Bracket

Certifications & Standards

  • UL 1449
  • UL 60065
Warranty

Limited Warranty

1 Year
