DUAL-CHANNEL 1300-WATT COMMERCIAL AMPLIFIER

Name: DUAL-CHANNEL 1300-WATT COMMERCIAL AMPLIFIER
Brand: ATLASIED
SKU: 630N48
Price: 1598.35 USD
Availability: InStock

ATLASIED

PCN#

630N48

MFG#

HPA1302

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,598.35

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

20 Hz to 20 kHz
1000 W

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 19 lbs.

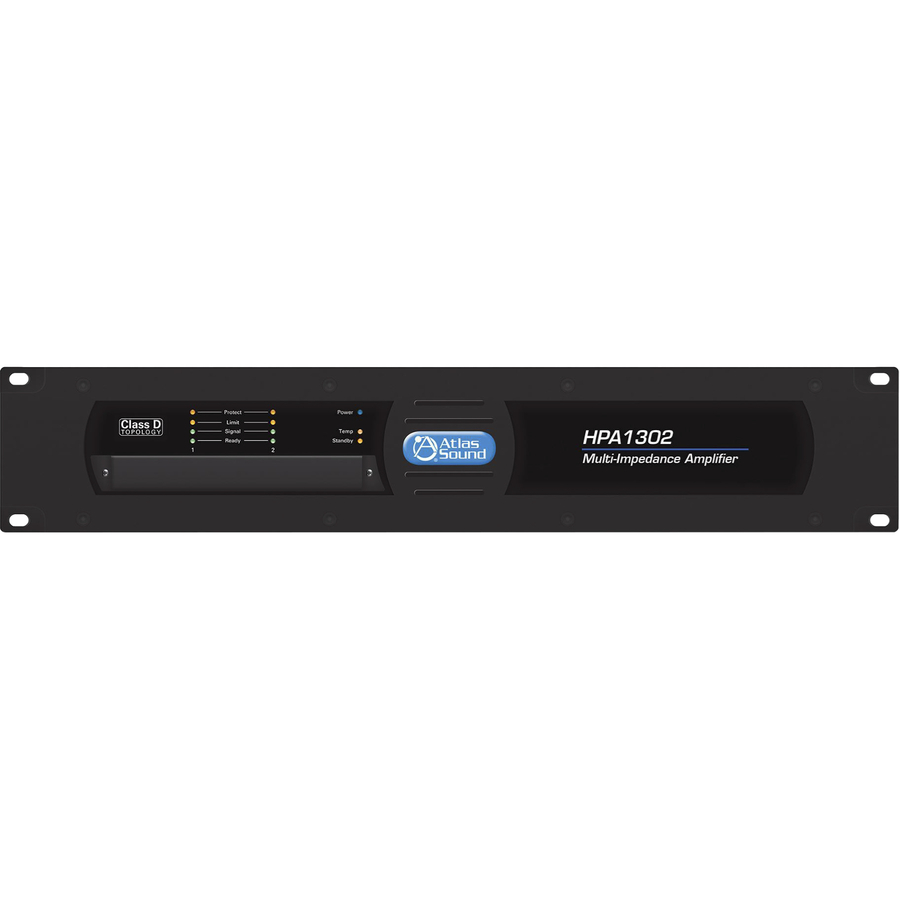

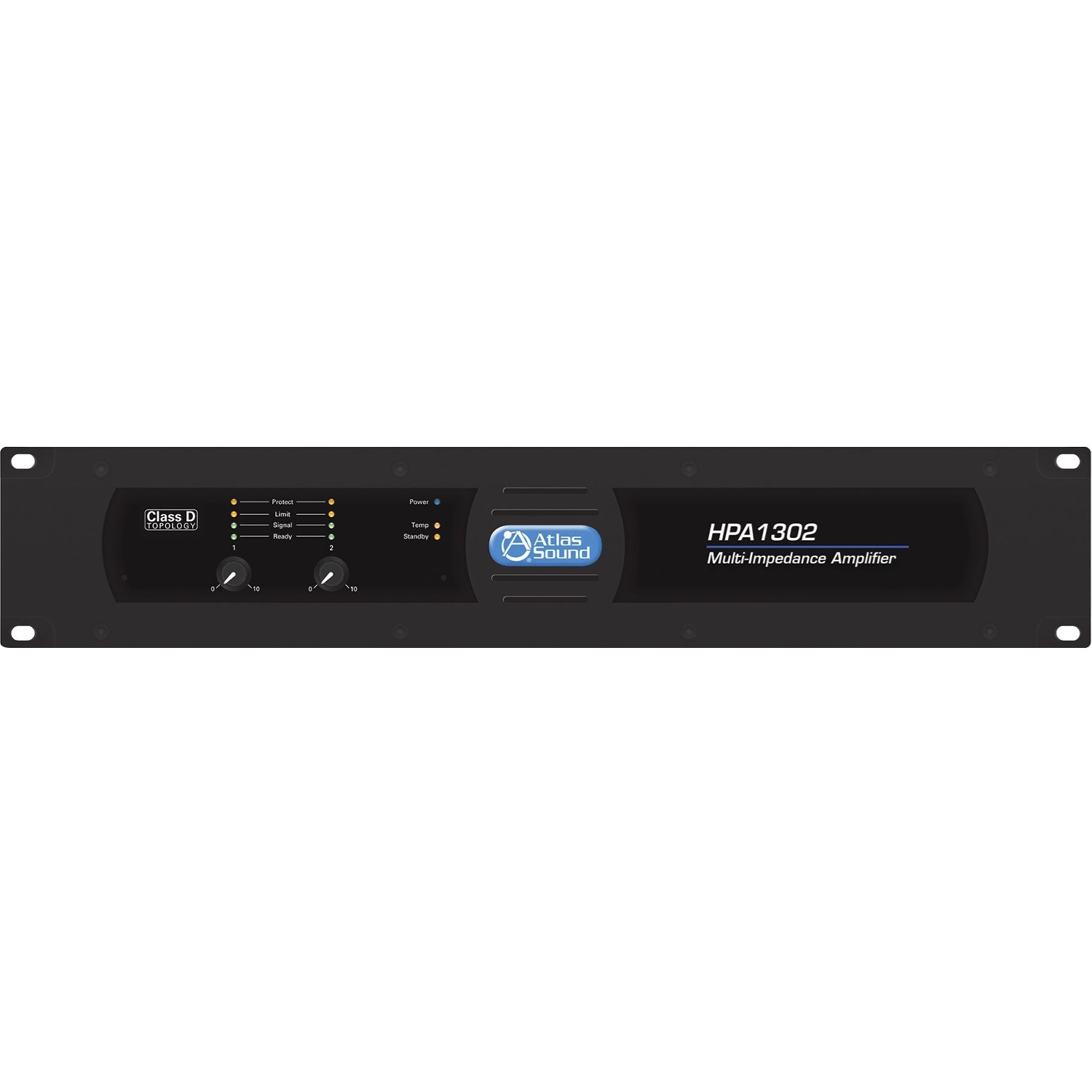

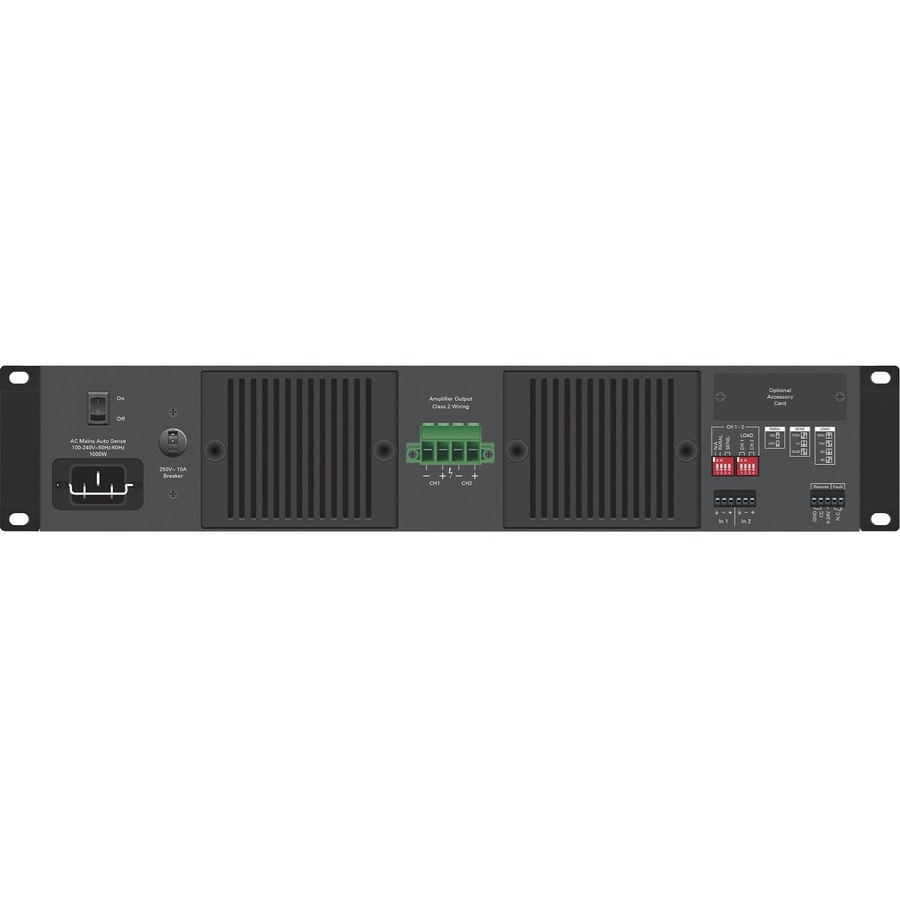

AtlasIED HPA1302 Amplifier - 1300 W RMS - 2 Channel - Black

Overview

Tech Specs

Specifications

Manufacturer	AtlasIED
Manufacturer Part Number	HPA1302
Manufacturer Website Address	http://www.atlassound.com
Brand Name	AtlasIED
Product Series	HPA
Product Model	HPA1302
Product Name	Dual-Channel, 1300-Watt Commercial Amplifier
Marketing Information	The AtlasIED High Power Amplifier HPA Series model HPA1302 has been designed to be used in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle 8Ω and 4Ω loads. The HPA Series features Generation II Class D Output topology that provides superior efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode wide range design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any loudspeaker load. The HPA Series features front panel stepped level controls with a security cover, remote turn on, balanced line inputs with sensitivity settings, fault reporting and an accessory card slot for an optional Dante™ two-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star 1W standby mode standards. Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective reliable amplification requirements.
Product Type	Amplifier

Technical Information

Minimum Frequency Response	20 Hz
Maximum Frequency Response	20 kHz
Impedance	4 Ohm
Classification	D

Audio

Audio Channels	2
RMS Output Power	1300 W

Power Description

Operating Power Consumption

1000 W

Physical Characteristics

Product Color	Black
Height	3.5"
Width	19"
Depth	9.3"
Weight (Approximate)	15.40 lb

Miscellaneous

Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

3 Year
