AVERMEDIA NX215B -8GB

Name: AVERMEDIA NX215B -8GB
Brand: AVERMEDIA
SKU: 4305BF
Price: 876.64 USD
Availability: InStock

AVERMEDIA

PCN#

4305BF

MFG#

NX215B-8G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$876.64

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

with HDMI, USB, MIPI and 20 pin header

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

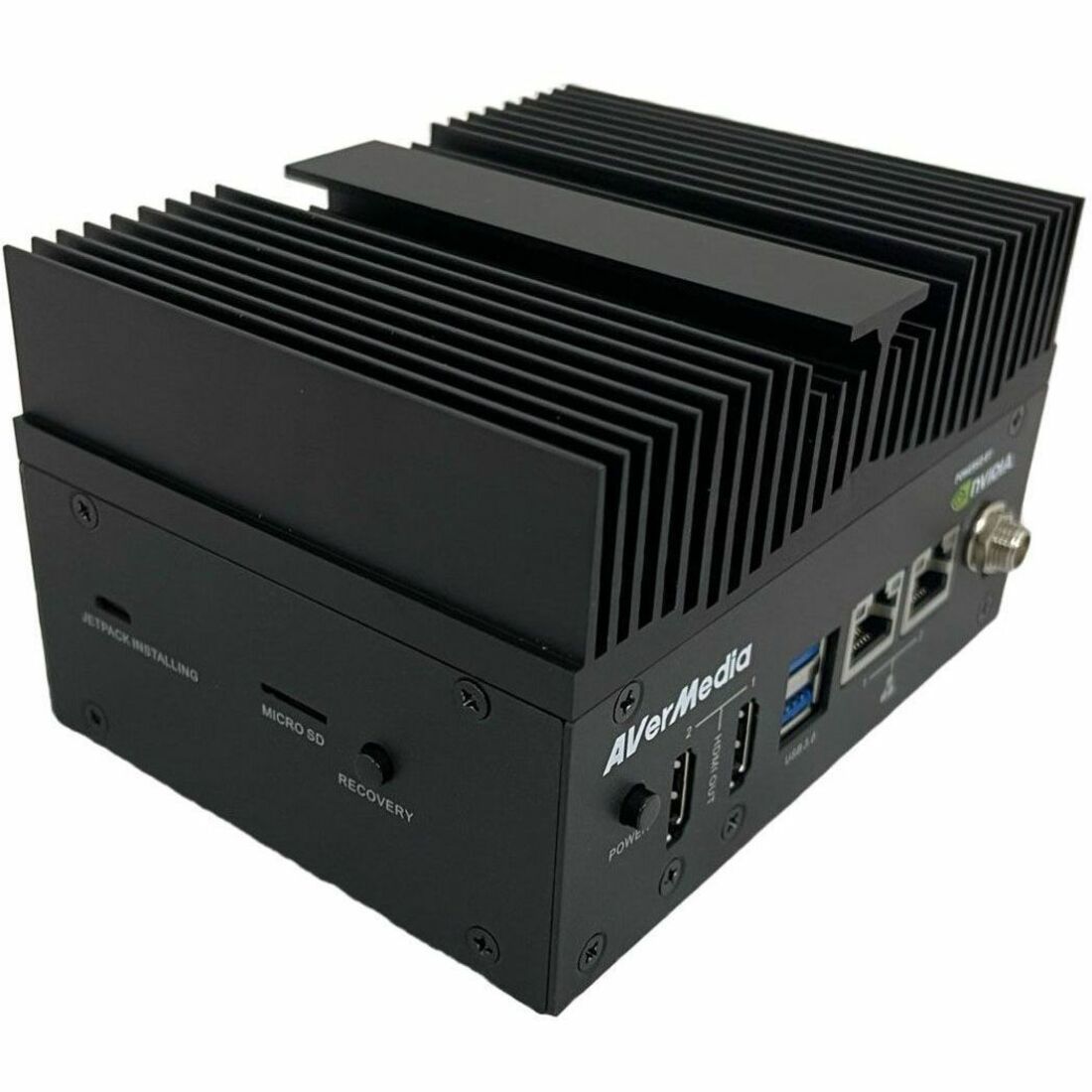

AVerMedia AI Box PC NX215B Equips NVIDIA® Jetson™ Xavier™ NX Module

Overview

Tech Specs

Specifications

Manufacturer	AVerMedia Technologies, Inc
Manufacturer Part Number	NX215B-8G
Manufacturer Website Address	http://www.avermedia.com
Brand Name	AVerMedia
Product Model	NX215B
Product Name	AI Box PC NX215B Equips NVIDIA® Jetson™ Xavier™ NX Module

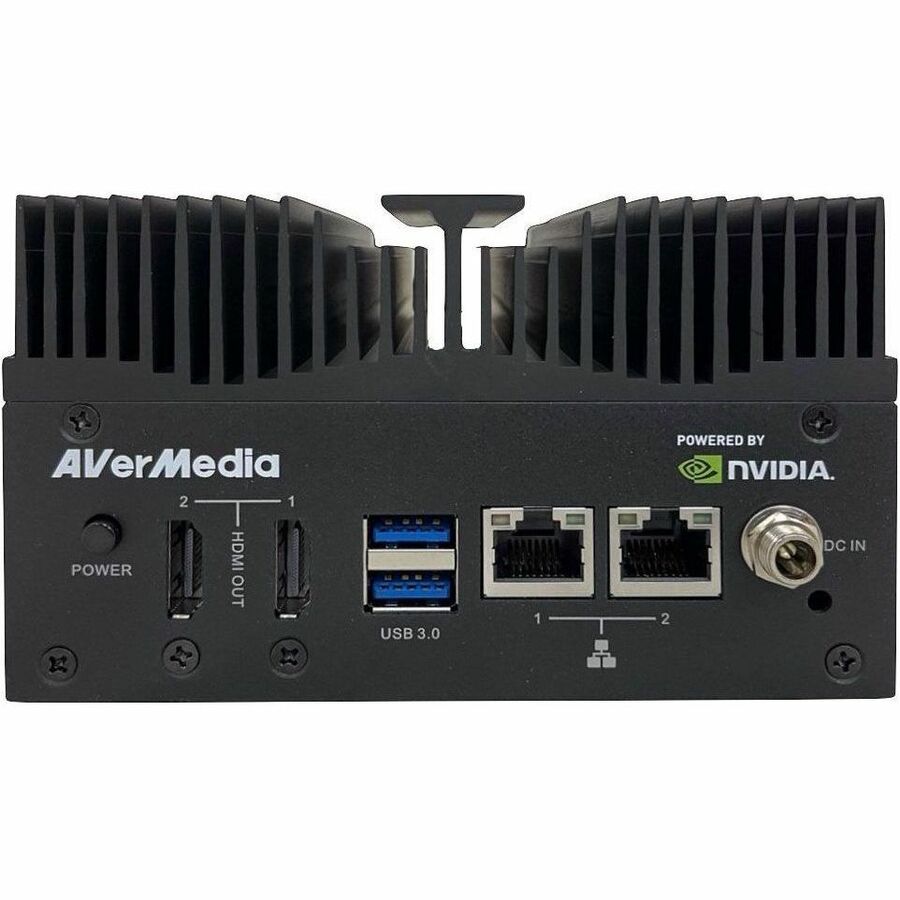

Marketing Information	AVerMedia's NX215B is the next generation of AI Box PC that is designed with the NVIDIA® Jetson Xavier™ NX module. Suited for situations with spatial concerns, this high inference AI Box comes in at a compact 126mm (W) x 96mm (L) x 74mm (H) housing. And with a fanless design, the thermally optimized housing is capable of operating at 0 ~ 60°C while running virtually silently. We understand that every situation has a set of unique requirements, and this is the reason the NX215B is designed with a rich assortment of I/O ports. From 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input (internal), to 2x 4Kp60 HDMI output, and 2x GbE RJ-45, you can rest assured that the NX215B carries key I/O ports required for your unique application. And if you require additional customizations, our customer-dedicated team will be happy to support you with rapid deployment. Key Industries AVerMedia devices are built with flexibility in mind and are designed for the following verticals. Smart Retail Gather and deliver the information to streamline decisions and create more value for the customer. Smart Camera Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats. Smart City Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.
Product Type	Video Surveillance System

Technical Information

Connectivity Technology	Wired
Recording Formats	4K
HD Recording	Yes
Memory Card Slot	Yes
Memory Card Supported	microSD

Video

Maximum Resolution

3840 x 2160

Network & Communication

Ethernet	Yes
Remote Management	Yes

Interfaces/Ports

USB	Yes
USB Standard	USB 2.0/3.0
Number of USB Ports	4
Network (RJ-45)	Yes
HDMI	Yes

Power Description

Input Voltage	12 V DC
Power Source	DC Supply

Physical Characteristics

Height	2.9"
Width	5"
Depth	3.8"
Weight (Approximate)	2.20 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)

Miscellaneous

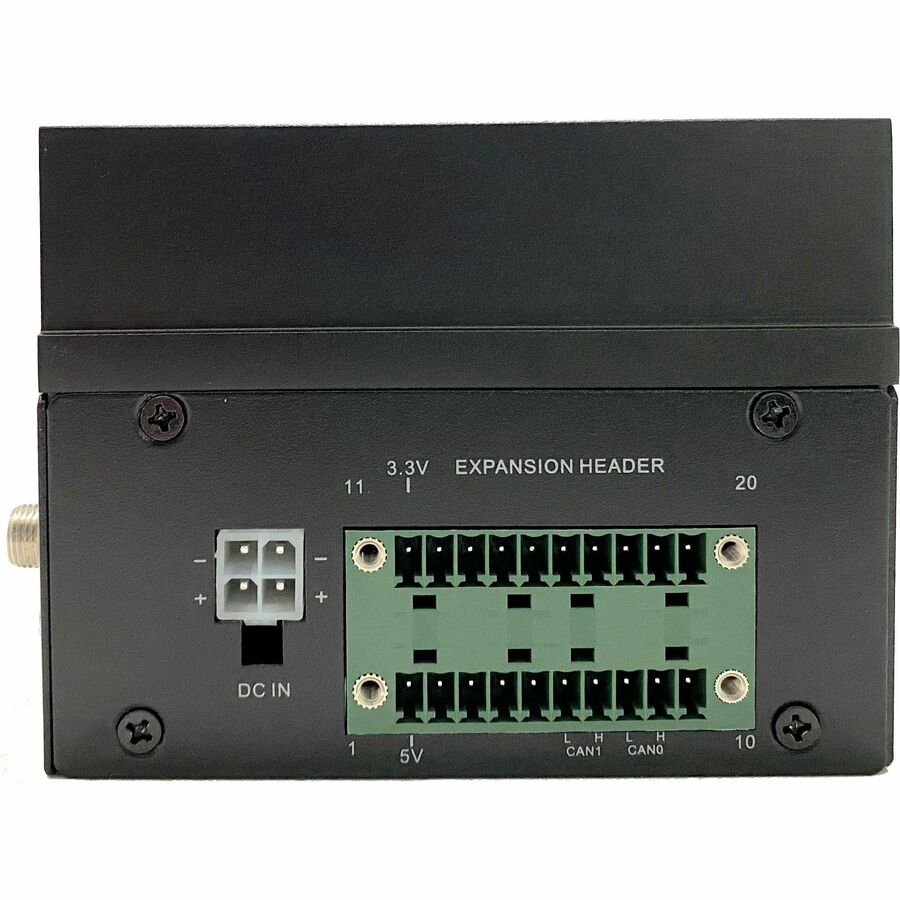

Additional Information	NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Xavier™ NX module 8GB Networking 2x GbE RJ-45 1x M.2. key E 2230 for Wi-Fi Display Output 2x HDMI (3840 x 2160 at 60Hz) Temperature Operating temperature 8G (0°C~60°C), 16G (0°C~60°C) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing MIPI Camera Inputs 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector USB 1x USB 2.0 Micro-B for recovery 3x USB 3.0 Type-A (1x internal) Storage 1x micro-SD card slot 1x M.2. key M 2280 for NVMe Expansion Header (Internal) 20 pins: 2x I2C 1x UART 4x GPIOs 1x CAN with transceiver (EU terminal block) Input Power DC in Jack on board & ATX 4pin 12V/5A, 12V~24V is recommended Power Cord US/JP/EU/UK/TW/CN/AU Fan Module Fanless Solution Buttons Power and Recovery RTC Battery Support RTC battery and Battery Life Monitoring by MCU Certifications CE, FCC, KC
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
