AXIS P3747-PLVE REMOTE PAN-TILT-ROLL ZOOM

Name: AXIS P3747-PLVE REMOTE PAN-TILT-ROLL ZOOM
Brand: AXIS
SKU: SG5462
Price: 2334.99 USD
Availability: InStock

AXIS

PCN#

SG5462

MFG#

02897-001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,334.99

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

H.264 (MPEG
4 Part 10/AVC), H.265 (MPEG
H Part 2/HEVC) Main Profile, Motion JPEG, H.264, H.265, Zipstream, H.264B, H.264M, H.264H, H.265B, H.265H, ...
2592 x 1944
3.18 mm
7.42 mm Varifocal Lens
2.3x Optical
30 fps
RGB CMOS
Gigabit Ethernet
Ceiling Mount, Bracket Mount, Junction Box Mount
IK10
IP66
Audio Support

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 9 lbs.

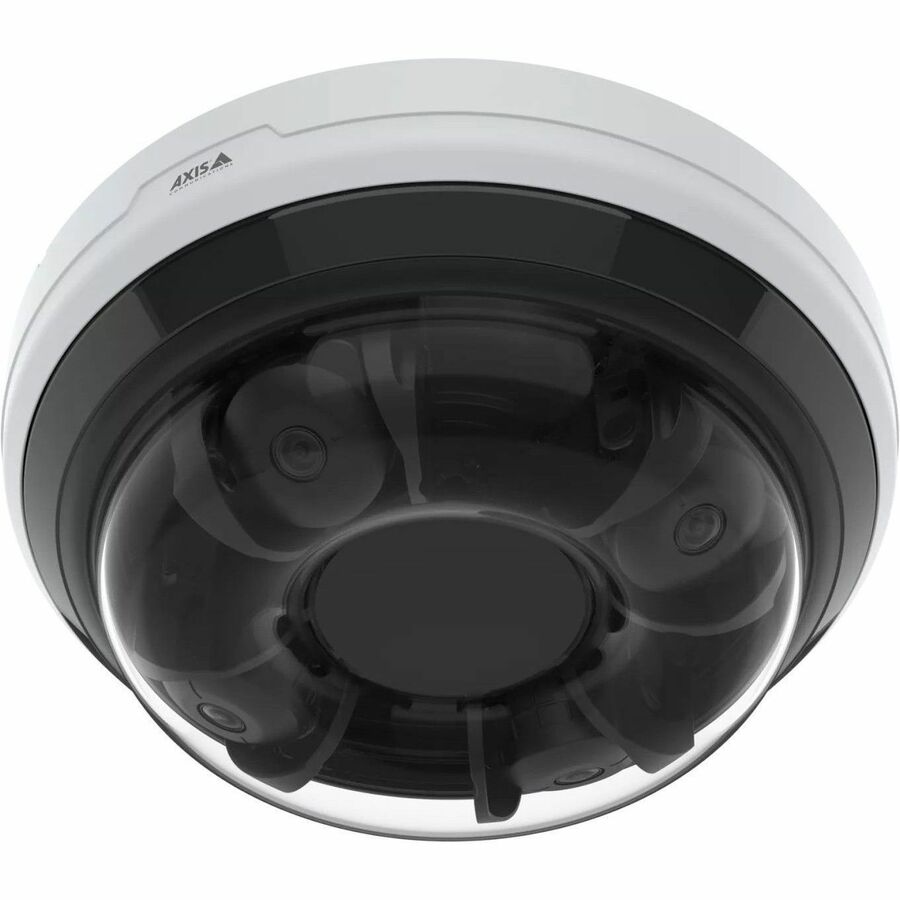

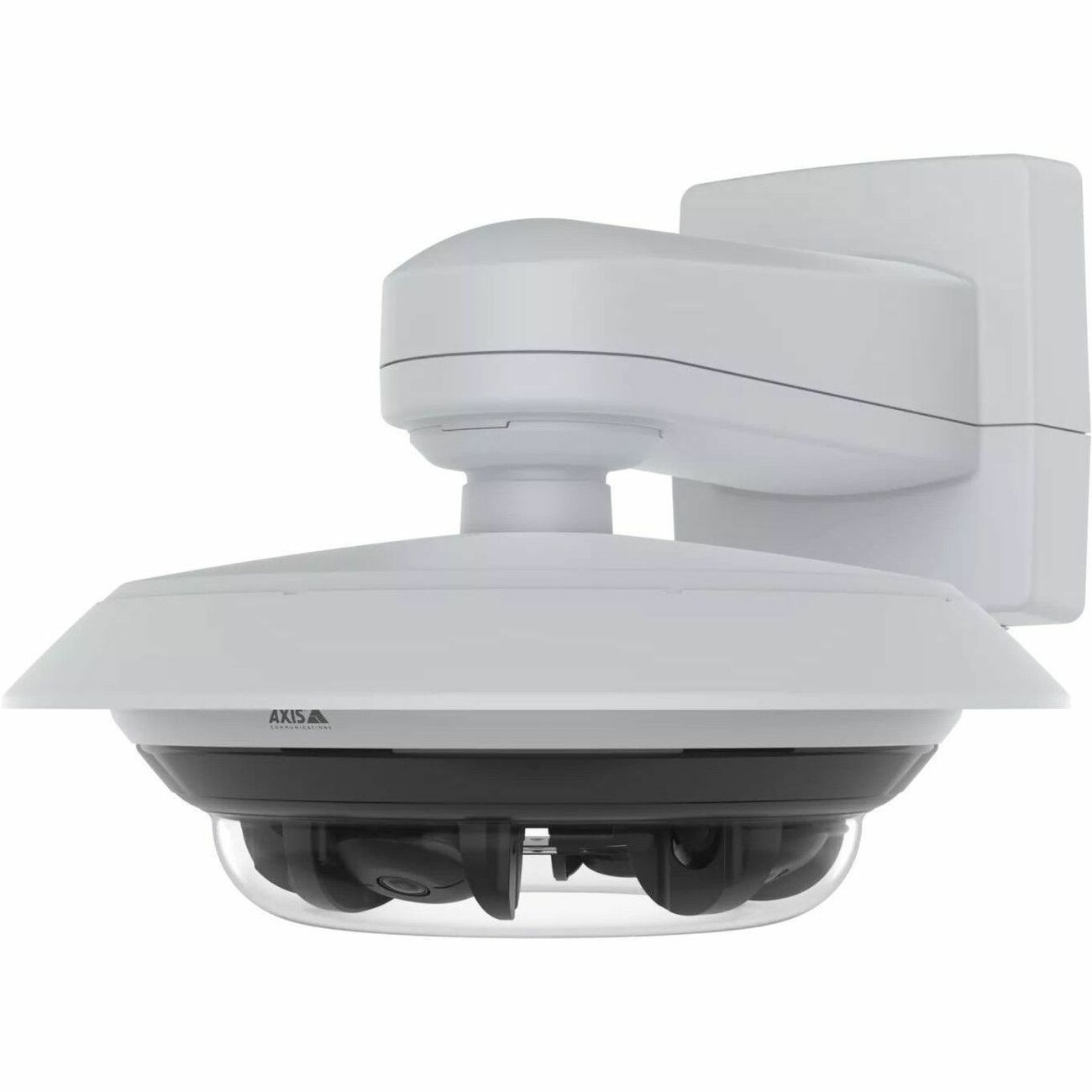

AXIS P3747-PLVE 5 Megapixel Outdoor Network Camera - Color - Dome - White

Overview

Tech Specs

Specifications

Manufacturer	Axis Communications
Manufacturer Part Number	02897-001
Manufacturer Website Address	http://www.axis.com
Brand Name	AXIS
Product Series	P37
Product Model	P3747-PLVE
Product Name	P3747-PLVE Panoramic Camera

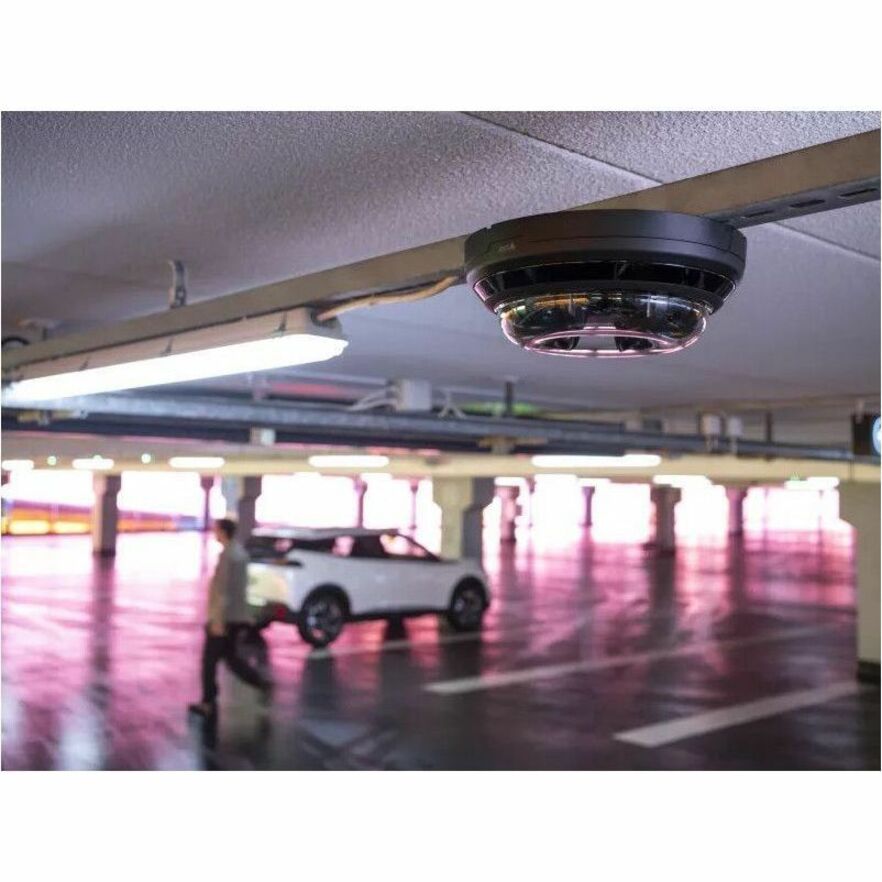

Marketing Information	AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorized and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations. 4x5 MP at 20 fps per channel Remote pan, tilt, roll, zoom (PTRZ) Support for powerful analytics 360° IR illumination with individually controlled LEDs Built-in cybersecurity with Axis Edge Vault
Product Type	Network Camera

Technical Information

HD Recording	Yes
Camera Iris	Fixed
AI-powered	Yes
Infrared (IR) Cut-off Filter	Yes
Languages Support	English German French Spanish Italian Russian Simplified Chinese Japanese Korean Portuguese Polish Traditional Chinese Dutch Czech Swedish Finnish Turkish Thai Vietnamese
Wide Dynamic Range Detail	120 dB

Display & Graphics

Image Sensor Type	RGB CMOS
Image Sensor Size	1/2.78"
Color Supported	Color
Field of View	71.5°-30°
Effective Camera Resolution	5 Megapixel
Number of Sensors	4

Video

Video Formats	H.264 (MPEG-4 Part 10/AVC) H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG H.264 H.265 Zipstream H.264B H.264M H.264H H.265B H.265H H.265M
Maximum Video Resolution	2592 x 1944
Maximum Frame Rate	30 fps

Audio

Audio Support

Yes

Lens

Lens Type	Varifocal
Minimum Focal Length	3.18 mm
Maximum Focal Length	7.42 mm
Lens Included	Yes
Minimum Aperture	f/2.7
Maximum Aperture	f/1.6
Optical Zoom	2.3x

Exposure

Shortest Shutter Speed	1/19500 Second
Longest Shutter Speed	1 Second

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Gigabit Ethernet
Protocols	IPv4 IPv6 USGv6 ICMPv4/ICMPv6 HTTP HTTPS HTTP/2 TLS FTP SFTP CIFS/SMB SMTP mDNS (Bonjour) UPnP SNMPv1/v2c/v3 (MIB2) DNS/DNSv6 DDNS NTP NTS RSTP RTP SRTP/RTSPS TCP UDP IGMPv1/v2/v3 RTCP ICMP DHCPv4/v6 ARP SSH LLDP CDP MQTT v3.1.1 UDP/TCP/TLS ZeroConf
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Maximum Power Consumption	23.70 W
Power Source Type	PoE

Physical Characteristics

Mount Type	Ceiling Mount Bracket Mount Junction Box Mount
Form Factor	Dome
Color Family	White
Product Color	White
Product Material	Aluminum Plastic Polycarbonate
Weight (Approximate)	6.61 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	122°F (50°C)
Minimum Storage Temperature	-40°F (-40°C)
Maximum Storage Temperature	149°F (65°C)
Minimum Operating Humidity (Condensing)	10%
Maximum Operating Humidity (Condensing)	100%
Minimum Storage Humidity (Non-condensing)	5%
Maximum Storage Humidity (Non-condensing)	95%

Miscellaneous

Features	Day/Night Wide Dynamic Range White Balance Mirror Privacy Masking Built-in Speaker 2D Noise Reduction 3D Noise Reduction Motion Detection Tampering Alarm Human Detection Vehicle Detection
Indoor/Outdoor	Outdoor
Package Contents	P3747-PLVE Panoramic Camera Installation Guide Connector Guard Cable Gasket Mounting Plate Dome Casing
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

5 Year
