AXIS Q6300-E 60 HZ

Name: AXIS Q6300-E 60 HZ
Brand: AXIS
SKU: SR9414
Price: 2399.53 USD
Availability: InStock

AXIS

PCN#

SR9414

MFG#

02943-001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,399.53

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Infrared
H.264B (MPEG
4 Part 10/AVC), H.264M (MPEG
4 Part 10/AVC), H.264H (MPEG
4 Part 10/AVC), H.265 (MPEG
H Part 2/HEVC), Motion JPEG, Zipstream, H.265, H.264
2592 x 1944
3.70 mm Fixed Lens
30 fps
RGB CMOS
Gigabit Ethernet
IK10
IP66
Audio Support

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

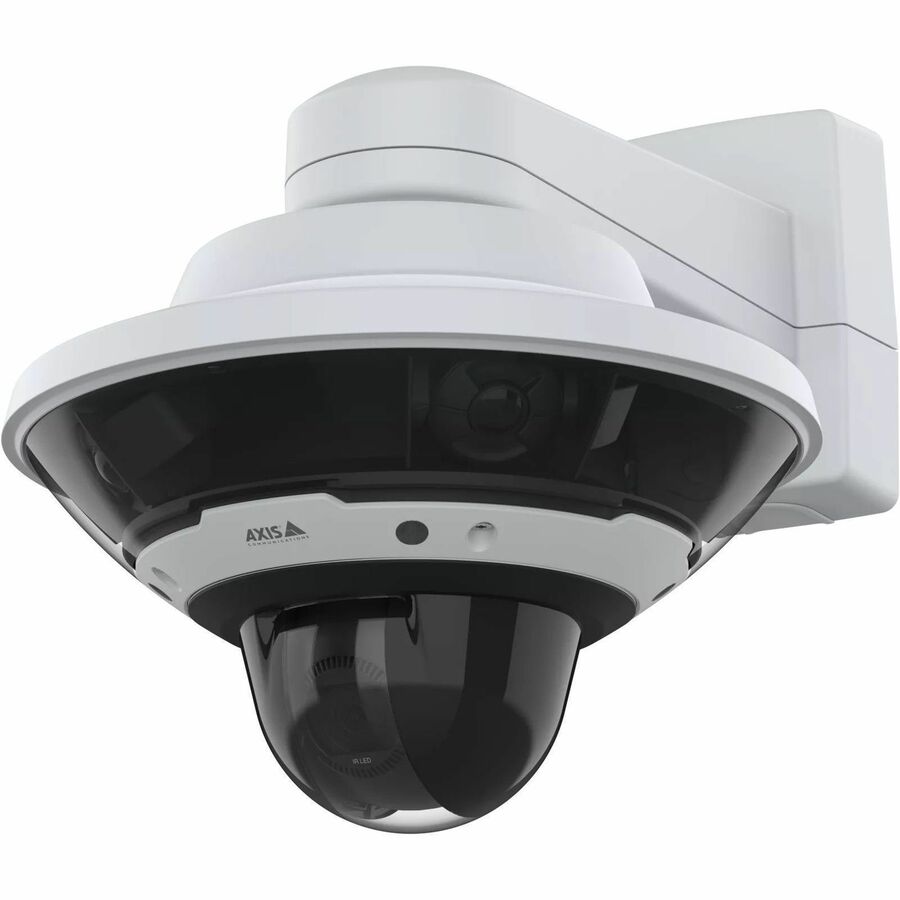

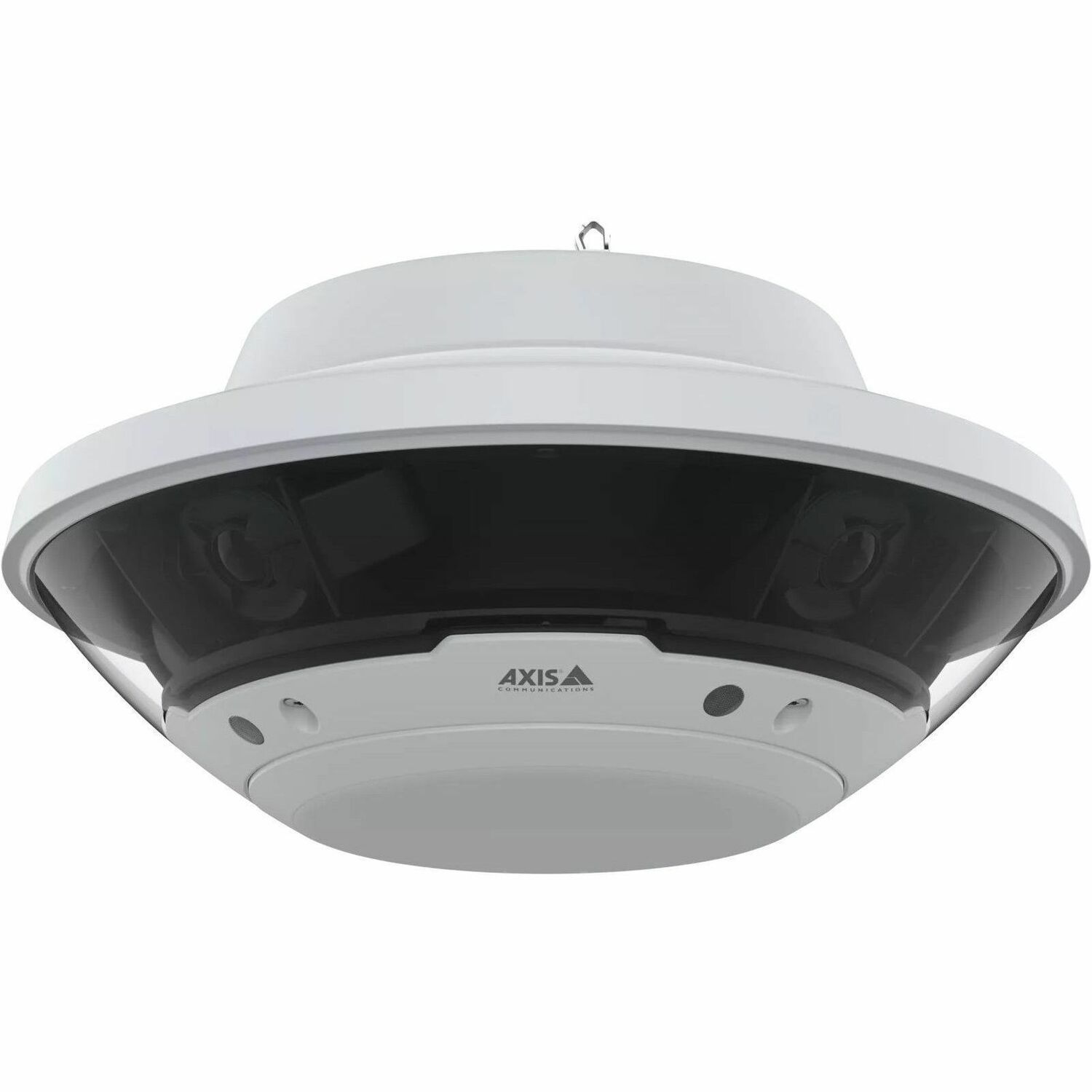

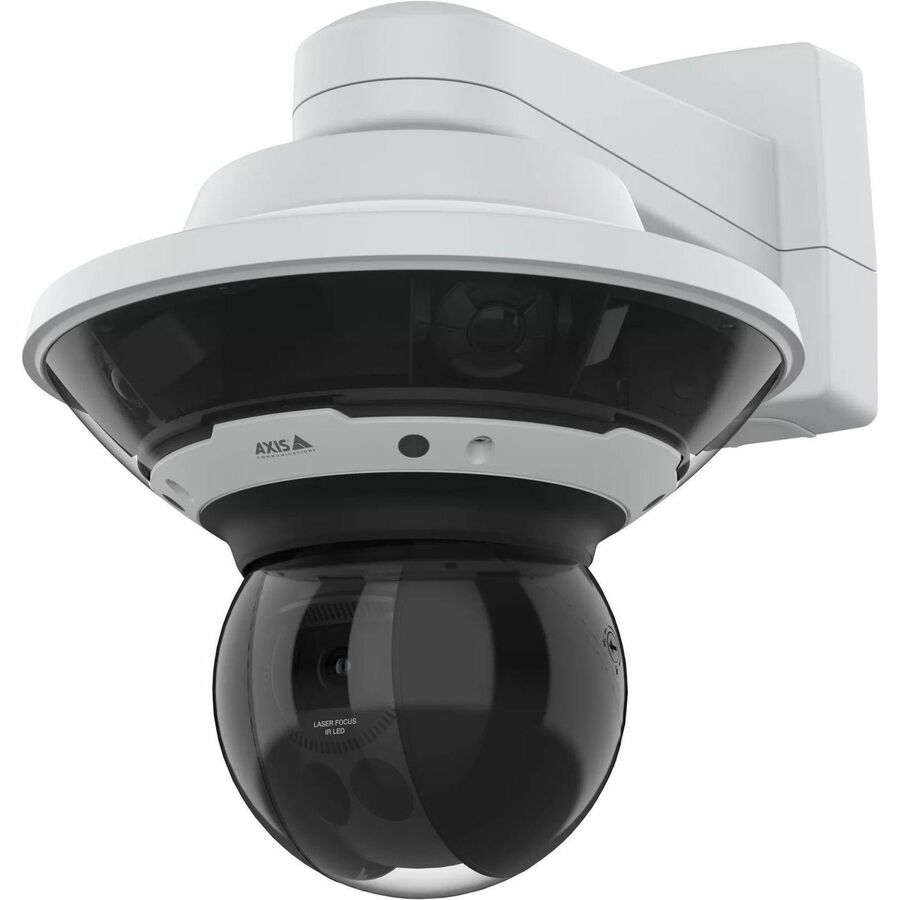

AXIS Q6300-E 5 Megapixel Indoor/Outdoor Network Camera - Color - Dome - White - TAA Compliant

Overview

Tech Specs

Specifications

Manufacturer	Axis Communications
Manufacturer Part Number	02943-001
Manufacturer Website Address	http://www.axis.com
Brand Name	AXIS
Product Series	Q63
Product Model	Q6300-E
Product Name	Q6300-E Panoramic Camera
Marketing Information	This multidirectional camera offers 4x5 MP with four ½" sensors. Designed for operation with AXIS Q61/Q63/P56 PTZ Series, you can move from overview to zoomed-in details in one click. Directional audio detection redirects the PTZ camera to the audio source whenever an audio incident is detected. A deep learning processing unit lets you run advanced features and powerful analytics at the edge. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Furthermore, a USB port allows installers to insert a Wi-Fi dongle and quickly see the camera view as they adjust it. 360° camera with 4 x 5 MP sensors Current AXIS Q61/Q63/P56-E PTZ Camera recommended Easy installation with support for Wi-Fi dongle Directional audio detection Built-in cybersecurity with Axis Edge Vault
Product Type	Network Camera

Technical Information

HD Recording	Yes
Night Vision Type	Infrared
Camera Iris	Fixed
AI-powered	Yes
Infrared (IR) Cut-off Filter	Yes
Languages Support	English German French Spanish Italian Russian Simplified Chinese Japanese Korean Portuguese Polish Traditional Chinese Dutch Czech Swedish Finnish Turkish Thai Vietnamese
Wide Dynamic Range Detail	120 dB

Display & Graphics

Image Sensor Type	RGB CMOS
Image Sensor Size	1/2"
Color Supported	Color
Field of View	Horizontal field of view: 360°, 108.4° for each sensor Vertical field of view: 84°
Effective Camera Resolution	5 Megapixel
Number of Sensors	4

Video

Video Formats	H.264B (MPEG-4 Part 10/AVC) H.264M (MPEG-4 Part 10/AVC) H.264H (MPEG-4 Part 10/AVC) H.265 (MPEG-H Part 2/HEVC) Motion JPEG Zipstream H.265 H.264
Maximum Video Resolution	2592 x 1944
Maximum Frame Rate	30 fps

Audio

Audio Support

Yes

Lens

Lens Type	Fixed
Maximum Focal Length	3.70 mm
Lens Included	Yes
Lens Mount Type	M14
Maximum Aperture	f/2.0

Exposure

Shortest Shutter Speed	1/66500 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Gigabit Ethernet
Protocols	IPv4 IPv6 USGv6 ICMPv4/ICMPv6 HTTP HTTPS HTTP/2 TLS FTP SFTP CIFS/SMB SMTP mDNS (Bonjour) UPnP SNMP (v1/v2/v3) SNMP (MIB-2) DNS/DNSv6 DDNS NTP NTS RTSP RTP SRTP/RTSPS TCP UDP IGMPv1/v2/v3 RTCP ICMP DHCPv4/v6 ARP SSH LLDP CDP MQTT v3.1.1 UDP/TCP/TLS ZeroConf
Remote Management	Yes

Storage

Storage Type	Memory Card
Internal Memory	8 GB

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Maximum Power Consumption	103.40 W
Power Source Type	PoE

Physical Characteristics

Form Factor	Dome
Color Family	White
Product Color	White
Product Material	Polycarbonate Aluminum
Weight (Approximate)	8.82 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	122°F (50°C)
Minimum Storage Temperature	-40°F (-40°C)
Maximum Storage Temperature	149°F (65°C)
Minimum Operating Humidity (Condensing)	10%
Maximum Operating Humidity (Condensing)	100%
Minimum Storage Humidity (Non-condensing)	5%
Maximum Storage Humidity (Non-condensing)	95%

Miscellaneous

Features	Back Light Compensation (BLC) Highlight Compensation (HLC) 3D Digital Noise Reduction 2D Digital Noise Reduction (2DNR) Wide Dynamic Range Audio Compression Human Detection Face Detection Vehicle Detection Active Tampering Alarm
Indoor/Outdoor	Indoor/Outdoor
Package Contents	Q6300-E Panoramic Camera Adapter bracket installation guide Owner authentication key
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

5 Year
