SWITCH - EKI-7712G-4FPI - WIRED - 1GBPS - GIGABIT ETHERNET - 8 X 10/100/1000BASE

Name: SWITCH - EKI-7712G-4FPI - WIRED - 1GBPS - GIGABIT ETHERNET - 8 X 10/100/1000BASE
Brand: B+B SMARTWORX
SKU: 5140BF
Price: 1445.33 USD
Availability: InStock

B+B SMARTWORX

PCN#

5140BF

MFG#

EKI-7712G-4FPI-AE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,445.33

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
2 Layer Supported
Modular
4 SFP Slots
Twisted Pair, Optical Fiber
DIN Rail Mountable, Wall Mountable
5 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 2 lbs.

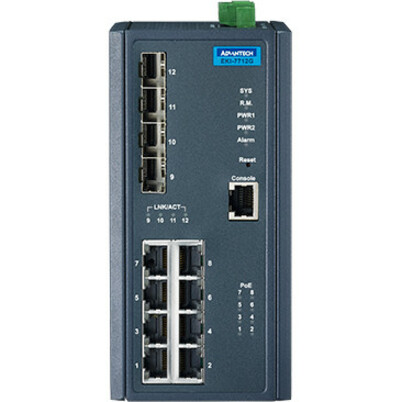

Advantech 8GE + 4SFP Port Managed PoE Ethernet Switch w/Wide Temp

Overview

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	EKI-7712G-4FPI-AE
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Model	EKI-7712G
Product Name	8GE + 4SFP Port Managed PoE Ethernet Switch w/Wide Temp
Marketing Information	EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Uplink Port	No
Modular	Yes
Stack Port	No
Port/Expansion Slot Details	8 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X

I/O Expansions

Expansion Slot Type	SFP
Number of SFP Slots	4

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Physical Characteristics

Form Factor	DIN Rail Mountable Wall Mountable
Height	6"
Width	2.9"
Depth	4.1"
Weight (Approximate)	2.43 lb

Miscellaneous

Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
