IMC-390-SE-PS.

Name: IMC-390-SE-PS.
Brand: B+B SMARTWORX
SKU: 5728BF
Price: 385.33 USD
Availability: InStock

B+B SMARTWORX

PCN#

5728BF

MFG#

IMC-390-SE-PS

$385.33

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

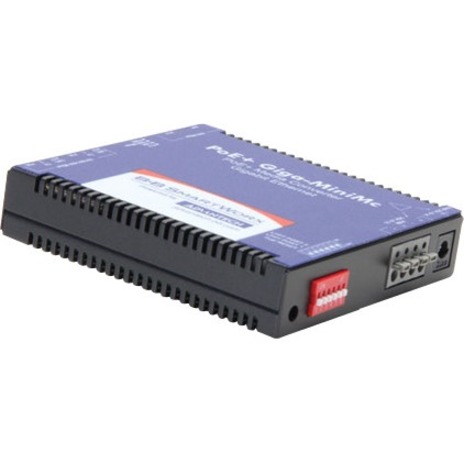

Advantech 10/100/1000Mbps PoE & PoE+ Media Converter

Tech Specs

Specifications

Manufacturer	Advantech Co., Ltd
Manufacturer Part Number	IMC-390-SE-PS
Manufacturer Website Address	http://www.advantech.com
Brand Name	Advantech
Product Series	IMC-390
Product Name	10/100/1000Mbps PoE & PoE+ Media Converter
Marketing Information	The IMC-380 and IMC-390 series are compact, multi-port media converters that support both IEEE802.3at and IEEE802.3af PoE standards. These unmanaged, plug-n-play media converters with PoE capability are thus ideal solutions for Ethernet networks. Designed with two 10/100/1000Base-T copper UTP ports and SFP or a fixed fiber transceiver, 1x9 uplink port for the network connection, the IMC-380 series can power one PD device through a standard CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series is capable of powering up to two PD devices with a power budget of 60W. The IMC-380 and IMC-390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC network media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Data Transfer Rate	1000 Mbit/s
Maximum Distance Supported	40 km

Network & Communication

Ethernet Technology	Ethernet
Network Technology	10/100/1000Base-T

Power Description

Power Source	AC Adapter
Frequency	60 Hz 50 Hz

Physical Characteristics

Form Factor	Desktop Wall Mountable DIN Rail Mountable
Height	0.8"
Width	3.6"
Depth	3.8"
Weight (Approximate)	15.87 oz

Miscellaneous

Application/Usage
