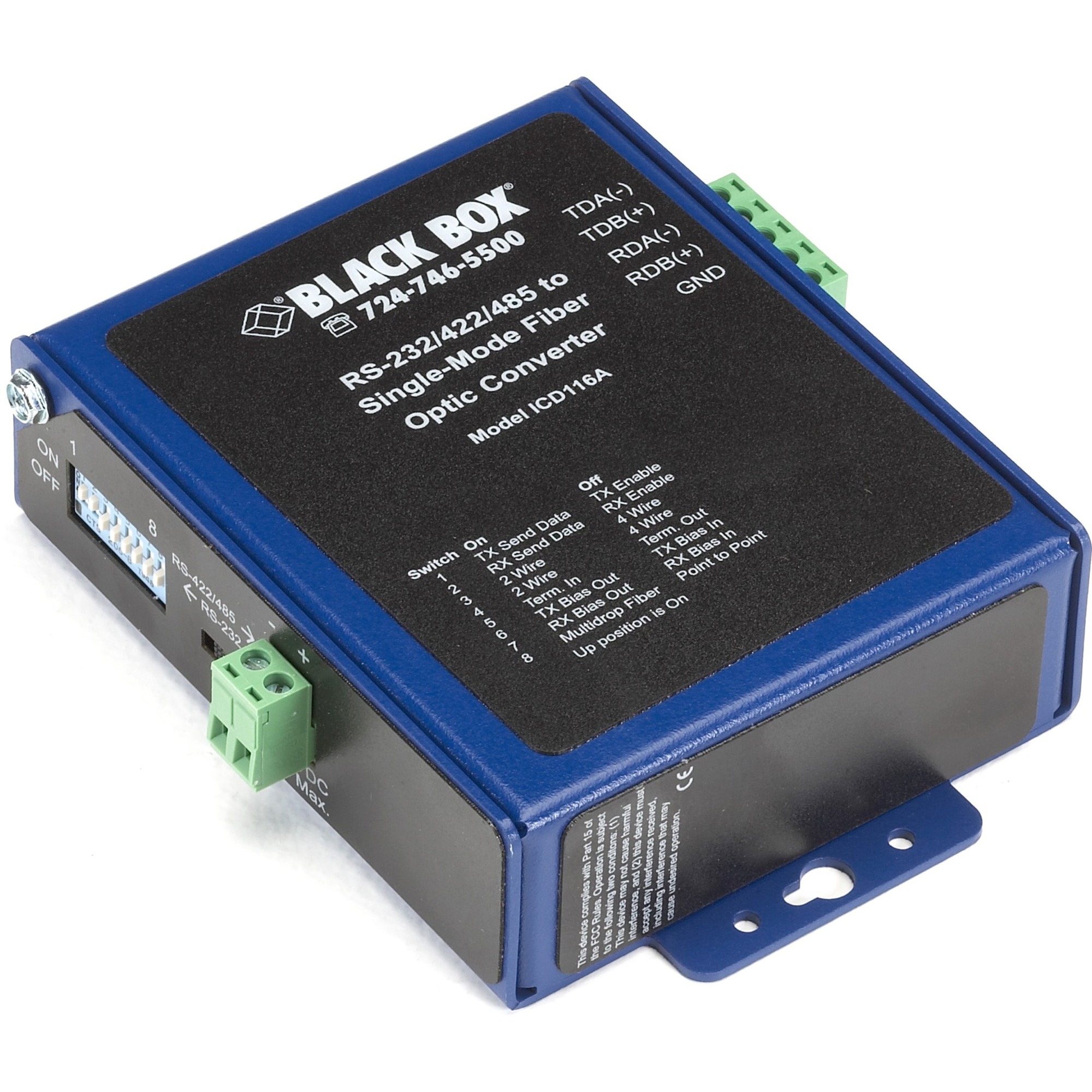

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter

Name: Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Brand: BLACK BOX
SKU: 6666BF
Price: 639.5 USD
Availability: OutOfStock

BLACK BOX

PCN#

6666BF

MFG#

ICD116A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

1 x SC Ports
15 km
Rail
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter

Overview

Tech Specs

Specifications

Manufacturer	Black Box Corporation
Manufacturer Part Number	ICD116A
Manufacturer Website Address	http://www.blackbox.com
Brand Name	Black Box
Product Name	Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Marketing Information	Meets stringent IEC and IEEE specs. Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications. Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	No
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of SC Ports	1

Media & Performance

Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Maximum Distance Supported	15 km

Physical Characteristics

Form Factor	Rail-mountable
Height	1.3"
Width	3.7"
Depth	5.2"
Weight (Approximate)	8 oz

Miscellaneous

Additional Information	Power supply not included. Must be ordered separately.
Certifications & Standards	CE
Environmentally Friendly	Yes
Country of Origin	United States
TAA Compliant	Yes

Warranty

Limited Warranty

5 Year
