DCN MULTIMEDIA POWERING SWITCH

The Powering Switch is used in combination with an Audio Powering Switch to supply extra power to the DICENTIS network. The built-in Ethernet switch connects all devices in the system together in a network and supports loop-through connection, which makes it possible to connect the DICENTIS device to another DICENTIS device; even the last DICENTIS device in the loop can be connected to an (audio) powering switch to create cable redundancy. The powering switch has no user controls and can be fully controlled remotely.

Controls and Indicators

• Mains switch on the rear to power on the powering switch.

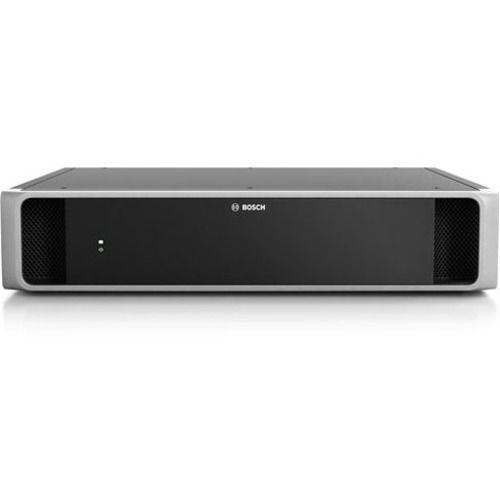

• Led on the front to show: green (power on), amber (standby), blinking (no connection to the system).
• Led on the rear to show: green (power availability on each powered socket), red (overload per powered socket).
• Ethernet led's yellow and amber for each socket.
• Independent powered sockets; a short circuit on one socket does no influence the other sockets.
• Supports hot plug and play

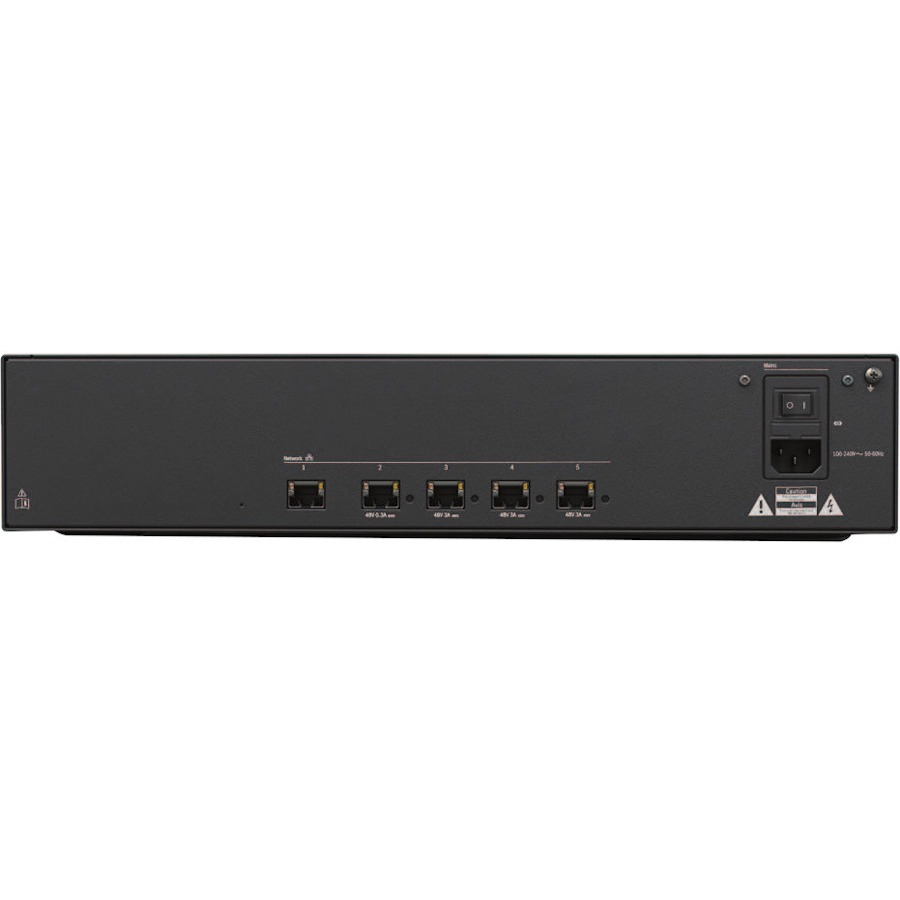

Interconnections

• Mains power supply auto ranging input.
• 1 socket with Ethernet without power, compatible with RJ45
• 3 sockets with Ethernet with high power supply (144 W), compatible with RJ45.
• 1 socket with Ethernet with low power supply (15 W), compatible with RJ45.

• 120 V AC
• 230 V AC

• Rack-mountable
• Tabletop
