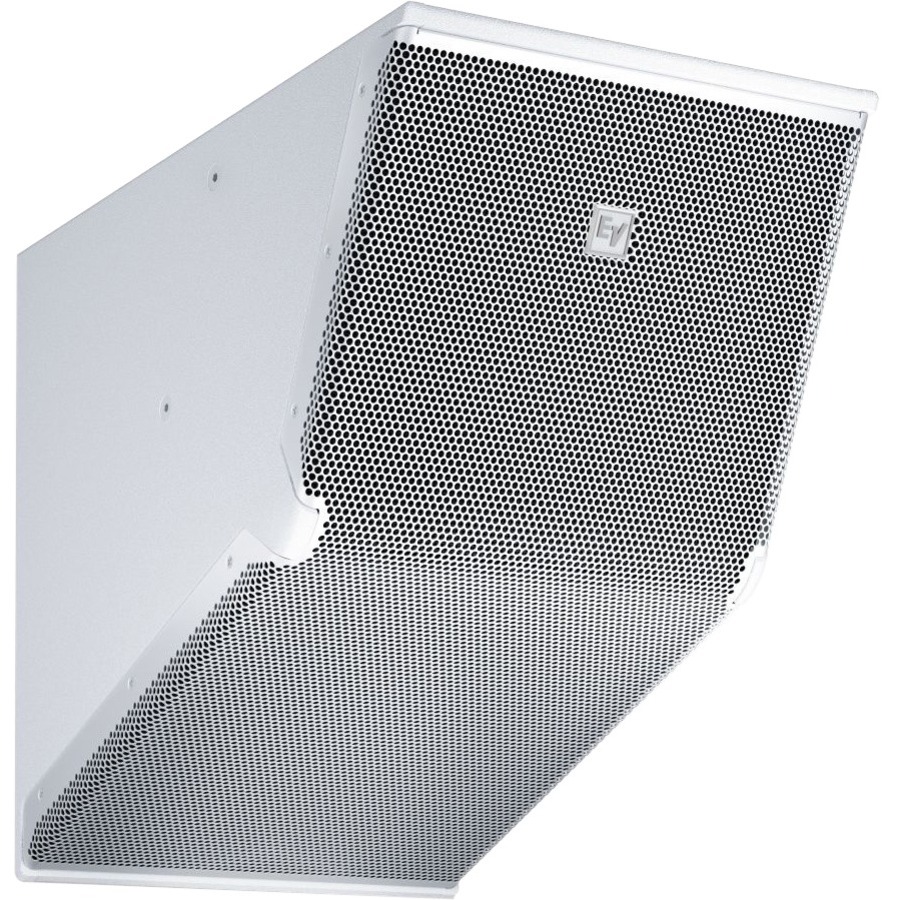

12INCH SPEAKER, VARI-INTENSE INDOOR

Name: 12INCH SPEAKER, VARI-INTENSE INDOOR
Brand: BOSCH COMMUNICATION
SKU: 8866BF
Price: 1476.31 USD
Availability: InStock

BOSCH COMMUNICATION

PCN#

8866BF

MFG#

EVC-1122-VIW

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,476.31

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

1200 W (PMPO)
12"
1.25" Titanium Tweeter
70 Hz to 20 kHz
8 Ohm

Product Condition: New and Factory Fresh

Shipping Weight: 50 lbs.

Electro-Voice EVC-1122-VI 2-way Indoor Wall Mountable, Ceiling Mountable Speaker - 300 W RMS - White

Overview

Tech Specs

Specifications

Manufacturer	The Bosch Group
Manufacturer Part Number	EVC-1122-VIW
Manufacturer Website Address	http://www.bosch.com
Brand Name	Electro-Voice
Product Series	EVC
Product Model	EVC-1122-VI
Product Name	EVC-1122-VI 12" Speaker, Vari-intense Indoor

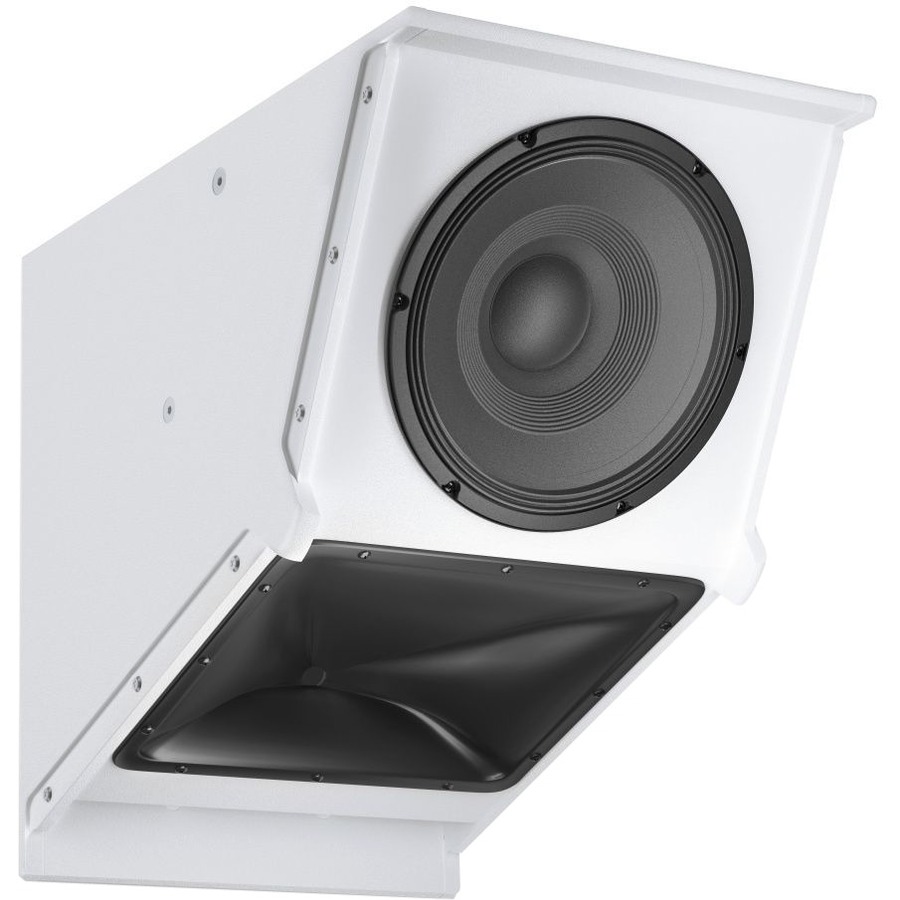

Marketing Information	12-inch two-way loudspeaker with asymmetrical horn uniformly covers a defined rectangular area Power rating: 300 W Continuous, (1200 W Peak) Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end in 70V/100V lines EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EVInnovation models (EVF, EVH, EVA). The EVC-1122/VI is a unique offering that is constructed in a variableintensity (VI) configuration. In a variable intensity loudspeaker, the downward angle of the front-facing woofer and the asymmetrical wave guide work together to evenly cover a clearly defined, rectangular audience area with a single loudspeaker system. The size of the coverage area is determined by the mounting height and the vertical mounting angle of the loudspeaker. The advantage of the VI approach is that there is reduced variation in sound level from the front to the back of the audience, compared to typical point source solutions. In most situations, the change is so gradual that the sound level will seem almost constant as you walk the coverage pattern. The EVC-1122/VI delivers clear, articulate speech reproduction but, in addition, is an excellent choice for foreground music applications. It can be used as a stand-alone full-range system, or as the mid-bass/high-frequency box in multi-way loudspeaker systems when used with the complementary EVC-1181S 18" subwoofer. The high frequency section of the EVC 1122/VI loudspeaker comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a compound waveguide that combines long-throw and short-throw behavior in a single acoustical device. This unique waveguide creates uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer-aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a fourth-order Linkwitz Riley design with slopes of 24 dB per octave for smooth off-axis response and improved definition through the critical vocal range.
Product Type	Speaker

Technical Information

Crossover Type	2-way
RMS Output Power	300 W
PMPO Output Power	1200 W
Woofer Driver Size	12"
Tweeter Driver Size	1.25"
Tweeter Driver Material	Titanium
Minimum Frequency Response	70 Hz
Maximum Frequency Response	20 kHz
Impedance	8 Ohm
Sensitivity	95 dB

Physical Characteristics

Color Family	White
Product Color	White
Form Factor	Wall Mountable Ceiling Mountable
Durability	Weather Resistant
Speaker Installation	Indoor
Height	20.8"
Width	16.2"
Depth	25.51"
Weight (Approximate)	48.06 lb
