EVU-1082/95 ULTRACOMPACT 2WAY W/SINGLE 8IN WOOFER, WHITE

Name: EVU-1082/95 ULTRACOMPACT 2WAY W/SINGLE 8IN WOOFER, WHITE
Brand: BOSCH COMMUNICATION
SKU: 8156BF
Price: 728.24 USD
Availability: InStock

BOSCH COMMUNICATION

PCN#

8156BF

MFG#

EVU-1082/95-WHT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$728.24

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

700 W (PMPO)
8"
1.30" Titanium Tweeter
65 Hz to 20 kHz
8 Ohm

Product Condition: New and Factory Fresh

Shipping Weight: 25 lbs.

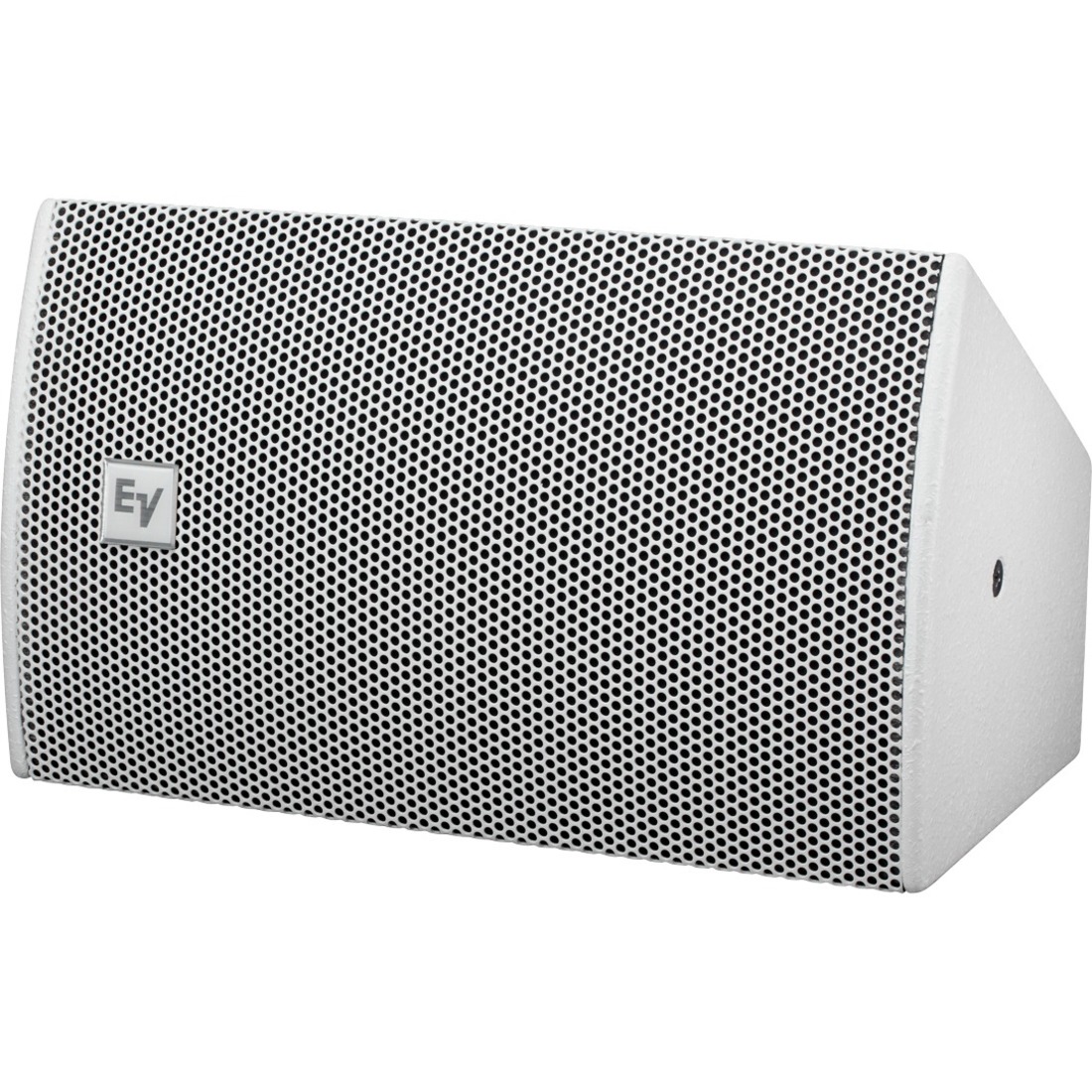

Electro-Voice 2-way Ceiling Mountable, Wall Mountable Speaker - 175 W RMS - White

Overview

Tech Specs

Specifications

Manufacturer	The Bosch Group
Manufacturer Part Number	EVU-1082/95-WHT
Manufacturer Website Address	http://www.bosch.com
Brand Name	Electro-Voice
Product Series	EVU
Product Name	EVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
Marketing Information	General Description: The Electro-Voice EVU-1082/95 is a compact two-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall, stage lip and under balcony applications. The EVU-1082/95 incorporates the ICT-1-8, a high-output 1.3" diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-8-8 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability. The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint, available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed). Additional mounting points are located on the rear of the enclosure for use with an Omnimount™ type bracket. An available 70.7/100-V transformer kit may be easily mounted over the input panel for use in distributed systems. All of these features give you the flexibility to address a large range of venues, while quickly and precisely supporting customer requirements.
Product Type	Speaker

Technical Information

Crossover Type	2-way
RMS Output Power	175 W
PMPO Output Power	700 W
Woofer Driver Size	8"
Tweeter Driver Size	1.30"
Tweeter Driver Material	Titanium
Minimum Frequency Response	65 Hz
Maximum Frequency Response	20 kHz
Impedance	8 Ohm
Sensitivity	123 dB

Physical Characteristics

Product Color	White
Form Factor	Ceiling Mountable Wall Mountable
Woofer Diameter	8"
Height	9.7"
Width	16.1"
Depth	9.34"
Weight (Approximate)	16.30 lb

Miscellaneous

Package Contents

EVU-1082/95 Single 8" Two-Way 90° x 50° Full-Range Loudspeaker System
Universal U-bracket
