HANDHELD CONDENSER MICROPHONE (WITH 3-PIN, MALE AND FEMALE XLR CONNECTORS)

Name: HANDHELD CONDENSER MICROPHONE (WITH 3-PIN, MALE AND FEMALE XLR CONNECTORS)
Brand: BOSCH COMMUNICATION
SKU: 8224BF
Price: 232.89 USD
Availability: InStock

BOSCH COMMUNICATION

PCN#

8224BF

MFG#

LBB9600/20

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$232.89

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

22.97 ft
100 Hz to 16 kHz
200 Ohm
3 dB
Uni
directional
Handheld
XLR

Product Condition: New and Factory Fresh

Shipping Weight: 3 lbs.

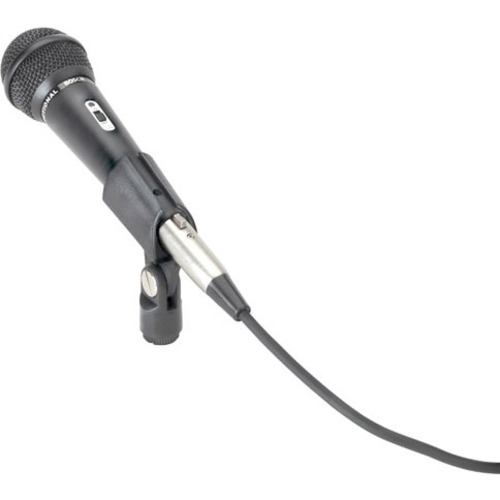

Bosch LBB 9600/20 Rugged Wired Condenser Microphone - Black

Overview

Tech Specs

Specifications

Manufacturer	The Bosch Group
Manufacturer Part Number	LBB9600/20
Manufacturer Website Address	http://www.bosch.com
Brand Name	Bosch
Product Series	LBB
Product Model	LBB 9600/20
Product Name	LBB 9600/20 Condenser Handheld Microphone
Marketing Information	This condenser microphone is based on an electric transducer element in a sturdy housing with shielding against wind and wind bursts (pops). It is intended for public address and sound reinforcement applications, such as in churches, theaters, and conference centers. Functions The handheld LBB 9600/20 is an excellent microphone with almost frequency independent, unidirectional directivity. Its low equivalent input noise level and insensitivity to stray electrostatic and electromagnetic fields keep the audio signal free from spurious noise.
Packaged Quantity	1
Product Type	Microphone

Technical Information

Connectivity Technology	Wired
Cable Length	22.97 ft
Minimum Frequency Response	100 Hz
Maximum Frequency Response	16 kHz
Impedance	200 Ohm
Phantom Power	Yes

Microphone

Microphone Technology	Condenser
Polar Pattern	Uni-directional
Microphone Type	Handheld
Microphone Sensitivity	-3 dB

Controls/Indicators

Microphone Controls

On/Off

Interfaces/Ports

Host Interface

XLR

Physical Characteristics

Product Color	Black
Rugged	Yes
Length	6.7"
Diameter	2.1"
Weight (Approximate)	8.64 oz

Miscellaneous

Package Contents	LBB 9600/20 Condenser Handheld Microphone Push-on Clip with a Whitworth-Threaded Screw Fitting Multi-Thread Adaptor (3/8" , 1/2" , and 5/8") 7 m (23 ft) Connection Cable
Additional Information	Phantom power supply Voltage range x 11 V to 52 V (acc. to DIN 45596 and IEC 268-15A) Current consumption x <1.5 mA Sensitivity x 2 mV/Pa +/--1 dB (-54 dB rel. to 1 V/Pa) Equivalent input noise level x 26 dB (A) Switch x On/off slide Cable type x 2-core screened Operating temperature x -20 °C to +55 °C (-4 °F to +131 °F) Storage and transport temperature x -40 °C to +70 °C (-40 °F to +158 °F) Relative humidity x <95%
Certifications & Standards	CE
