20 WATT PENDANT SPHERE LOUDSPEAKER, EVAC COMPLIANT

by
BOSCH COMMUNICATION
PCN#
7981BF
MFG#
LS1-UC20E-1-US
$171.23
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 30 W (PMPO) Woofer Tweeter Midrange
  • 80 Hz to 20 kHz
  • 500 Ohm
Product Condition: New and Factory Fresh
Shipping Weight: 9 lbs.
Bosch LS1-UC20E-1 Ceiling Mountable Speaker - 20 W RMS - White
Tech Specs
Specifications

Manufacturer

The Bosch Group

Manufacturer Part Number

LS1-UC20E-1-US

Manufacturer Website Address

http://www.bosch.com

Brand Name

Bosch

Product Model

LS1-UC20E-1

Product Name

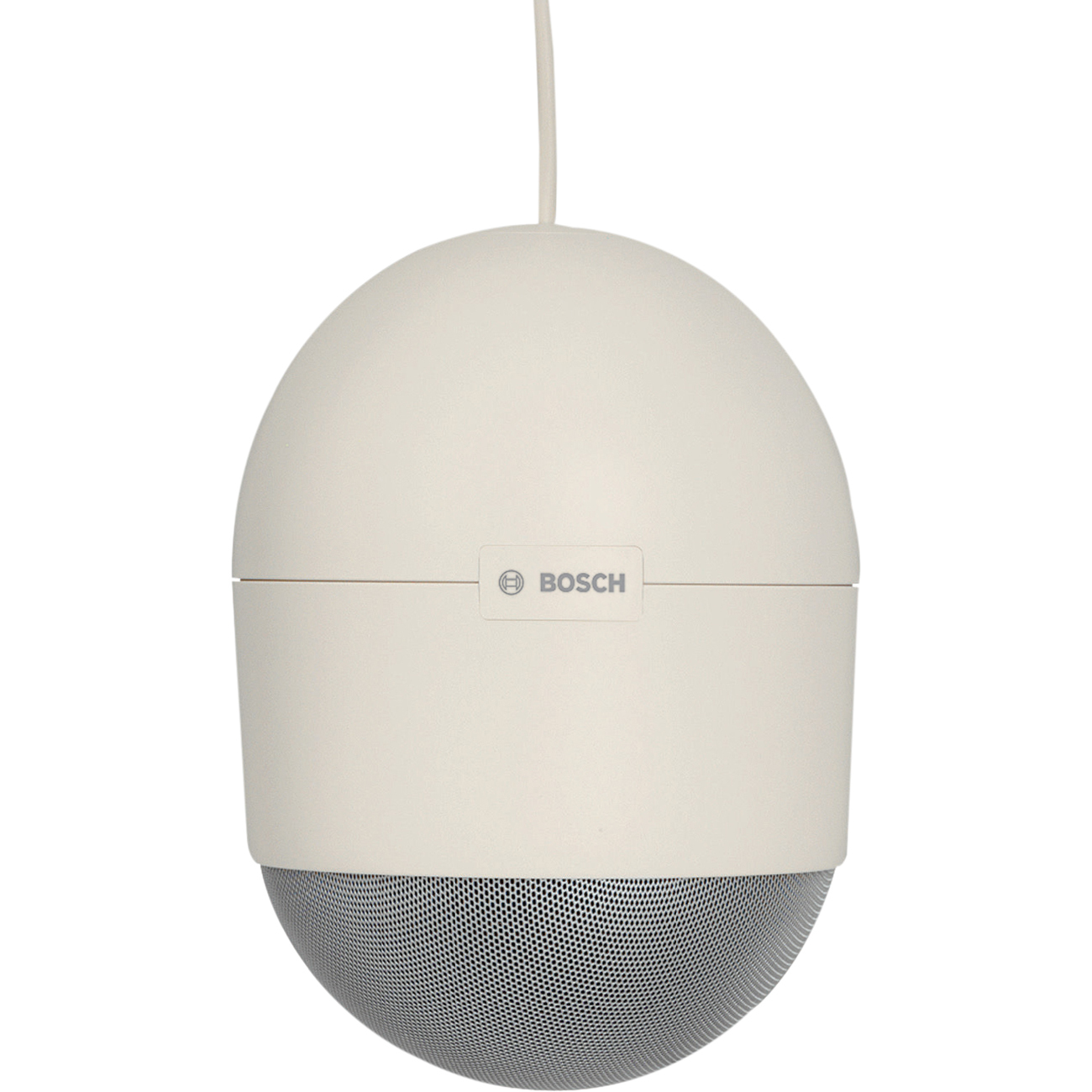

LS1-UC20E-1 Pendant Sphere Loudspeaker

Marketing Information

Sound spheres are pendant sound projectors designed to be suspended from the ceiling by their connecting cables. Their excellent sound spread makes them ideal for use in buildings with high ceilings, such as hypermarkets and superstores.

The LS1-UC20E-1 is a powerful 20 W pendant sphere loudspeaker, intended for high quality speech and music reproduction. The state-of-the-art design is matched to both modern and traditional style environments. The loudspeaker is suitable for use in voice evacuation systems.

Product Type

Speaker
Technical Information

RMS Output Power

20 W

PMPO Output Power

30 W

Minimum Frequency Response

80 Hz

Maximum Frequency Response

20 kHz

Impedance

500 Ohm

Sound Pressure Level

99 dB
Physical Characteristics

Color Family

White

Product Color

White

Product Material

  • Acrylonitrile Butadiene Styrene (ABS)
  • Steel

Form Factor

Ceiling Mountable

Diameter

7.3"

Weight (Approximate)

6.61 lb
Miscellaneous

Package Contents

  • LS1-UC20E-1 Pendant Sphere Loudspeaker
  • 1 x Cable Clamp
  • Terminal Block
  • Thermal Fuse

Certifications & Standards

  • IEC 60268-5
  • EN 54-24:2008
  • CE
  • EN 54-24
  • BS 5839-8
  • EN 60849
  • EN 60065
  • IEC 268-5
  • IP 65
  • UL 94 V 0
