BODYPACK SET, HEADWORN MIC 488-524 MHZ

by
BOSCH COMMUNICATION
PCN#
8704BF
MFG#
RE3-BPHW-5L
$615.75
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 488 MHz to 524 MHz Operating Frequency
  • 51 Hz to 16 kHz Frequency Response
Product Condition: New and Factory Fresh
Shipping Weight: 6 lbs.
Electro-Voice RE3-BPHL-5L Wireless Microphone System
Tech Specs
Specifications

Manufacturer

The Bosch Group

Manufacturer Part Number

RE3-BPHW-5L

Manufacturer Website Address

http://www.bosch.com

Brand Name

Electro-Voice

Product Model

RE3-BPHW-5L

Product Name

RE3-BPHL-5L Wireless Microphone System

Marketing Information

UHF wireless set containing the HW3 supercardioid headworn microphone

Bodypack UHF wireless set containing the HW3 supercardioid headworn microphone voice performance, presentations, and athletic instruction. The HW3's sound is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

Product Type

Wireless Microphone System
Technical Information

Minimum Operating Frequency

488 MHz

Maximum Operating Frequency

524 MHz

Minimum Frequency Response

51 Hz

Maximum Frequency Response

16 kHz

Polar Pattern

Sub-cardioid
Interfaces/Ports

XLR

Yes

6.35mm (?1/4")

Yes
Battery Information

Number of Batteries Supported

2

Battery Size Supported

AA
Physical Characteristics

Weight (Approximate)

  • 2.71 lb
  • 6.14 oz
  • 1.35 oz
Miscellaneous

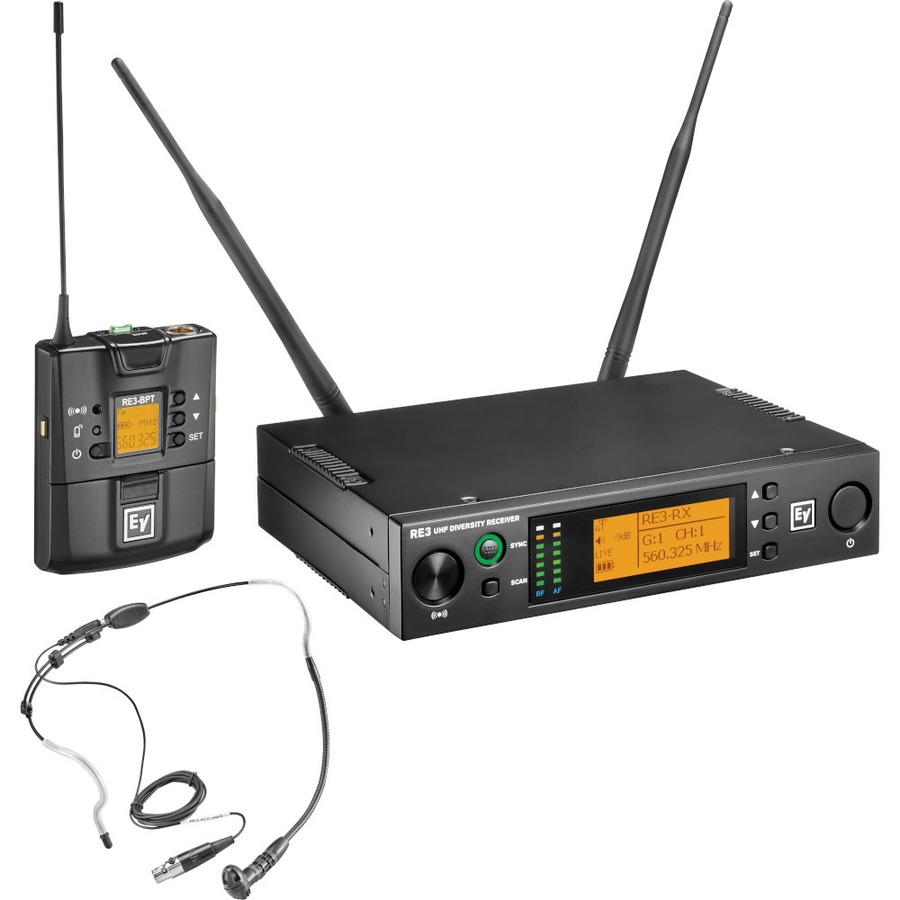

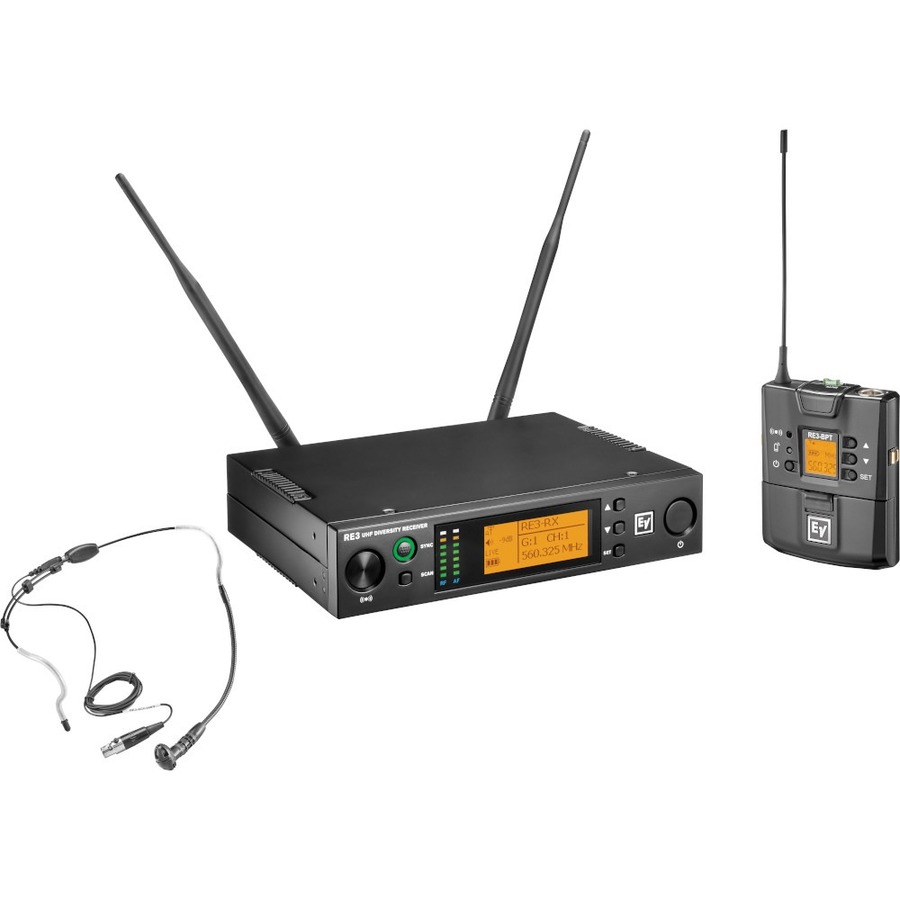

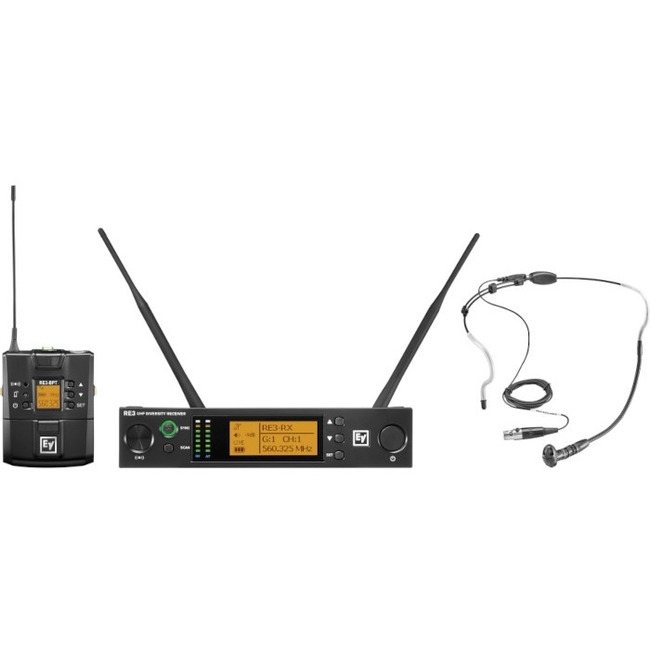

Package Contents

  • HW3 Supercardioid Headworn Microphone
  • RE3-BPT Bodypack Transmitter
  • RE3-RX Diversity Receiver

Additional Information

Receiver:

  • Housing Metal
  • Dimensions 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

Transmitter:

  • Housing Metal
  • Dimensions 2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas)

Microphone:

  • Color Black
  • Construction Material Silicone, Stainless Steel, Steel
  • Dimensions L: 5.83" / L: 14.81 cm (Boom)
