HANDHELD SET WITH ND86 HEAD 560-596 MHZ

by
BOSCH COMMUNICATION
PCN#
8719BF
MFG#
RE3-ND86-5H
$565.19
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 560 MHz to 596 MHz Operating Frequency
  • 51 Hz to 16 kHz Frequency Response
Product Condition: New and Factory Fresh
Shipping Weight: 7 lbs.

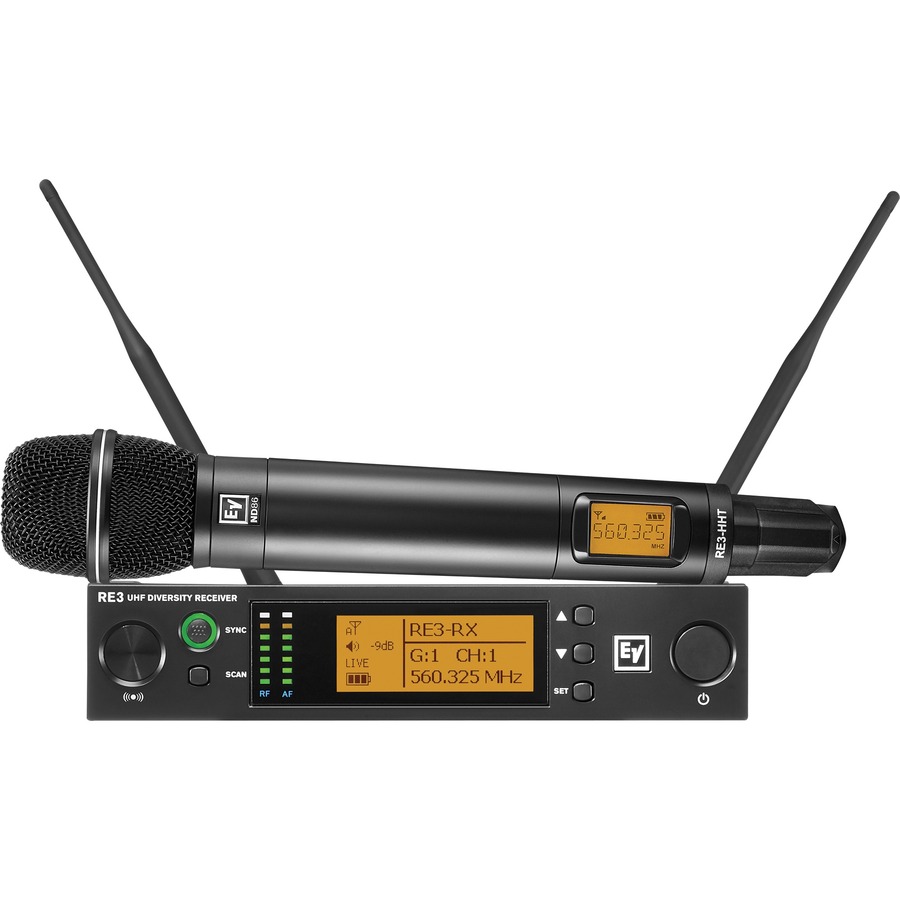

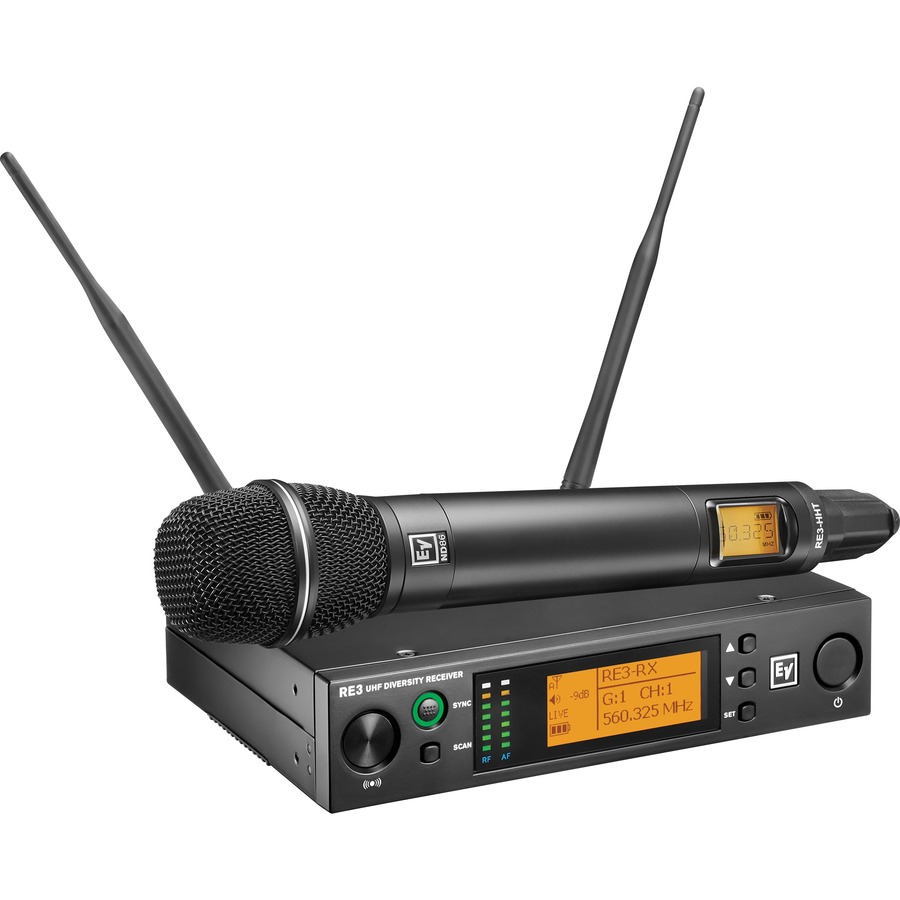

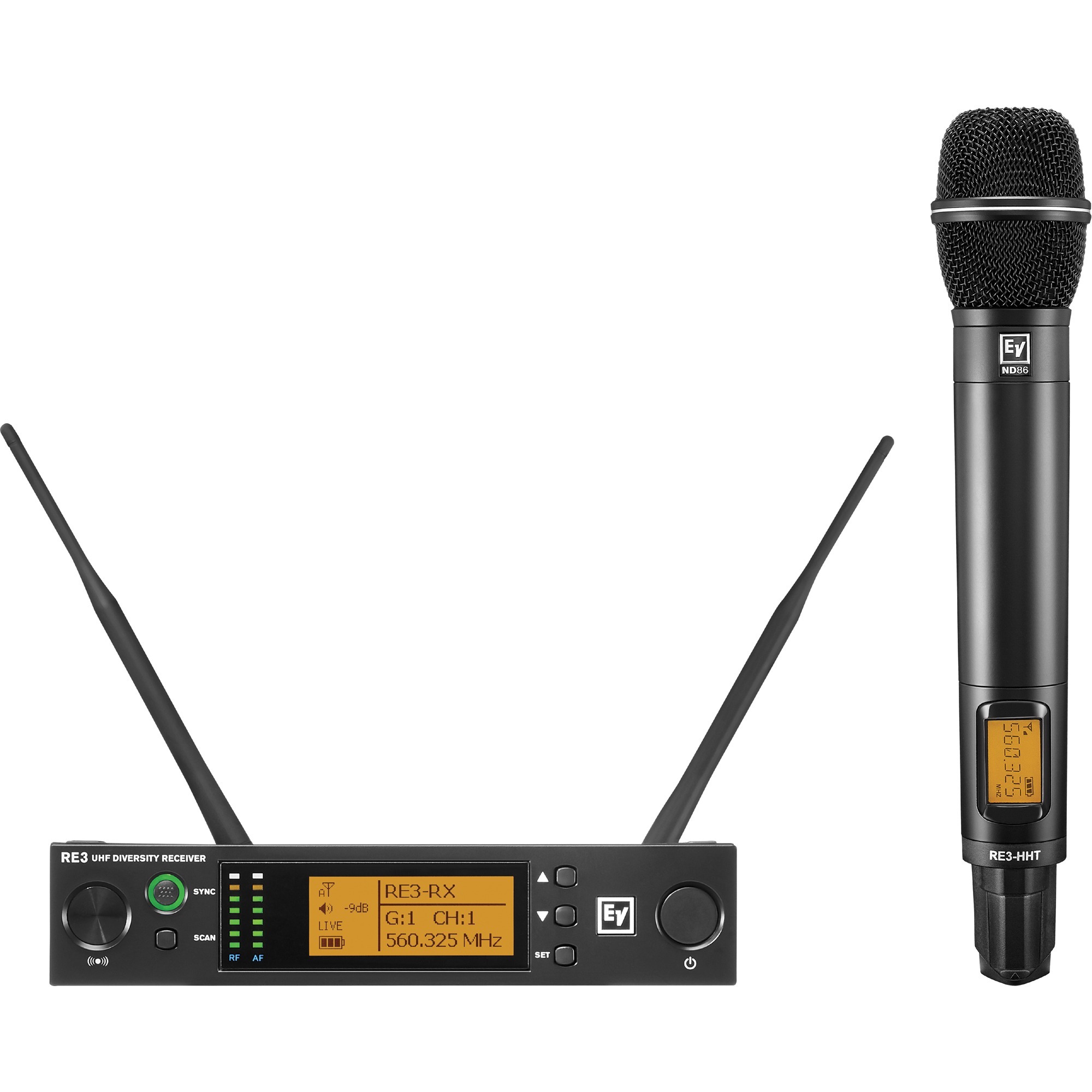

Electro-Voice RE3-ND86-5H Wireless Microphone System
Tech Specs
Specifications

Manufacturer

The Bosch Group

Manufacturer Part Number

RE3-ND86-5H

Manufacturer Website Address

http://www.bosch.com

Brand Name

Electro-Voice

Product Model

RE3-ND86-5H

Product Name

RE3-ND86-5H Wireless Microphone System

Marketing Information

UHF wireless set featuring ND86 dynamic supercardioid microphone

Handheld UHF wireless set featuring ND86 dynamic supercardioid microphone head for vocal performance and presentations. The ND86's sound is present, smooth, and detailed, and its supercardioid polar pattern provides excellent acoustic control in even the largest of venues.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Product Type

Wireless Microphone System
Technical Information

Minimum Operating Frequency

560 MHz

Maximum Operating Frequency

596 MHz

Minimum Frequency Response

51 Hz

Maximum Frequency Response

16 kHz

Signal to Noise Ratio (SNR A-Weighted)

100 dB(A)

Polar Pattern

Super-cardioid

Microphone Technology

Dynamic
Interfaces/Ports

XLR

Yes

6.35mm (?1/4")

Yes
Battery Information

Number of Batteries Supported

2

Battery Size Supported

AA

Battery Chemistry

  • Alkaline
  • Nickel Metal Hydride (NiMH)

Battery Run Time

8 Hour
Miscellaneous

Package Contents

  • ND86-RC3 Wireless Head with ND86 Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2 x Receiver Antennas
  • Universal Power Supply
  • 2 x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Declaration of Conformity

Additional Information

Receiver:
  • Housing Metal
  • Dimensions 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

Transmitter:

  • Housing Metal
  • Dimensions 1.5 x 7.5" / 3.8 x 19.1 cm
  • Weight 12.2 oz / 345.9 g (without Capsule)
Microphone:
  • Length 3.6" / 9.14 cm
  • Diameter 2.0" / 50.80 mm
