HANDHELD SET WITH RE420 HEAD 653-663 MHZ

by
BOSCH COMMUNICATION
PCN#
8712BF
MFG#
RE3-RE420-6M
$761.38
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 653 MHz to 663 MHz Operating Frequency
  • 51 Hz to 16 kHz Frequency Response
Product Condition: New and Factory Fresh
Shipping Weight: 7 lbs.

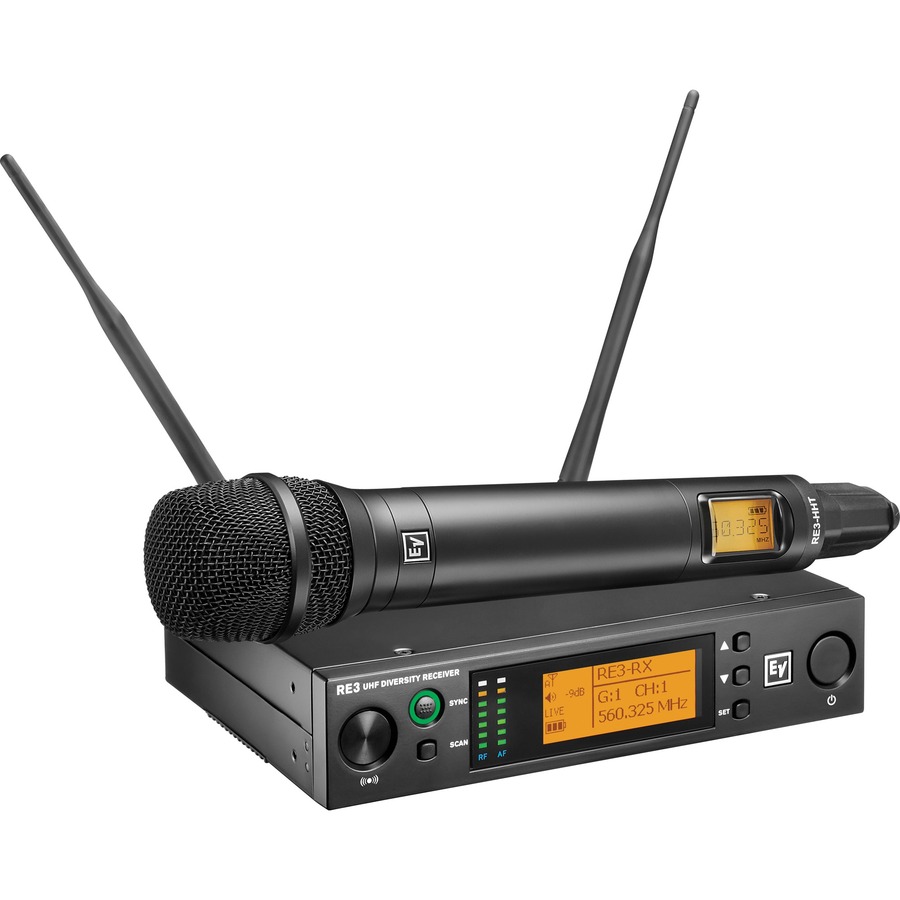

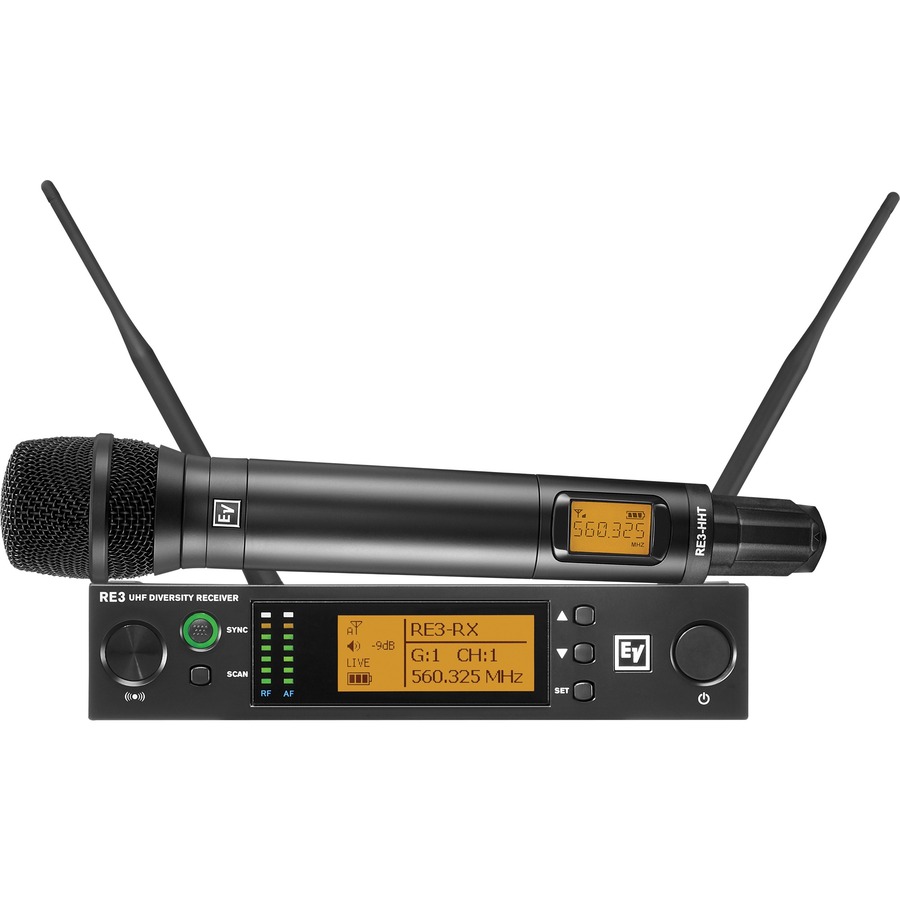

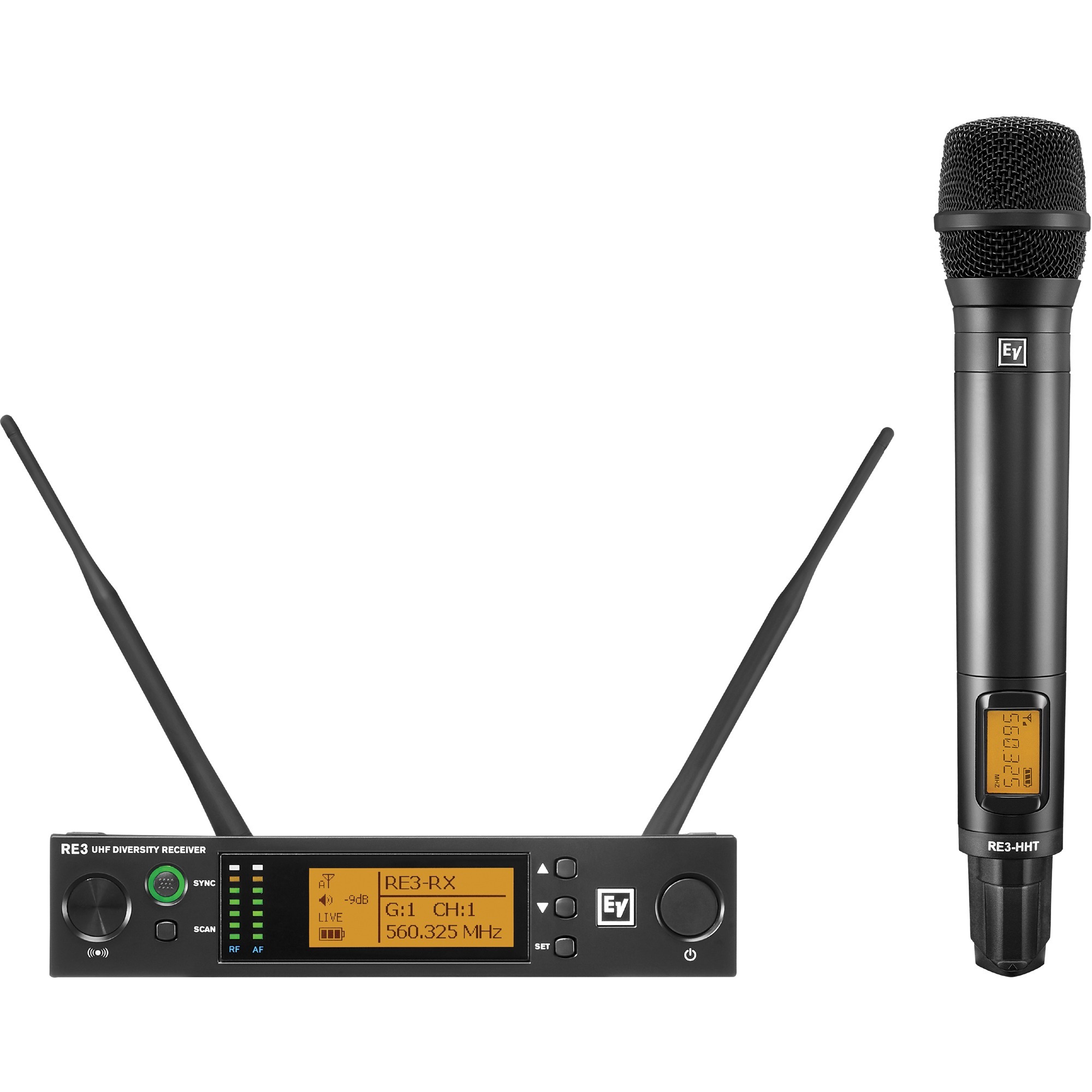

Electro-Voice RE3-RE420-6M Wireless Microphone System
Tech Specs
Specifications

Manufacturer

The Bosch Group

Manufacturer Part Number

RE3-RE420-6M

Manufacturer Website Address

http://www.bosch.com

Brand Name

Electro-Voice

Product Model

RE3-RE420-6M

Product Name

RE3-RE420-6M Wireless Microphone System

Marketing Information

UHF wireless set featuring RE420 condenser cardioid microphone

Handheld UHF wireless set featuring RE420 condenser cardioid microphone head for vocal performance and presentations. The RE420's sound is rich, detailed and full-bodied, with a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Product Type

Wireless Microphone System
Technical Information

Minimum Operating Frequency

653 MHz

Maximum Operating Frequency

663 MHz

Minimum Frequency Response

51 Hz

Maximum Frequency Response

16 kHz

Signal to Noise Ratio (SNR A-Weighted)

100 dB(A)

Polar Pattern

Cardioid

Microphone Technology

Condenser
Interfaces/Ports

XLR

Yes

6.35mm (?1/4")

Yes
Battery Information

Number of Batteries Supported

2

Battery Size Supported

AA

Battery Chemistry

  • Alkaline
  • Nickel Metal Hydride (NiMH)

Battery Run Time

8 Hour
Miscellaneous

Package Contents

  • RE420-RC3 Wireless Head with RE420 Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2 x Receiver Antennas
  • Universal Power Supply
  • 2 x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Declaration of Conformity

Additional Information

Receiver:
  • Housing Metal
  • Dimensions 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

Transmitter:

  • Housing Metal
  • Dimensions 1.4 x 7.5" / 3.6 x 19.1 cm
  • Weight 12.2 oz / 345.9 g (without Capsule)
Microphone:
  • Length 3.3" / 8.38 cm
  • Diameter 2.0" / 50.80 mm
