2 CH HEADSET STATION WITH LISTEN/CALL/TALK KEY, BALANCED/UNBALANCED OPERATION, H

Name: 2 CH HEADSET STATION WITH LISTEN/CALL/TALK KEY, BALANCED/UNBALANCED OPERATION, H
Brand: BOSCH COMMUNICATION
SKU: 8082BF
Price: 457.49 USD
Availability: InStock

BOSCH COMMUNICATION

PCN#

8082BF

MFG#

WM-2000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$457.49

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Cable
2 Channel(s)
Wall Mount

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

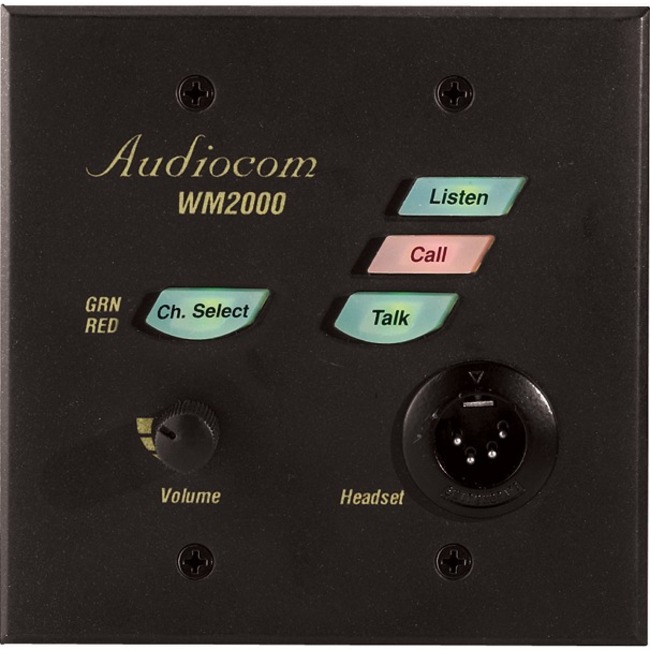

RTS WM-2000 Dual-Channel Wall Mount Intercom System

Overview

Tech Specs

Specifications

Manufacturer	The Bosch Group
Manufacturer Part Number	WM-2000
Manufacturer Website Address	http://www.bosch.com
Brand Name	RTS
Product Model	WM-2000
Product Name	WM-2000 Dual-Channel Wall Mount Intercom System
Marketing Information	Channel Select Switch Used to switch between intercom channels one and two. The switch lights green for channel one and red for channel two. Intercom Listen Key Both momentary (push-to-listen) and latching (hands-free listen) are possible. Call Key Used to send call signals on the intercom channel and to indicate incoming calls. Intercom Talk Key Both momentary (push-to-talk) and latching (hands-free talk) are possible. Additionally, the WM-1000 / WM-2000 have a feature called "mic kill receive" which lets an operator at a remote master station (such as the US-2002) turn off the talk key. Dynamic-Mic Headset Connector 4-pin male XLR connector accepts headsets with monaural headphones and either a balanced or unbalanced dynamic microphone. Volume Control Adjusts intercom volume to headset. Audiocom / Clear-Com Selector Switch The selector switch sets the intercom station for compatibility with either Audiocom or Clear-Com channel connector pin-outs, channel power requirements, and call signaling requirements. Configuration DIP switches DIP switches are provided to enable/disable the following features: Call Beep: An optional call beep tone can be used for incoming call notification. Headset Microphone Type Selection: Balanced or unbalanced microphone may be selected. DC Call Enable: This may be turned on to use the intercom station with intercom systems that use DC call signaling. Connections Terminal Block Used to connect intercom channel(s) and an optional local power supply. Sidetone Trimmers These are used to adjust the level of the station operator's own voice in the headphones. Mounting Holes The mounting holes fit any standard, two-gang electrical box Clear-Com Compatible
Product Type	Intercom System

Technical Information

Number of Channels

Network & Communication

Connectivity Technology

Cable

Power Description

Input Voltage

24 V DC

Physical Characteristics

Product Color	Black
Form Factor	Wall Mount
Height	4.5"
Width	4.6"
Depth	2.3"
Weight (Approximate)	16 oz

Warranty

Limited Warranty

3 Year
