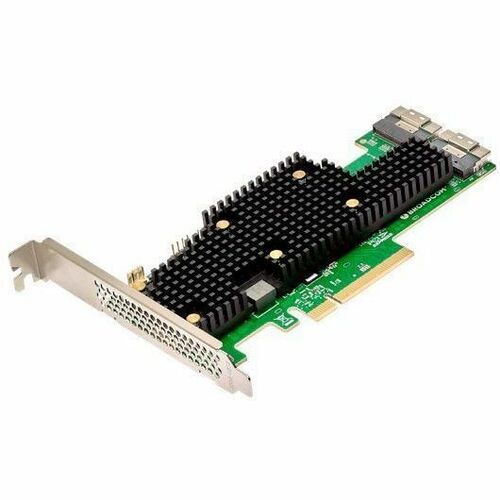

BROADCOM EHBA 9600-24I TRI-MODE PCI EXPRESS 4.0 X8

9600 Series 24G PCIe 4.0 Tri-Mode RAID Adapters and eHBAs | 3rd-Generation Tri-Mode x8 and x16 NVMe/ SAS/SATA MegaRAID® Adapters and eHBAs

The High-Performing 16- and 24-Port Family of 9600 RAID and eHBAs Delivers Breakthrough RAID Rebuild Times, Application Storage Performance, and Advanced Data Protection Capabilities.

Overview

The new Broadcom® 9600 family of 24G SAS MegaRAID adapters and HBAs address the performance shift that today's data centers are facing as they transition to higher core count CPUs and SSD-based server storage. The 9600 series Tri-Mode RAID adapters and eHBAs enable high-performing 24G serial-attached SCSI (SAS), PCIe Gen 4.0 storage connectivity, and flexible system designs to support NVMe, SAS, and SATA devices.

The 16- and 24-port 9600 series adapters are powered by the Broadcom 8th generation of Tri-Mode 4000 series I/O Controllers (IOC) and 4100 series RAID-on-Chip (ROC) families, based on the industry-leading Fusion-MPT™ (Message Passing Technology). MegaRAID and eHBA 9600 series of adapters deliver 2x the bandwidth and up to 2x the IOPS (4K RR); with the MegaRAID adapters also delivering more than 3x the RAID 5 IOPS (4K RW).

Broadcom continues to offer the industry's broadest portfolio of storage solutions, backed by decades of experience and trusted by the world's leading server and storage suppliers. Broadcom provides the building blocks for storage solutions that help customers prioritize, store, protect, and secure critical data.

Tri-Mode SerDes Technology

Broadcom Tri-Mode SerDes technology enables the operation of NVMe, SAS, and SATA storage devices in a single drive bay. A single RAID or eHBA adapter can operate in all three modes concurrently servicing NVMe, SAS, or SATA drives. The adapter can negotiate between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data infrastructure. By upgrading to a Tri-Mode adapter, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations. The 9600 series adapters are compatible with SlimSAS 24G SFF-8654 internal or SFF-8674 external connectors. The 9600 adapters are also compatible with existing PCI Express SFF-8639 Module (U.2) backplanes allowing users to boost performance for today's ever increasing bandwidth requirements.
