BROADCOM 9562-16I MEGARAID 16-PORT INTERNAL 12GBPS SATA+SAS

by
BROADCOM - SOURCING
PCN#
SG6456
MFG#
05-50137-00

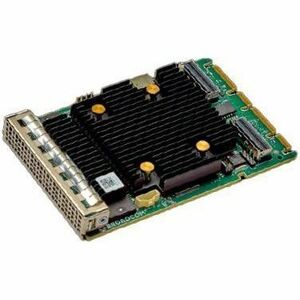

main product photo
fotorama-image
$5,466.58
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 12Gb/s SAS, Serial ATA/600, NVMe
  • PCI Express 4.0 x8
  • Plug

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
Broadcom MegaRAID 9562-16i SAS Controller
Overview
Tech Specs
Tri-Mode SerDes Technology The Broadcom Tri-Mode SerDes technology enables the operation of NVMe, SAS, and SATA storage devices in a single drive bay. A single RAID or HBA OCP adapter can operate in all three models concurrently servicing NVMe, SAS, or SATA drives. The adapter can negotiate between speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a nondisruptive way to evolve existing data infrastructure. By upgrading to a Tri-Mode adapter, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations. Hardware Secure Boot and Attestation The onboard controller incorporates advanced security through hardware secure boot. The hardware secure boot feature permits only authenticated f irmware to execute on the adapter. The controller's Internal Boot ROM establishes an initial Root of Trust (RoT). Hardware secure boot authenticates and builds a Chain of Trust (CoT) with succeeding firmware images using the RoT. meaning only authorized firmware is executed on the adapter. Broadcom provides the signed firmware images making the use of hardware secure boot transparent to customers, while providing confidence in the security of the solution.Packaged Quantity1Product TypeSAS ControllerTechnical InformationHost InterfacePCI Express 4.0 x8Controller Type
  • 12Gb/s SAS
  • Serial ATA/600
  • NVMe
RAID SupportedYesRAID Levels
  • 0
  • 00
  • 1
  • 10
  • 5
  • 50
  • 6
  • 60
Maximum Data Transfer Rate12 Gbit/sDevice Supported
  • Server
  • Storage System
Operating System Supported
  • Windows
  • VMware ESXi
  • Red Hat Enterprise Linux
  • SUSE Linux
  • Ubuntu Linux
  • Citrix XenServer
  • Debian Linux
  • Fedora
  • FreeBSD OS
  • CentOS
  • Oracle Enterprise Linux
  • VMware vSphere
MemoryCache Memory8 GBInterfaces/PortsTotal Number of SAS Ports16Number of SAS Ports (Internal)16SAS Connector Details2 x 8 SFF-8654 (Vertical)Physical CharacteristicsForm FactorPlug-in CardMiscellaneousPlatform Supported
  • PC
  • Linux
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
