BROADCOM 12GB/S 8-PORT EXTERNAL PCI-EXPRESS 3.0 X8 SAS

Name: BROADCOM 12GB/S 8-PORT EXTERNAL PCI-EXPRESS 3.0 X8 SAS
Brand: BROADCOM - SOURCING
SKU: SB1781
Price: 1871.7 USD
Availability: InStock

BROADCOM - SOURCING

PCN#

SB1781

MFG#

LSI00343

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,871.70

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

12Gb/s SAS, Serial ATA/600
PCI Express 3.0 x8
Low
profile
Plug
in Card
Mini SAS HD SFF8644 Two (x4)
8 Total SAS Port(s)
8 SAS Port(s) External
PC, SPARC, Linux
Windows, Linux, SUSE Linux, Red Hat Linux, Solaris, FreeBSD OS Supported Operating System

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3 years, free advanced technical support, advanced replacement option.

Shipping Weight: 1 lbs.

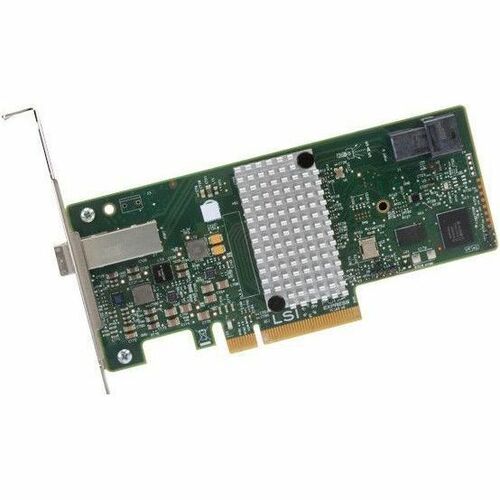

Avago 9300-8e Sas Controller

Overview

Tech Specs

Specifications

Manufacturer	Broadcom Corporation
Manufacturer Part Number	LSI00343
Manufacturer Website Address	https://www.broadcom.com
Brand Name	Avago
Product Model	9300-8e
Product Name	9300-8e Sas Controller
Marketing Information	The SAS 9300 8 and 4-port, 12Gb/s SAS host bus adapter family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures. The SAS 9300 HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® technology. Each host bus adapter also supports 8 or 4 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The 9300 adapter family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifi cations. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of industry standard operating system drivers.
Packaged Quantity	1
Product Type	SAS Controller

Technical Information

Host Interface	PCI Express 3.0 x8
Controller Type	12Gb/s SAS Serial ATA/600
RAID Supported	No
Maximum Data Transfer Rate	12 Gbit/s
Device Supported	Hard Drive Solid State Drive Storage System
Operating System Supported	Windows Linux SUSE Linux Red Hat Linux Solaris FreeBSD OS

Interfaces/Ports

Total Number of SAS Ports	8
Number of SAS Ports (External)	8
SAS Connector Details	Mini SAS HD SFF8644 Two (x4)

Physical Characteristics

Form Factor	Plug-in Card
Card Height	Low-profile

Miscellaneous

Platform Supported	PC SPARC Linux
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years, free advanced technical support, advanced replacement option.
