100FT DISPLAYPORT AOC CABLE PLENUM 30M

Name: 100FT DISPLAYPORT AOC CABLE PLENUM 30M
Brand: LEGRAND AV - C2G
SKU: SG7402
Price: 1118.99 USD
Availability: OutOfStock

LEGRAND AV - C2G

PCN#

SG7402

MFG#

CG29538

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

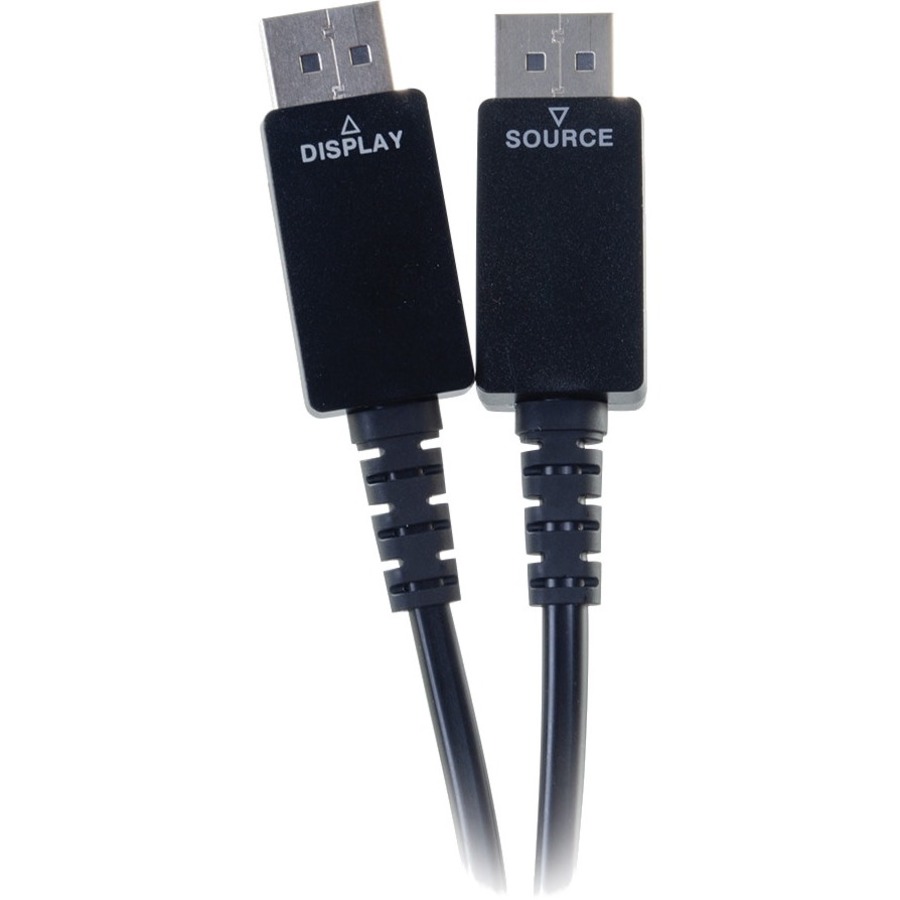

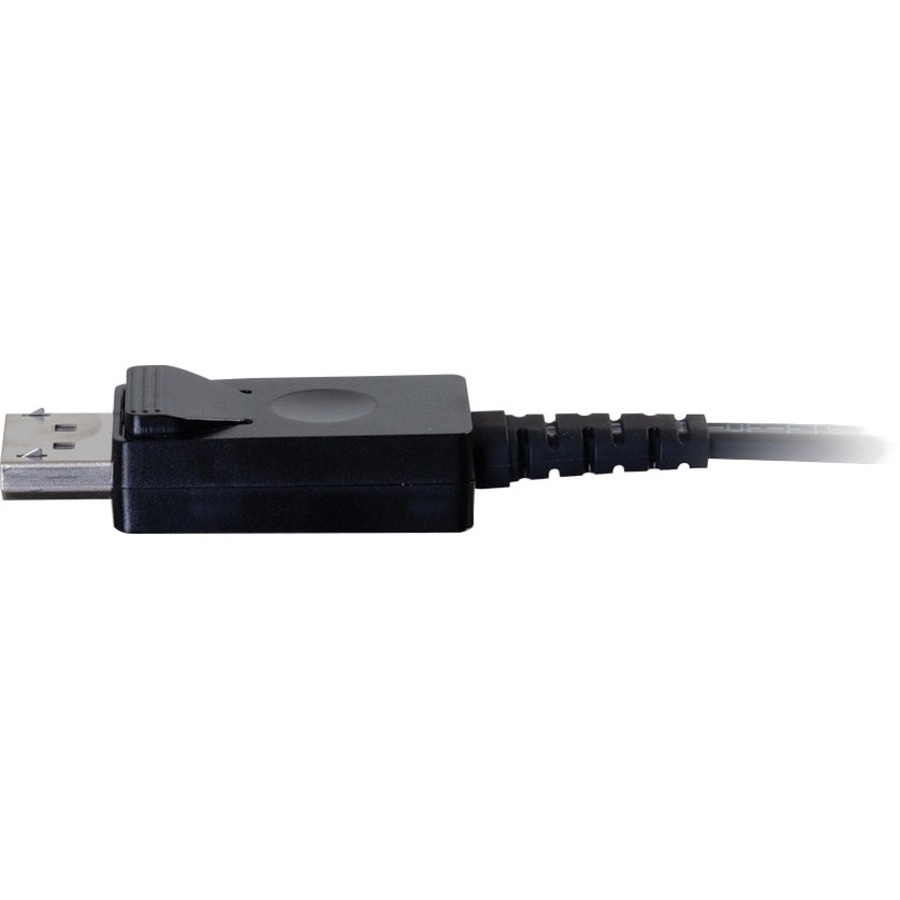

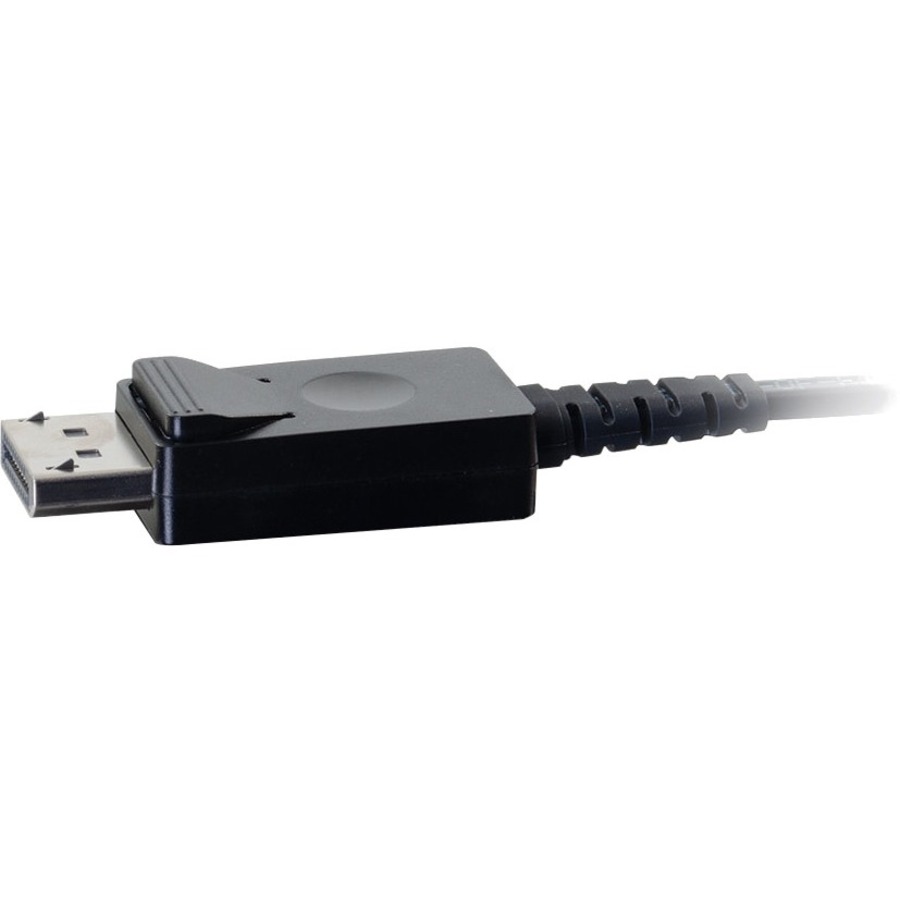

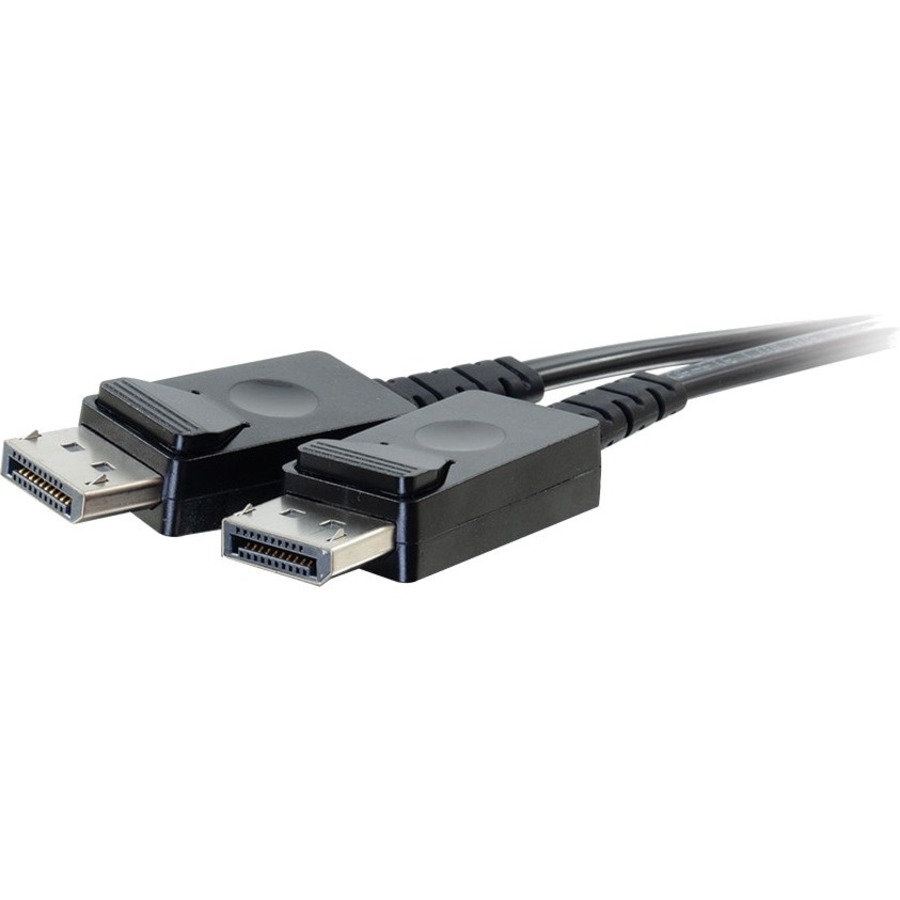

C2G DisplayPort Active Optical Cable (AOC) - Plenum CMP-Rated

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	CG29538
Manufacturer Website Address	http://www.cablestogo.com
Brand Name	C2G
Product Name	DisplayPort Active Optical Cable (AOC) - Plenum CMP-Rated
Marketing Information	The DisplayPort AOC is the perfect solution for extending DisplayPort signals in classrooms, conference rooms, healthcare facilities, digital signage and other commercial environments. Utilizing AOC technology that performs similar to traditional copper cabling, the optical fiber construction between the connectors provides optimum performance and easy installation. The AOC technology delivers several advantages which make it a smart choice in select installations. The cable diameter is smaller than copper and more flexible, making it easier to install in tight spaces. Constructed from fiber strands, this cable reduces the risk of EMI/RFI so performance is stable when used in typically high interference environments such as data centers, surgical theaters, or manufacturing facilities where high resolution and consistent display are critical. The AOC draws power from the DisplayPort source device, so no external power source is required. In addition to low power consumption, these cables are also plug and play and hot swappable. Additionally, the DisplayPort Active Optical Cable supports the latest 4K60 content delivery over longer distances.
Product Type	A/V Cable

Technical Information

Cable Type	Hybrid Fiber Optic
Cable Length	100 ft
Connector Type on First End	DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details	1 x 20 Pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End	DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details	1 x 20 Pin DisplayPort 1.2 Digital Audio/Video - Male
Jacket Type	Plenum CMP
Device Supported	Audio/Video Device
American Wire Gauge	30 AWG
Data Transfer Rate	21.6 Gbit/s
Supported Resolution	4096 x 2160
Features	AOC Technology x.v.Color EMI/RF Protection Plug & Play Hot-swappable Consumer Electronics Control (CEC) Extended Display Identification Data (EDID) HDCP Flexible Tight Buffer HDCP 1.3 Bendable

Physical Characteristics

Miscellaneous
