TEMPO IN-WALL FLANGE-MOUNT-STORAGE KIT

This Tempo™ Flat Panel Wall Mount install and commissioning kit can be ordered separately and delivered after wall finishing is complete to add flanges, display mount and small-device storage plates. NOTE: For a complete system installation the Tempo Flat Panel In-Wall Boxes and Stud Tabs Kit (FPIWMKIT1) is required, purchased separately.

An infinite number of horizontal mounting patterns are compatible with the system to accommodate extra-large and some ultrawide displays because storage boxes can be set as far apart as needed to align the flat panel with the mount. Mounting patterns can extend up to 650 mm tall with the FHB5174 adapter bracket(sold separately).

The Tempo™ Flat Panel In-Wall Mount System ships with two 15x10" Lever Lock™ plates, offering a minimum clearance for 1 RU of AV equipment. Place small devices where you need them thanks to lateral shift flexibility within the storage boxes. Lever Lock plates are compatible with Middle Atlantic® Forward Small Device Mounting Clamps to quickly secure devices in place.

Simplify the installation process with included hardware andtoggle anchors.New display hardware bags include M8x50 screws, commonly needed for installation ofpopulardisplays. At-a-glance identification of end-usertouchpoint screwsinsilverfromassemblyscrewsinblackfor easier end-user training after commissioning.

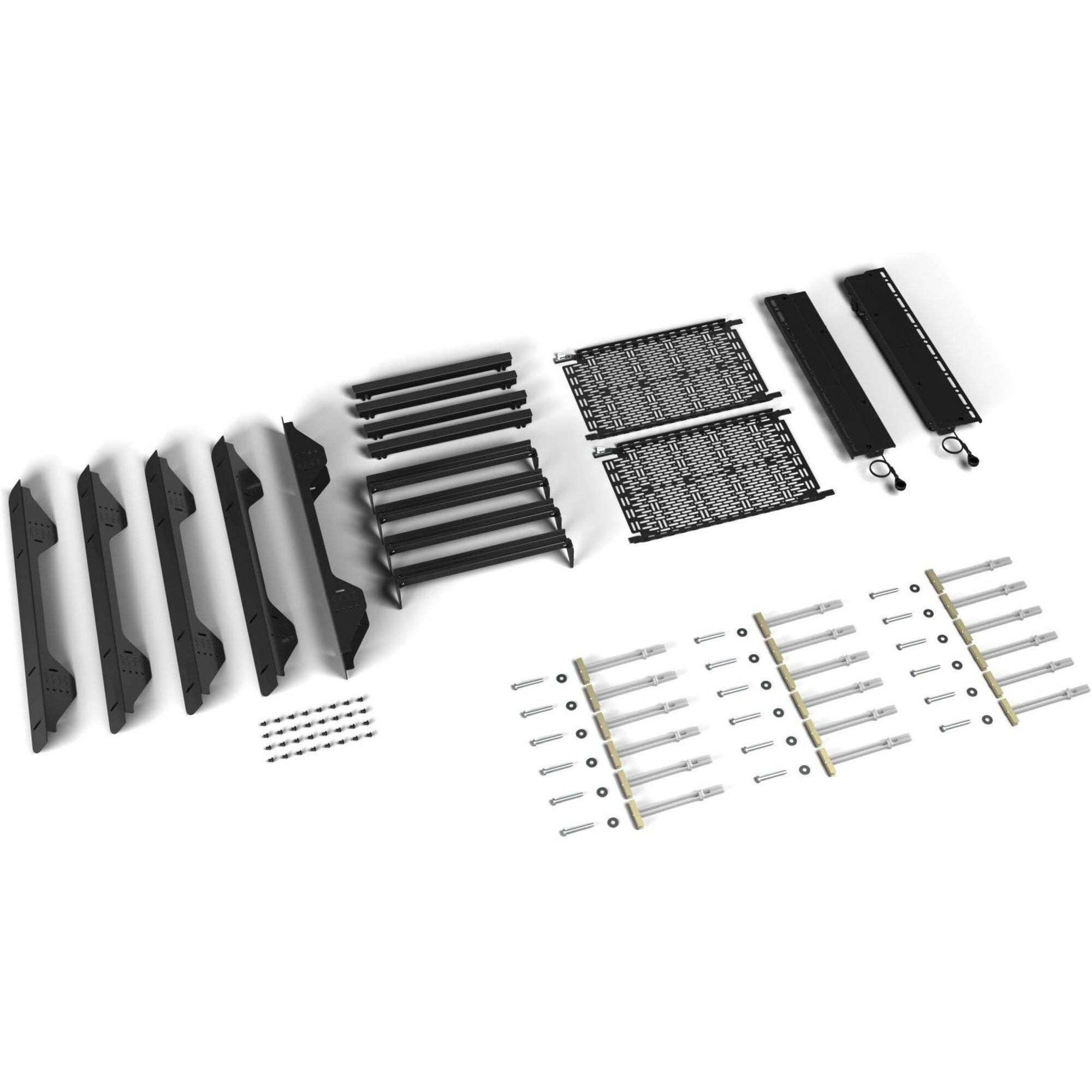

Kit Includes:

• (2) Interfaces
• (4) Side flanges
• (1) Saddle flange
• (4) Top/bottom flange
• (4) In-wall rail assembly
• (2) Lever Lock panel
• (8) Cable tie
• (1) 1/8" Allen key
• (2) Lever Lock rivet
• (4) Cable tie mount
• (32) #10-24 x ¼" button head cap screw
• (3) Toggler anchor hardware bag
• (1) 1/8" Hex ball-end screwdriver
• (1) Display mounting hardware bag
• (1) Installation Manual

• Flat Panel Display
• Display

• Lateral Adjustment
• Plumb Adjustment
• Tilt

• Tempo Flat Panel In-Wall Flange-Mount-Storage Kit
• 2 x Interfaces
• 4 x Side flanges
• 1 x Saddle flange
• 4 x Top/bottom flange
• 4 x In-wall rail assembly
• 2 x Lever Lock panel
• 8 x Cable tie
• 1x 1/8" Allen key
• 2 x Lever Lock rivet
• 4 x Cable tie mount
• 32 x #10-24 x ¼" button head cap screw
• 3 x Toggler anchor hardware bag
• 1 x 1/8" Hex ball-end screwdriver
• 1 x Display mounting hardware bag
• 1 x Installation Manual
