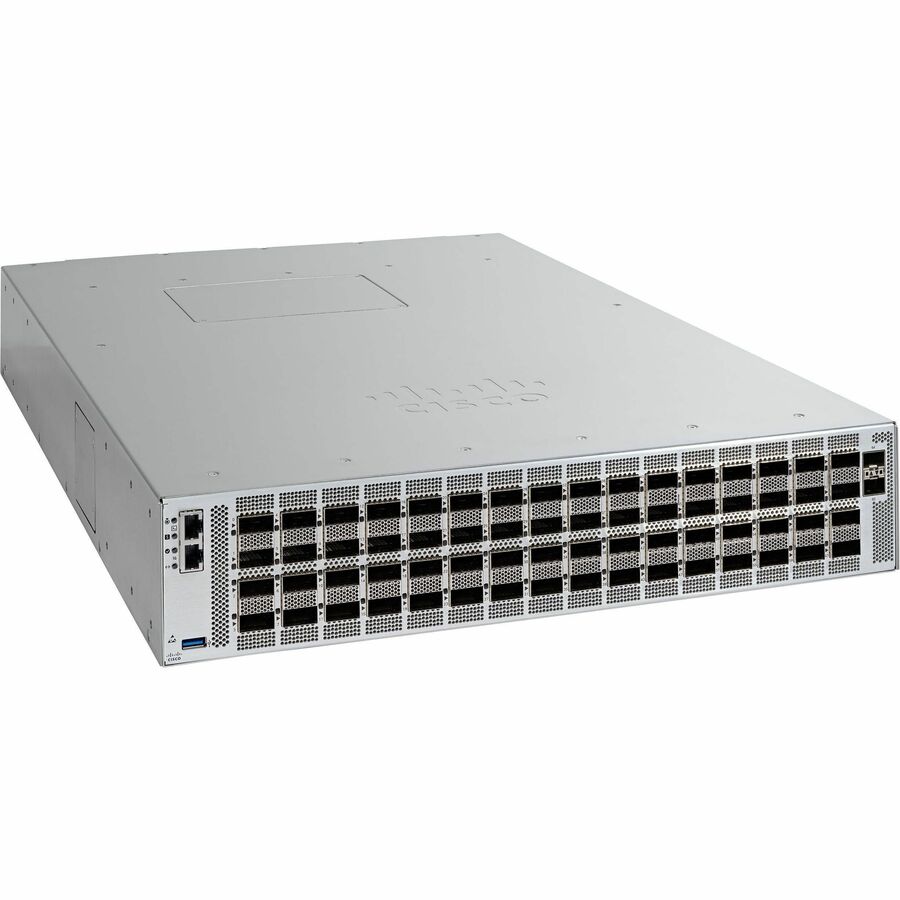

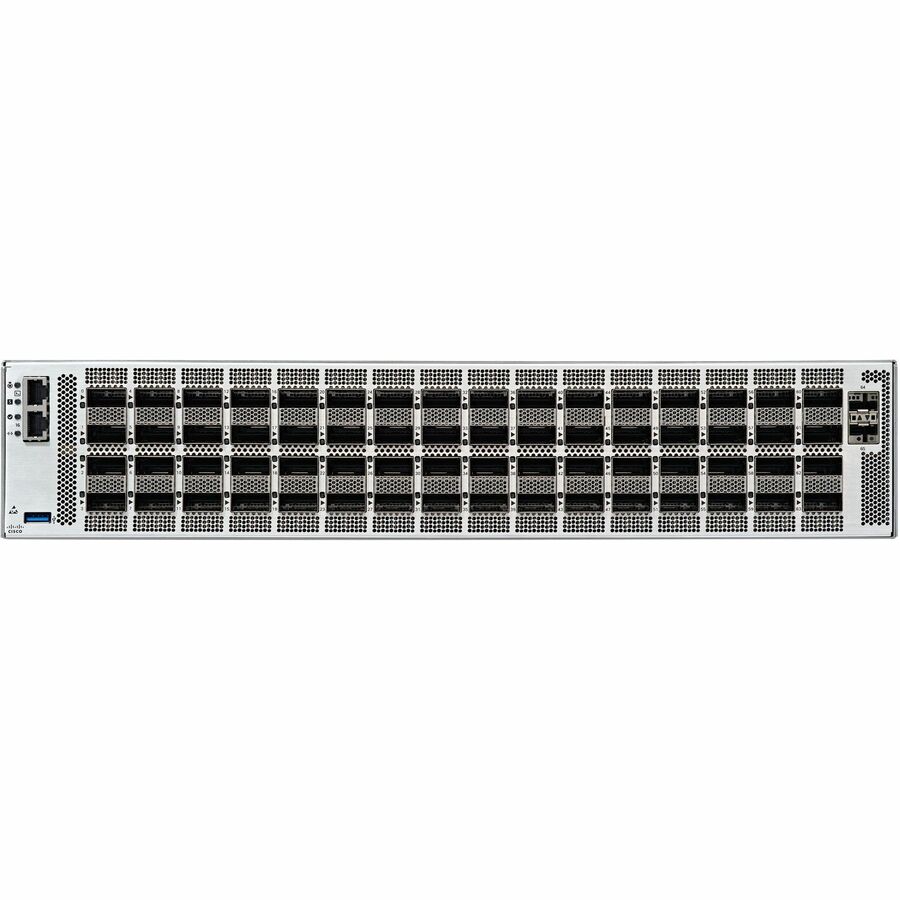

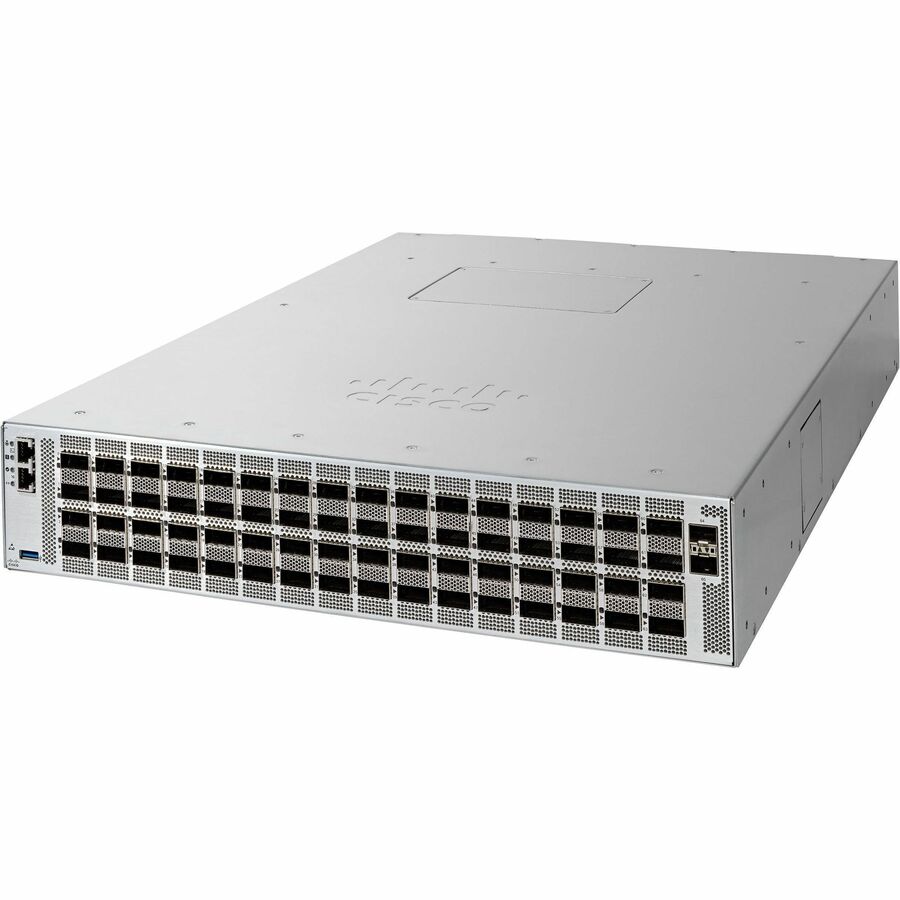

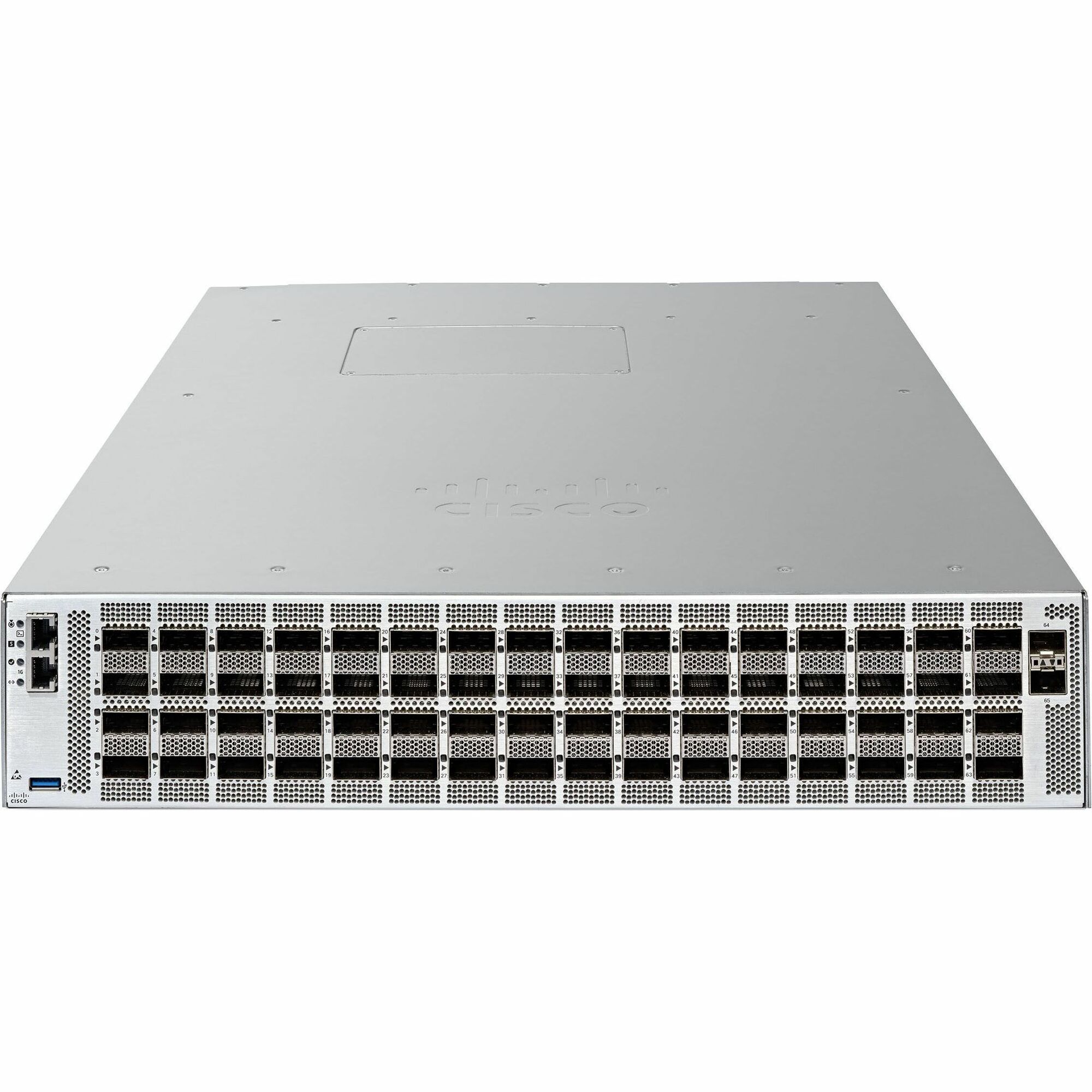

CISCO 8100 64X800G QSFP-DD800 2RU FIXED SYSTEM - OPEN

The Cisco 8100 Series extends the small footprint, low power, and high performance of the 8000 Series to data center fabric roles that do not require the expanded forwarding scale and deep buffering of the 8200 Series.

The 8100 Series designed with Cisco's Q200 and G100 generation ASICs and without HBM delivers the low power and high performance of 7nm technology at four bandwidth levels - 3.2 Tbps, 6.4 Tbps, 12.8 Tbps and 25.6 Tbps so the latest silicon developments can be fully leveraged across data center networks in roles such as Top of Rack (ToR), high-density IP Fabric leaf and spines.

The Cisco 8100 Series offers four different variants: Cisco 8101-32H-O with 32 ports of 100GbE in a compact 1RU form factor, Cisco 8102-64H-O with 64 ports of 100GbE in a 2RU from factor, Cisco 8101-32FH-O with 32 ports of 400GbE in a compact 1RU form factor and Cisco 8111-32EH-O with 32 ports of 800G or 64 ports of 400GbE with breakout cable in a compact 1RU form factor.

The 8100 Series supports the open-source network operating system SONiC (Software for Open Networking in the Cloud).

• QSFP-DD
• QSFP28

• CE - 2004/108/EC and 2006/95/EC
• UL 60950 1 Second Edition
• CAN/CSA C22.2 No. 60950 1 Second Edition
• EN 60950 1 Second Edition
• IEC 60950 1 Second Edition
• AS/NZS 60950 1
• GB4943
• 47 CFR Part 15 (CFR 47) Class A
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000 3 2
• EN61000 3 3
• KN32 Class A
• CNS13438 Class A
• EN55024
• CISPR24
• EN300386
• KN 61000 4 Series

• Restriction of Hazardous Substances (RoHS) 6
• Waste Electrical and Electronic Equipment Directive (WEEE)
