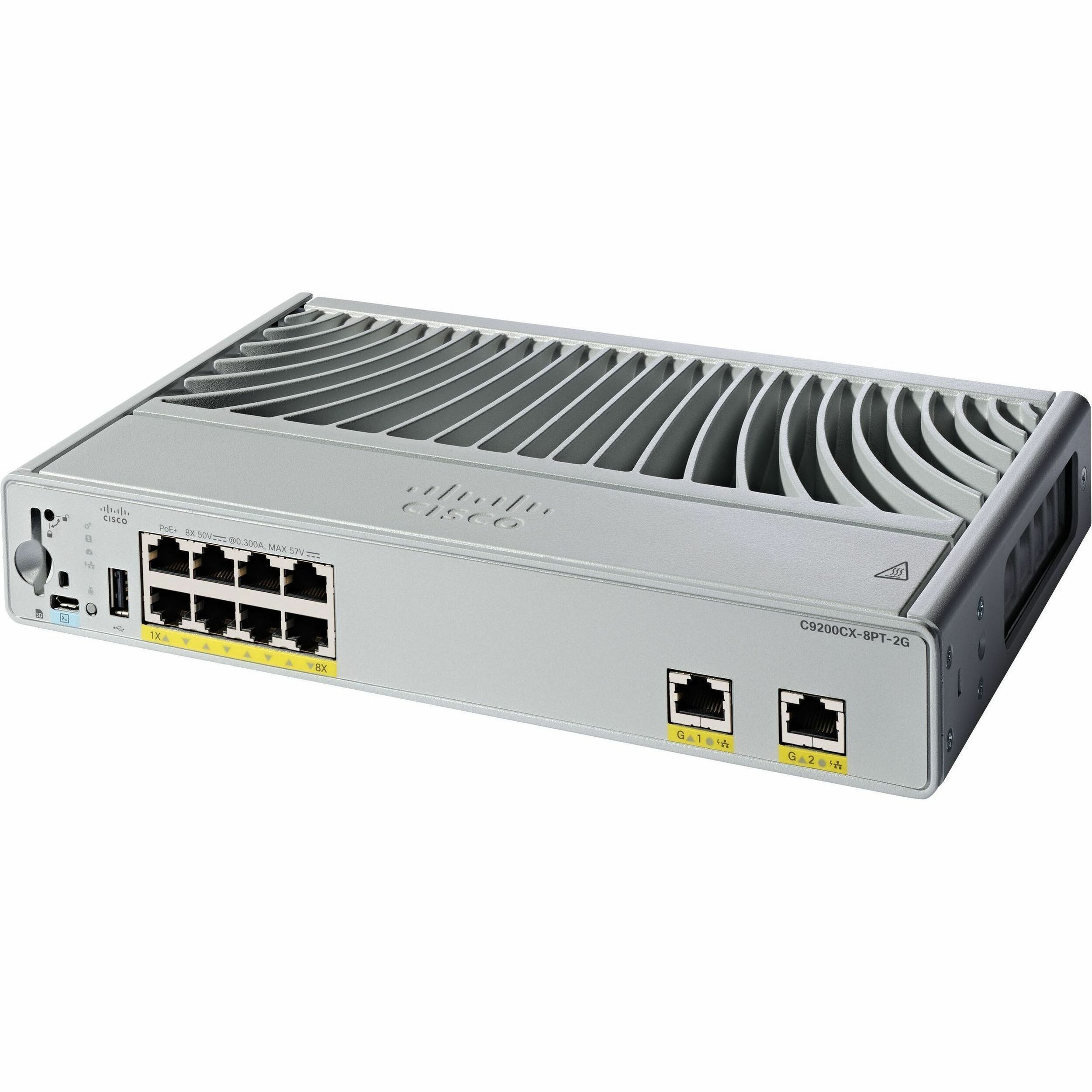

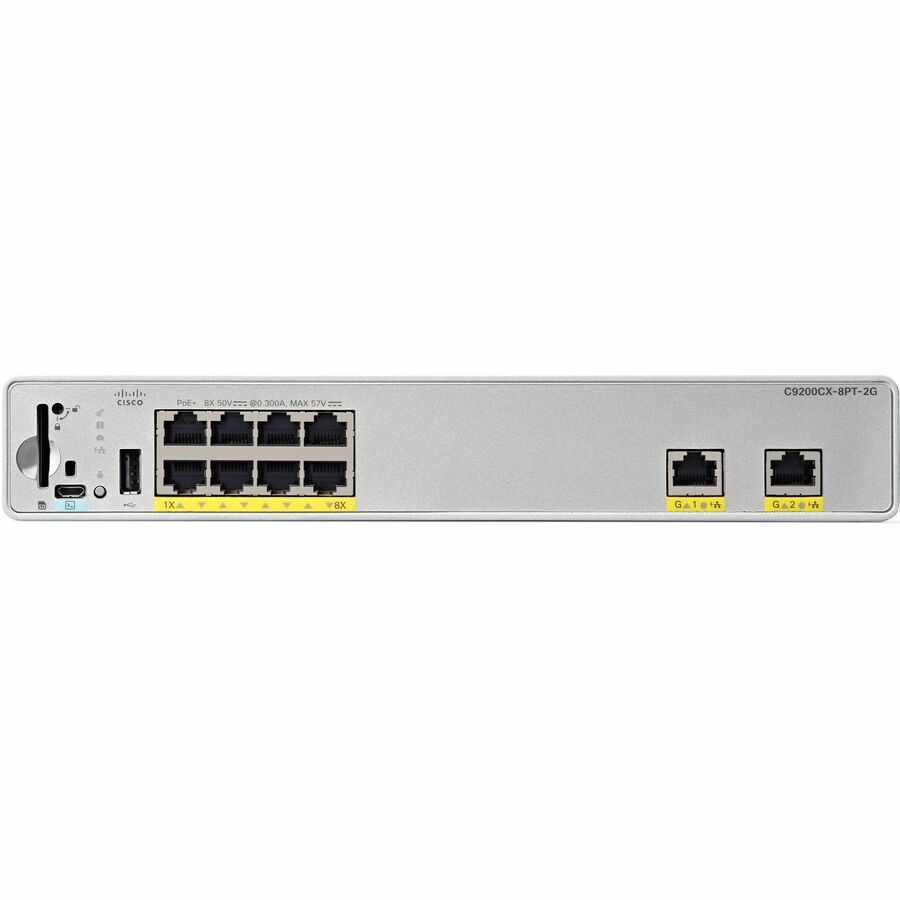

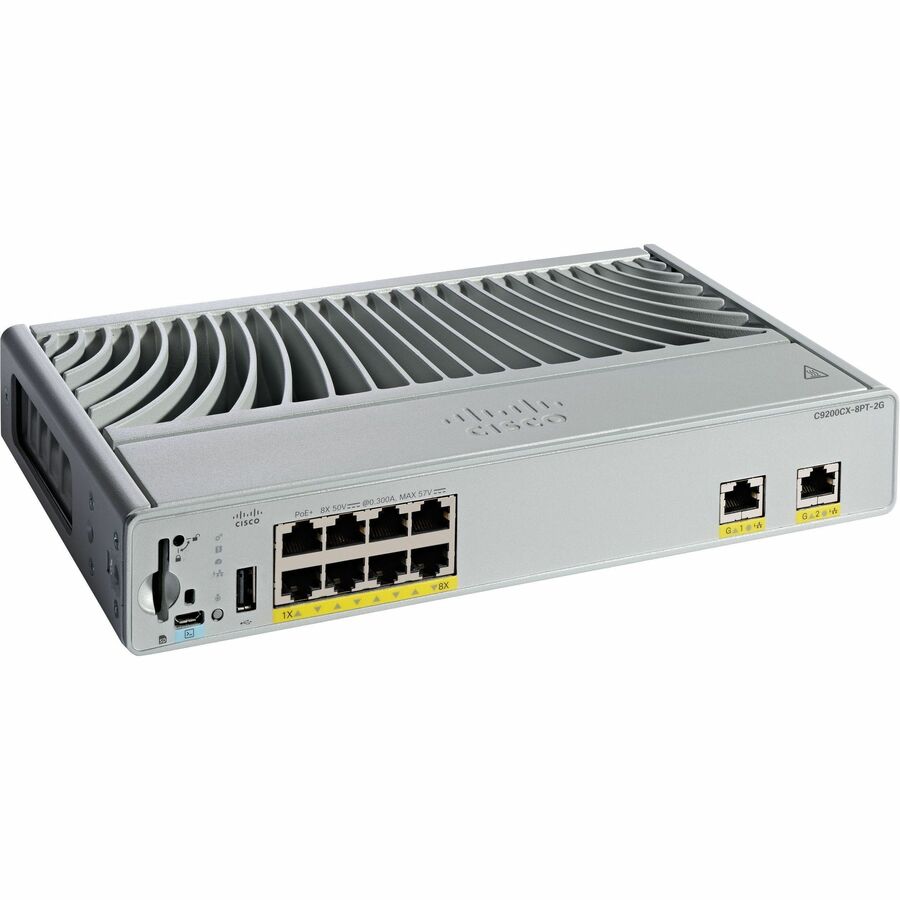

CATALYST 9000 COMPACT SWITCH 8 PORT POE+ PASSTHROUGHA

Introduction | Extend intent-based networking everywhere

Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Networking Cloud, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard.

Product overview | Product highlights

• Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200. Power over Ethernet Plus (PoE+) capability for up to 12 ports, IEEE 802.3bt class 6 and Cisco UPOE capability for up to 8 ports for C9200CX.
• Resiliency withField-Replaceable Units(FRU) and redundant power supply, fans, and modular uplinks for C9200 models. C9200CX models are fanless and are powered by internal fixed power supply or optional power adapters, when not powered by upstream IEEE 802.3bt class 6 60W PSE.
• Flexible power source options from line voltage AC, low voltage DC to High Voltage DC (HVDC) in C9200CX models provide the choices for customers to migrate to efficient DC micro grid powered by renewable energy sources for a sustainable future.
• Flexible downlink options with data, PoE+, UPOE, UPOE with mGig for Wi-Fi 6/6E.
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps.
• UADP 2.0Mini with integrated CPU offers customers optimized scale with better cost structure.
• Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX models, policy-based segmentation, and trustworthy solutions for the whole Catalyst 9200 Series.

• Plug and Play
• Access Control List
• Quality of Service (QoS)
• Fanless
• Virtual Extensible LAN (VXLAN)
• Remote Monitoring (RMON)

• 8 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet UPOE+ Port

• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.1ae
• IEEE 802.3bz
• IEEE 802.3an

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• AC/DC
• Power Adapter

• Network
• Business
• Branch Office
• Campus
• Enterprise
• Infrastructure
• IP Phone
• Wireless Access Point
• IoT Devices
• Security
