C9200L 24-PORT DATA ONLY 4 X 1G W/MERAKI

Name: C9200L 24-PORT DATA ONLY 4 X 1G W/MERAKI
Brand: CISCO
SKU: 030F63
Price: 1128.2 USD
Availability: InStock

CISCO

PCN#

030F63

MFG#

C9200L-24T-4G-M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,128.20

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
Gigabit Ethernet
1000Base
T, 1000Base
X
3 Layer Supported
4 SFP Slots
Twisted Pair, Optical Fiber
1U
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

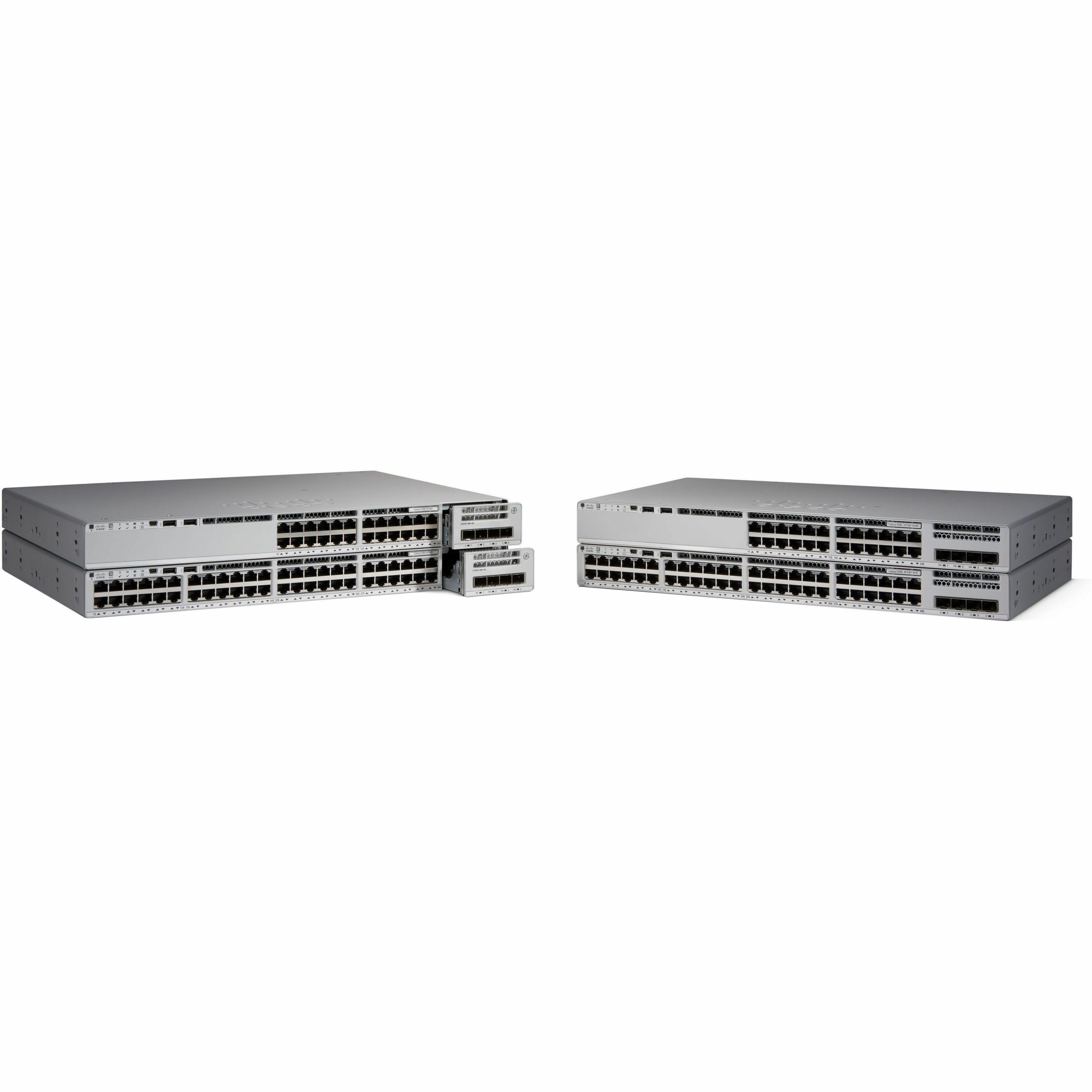

Cisco Meraki Catalyst C9200L-24T-4G-M Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	C9200L-24T-4G-M
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco Meraki
Product Line	Catalyst
Product Series	9200
Product Model	C9200L-24T-4G-M
Product Name	Catalyst C9200L-24T-4G-M Ethernet Switch
Marketing Information	The Catalyst 9200L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed wifi access points, the Catalyst 9200L-M provides multigigabit ports, 80GB stacking with either four fixed 1G/10G or two fixed 25G uplinks. The Catalyst 9200L-M delivers resiliency with fast stack convergence. The Catalyst 9200L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9200L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.
Product Type	Ethernet Switch

Technical Information

Features

Zero-Touch Provisioning (ZTP)
DHCP Relay
DHCP Snooping
Access Control List
Hot-swappable
Dynamic ARP Inspection
Broadcast Storm Control

Interfaces/Ports

Total Number of Network Ports	24
Uplink Port	Yes
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet RJ-45 Network Port 4 x Gigabit Ethernet SFP Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-X
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Total Number of Expansion Slots	4
Expansion Slot Type	SFP
Number of SFP Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3at IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1ab IEEE 802.3ad IEEE 802.1x

Management & Protocols

Manageable

Yes

Reliability

MTBF	531030 Hour

Power Description

Power Source	Power Supply AC
Redundant Power Supply Supported	Yes

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.5"
Depth	12.9"
Weight (Approximate)	9.59 lb

Miscellaneous

Package Contents	Catalyst C9200L-24T-4G-M Ethernet Switch 1 x Default Power Supply Unit Rack Mount Brackets 2 x Pre-Installed Fans
Application/Usage	Network Wireless Access Point Traffic Security IoT Devices Enterprise Server
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 5

Warranty

Limited Warranty

Lifetime
