COMPUTE UCS C220 M5 LFFW/OCPU,MEM,HD,PCIE,PSU REMANUFACTURED

by
CISCO
PCN#
8139BH
MFG#
HX-C220-M5L-RF

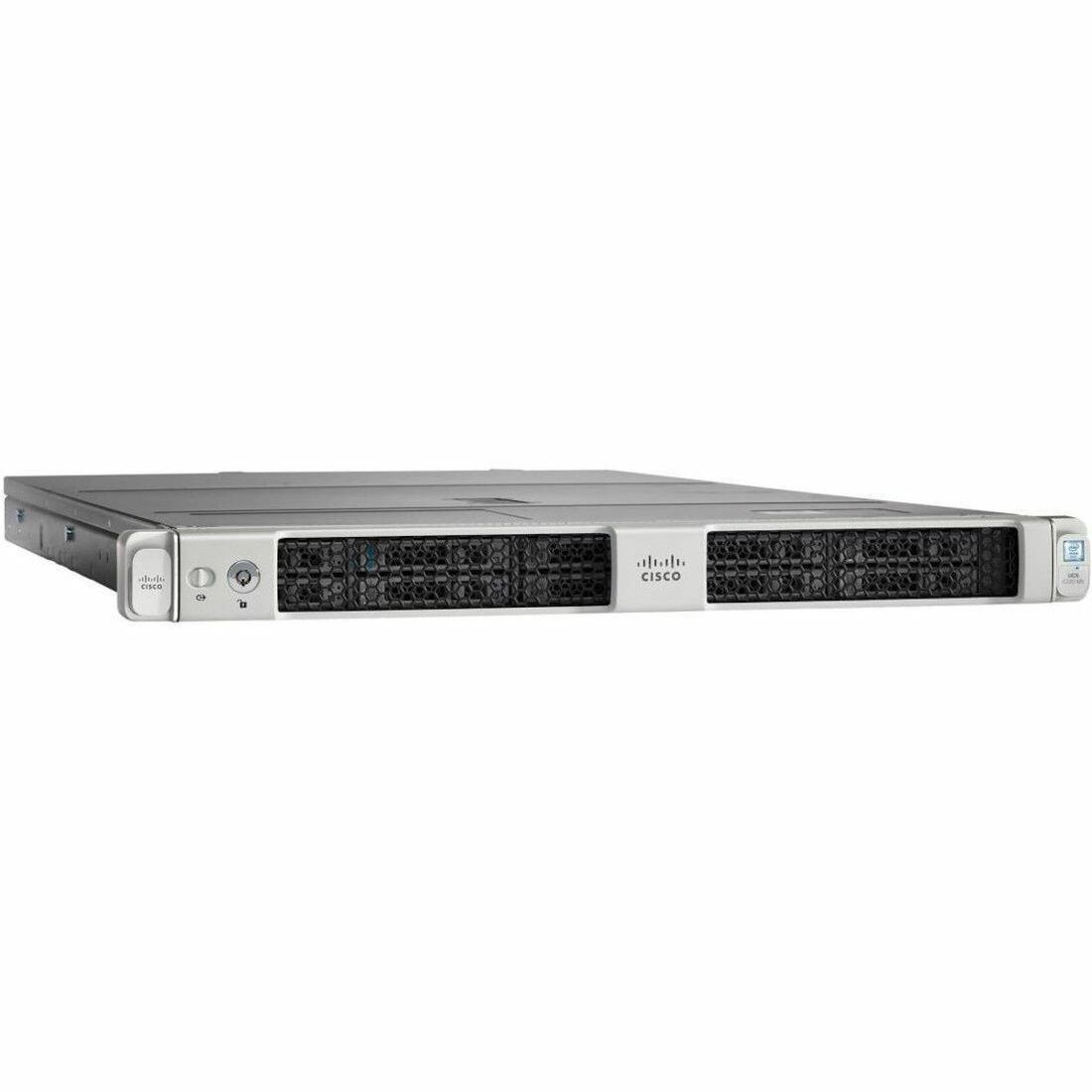

main product photo
fotorama-image
CISCO Authorized Dealer
$1,497.44
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel C620 Chip
  • 9 TB DDR4 SDRAM DDR4
  • 2933/PC4

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 40 lbs.
Cisco Barebone System - Refurbished - 1U Rack-mountable - 2 x Processor Support
Overview
Tech Specs
Specifications

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

HX-C220-M5L-RF

Manufacturer Website Address

http://www.cisco.com

Brand Name

Cisco

Product Series

C220 M5

Product Name

UCS C220 M5 Barebone System

Marketing Information

The UCS C220 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz DCPMMs with capacity points up to 512 GB, two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® OptaneTM DC Persistent Memory Modules (DCPMMs). With this combination of features, up to 9 TB of memory is possible (12 x 256 GB DDR4 DIMMs and 12 x 512 GB DCPMMs)
The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Product Condition

Refurbished

Product Type

Barebone System
Processor

Number of Processors Supported

2

Processor Supported

  • Xeon Platinum
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze

64-bit Processing

Yes
Chipset

Chipset Manufacturer

Intel

Chipset Model

C620
Memory

Maximum Memory Supported

9 TB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2933/PC4-23466

Total Number of Memory Slots

24

Intel Optane Memory Ready

Yes
Controllers

Controller Type

12Gb/s SAS

RAID Supported

Yes
Display & Graphics

Graphics Controller Manufacturer

Matrox

Graphics Memory Capacity

8 MB
Network & Communication

Ethernet Technology

  • 10 Gigabit Ethernet
  • Gigabit Ethernet
I/O Expansions

Number of Total Expansion Bays

4

Number of 3.5" Bays

4
Interfaces/Ports

Total Number of USB Ports

2

Number of USB 3.0 Ports

2

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

2

Number of VGA Ports

1
Operating System

Operating System Supported

  • Red Hat Enterprise Linux 6.5
  • Red Hat Enterprise Linux 6.6
  • Red Hat Enterprise Linux 6.7
  • Red Hat Enterprise Linux 7
  • SUSE Linux Enterprise Server 11 SP3
  • SUSE Linux Enterprise Server 12
  • Windows Server 2012
  • Red Hat Enterprise Linux 7.2
  • Windows Server 2012 R2
  • Windows Server 2016
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Form Factor

Rack-mountable

Rack Height

1U

Height

1.7"

Width

19"

Depth

31"

Weight (Approximate)

37.50 lb
