MERAKI VARIFOCAL MULTI IMAGER 20MP OUTDOOR CAMERA 4TB

Name: MERAKI VARIFOCAL MULTI IMAGER 20MP OUTDOOR CAMERA 4TB
Brand: CISCO
SKU: SR6405
Price: 7730.31 USD
Availability: InStock

CISCO

PCN#

SR6405

MFG#

MV84X

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$7,730.31

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Free Shipping

Estimated Shipment:

Product Highlights:

98.43 ft Infrared Night Vision
H.264
2560 x 1920
3.42 mm
6.85 mm Varifocal Lens
2x Optical
24 fps
CMOS
Gigabit Ethernet
IK10+
IP66
Day/Night, Motion Detection, Privacy Masking, Smart Object Detection, Video Content Analytics, Built
in IR LED, Infrared Detection, Ingress Protection, AI Analytics, Motion Sensor

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

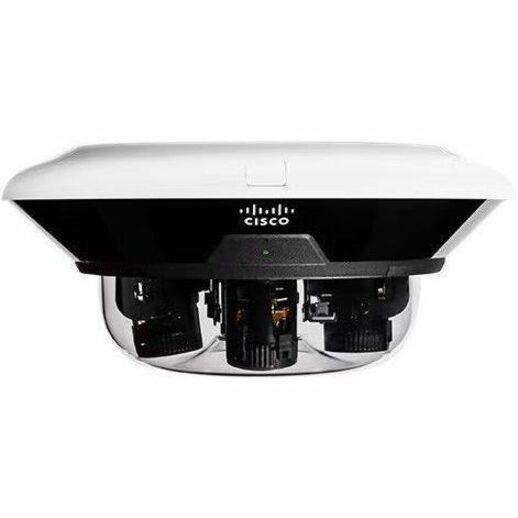

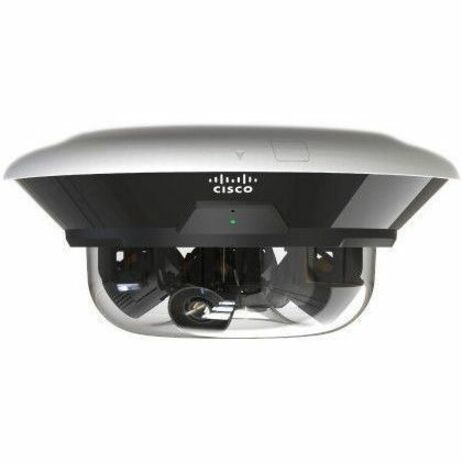

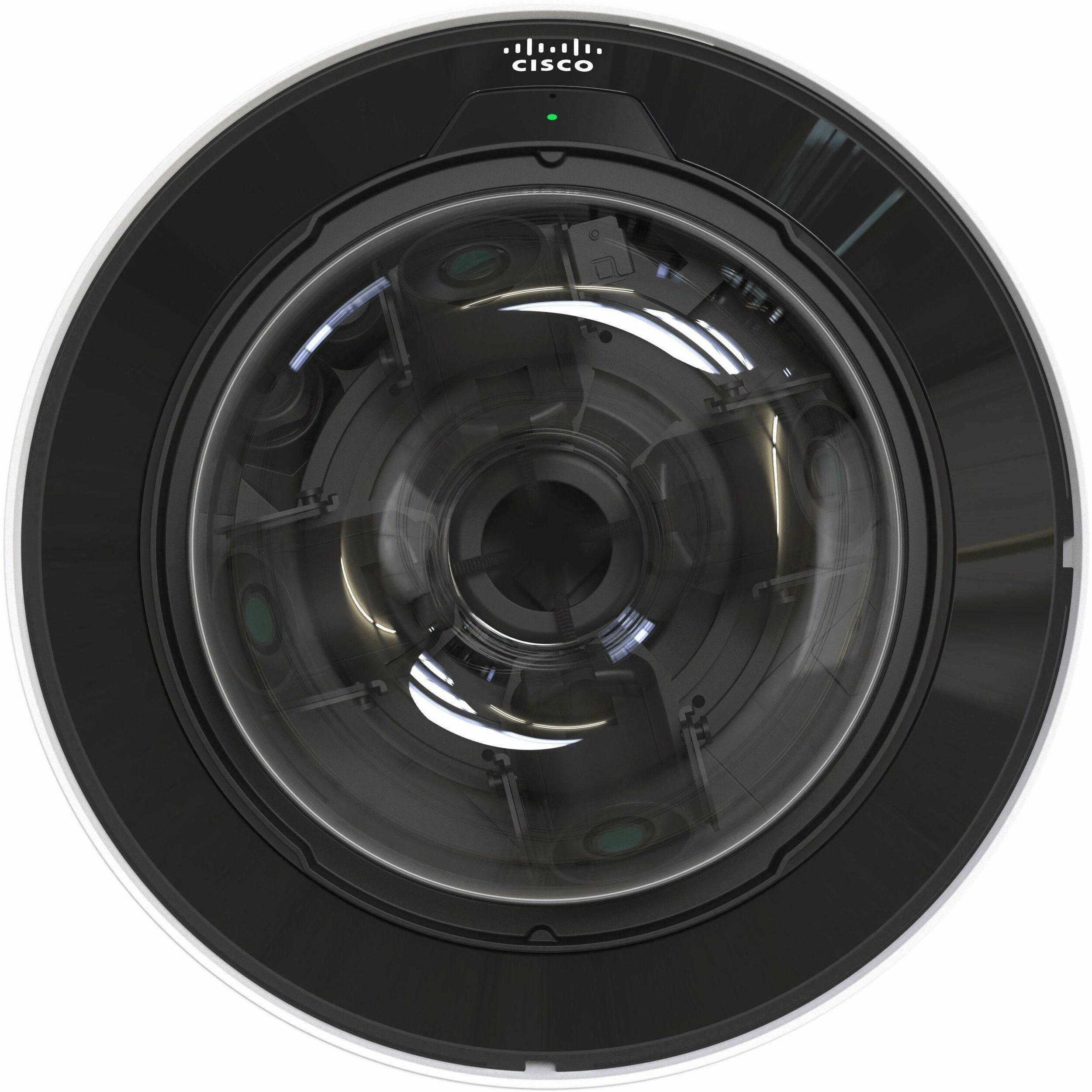

Cisco Meraki MV84X 20 Megapixel Outdoor Network Camera - Color - Bullet

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	MV84X
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco Meraki
Product Model	MV84X
Product Name	MV84X Network Camera
Marketing Information	Overview The MV84X multi-sensor camera revolutionizes surveillance by delivering unmatched coverage for large areas. By combining four cameras into a single sleek design, the MV84X offers unmatched coverage. Designed for dynamic environments like warehouses, airports, and manufacturing floors, this powerful camera ensures zero blind spots with its four cameras, with combined 20MP resolution and 360-degree analytics. The MV84X empowers businesses with instant insights, AI-powered object detection, providing a seamless blend of powerful technology and simplicity for the ultimate security solution. Perfectly built for today's fast-paced, demanding spaces, this is more than just a camera: it's a next-gen security experience. Use Case The MV84X is ideal for capturing wide and multi-angle views... Multi-corridor intersections Long hallways Open spaces like lobbies Wide parking lots Building perimeters Entryways And more This flexibility makes it particularly valuable in large or complex spaces like Offices Retail storefronts Warehouses And more Security that tells a complete story The MV84X delivers up to 20MP combined video resolution and offers 360° views, capturing not just the broad context of a scene but also precise detail when needed. Its panoramic field of view enhances situational awareness, making surveillance more efficient. Outdoor-rated and equipped with IR illumination, the MV84X improves safety and security in parking lots, hallways, warehouses, and other open spaces, even in low-light conditions.
Product Type	Network Camera

Technical Information

HD Recording	Yes
Night Vision	Yes
Night Vision Distance	98.43 ft
Night Vision Type	Infrared
AI-powered	Yes

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.7"
Color Supported	Color
Field of View	Diagonal: 129°-55°, Horizontal: 118°-45°, Vertical: 102°-35°
Effective Camera Resolution	20 Megapixel

Video

Video Formats	H.264
Maximum Video Resolution	2560 x 1920
Maximum Frame Rate	24 fps

Lens

Lens Type	Varifocal
Minimum Focal Length	3.42 mm
Maximum Focal Length	6.85 mm
Lens Included	Yes
Maximum Aperture	f/1.85
Optical Zoom	2x

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Gigabit Ethernet
Protocols	TLS DSCP
Remote Management	Yes

Storage

Storage Type	Solid State Drive
Solid State Drive Capacity	4 TB

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Maximum Power Consumption	60 W
Power Source Type	PoE++

Physical Characteristics

Form Factor	Bullet
Height	4.5"
Diameter	10.5"
Weight (Approximate)	5.95 lb

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	113°F (45°C)

Miscellaneous

Features	Day/Night Motion Detection Privacy Masking Smart Object Detection Video Content Analytics Built-in IR LED Infrared Detection Ingress Protection AI Analytics Motion Sensor
Indoor/Outdoor	Outdoor
Impact Protection Rating	IK10+
Ingress Protection Rating	IP66

Warranty

Limited Warranty

5 Year
