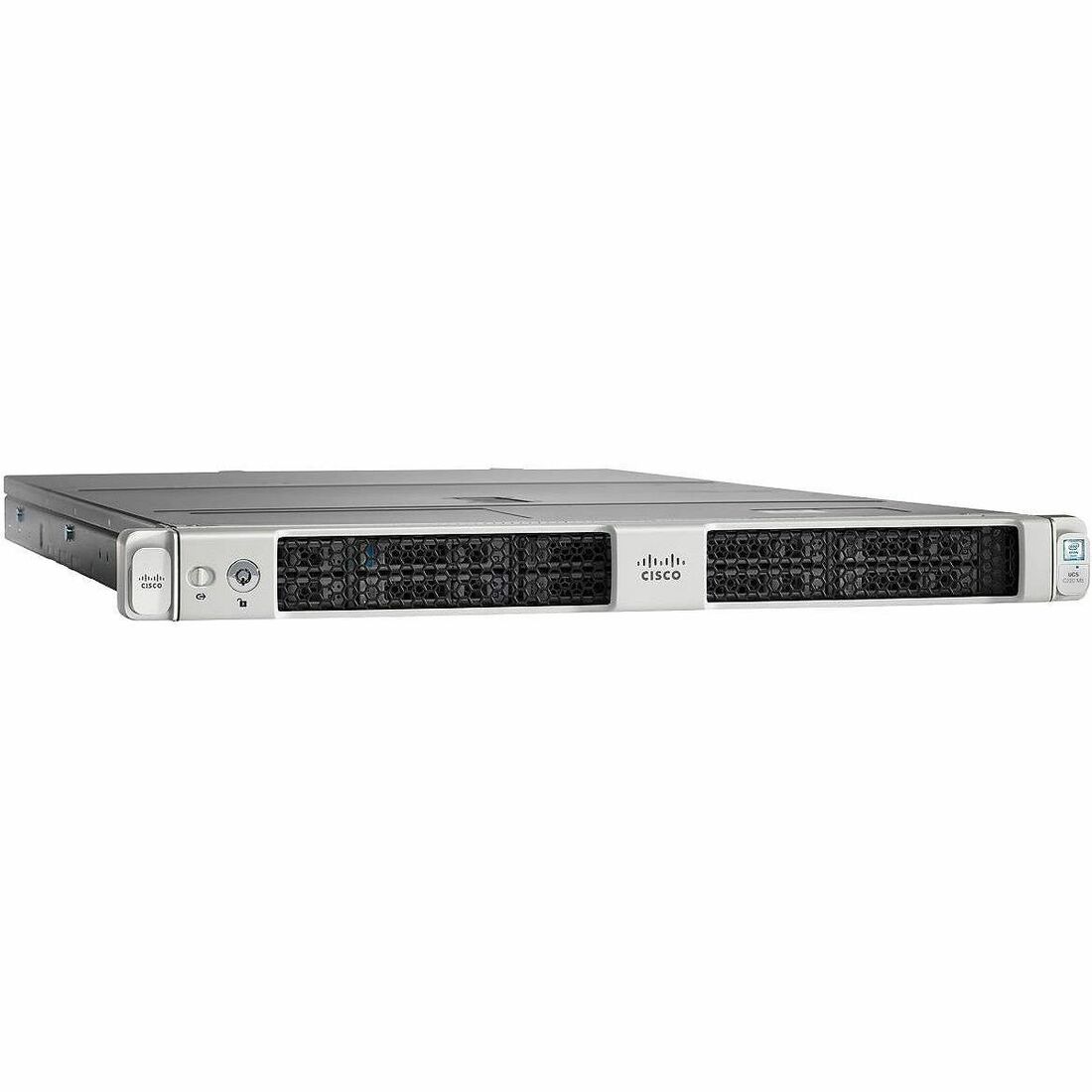

Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Silver 4110 2.10 GHz - 32 GB RAM - 12Gb/s SAS Controller - Refurbished

Name: Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Silver 4110 2.10 GHz - 32 GB RAM - 12Gb/s SAS Controller - Refurbished
Brand: CISCO
SKU: 7728BI
Price: 4544.3 USD
Availability: InStock

CISCO

PCN#

7728BI

MFG#

UCS-SPRC220M5S2-RF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$4,544.30

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621 Chip
2 Processor Support
DDR4 SDRAM
0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels Up to 16 MB Graphic Card
10 Gigabit Ethernet
10 x Total Bay(s)
10 x SFF Bay(s)
Hot Swappable Bays
Intel Optane Memory Ready

Product Condition: Manufacturer Refurbished

Limited Warranty3 YearAdditional Warranty InformationThree-year parts coverage.Next business day (NBD) parts replacement eight hours a day, five days a week.90-day software warranty on media.

Shipping Weight: 40 lbs.

Cisco C220 M5 1U Rack Server - 2 Xeon Silver 4110 2.10 GHz - 32 GB RAM - 12Gb/s SAS Controller - Refurbished

Overview

Tech Specs

Specifications

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SPRC220M5S2-RF
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C220 M5
Product Name	UCS C220 M5 Server
Marketing Information	The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports. The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Condition	Refurbished
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	Xeon Silver
Processor Generation	2nd Gen
Processor Model	4110
Processor Core	Octa-core (8 Core)
Processor Speed	2.10 GHz
Cache	11 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Standard Memory	32 GB
Memory Technology	DDR4 SDRAM
Memory Clock Speed	3.20 GHz
Error Checking	ECC
Total Number of Memory Slots	24
Number of Occupied Memory Slots	2
Intel Optane Memory Ready	Yes
Signal Processing	Registered (Buffered)

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60, JBOD

I/O Expansions

Number of Total Expansion Bays	10
Number of Internal 2.5" Bays	10
Number of SFF Bays	10
Hot Swappable Bays	Yes
Total Number of Expansion Slots	2
PCI Express Details	two 2 PCI Express (PCIe) 3.0 slots
Riser Card	Riser 1 (controlled by CPU 1): One full-height profile, 3/4-length slot with x24 connector and x16 lane. ; Riser 2 (controlled by CPU 2): One half-height profile, half-length slot with x24 connector and x16 lane.

Display & Graphics

Graphics Memory Capacity

16 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

Interfaces/Ports

Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Remote Management Controller	Baseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware.

Power Description

Number of Power Supplies Supported	2
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	19"
Depth	31"
Weight (Approximate)	59.97 lb

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year parts coverage. Next business day (NBD) parts replacement eight hours a day, five days a week. 90-day software warranty on media.
