TB4 FULL DOCK QUADRA PORT TB4 FULL DOCK 4X 4K 60HZ

by
CLUB 3D
PCN#
S15855
MFG#
CSV-1583

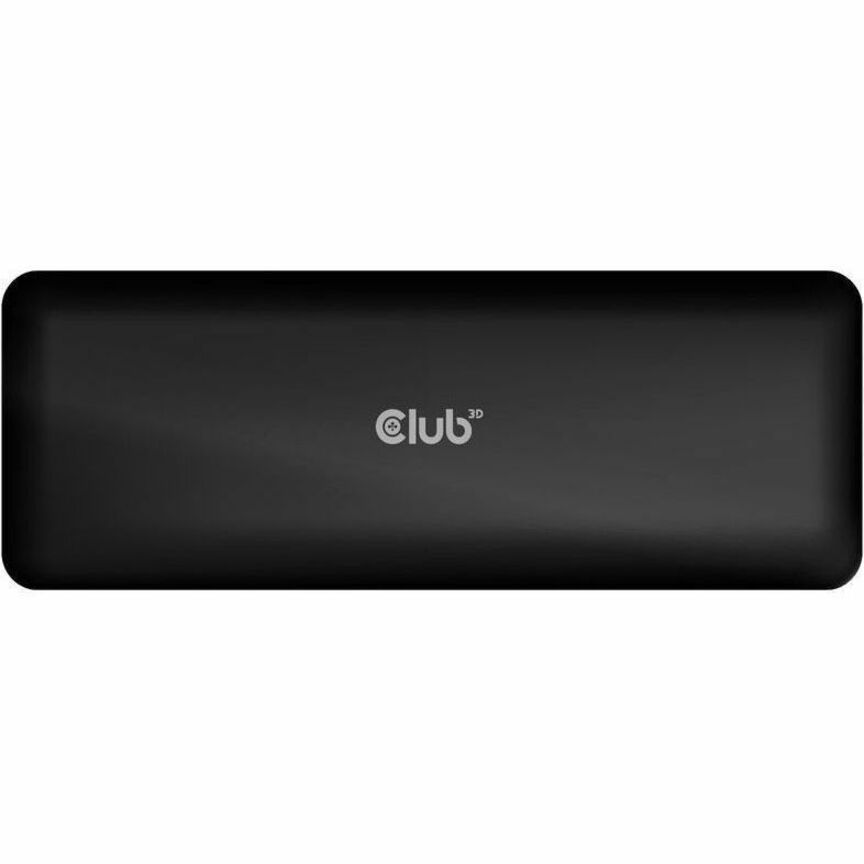

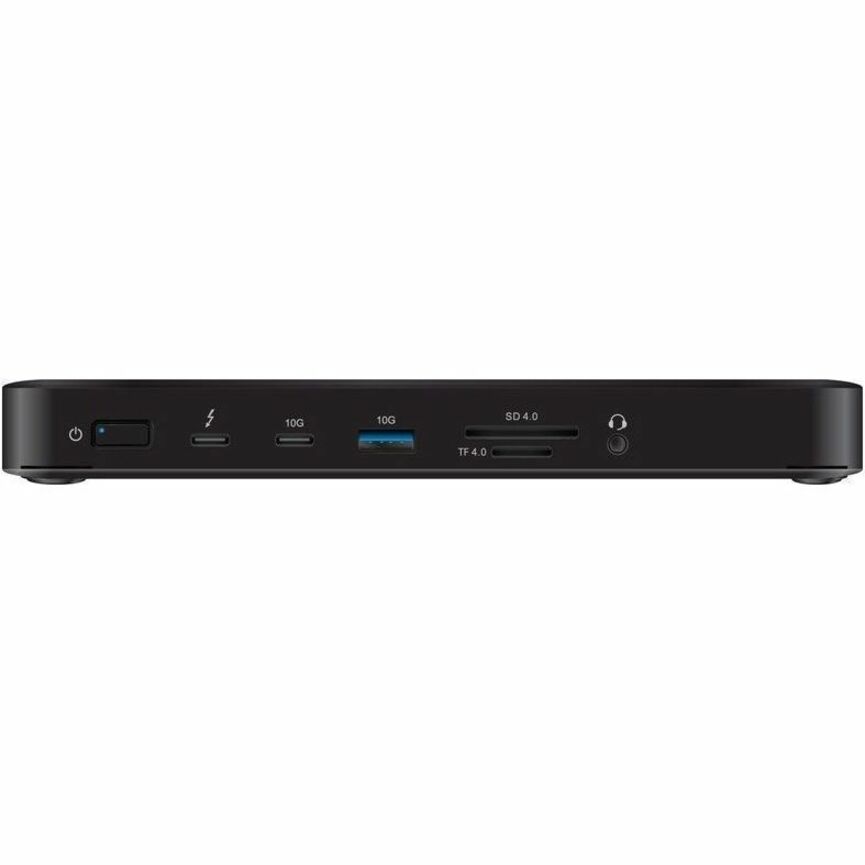

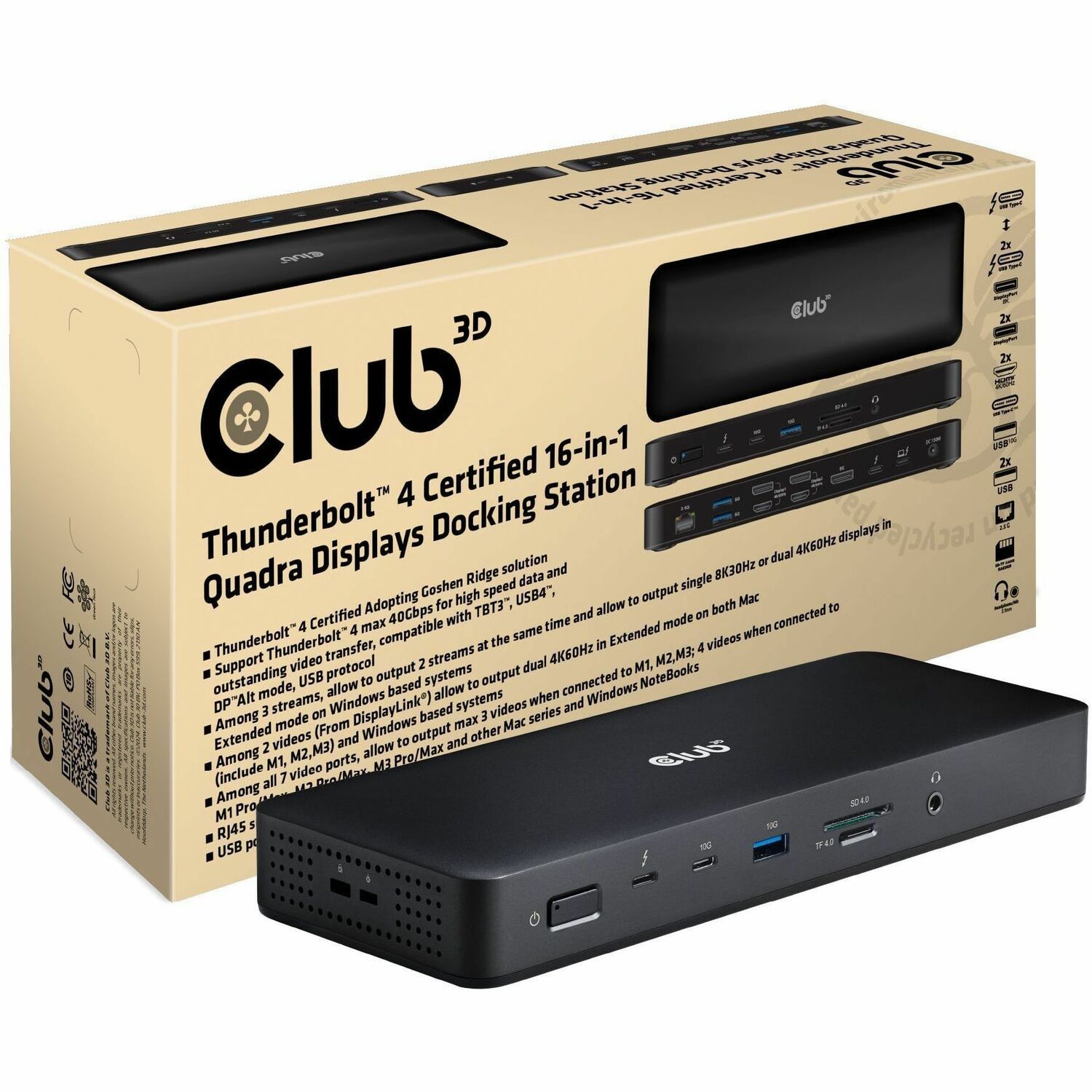

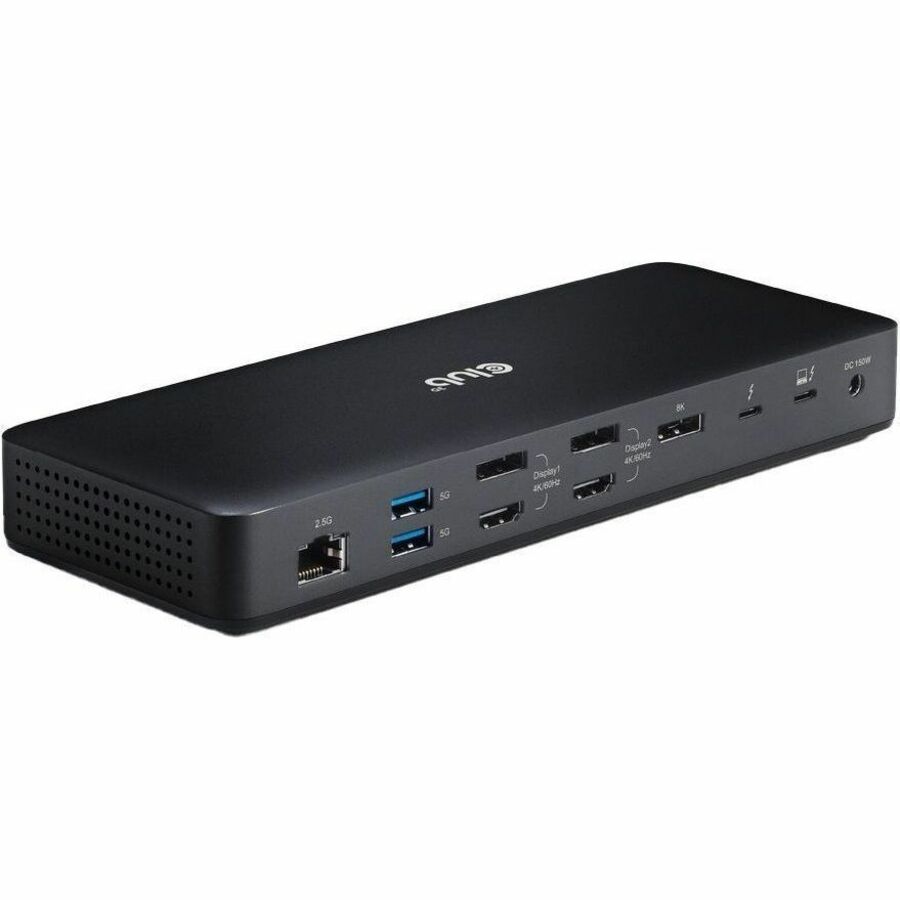

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
fotorama-image
fotorama-image
$221.22
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • for Notebook, MacBook, Computer
  • Memory Card Reader
  • SD, TransFlash

Show more

Product Condition: New and Factory Fresh
Limited Warranty24 Month
Shipping Weight: 4 lbs.
Club 3D Thunderbolt 4 Certified 16-in-1 Quadra Displays Docking Station
Overview
Tech Specs
Specifications

Manufacturer

Club 3D

Manufacturer Part Number

CSV-1583

Manufacturer Website Address

http://www.club-3d.nl

Brand Name

Club 3D

Product Line

Universal

Product Model

CSV-1583

Product Name

Thunderbolt 4 Certified 16-in-1 Quadra Displays Docking Station

Marketing Information

The Club 3D CSV- 1583 is a Thunderbolt™ 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4™/USB4™ based PCs and compatible with /DP-Alt-mode PCs.

Product Type

Docking Station
Technical Information

Connectivity Technology

Wired

Device Supported

  • Notebook
  • MacBook
  • Computer

Cable Length

2.62 ft

Memory Card Reader

Yes

Memory Card Supported

  • SD
  • TransFlash

Number of Displays Supported

4

Screen Mode Supported

  • 4K @ 60Hz
  • 8K

Supported Resolutions

  • 3840 x 2160
  • 7680 x 4320

Maximum Data Transfer Rate

5 GB/s

Security Slot Type

  • Kensington Security Slot
  • Nano Security Slot
Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet
Interfaces/Ports

Host Interface

Thunderbolt 4

Total Number of USB Ports

4

USB Type-A

Yes

Number of USB Type-A Ports

3

USB Type-C

Yes

USB Type-C Detail

1 x USB-C

Number of USB Type-C Ports

1

Network (RJ-45)

Yes

Number of RJ-45 Ports

1

DisplayPort

Yes

Number of DisplayPorts

3

Headphone/Microphone Combo Port

Yes

HDMI

Yes

Number of HDMI Ports

2

Thunderbolt

Yes

Thunderbolt Ports Quantity

2

Number of Thunderbolt 4 Ports

2
Software

Operating System Supported

  • Windows 10
  • macOS Ventura 13.5.2
Power Description

Maximum Power Supply Wattage

150 W

Power Source Type

  • DC
  • Power Adapter
Physical Characteristics

Height

8.86"

Width

3.35"

Depth

1.14"

Weight (Approximate)

1.31 lb
Miscellaneous

Package Contents

  • Thunderbolt 4 Certified 16-in-1 Quadra Displays Docking Station
  • Power Adapter 150Watt
  • TB4 Cable 0.8m / 2.62 ft M/M(for Connection to Host)
  • QR Code for the QIG(Quick Installation Guide)

Kensington Security Slot

Yes

Compatibility

Apple MacBooks:

  • M1
  • M2
  • M3
  • M1 Pro/Max
  • M2 Pro/Max
  • M3 Pro/Max

Brand Compatibility

Apple

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

24 Month
