HARDENED 3 PORT 1000MBPS + 7 PORT 100MBPS MANAGED SWITCH

Name: HARDENED 3 PORT 1000MBPS + 7 PORT 100MBPS MANAGED SWITCH
Brand: COMNET
SKU: S98127
Price: 2168.42 USD
Availability: InStock

COMNET

PCN#

S98127

MFG#

RLGE3FE7MS4/LV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,168.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Ports
Manageable
Gigabit Ethernet, Fast Ethernet
10/100Base
TX, 100/1000Base
FX, 10/100/1000Base
TX
2 Layer Supported
Single
mode, Multi
mode
Modular
12 W Power Consumption
Twisted Pair, Optical Fiber
DIN Rail Mountable, Panel
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

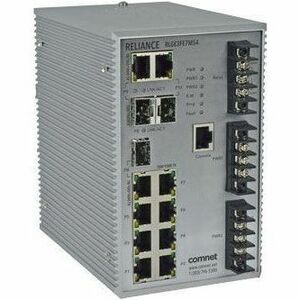

ComNet RLGE3FE7MS4 Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	ACRE
Manufacturer Part Number	RLGE3FE7MS4/LV
Manufacturer Website Address	http://www.acre-co.com
Brand Name	ComNet
Product Series	RLGE3FE7MS4
Product Name	RLGE3FE7MS4 Ethernet Switch
Marketing Information	ComNet product series RLGE3FE7MS4 is a substation-rated and industrially hardened managed layer 2 Ethernet switch. Fully compliant with the requirements of IEC 61850-3, IEEE 1613 Class 2, EN50155, Class1/ Division 2 (Groups A, B, C, & D for hazardous environments), and NEMA TS-1/TS-2, the DIN-rail mountable RLGE3FE7MS4 is intended for deployment in environments where high levels of electromagnetic noise and interference (EMI) and severe voltage transients and surges are routinely encountered, such as electrical utility substations and switchyards, heavy manufacturing facilities, track-side electronic equipment, and other severe out-of-plant installations. The RLGE3FE7MS4 provides 7 10/100BASE-TX communications ports, with 3 user-configurable 10/100/1000BASE-TX or 100/1000BASE-FX gigabit combo uplink ports. The use of SFPs for the three (3) gigabit uplink ports provides a truly future-proof platform, where the uplink optics may be changed in the field at any time, to support changes in the user's networking or cable plant requirements as they arise. The internal/self-contained 12 to 60 VDC or 85 to 264 VAC/88 to 370 VDC power supply features redundant power inputs, for the highest possible reliability in those installations where network availability is of the utmost importance. The RLGE3FE7MS4 supports multiple Ethernet redundancy protocols, including ComNet C-Ring (recovery time < 30ms, with >250 switches integrated within the ring), and MSTP with RSTP/STP compatibility. With its extremely fast recovery time, the most mission-critical applications are fully protected from network interruptions or temporary malfunctions due to possible short or long-term faults or outages within the network.
Product Type	Ethernet Switch

Technical Information

Features

IP30
Alarm Relay
DHCP Relay
Remote Monitoring (RMON)

Interfaces/Ports

Total Number of Network Ports	10
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	7 x 10/100BASE-TX Ethernet RJ-45 Network Port 3 x Gigabit Ethernet RJ-45/SFP Combo Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Optic Cable Core/Cladding Specification	50/125 µm 9/125 µm
Fiber Mode Supported	Single-mode Multi-mode
Ethernet Technology	Gigabit Ethernet Fast Ethernet
Network Technology	10/100Base-TX 100/1000Base-FX 10/100/1000Base-TX
Maximum Data Transfer Rate	128 MB/s

I/O Expansions

Shared SFP Slot

Yes

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1Q IEEE 802.1s IEEE 802.1D IEEE 802.1w IEEE 802.1p IEEE 802.1x IEEE 802.3u IEEE 802.3 IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3ad IEEE 802.1ab

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	12 V DC 60 V DC
Frequency	47 Hz 63 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Power Consumption	12 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal Aluminum
Form Factor	DIN Rail Mountable Panel-mountable
Height	3.8"
Width	6.1"
Depth	5.9"
Weight (Approximate)	4.27 lb

Miscellaneous

Application/Usage	Network Traffic Security Surveillance Infrastructure Server
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

Lifetime
