10/100/1000 BASED T TO 1000 MANAGED MEDI

by
CORNER PRODUCTS CO
PCN#
6947BK
MFG#
GVM-1220

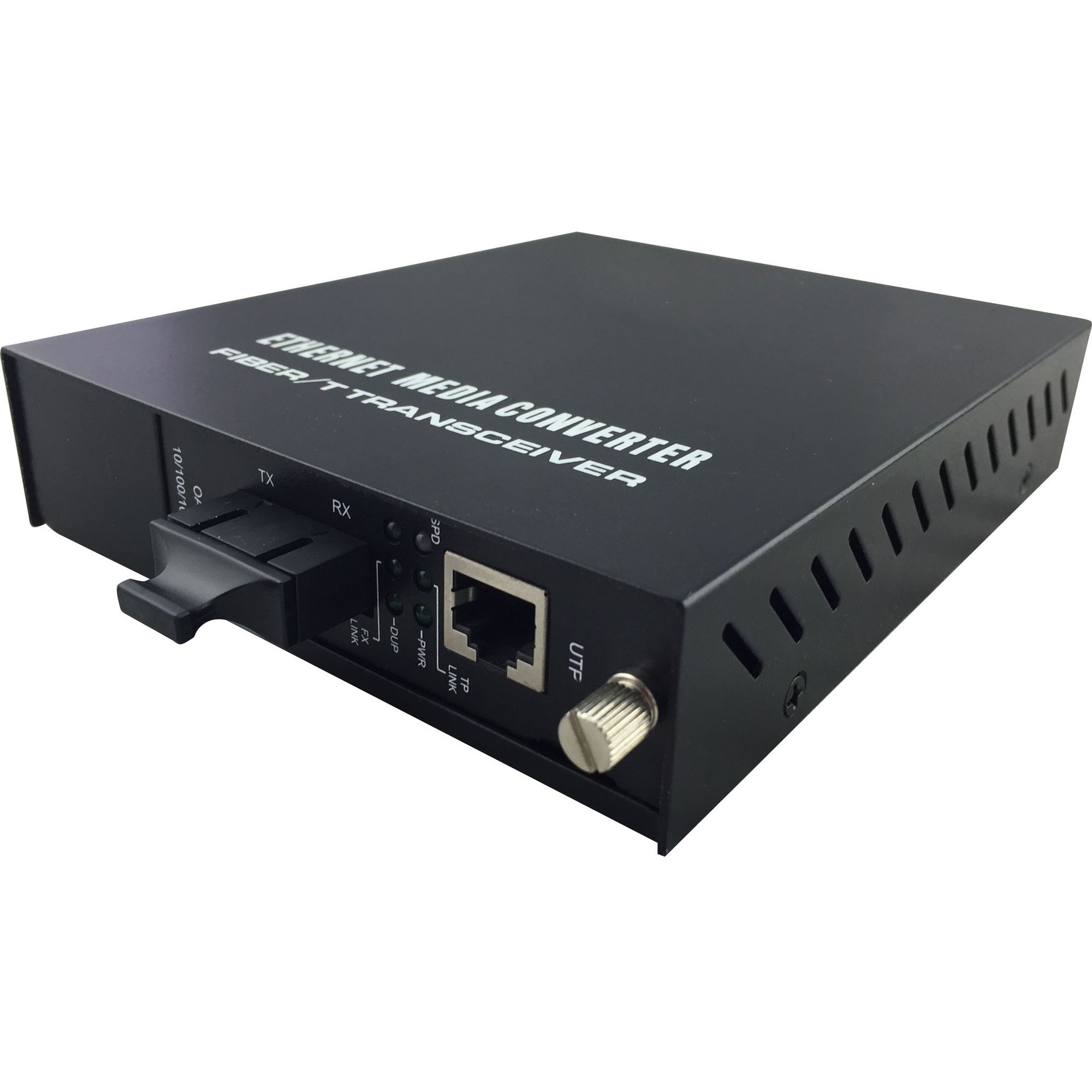

main product photo
fotorama-image
$190.66
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x Network (RJ
  • 45)
  • 1 x SC Ports

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 2 lbs.
LevelOne RJ45 to SC Managed Gigabit Media Converter, Single-Mode Fiber, 20km
Overview
Tech Specs
Specifications

Manufacturer

Digital Data Communications GmbH

Manufacturer Part Number

GVM-1220

Manufacturer Website Address

http://www.digital-data.de

Brand Name

LevelOne

Product Model

GVM-1220

Product Name

RJ45 to SC Managed Gigabit Media Converter, Single-Mode Fiber, 20km

Marketing Information

GVM-1220 series is remote Managed Gigabit Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100/1000Base-T and 1000Base-X, It supports both half-duplex and full-duplex operations and a variety of fiber options. It is double fiber, single mode, 20km media converter

Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.

Product Type

Transceiver/Media Converter
Interfaces/Ports

Total Number of Ports

2

Network (RJ-45)

Yes

DVI

No

USB

No

Management Port

No

Number of Network (RJ-45) Ports

1

Number of SC Ports

1

SC Port Type

Duplex
Media & Performance

Media Type Supported

  • Optical Fiber
  • Twisted Pair

Fiber Mode Supported

Single-mode

Fiber Optic Cable Wavelength

1310 nm

Maximum Distance Supported

20 km
Network & Communication

Ethernet Technology

Gigabit Ethernet

Network Technology

  • 10/100/1000Base-TX
  • 1000Base-X
Power Description

Power Source

Power Supply
Physical Characteristics

Form Factor

  • Wall Mountable
  • Desktop

Height

1.3"

Width

5"

Depth

6.1"

Weight (Approximate)

1.59 lb
Miscellaneous

Package Contents

  • RJ45 to SC Managed Gigabit Media Converter, Single-Mode Fiber, 20km
  • Resource CD (User Manual)

Environmentally Friendly

Yes
