CRESTRON FLEX ADVANCED TABLETOP MEDIUM ROOM CONFERENCE SYSTEM FOR ZOOM ROOMS SOF

The UC-MX50-NC-Z Crestron Flex advanced tabletop conferencing system provides a medium room conference solution for use with Zoom Rooms® software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, UC bracket assembly, power supply, and cables.

Native Zoom Rooms® Software Experience

The UC-MX50-NC-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Intuitive User Interface with Impressive Audio

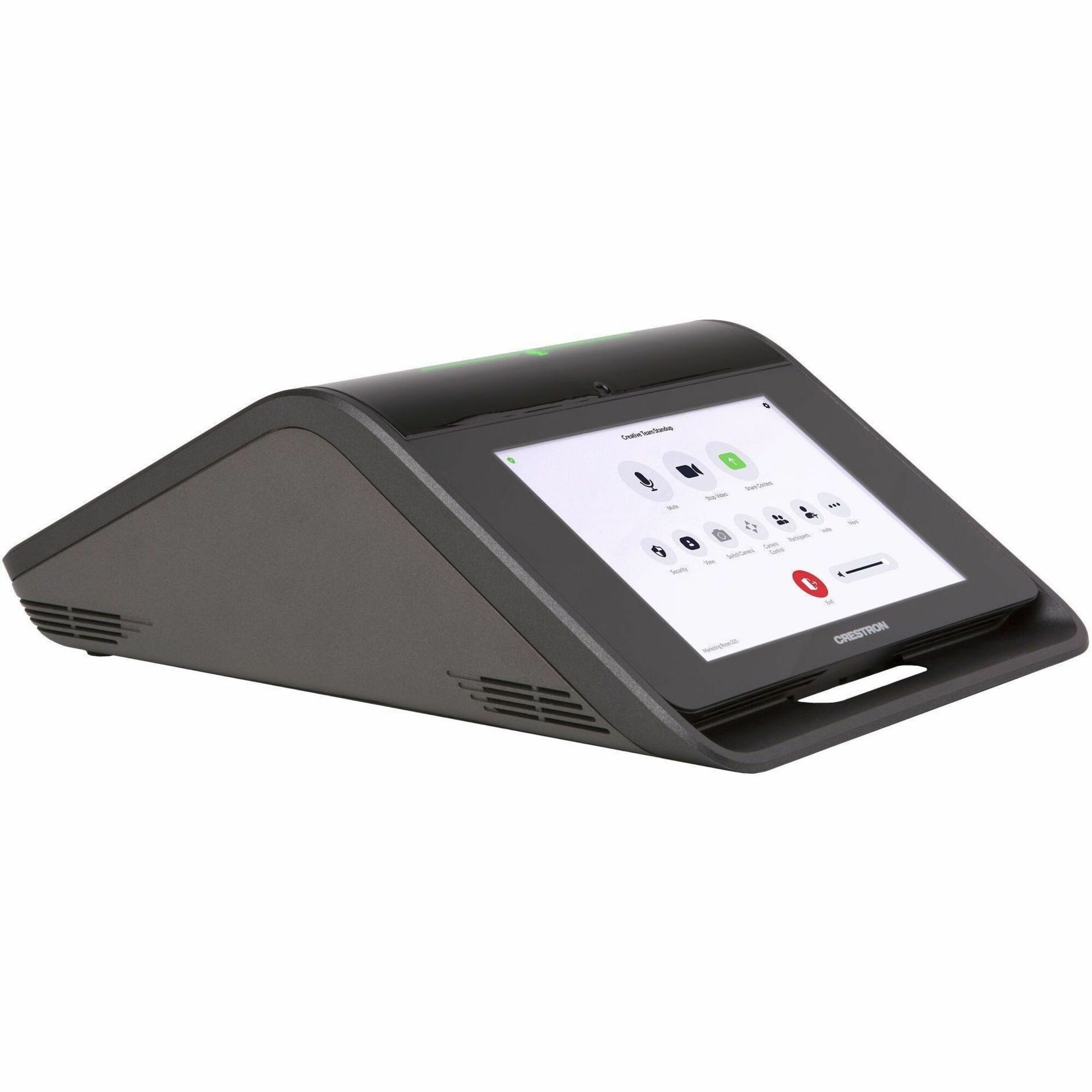

With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS-UC-1-X) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices

Simplified Deployment

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

High-Definition Video Conferencing

High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras: IV-CAMHK-12-SLVR-1B, IV-CAM-P12 and IV-CAM-P20. Zoom Rooms software certified third-party cameras are also compatible with the system.

Bring Your Own Device (BYOD)

Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system's built-in content ingest device switches to the connected laptop's UC platform and returns to the native platform when disconnected.

Enterprise-Grade Security

Crestron Flex is an enterprise-grade solution that is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

• Video Conference Equipment
• Meeting Room
• Table
• Conference
• Huddle Room
• Office
• Wall Mount
• Wall

• Network (RJ-45)
• USB
• HDMI
• DisplayPort
• USB Type C
• USB Type B
• USB Type A
• Micro USB

• 120 V AC
• 230 V AC
• 24 V DC

Crestron Flex Tabletop Conferencing Device

• Mic Mute Symbol and Light Bar: (2) Capacitive buttons with bi-color LEDs

UC Bracket Assembly Construction

• Black

UC Bracket Assembly Construction:Metal mounting Bracket

Crestron Flex Tabletop Conferencing Device | Dimensions:

• Screen 7 in. (178 mm)
• Microphones Pickup Range (typical): 20 ft (6 m)
• Occupancy Sensor: 6 ft (1.83 m) PIR range in front of touch screen
• Height: 4.11 in. (104 mm)
• Width: 8.92 in. (227 mm)
• Depth: 12.74 in. (324 mm)

UC Bracket Assembly | Dimensions:

• Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Depth: 1.87 in. (48 mm)

• Crestron Flex Tabletop Conferencing Device Weight:5.5 lb (2.5 kg)
• Crestron Flex Tabletop Conferencing Device Weight:8.0 lb (3.7 kg)

• Table
• Wall

Crestron Flex Tabletop Conferencing Device

• Touch Screen 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI Zoom Rooms UI
• Mic Mute Symbol and Light Bar (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute
• AEC Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant
• Speaker Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz
• Microphones 360° quad mic array; Pickup Range (typical): 20 ft (6 m)
• Extension Microphones Supports two mic pods, model CCS-UCA-MIC (sold separately)
• Occupancy Sensor 6 ft (1.83 m) PIR range in front of touch screen
• Ethernet 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/ IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune® client
• USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
• Power 24VDC via external 100-240VAC, 50/60 Hz power pack, model PW-2420RU (NOTE: The CCS-UC-1-X cannot be powered by Power over Ethernet or PoE+.)

UC Bracket Assembly

• UC Engine Mini PC, Intel Core® processor, with Windows® 11 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
• UC Client Zoom Rooms software
• Management Client XiO Cloud Service
• Content Ingest HDMI input via CAT5 to USB 3.0 converter
• Display Output Single or dual displays supported
• Display Output Resolution 1080p
• Power UC Engine: 100-240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100-240VAC, 50/60 Hz power pack (included)
