CYBERPOWER BP36VL2U01 BATT MOD 6VDC/60A - 12V/9AH LEAD-ACID BATT

Name: CYBERPOWER BP36VL2U01 BATT MOD 6VDC/60A - 12V/9AH LEAD-ACID BATT
Brand: CYBERPOWER
SKU: 390J94
Price: 1054.95 USD
Availability: InStock

CYBERPOWER

PCN#

390J94

MFG#

BP36VL2U01

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,054.95

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

36 VDC / 60 A
12 V / 9 Ah Sealed Lead
Acid Battery, 3YR Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 64 lbs.

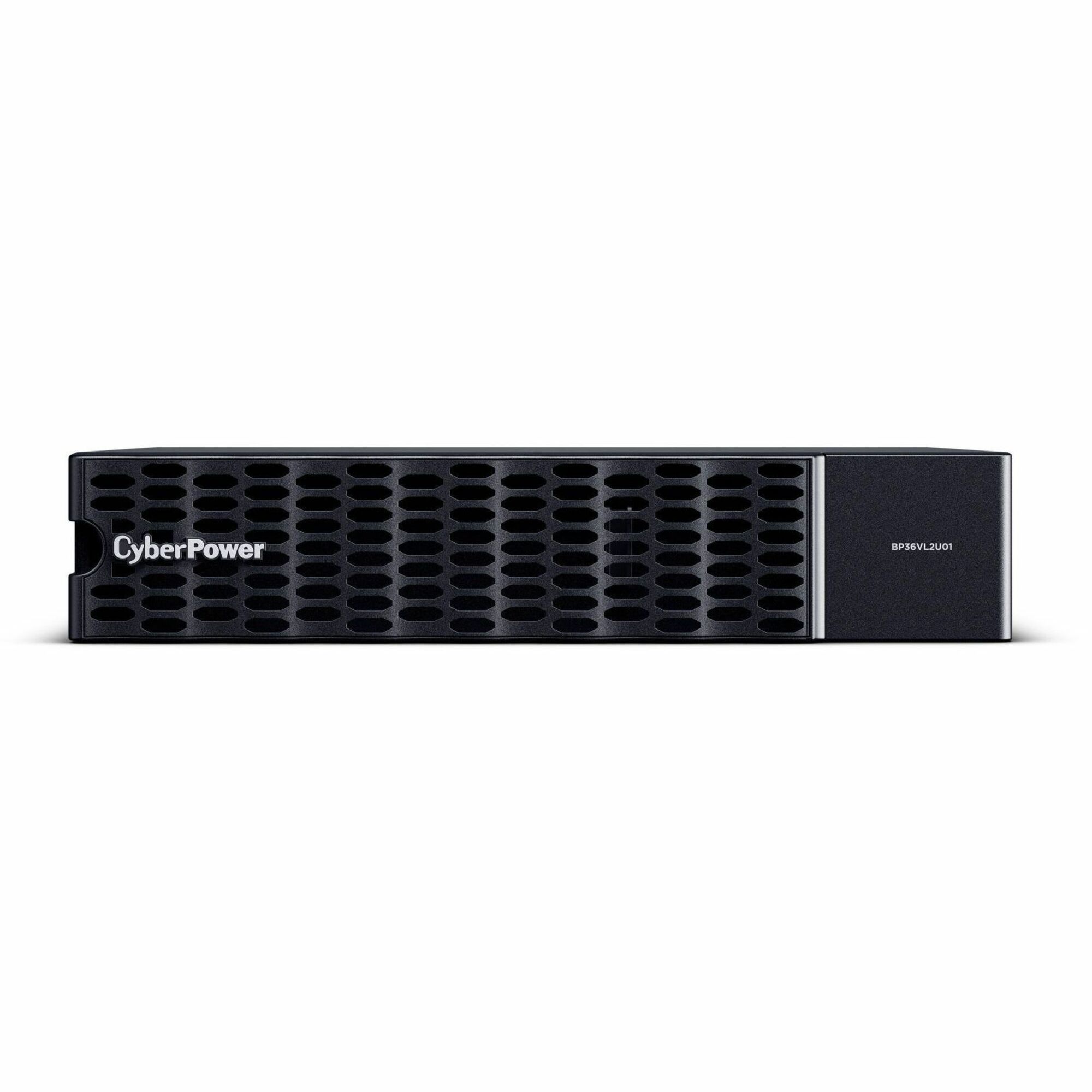

CyberPower BP36VL2U01 Extended Battery Modules

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	BP36VL2U01
Manufacturer Website Address	https://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Extended Battery Modules
Product Model	BP36VL2U01
Product Name	Extended Battery Modules BP36VL2U01 UPS Battery Pack

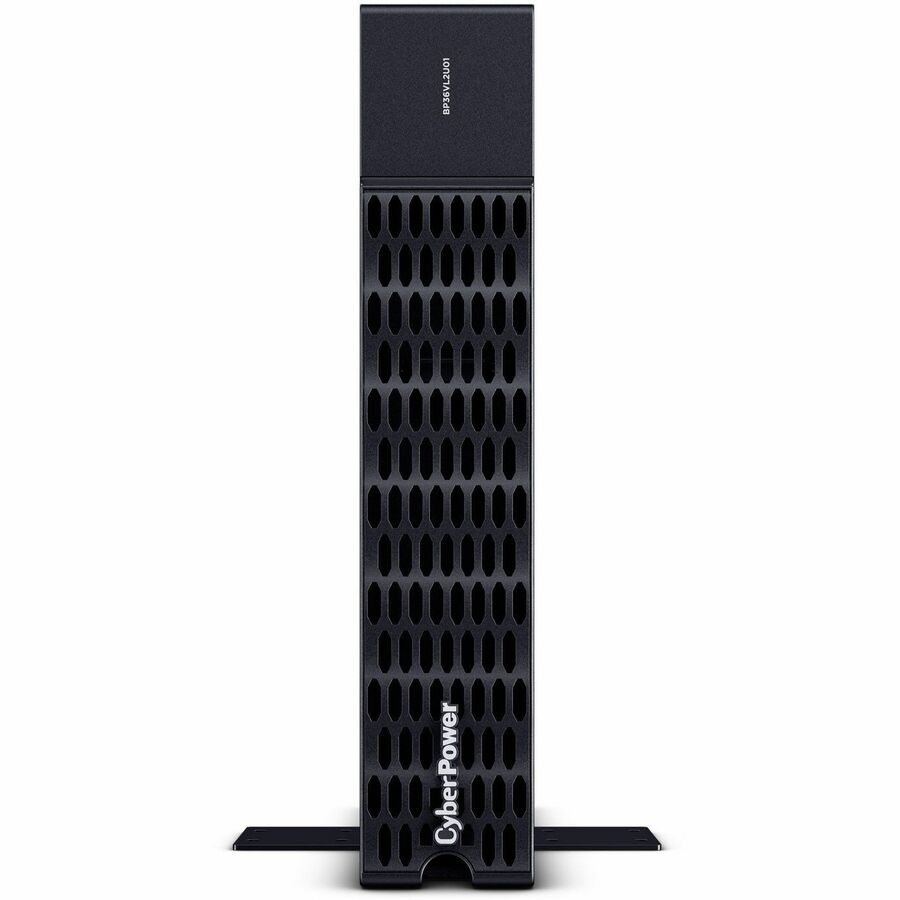

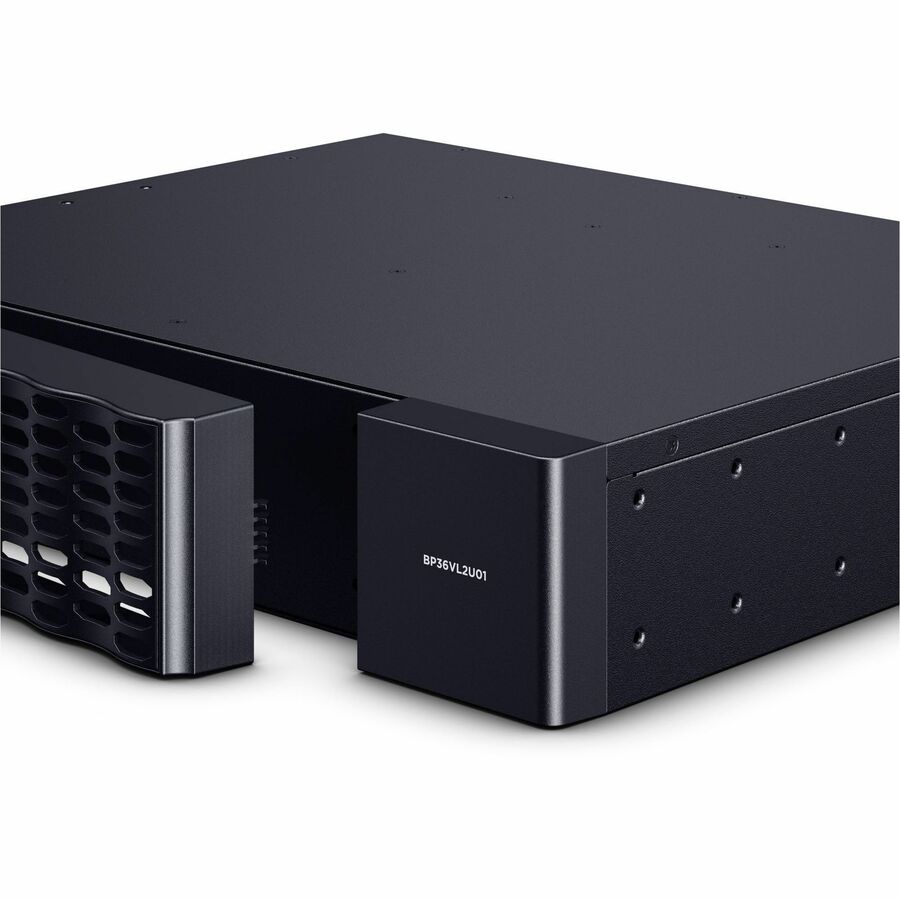

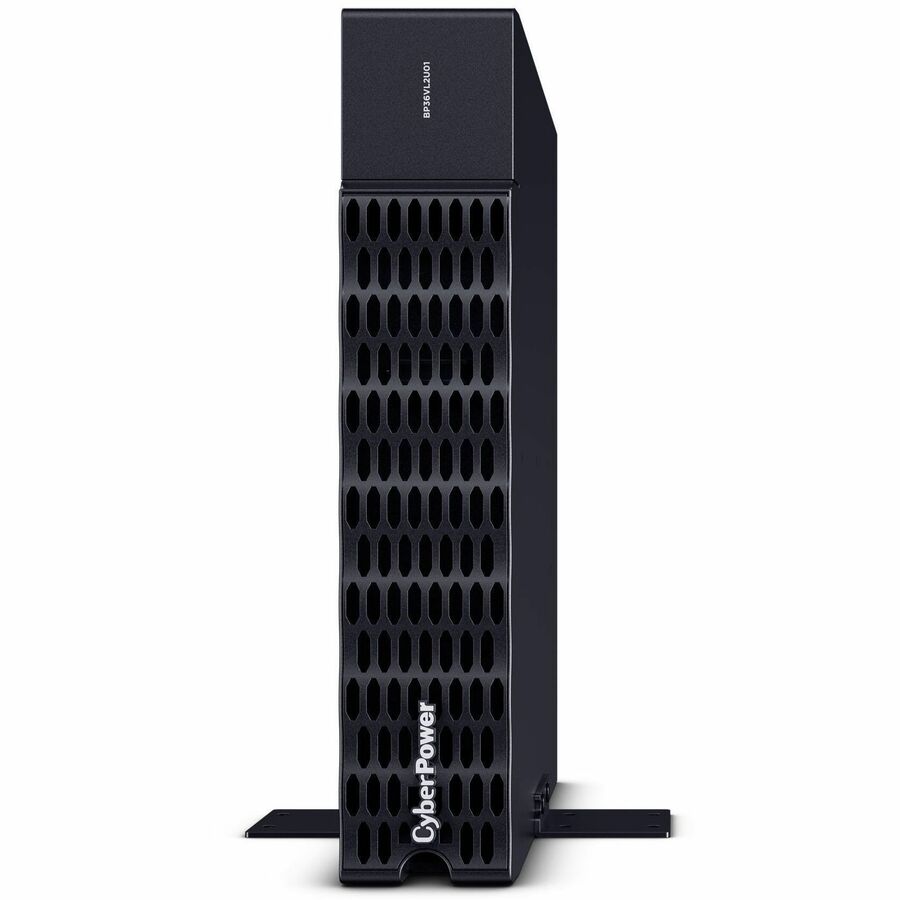

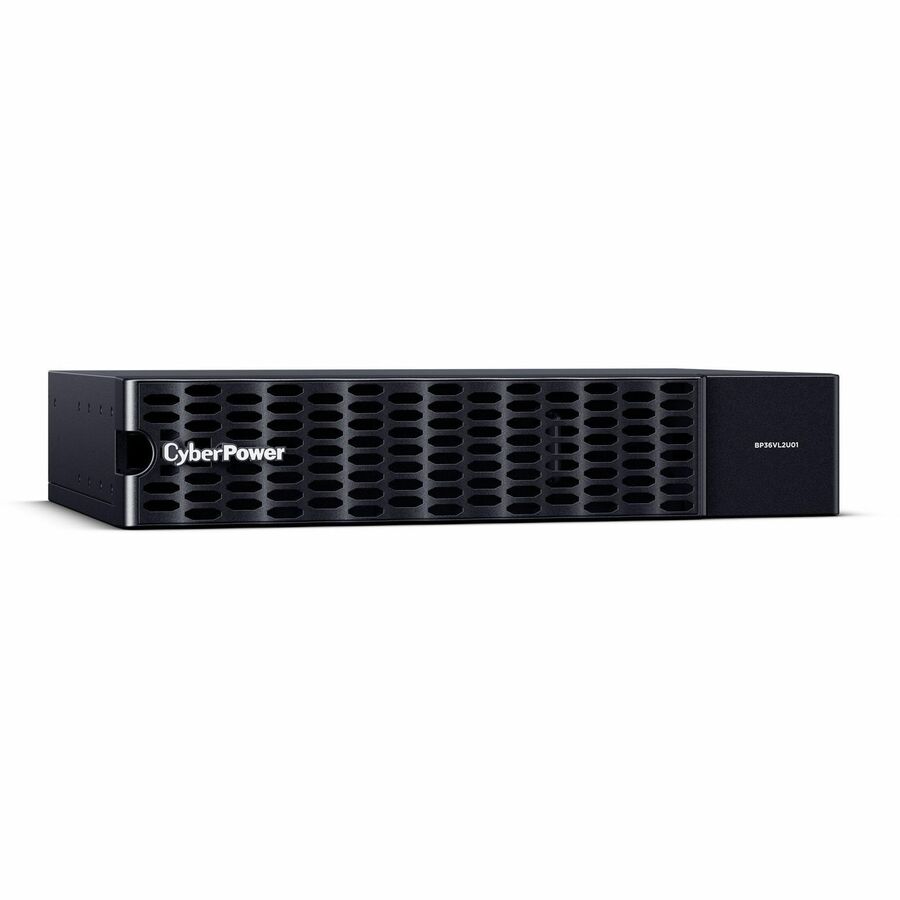

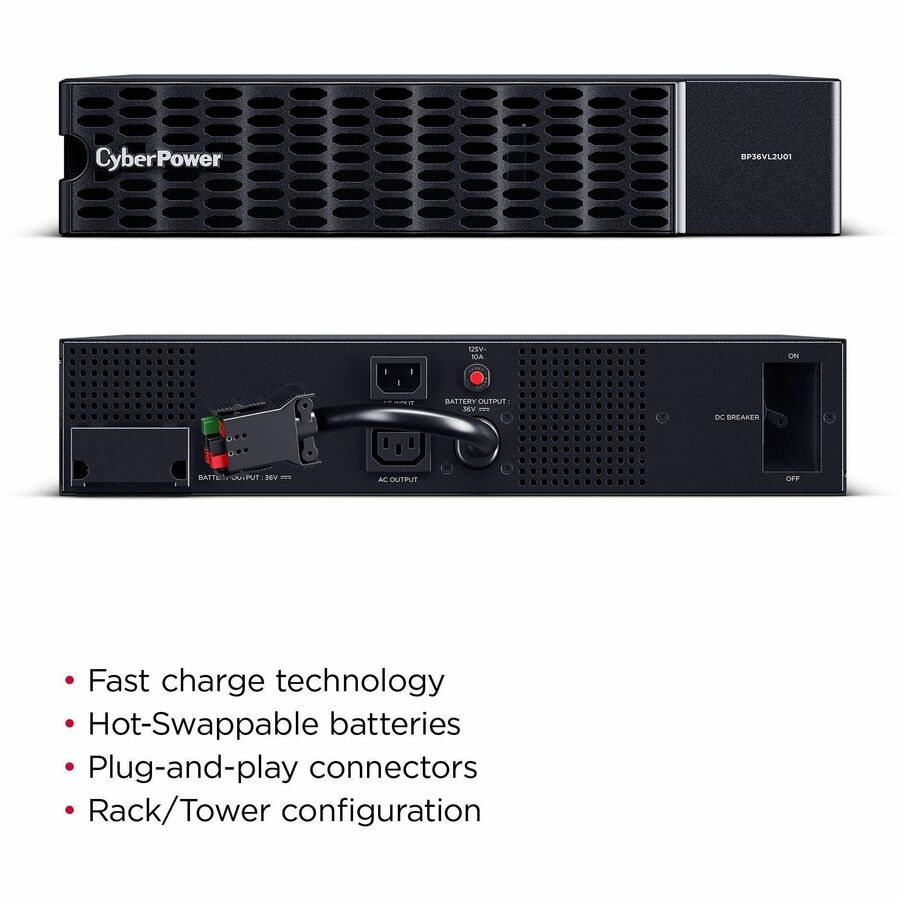

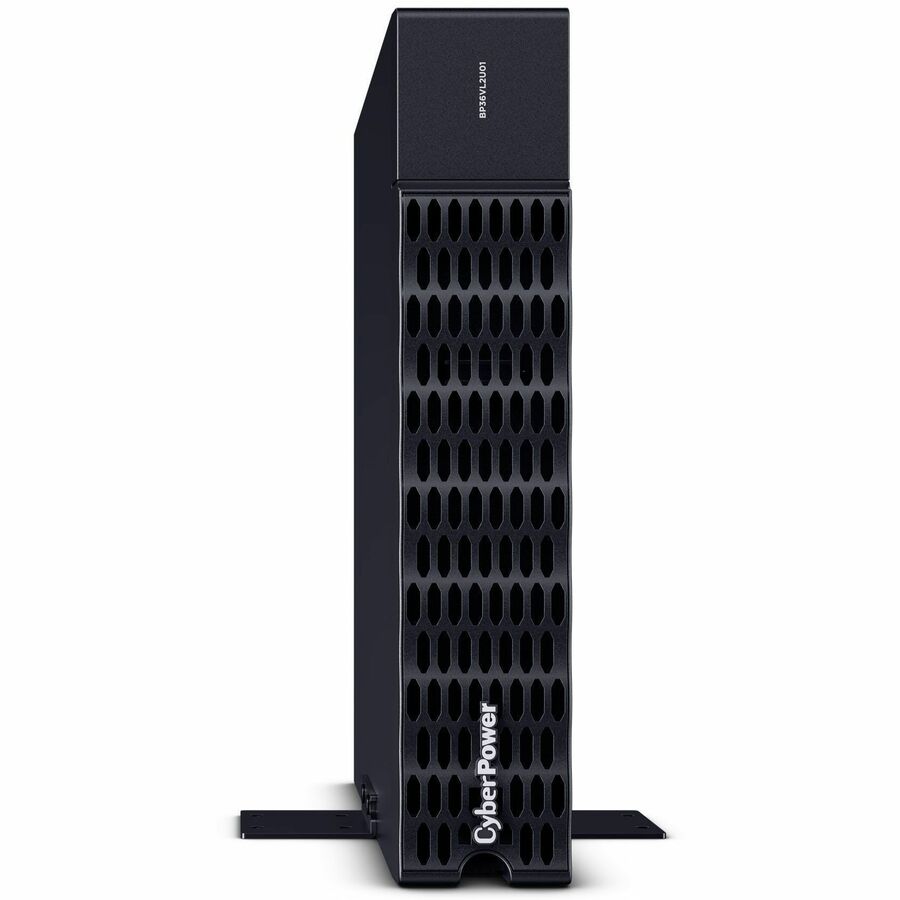

Marketing Information	The CyberPower BP36VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL1K5RTHD and OL2K2RTHD. The BP36VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.
Packaged Quantity	6
Product Type	UPS Battery Pack

Technical Information

Battery Characteristics	Sealed/User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Maximum Battery Recharge Time	4 Hour
Battery Capacity	9000 mAh
Input Voltage	120 V
Output Voltage	36 V DC
Number of Batteries	6
Number of Cells	6
Battery Size	12V
Output Current	60 A

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Rack Height	2U
Height	9"
Width	22"
Depth	19"
Weight (Approximate)	63.88 lb

Miscellaneous

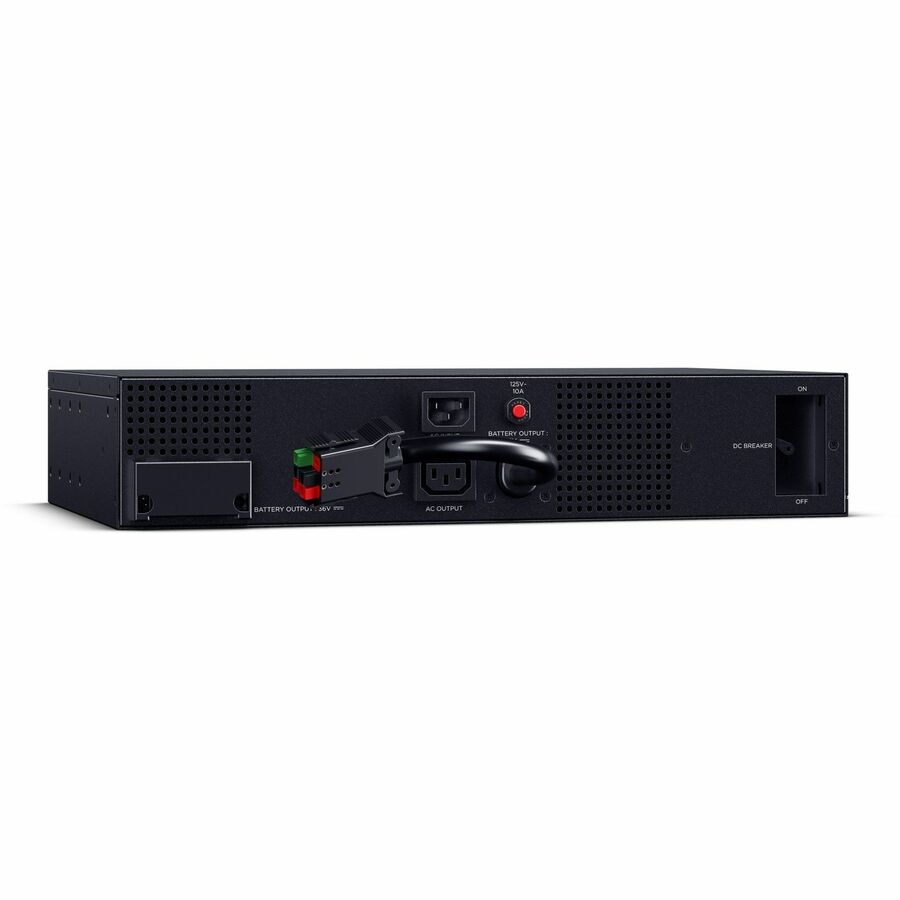

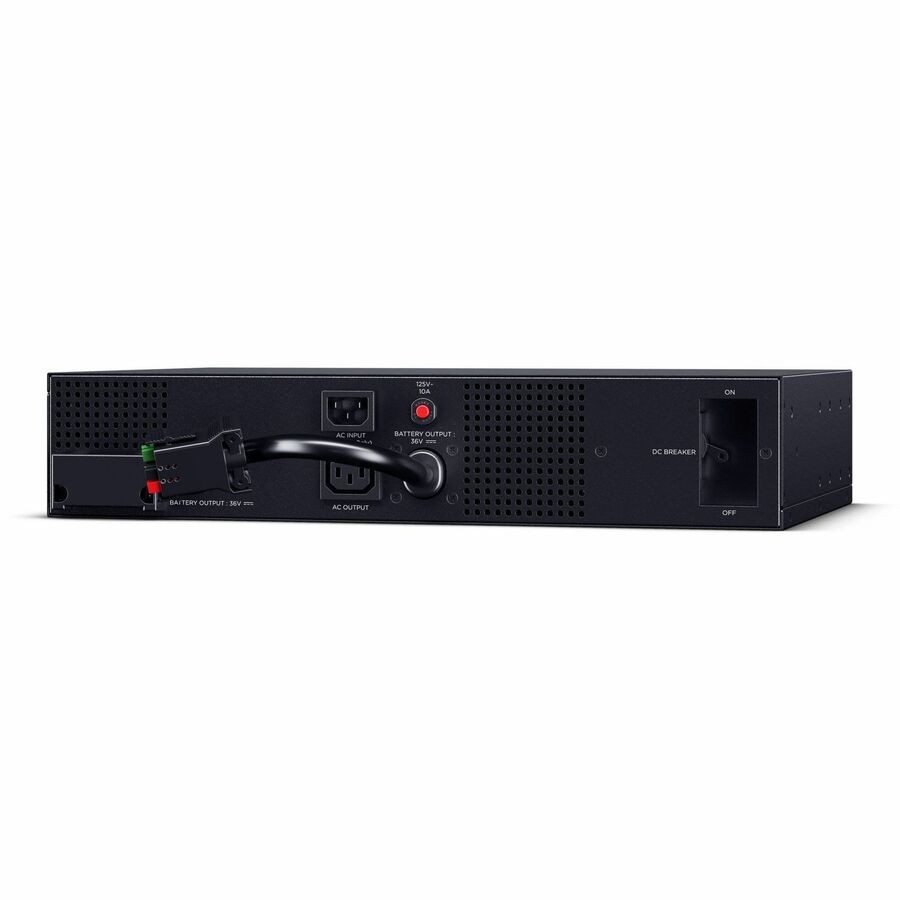

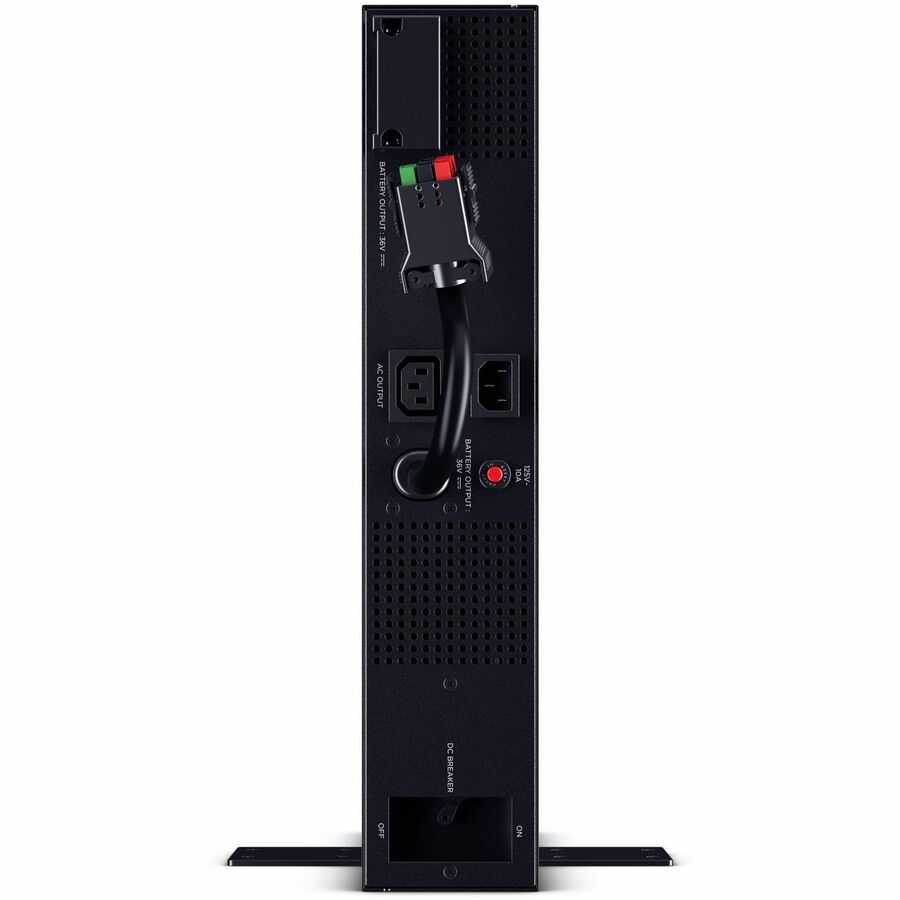

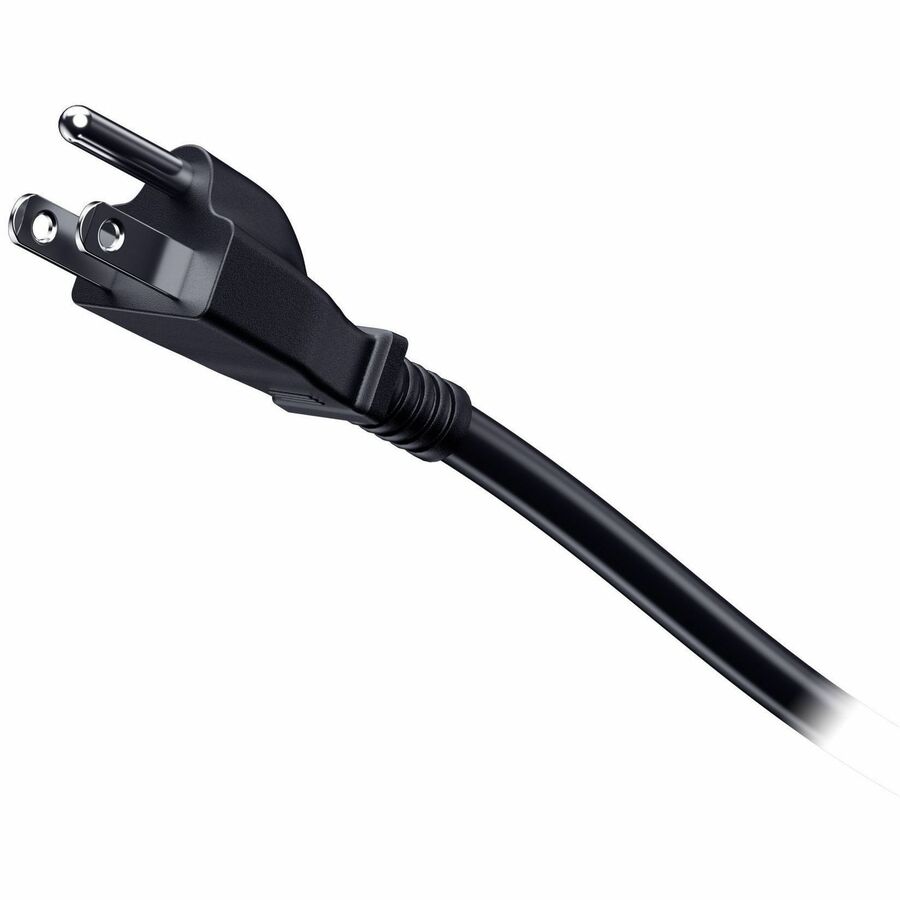

Additional Information	Built-in Charger : Yes Expansion Ready (Daisy-Chain) : Yes Replacement Battery Cartridge : RB1290X3D Replacement Battery Cartridge Quantity : 2 Circuit Breaker : 10 A Input Plug Type : NEMA 5-15P Input Voltage Range : 100 VAC - 125 VAC Nominal Input Voltage : 120 VAC Material of Construction : Metal Mounting Hardware : Yes Online Thermal Dissipation : 61 BTU/hr Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C)
Compatibility	CyberPower UPS Models: OL1K5RTHD OL2K2RTHD
Certifications & Standards	UL 1778 CSA C22.2 NO.107.3 FCC Part 15 Class B with 1500VA UPS FCC Part
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
