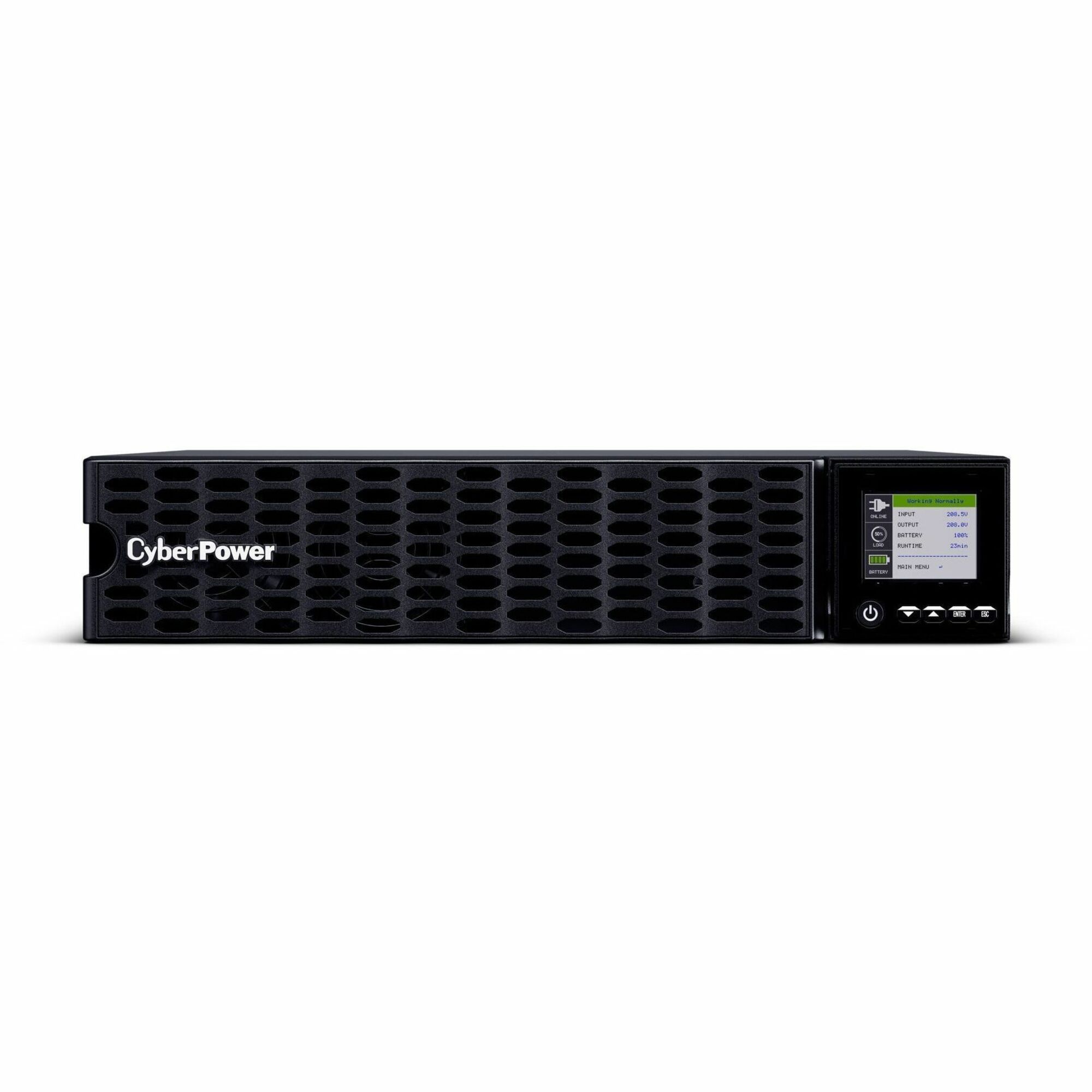

CYBERPOWER OL3KRTHD UPS 100-125V RT HD 3 YEAR WARRANTY

by
CYBERPOWER
PCN#
560E11
MFG#
OL3KRTHD
$3,849.95
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 3000VA/2700W, 100
  • 125 VAC, NEMA L5
  • 30P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Product Condition: New and Factory Fresh
Limited Warranty3 YearAdditional Warranty InformationThree-year warranty (including batteries)Directly Connected Equipment Guarantee400000 Lifetime
Shipping Weight: 60 lbs.

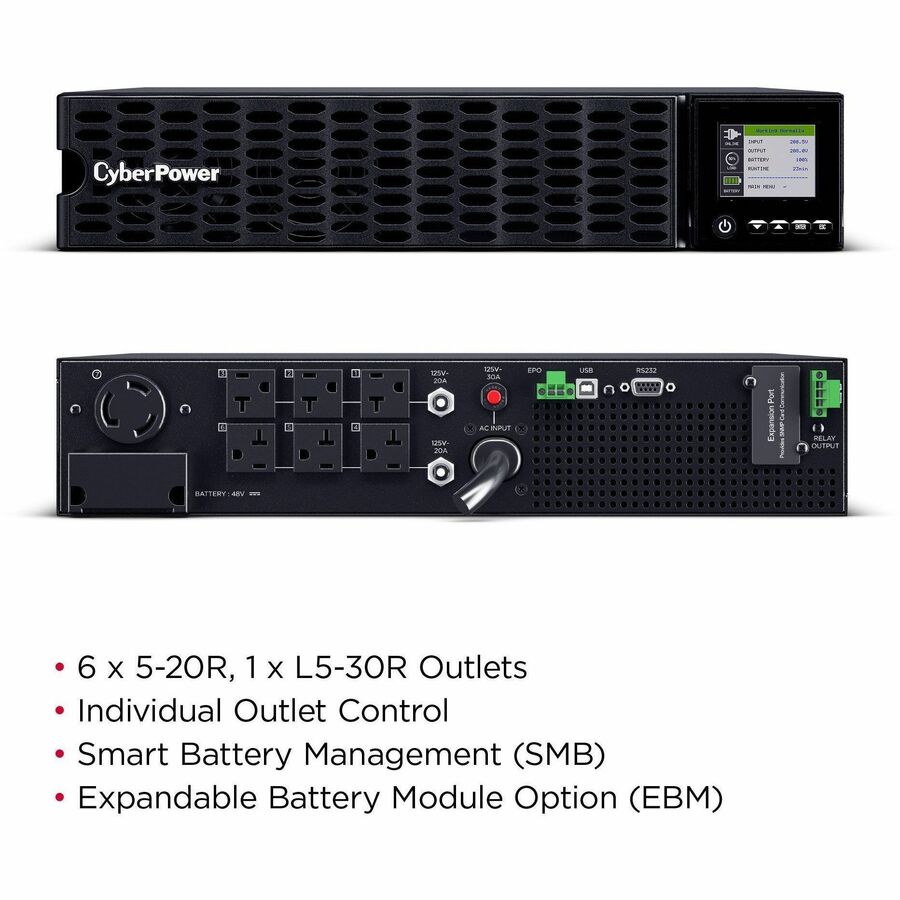

CyberPower OL3KRTHD Smart App Online UPS Systems
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

OL3KRTHD

Manufacturer Website Address

https://www.cyberpowersystems.com/

Brand Name

CyberPower

Product Series

Smart App Online UPS

Product Model

OL3KRTHD

Product Name

Smart App Online UPS OL3KRTHD 3000VA Rack/Tower UPS

Marketing Information

  • The OL3KRTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

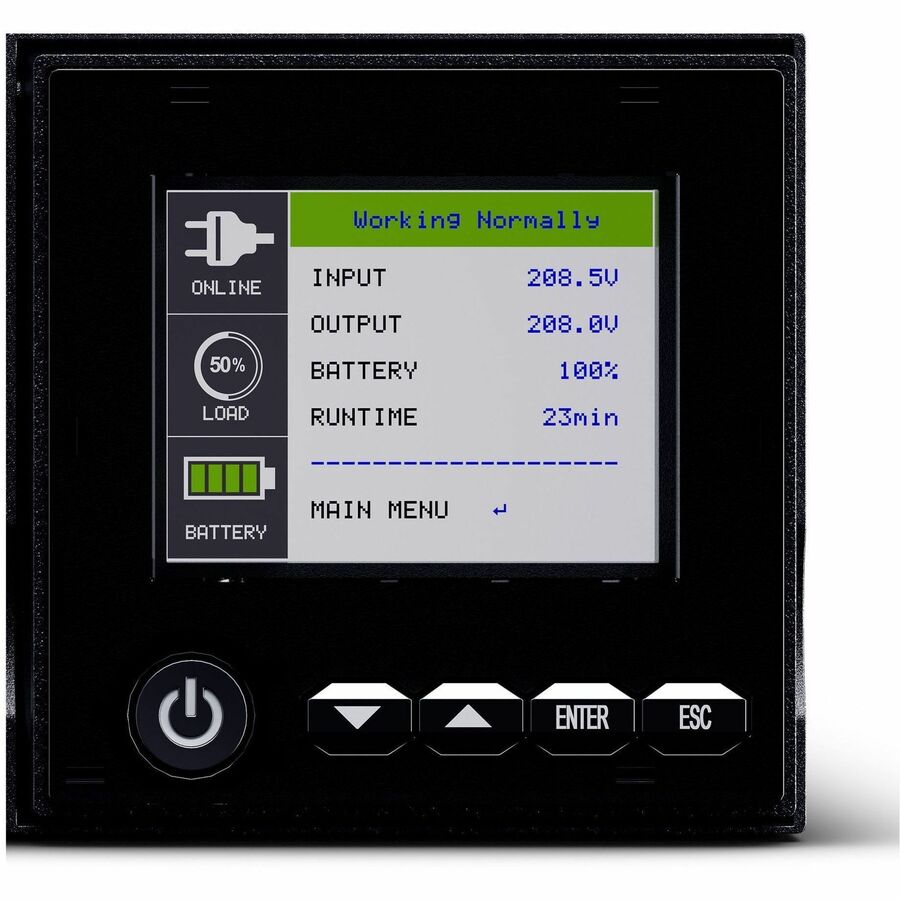

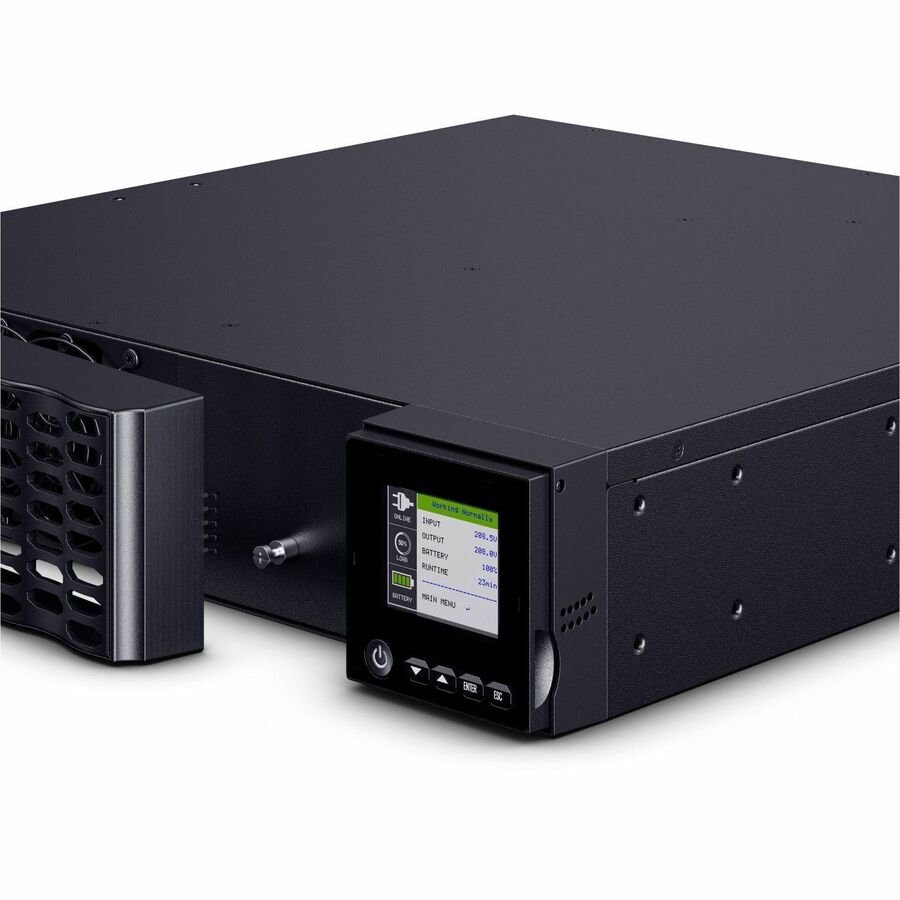

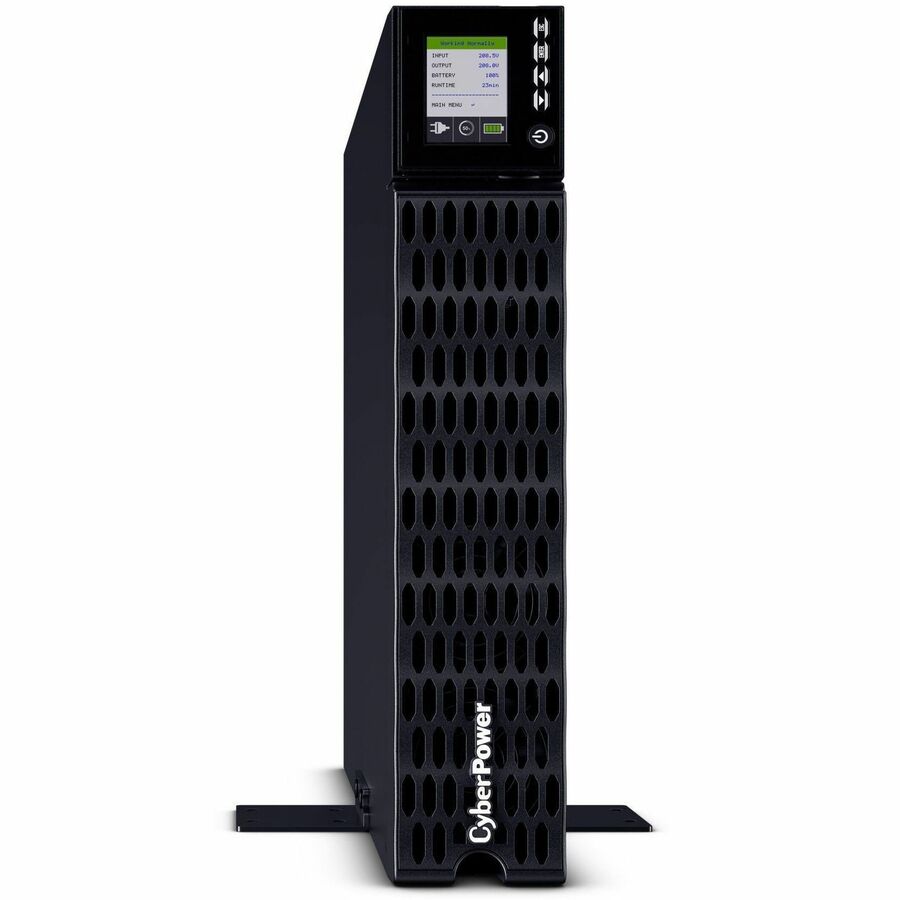

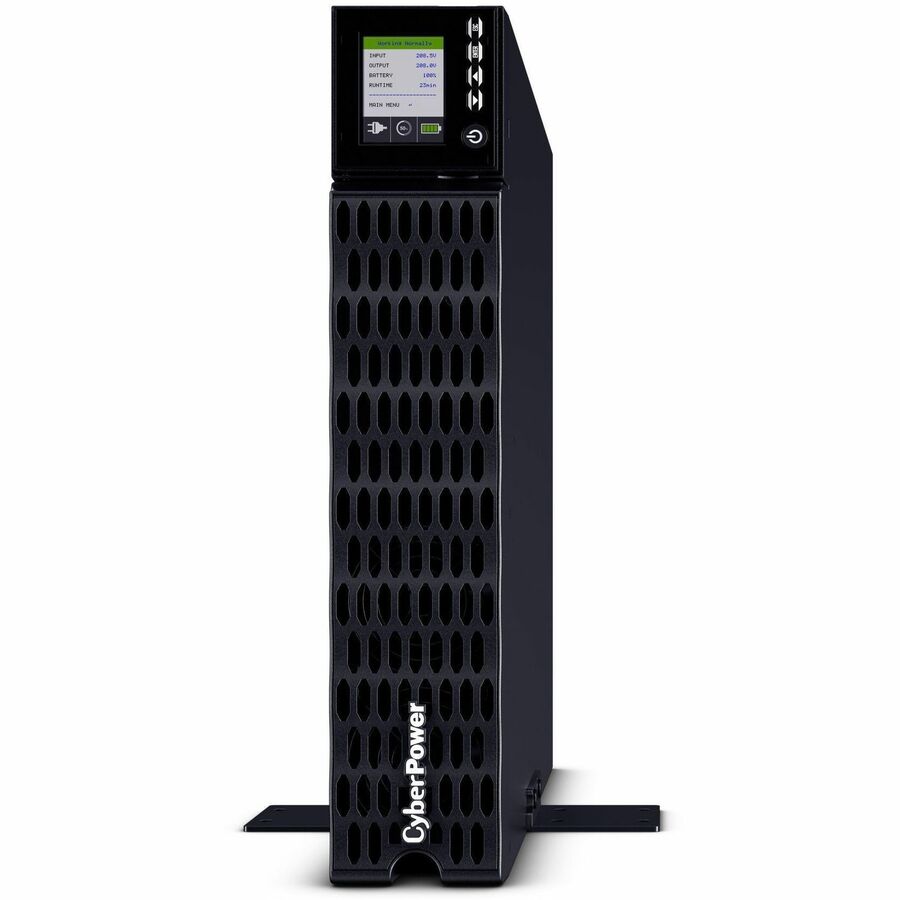

    For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

    The OL3KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.9. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.

    The optional BP48VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a

  • 400,000 Connected Equipment Guarantee.

Product Type

Double Conversion Online UPS
Technical Information

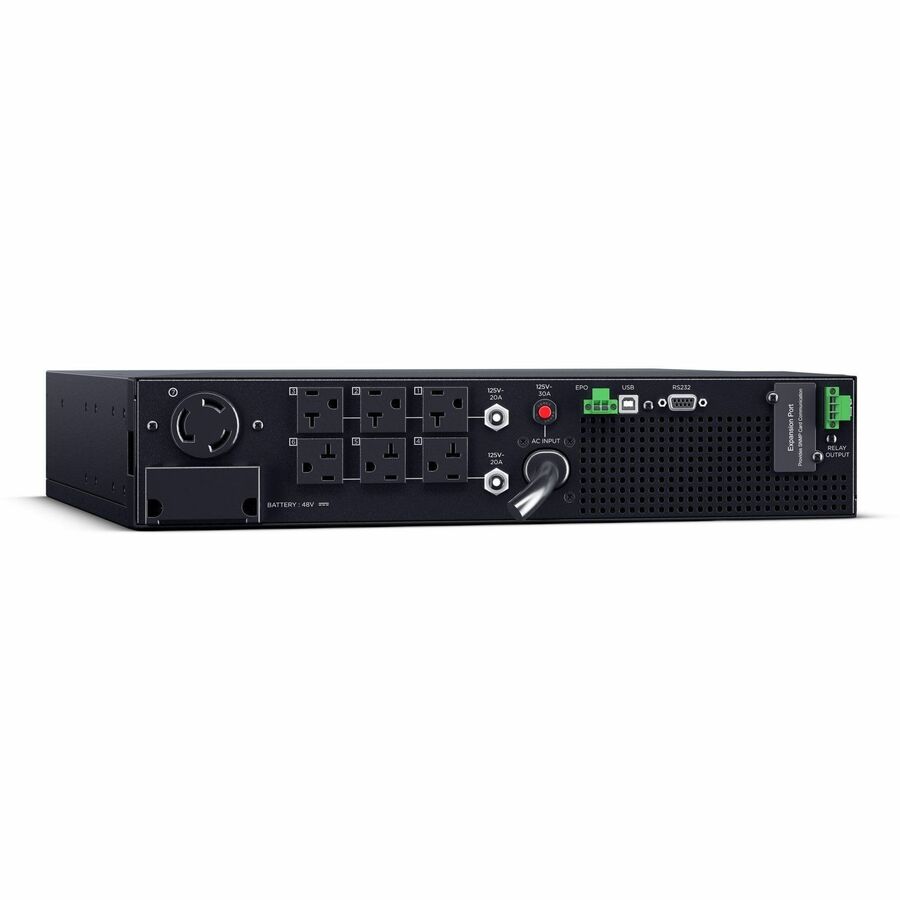

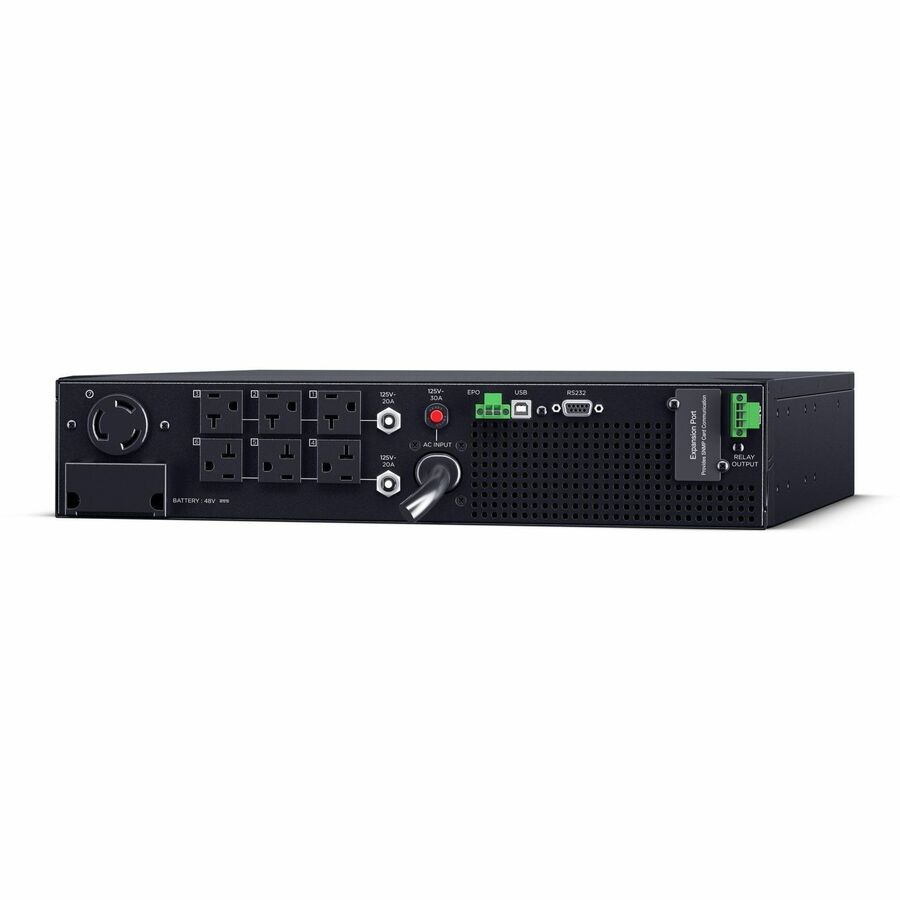

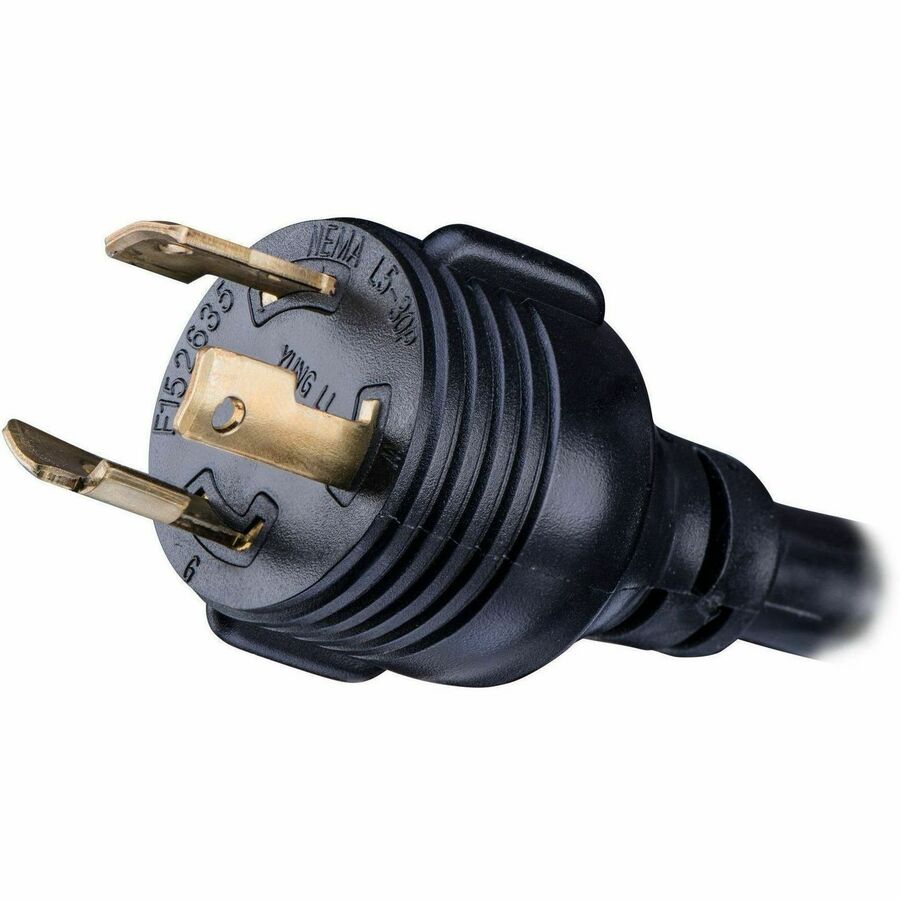

Plug/Connector Type

NEMA L5-30P

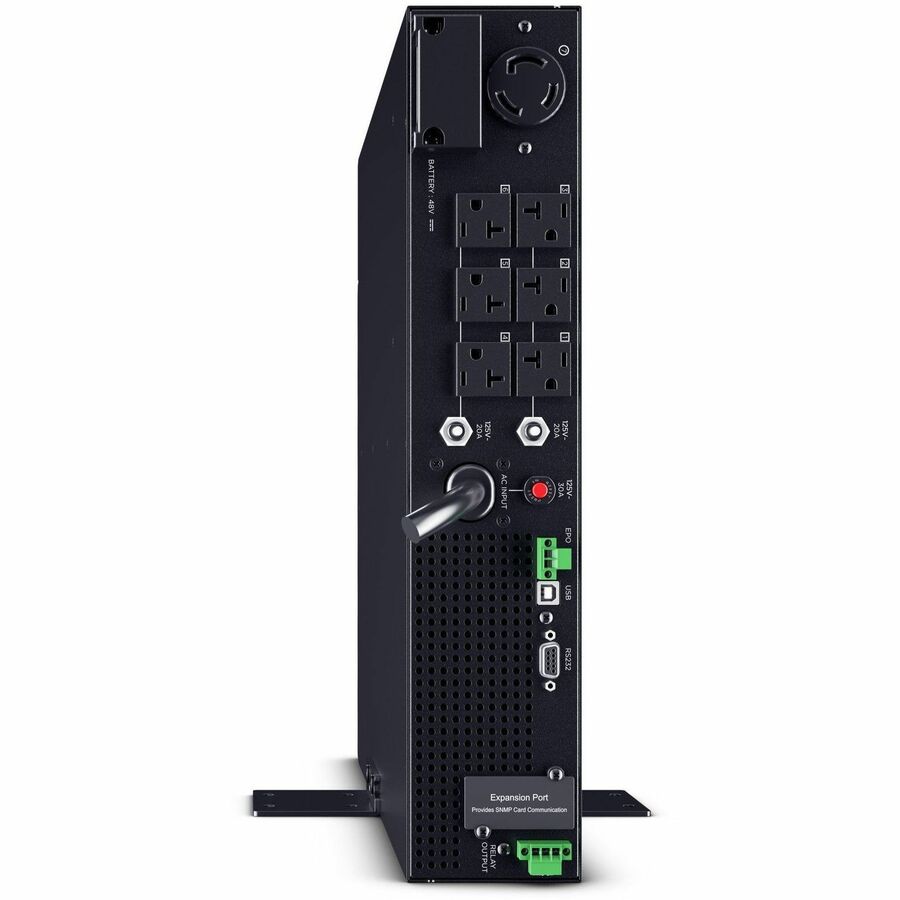

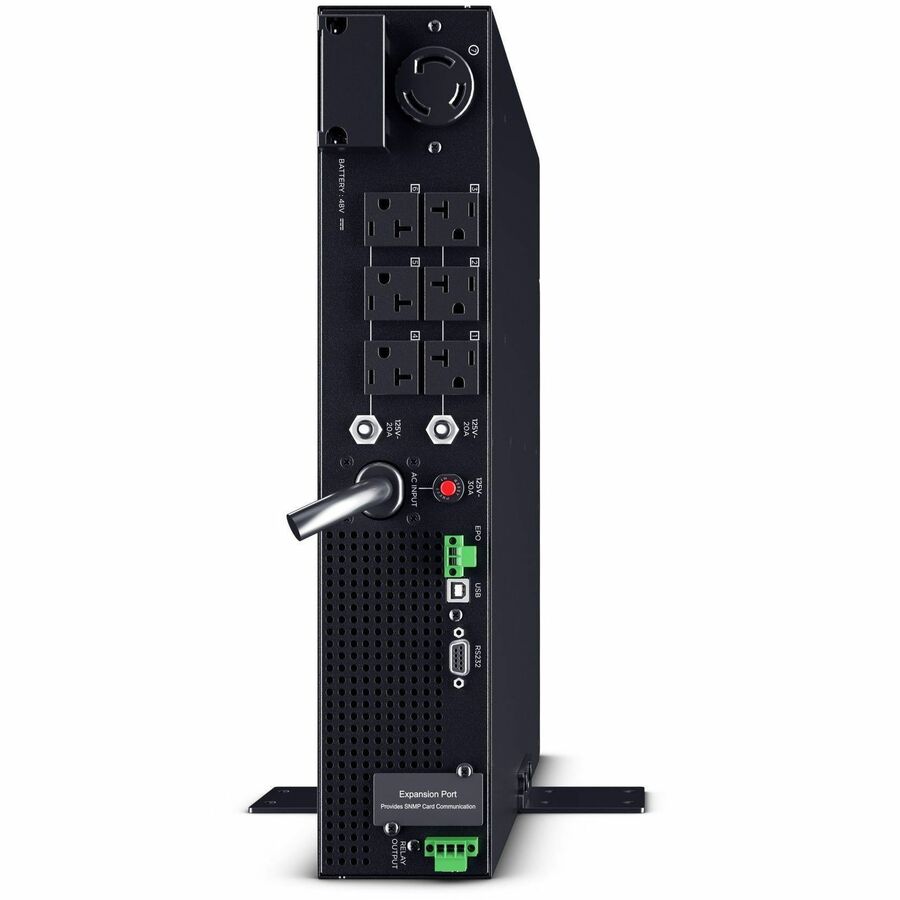

Receptacle Type

  • NEMA 5-20R
  • NEMA L5-30R

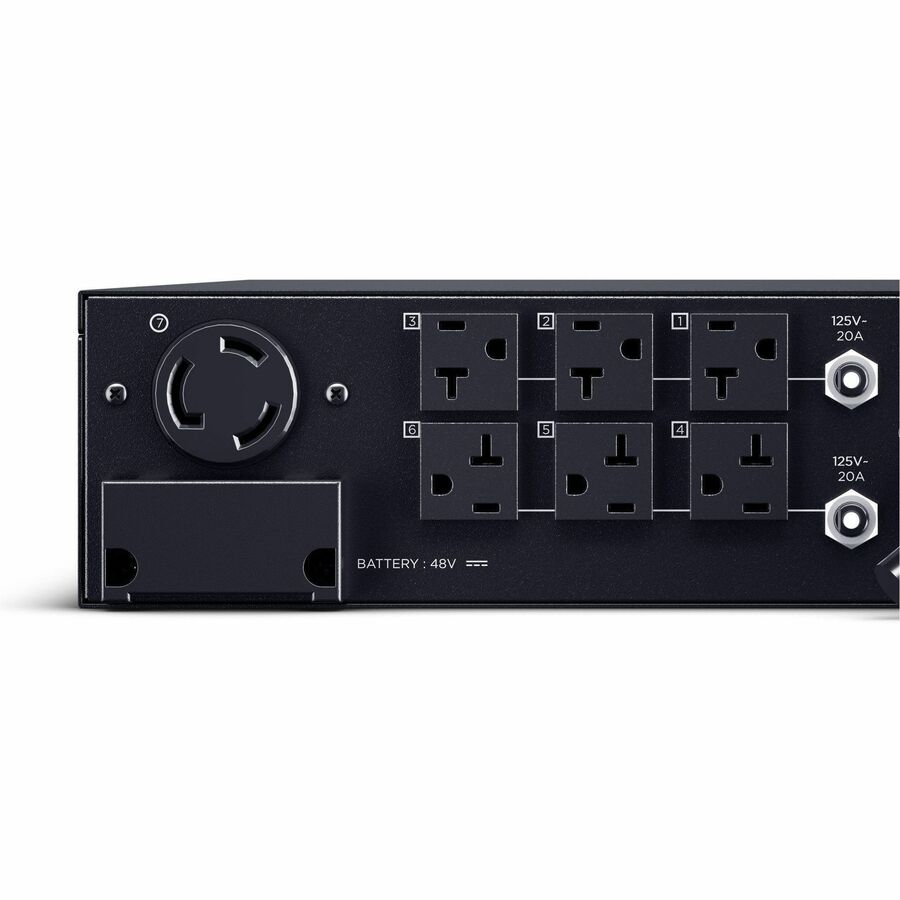

Receptacle Detail

  • 6 x NEMA 5-20R
  • 1 x NEMA L5-30R

Overload Protection

Yes

Cord Length

10 ft

Transfer Time

0 ns

EMI/RFI Noise Filter

Yes

Energy Saving

ECO Mode Efficiency >96%

Surge Suppression

Yes

Features

  • Built-in Bypass Switch
  • Audible Alarm
  • Cold Start Function
Power Description

Load Capacity (VA)

3000 VA

Load Capacity (Watt)

2700 W

Input Voltage

120 V AC

Input Voltage Range

  • 100 V AC - 125 V AC
  • 60 V AC - 69 V AC

Output Voltage

  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 125 V AC

Input Frequency

  • 40 Hz
  • 70 Hz

Output Frequency

  • 50 Hz
  • 60 Hz

Waveform Type

Sine Wave

Surge Energy Rating

710 J

Circuit Breaker

Yes

Input Power Factor

0.99

Output Power Factor

0.9
Display & Graphics

Display

LCD
Management

Network Management

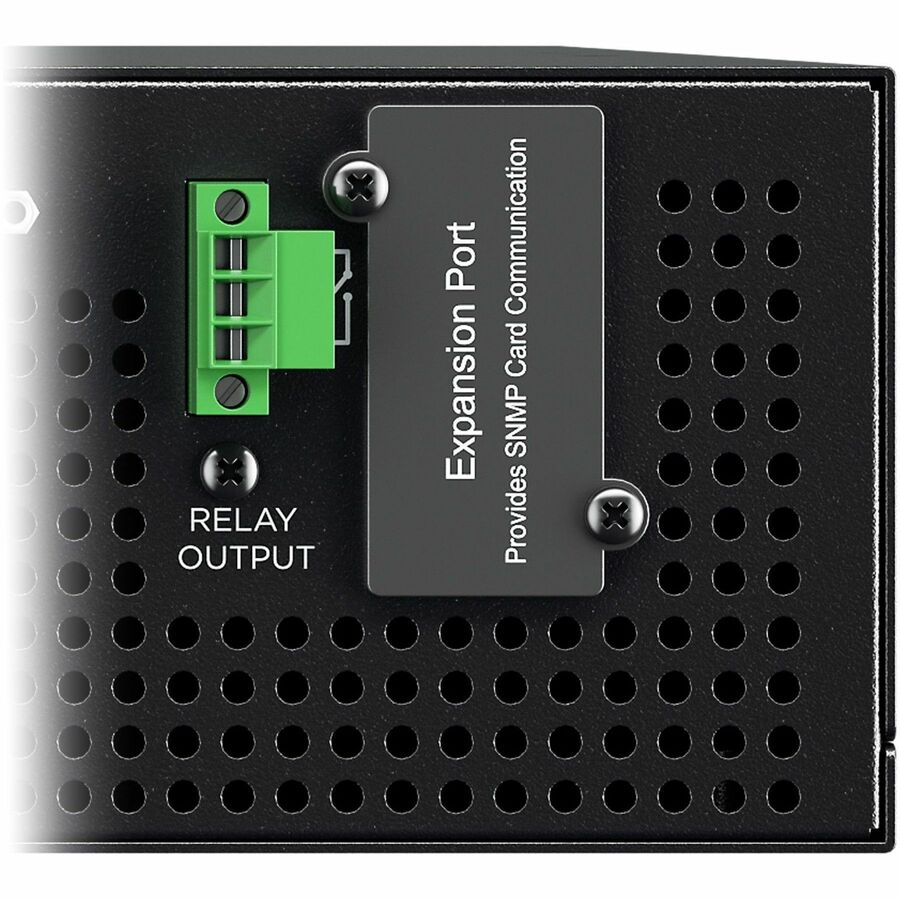

  • Dry Contact
  • SNMP/HTTP Remote Monitoring

Alarm

Battery Mode
Controls/Indicators

Status Indicators

LED Indicators:

Power On (White)

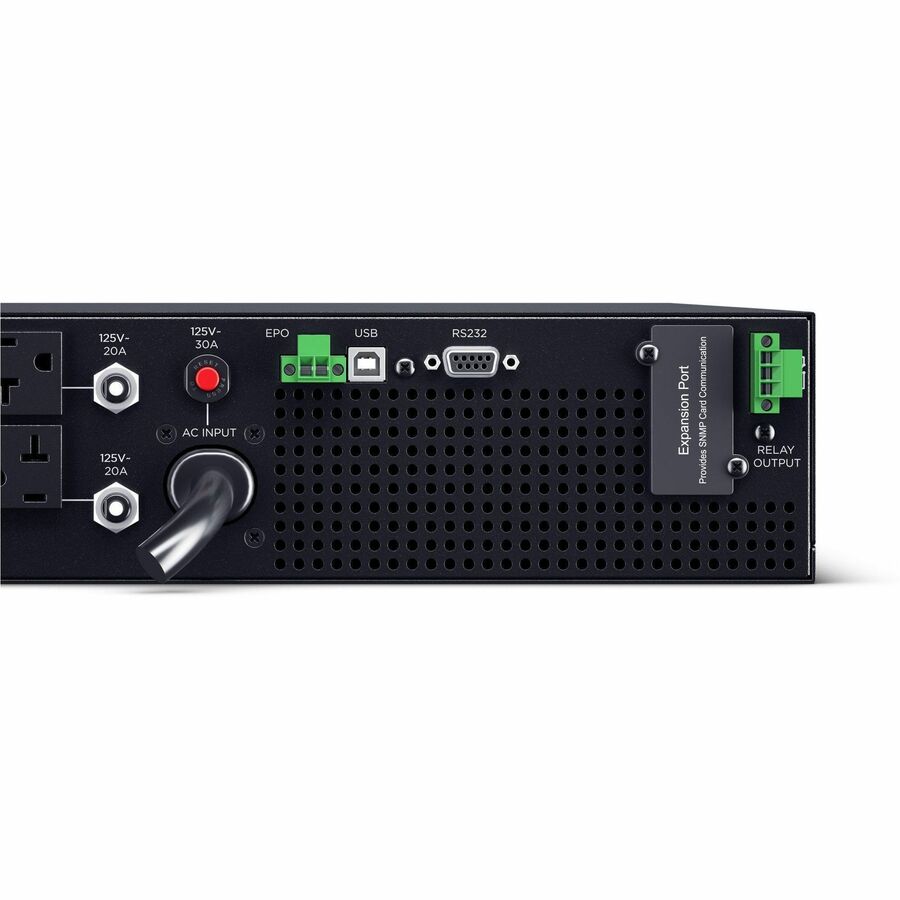

Interfaces/Ports

Serial Port

Yes

USB

Yes

EPO Port

Yes

USB (HID Compliant) Port

Yes
Battery Information

Number of Batteries

4

Battery Characteristics

Sealed

Battery Chemistry

Lead Acid

Battery Size

12V

Battery Capacity

9000 mAh

Backup/Run Time (Full Load)

2.70 Minute

Backup/Run Time (Half Load)

8.50 Minute

Typical Battery Recharge Time

4 Hour

Hot Swappable

Yes

Replaceable Battery

Yes
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

5°F (-15°C) - 113°F (45°C)

Maximum Operating Elevation

9843 ft

Maximum Storage Elevation

49213 ft

Storage Relative Humidity

0% - 95%

Sound Emission (A-Weighted)

57.1 dB(A)

Thermal Dissipation

234.75 W
Physical Characteristics

Color Family

Black

Product Color

Black

Height

3.39"

Width

17.05"

Depth

18.50"

Rack Height

2U

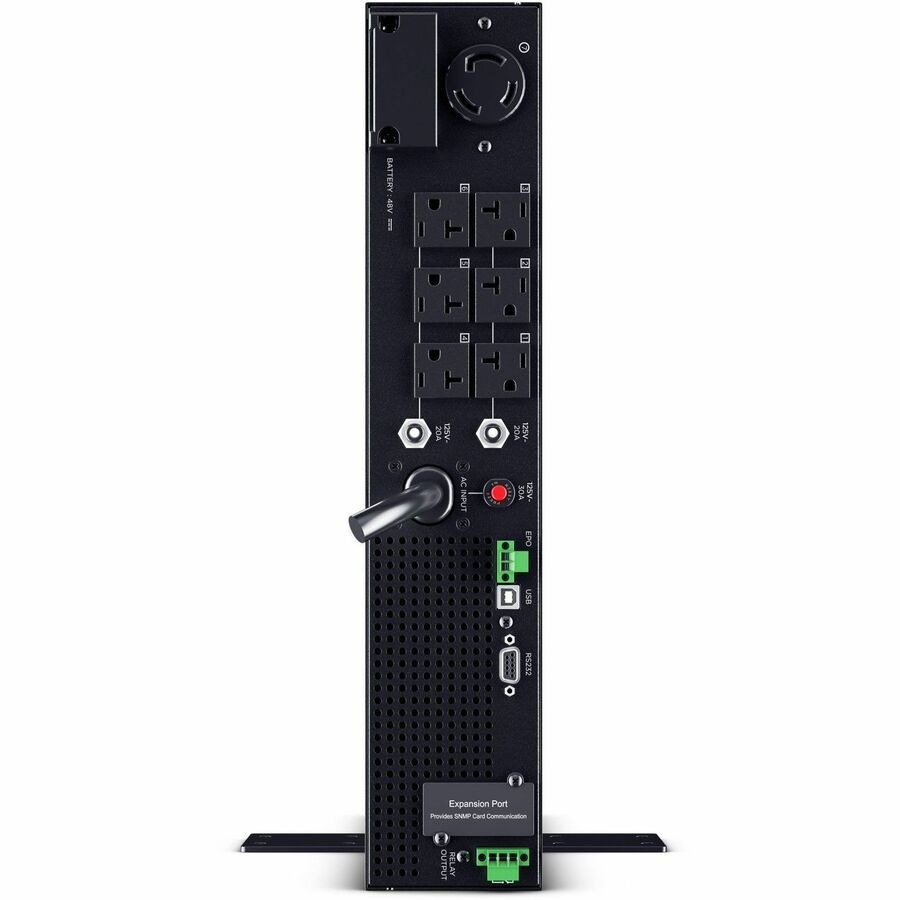

Form Factor

Rack/Tower

Weight (Approximate)

50.93 lb
Miscellaneous

Certifications & Standards

UL1778

Energy Star

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

3 Year

Additional Warranty Information

Three-year warranty (including batteries)

Directly Connected Equipment Guarantee

  • 400000 Lifetime
