CyberPower PDU20BHVIEC12RA 200 - 230 VAC Basic PDU

by
CYBERPOWER
PCN#
8284BK
MFG#
PDU20BHVIEC12RA

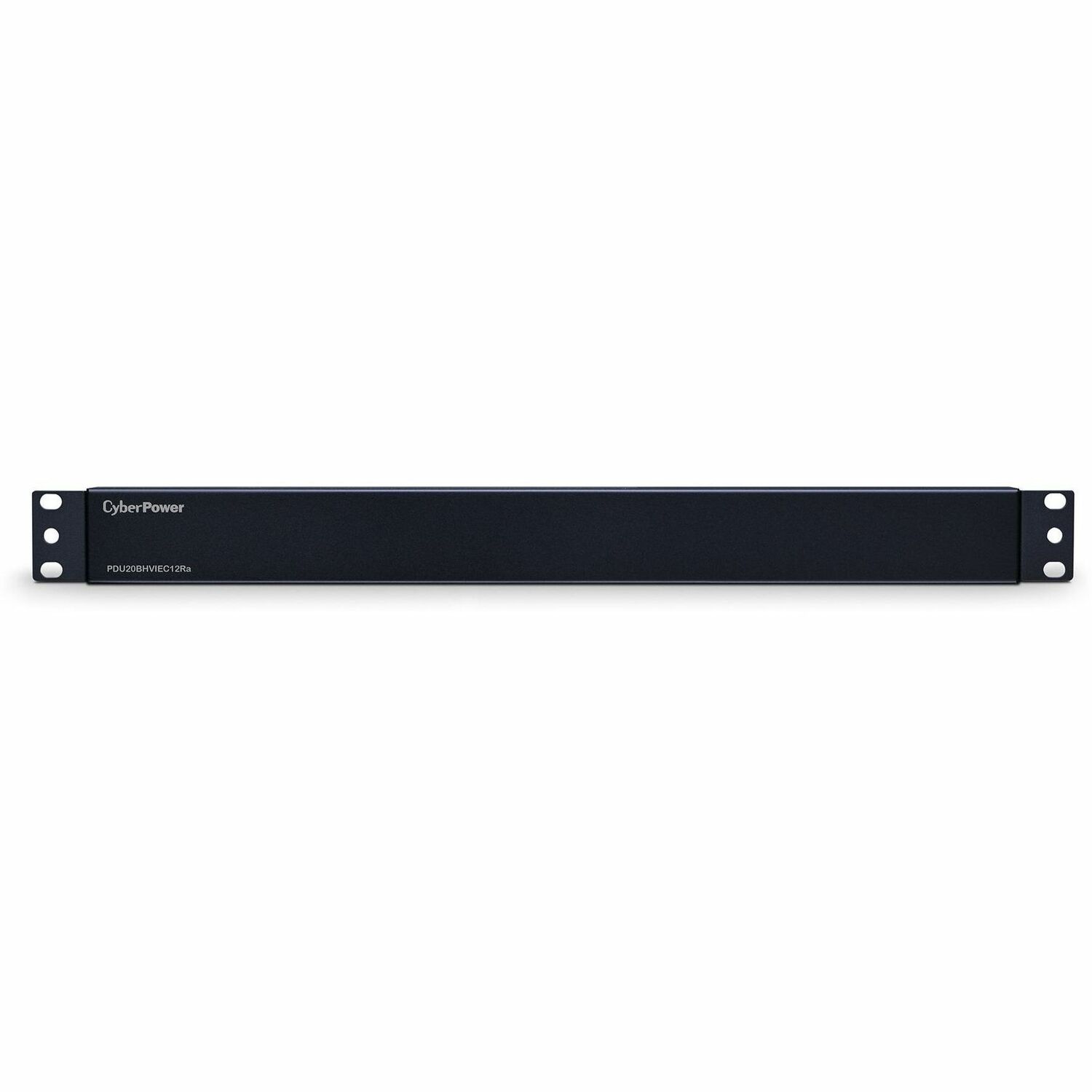

main product photo
fotorama-image
fotorama-image
fotorama-image
CYBERPOWER Authorized Dealer
$154.36
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 10 Outlets, 10 ft, IEC
  • 320 C20, Horizontal, 1U, Lifetime Warranty
Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 5 lbs.
CyberPower PDU20BHVIEC12RA 200 - 230 VAC Basic PDU
Overview
Tech Specs
Specifications

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU20BHVIEC12RA

Manufacturer Website Address

https://www.cyberpowersystems.com

Brand Name

CyberPower

Product Model

PDU20BHVIEC12Ra

Product Name

PDU20BHVIEC12RA 200 - 230 VAC 20A Basic

Marketing Information

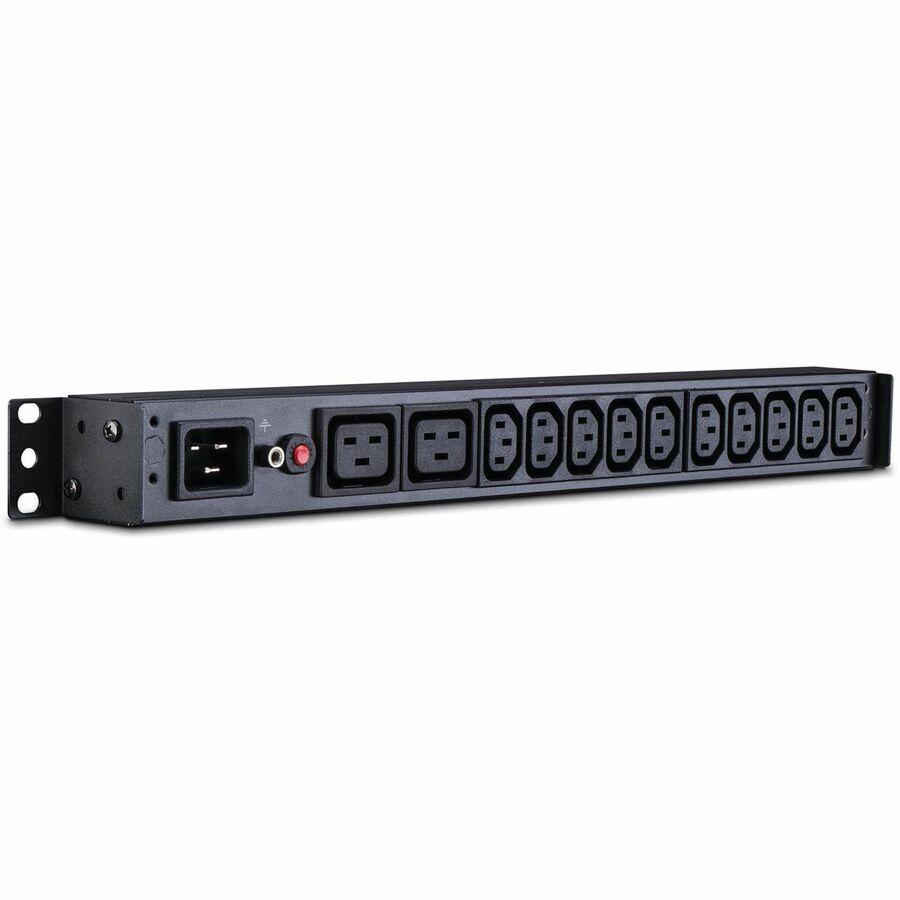

The CyberPower PDU20BHVIEC12RA , a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 200V/230V 20A output. It distributes power to 10 IEC-320 C13, 2 IEC-320 C19 receptacles from a IEC-320 C20 plug. Designed for datacenters and other electrically demanding applications, the PDU20BHVIEC12RA has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Product Type

PDU
Technical Information

PDU Type

Basic

Phase

Single Phase

Plug/Connector Type

IEC 60320 C20

Receptacle Type

IEC 60320 C13

Receptacle Detail

10 x IEC 60320 C13

Protection Type

Overload Protection
Power Description

Input Voltage

230 V AC

Input Voltage Range

200 V AC - 230 V AC

Output Voltage Range

200 V AC - 230 V AC

Input Current

20 A
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Rack Height

1U

Cord Length

10 ft

Height

1.8"

Width

17.5"

Depth

1.5"

Weight (Approximate)

2 lb
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

95°F (35°C)

Minimum Storage Temperature

5°F (-15°C)

Maximum Storage Temperature

113°F (45°C)
Miscellaneous

Package Contents

  • Basic PDU20BHVIEC12Ra 12-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card

Additional Information

  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
  • Operating Relative Humidity: 0 - 95 %
  • Outlets - Total: 12
  • Overload Protection: 20A
  • Storage Relative Humidity: 0 - 95% (non-condensing)
  • USB Charge Port: No

Certifications & Standards

ETL (test followed UL 60950-1)

Energy Star

No

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

Lifetime
