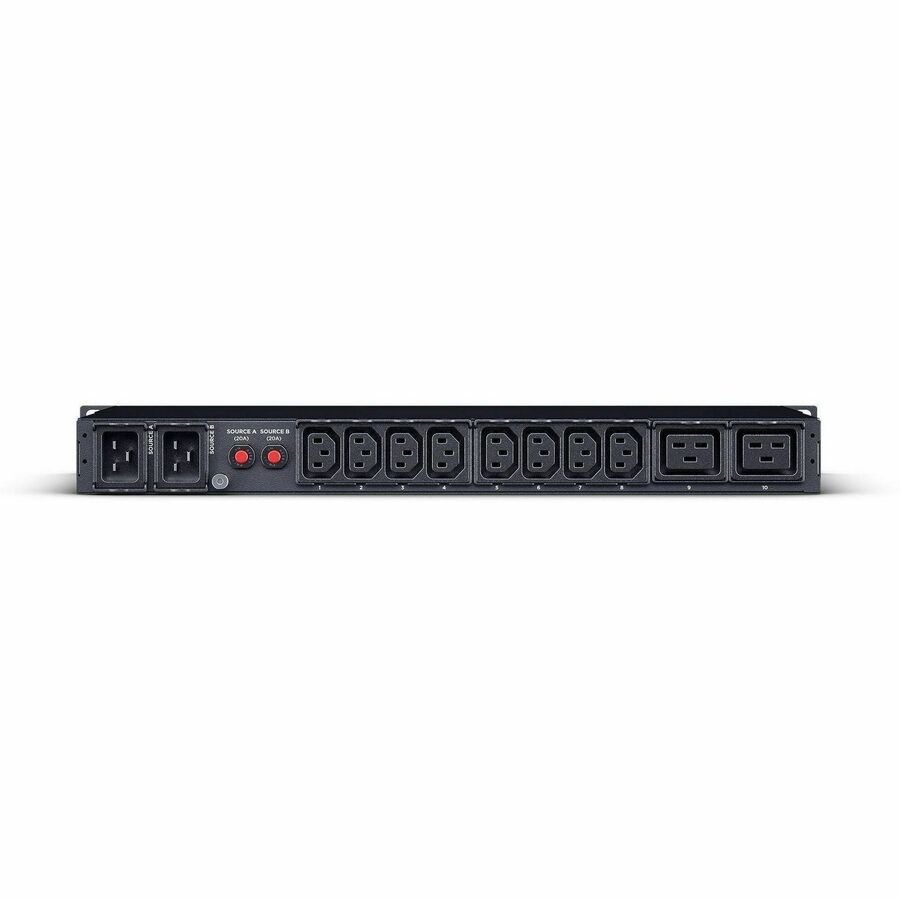

CyberPower ATS PDU24005 10-Outlets PDU

Name: CyberPower ATS PDU24005 10-Outlets PDU
Brand: CYBERPOWER
SKU: 01FL39
Price: 446.42 USD
Availability: InStock

CYBERPOWER

PCN#

01FL39

MFG#

PDU24005

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$446.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10 Outlets, 10 ft, 2 x IEC
320 C20, Horizontal, 1U, LCD, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyApplication/UsageData CenterNetwork ClosetCertifications & StandardsUL62368 FCC Class A cTUVusCEUKCAEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)UL ListedYesWarranty

Shipping Weight: 14 lbs.

CyberPower PDU24005 Single Phase 240 - 200 VAC 20A Metered ATS

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU24005
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Model	PDU24005
Product Name	24-Outlets PDU
Marketing Information	Ensure continued operation of critical devices with the CyberPower PDU24005 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24005 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Metered Auto Transfer Switch
Phase	Single Phase
Plug/Connector Type	IEC 60320 C20
Plug/Connector Detail	2 x IEC 60320 C20
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13 2 x IEC 60320 C19
Protection Type	Overload Protection Circuit Breaker
Locking Receptacles	Cord Retention Tray IEC 60320 C13 IEC 60320 C19
Features	LCD Display LED Status Indicator

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	230 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	20 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	10 ft
Height	1.7"
Width	17"
Depth	8.5"
Weight (Approximate)	7.61 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Package Contents	ATS PDU24005 10-Outlets PDU User's Manual Cord Retention Tray Mounting Brackets Cable Ties Screw Kit Power Cord Serial Cable
Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 3.45 Weight (lb) : 7.6 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 6.28 Shipping - Weight (lb) : 13.84 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Overload Protection : 20A x 2 Input Plug Type : 2 x IEC-320 C20 Maximum Input Current : 20A Nominal Input Voltage : 240 - 200 VAC Phase : Single Phase Plug Style : Straight (Socket) Nominal Output Voltage : 240 - 200 VAC Outlet Banks : 1 Outlets - Total : 10 Outlet Type COMPUTED : 8 - IEC-320 C13 Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Hardware Connection Port : Serial (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL62368 FCC Class A cTUVus CE UKCA
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

3 Year
