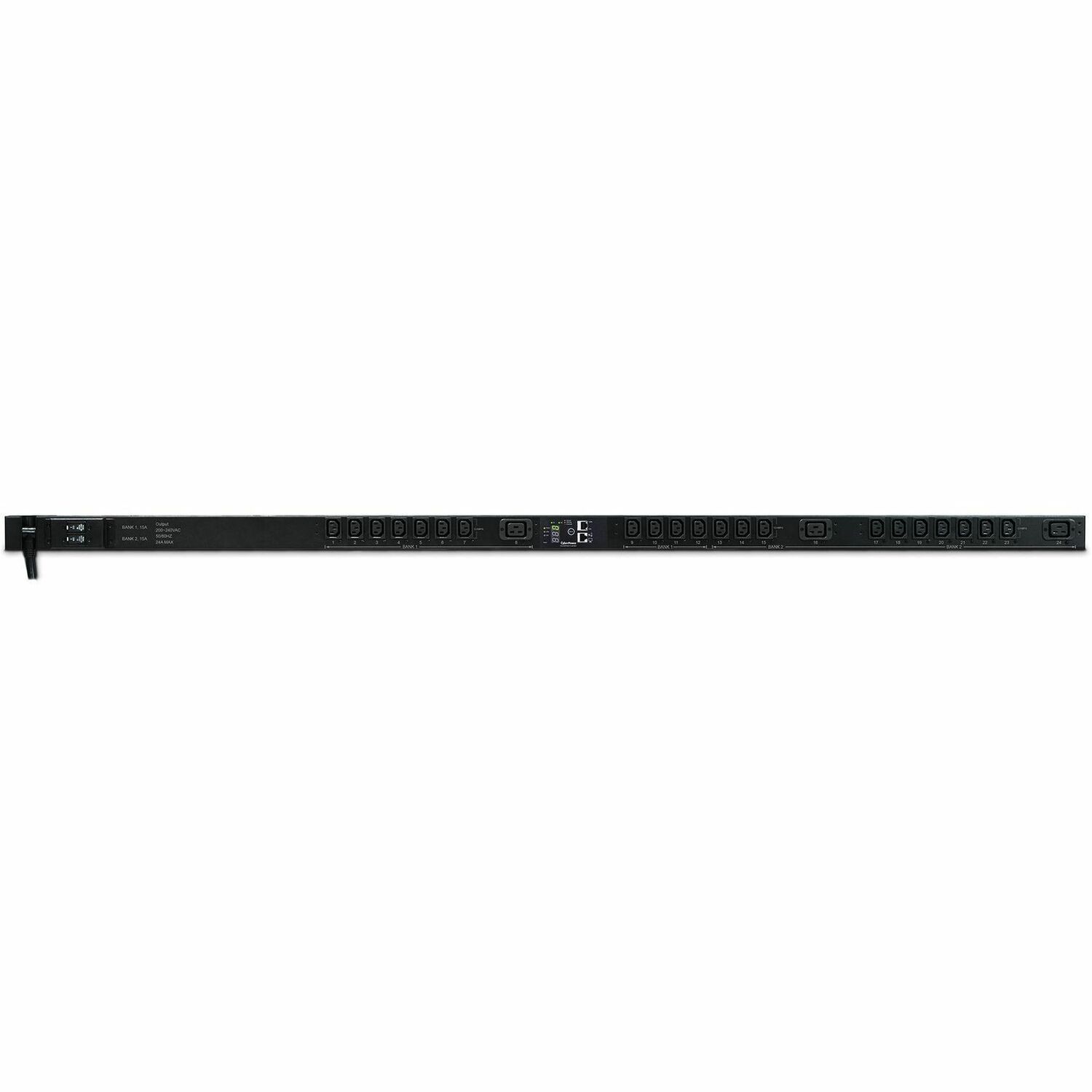

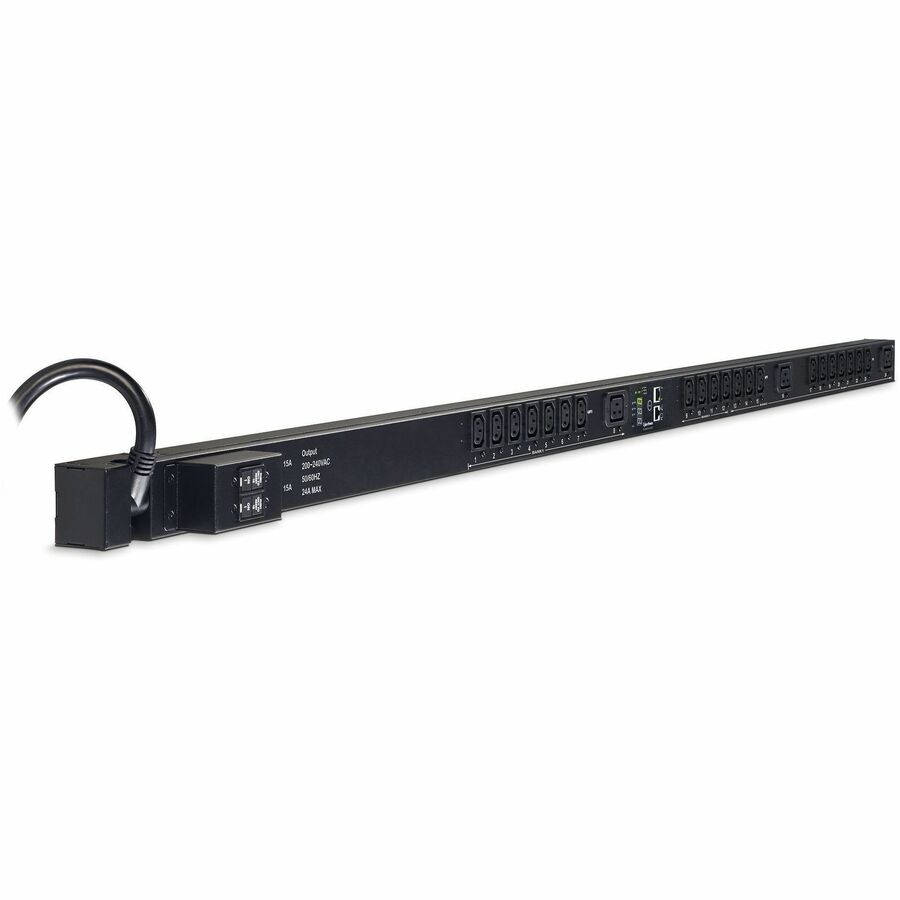

CyberPower Monitored PDU RM 0U PDU30MVHVT24FNET 30A 200-230V 24-Outlets

Name: CyberPower Monitored PDU RM 0U PDU30MVHVT24FNET 30A 200-230V 24-Outlets
Brand: CYBERPOWER
SKU: S97655
Price: 529.42 USD
Availability: InStock

CYBERPOWER

PCN#

S97655

MFG#

PDU30MVHVT24FNET

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$529.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Outlets, 10 ft, NEMA L6
30P, Vertical, 0U, SNMP, 3YR Warranty

Product Condition: New and Factory Fresh

Limited WarrantyCompatibilityCyberPower UPS:PR5000LCDRTXL5UPR6000LCDRTXL5UCertifications & StandardsUL60950-1 Certified by ETL (USA)CSA C22.2 (Canada)FCC Class AEnergy StarNoEnvironmentally FriendlyYesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)Warranty

Shipping Weight: 20 lbs.

CyberPower PDU30MVHVT24FNET 200 - 240 VAC 30A Monitored PDU

Overview

Tech Specs

Specifications

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU30MVHVT24FNET
Manufacturer Website Address	https://www.cyberpowersystems.com/
Brand Name	CyberPower
Product Model	PDU30MVHVT24FNET
Product Name	PDU30MVHVT24FNET 200 - 240 VAC 30A Monitored
Marketing Information	The CyberPower PDU30MVHVT24FNET, a 24-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 200-240V 30A output. It distributes power to 20 IEC-320 C13, 4 IEC-320 C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally using the LCD. The PDU30MVHVT24FNET comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	20 x IEC 60320 C13 4 x IEC 60320 C19

Power Description

Input Voltage	230 V AC
Output Voltage	240 V AC

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mount Type	Rack-mountable
Width	2.2"
Depth	1.8"
Length	66.5"
Weight (Approximate)	12.50 lb

Miscellaneous

Package Contents	Monitored PDU RM 0U PDU30MVHVT24FNET 30A 200-230V 24-Outlets 1 x Set of Mounting Brackets Cord Retention Tray Cord Organizers User Manual
Additional Information	Physical Dimensions - (WxHxD) (cm) : 5.59 x 168.91 x 4.45 (cm) Physical Dimensions - (WxHxD) (in) : 2.2 x 66.5 x 1.75 (in) Physical Dimensions - (WxHxD) (mm) : 56 x 1689 x 44 (mm) Weight (kg) : 5.67 Weight (lb) : 12.5 Shipping Dimensions - (WxHxD) (cm) : 18.11 x 8.53 x 181.31 (cm) Shipping - Dimensions (WxHxD, in) : 7.13 x 3.36 x 71.38 (in) Shipping - Dimensions (WxHxD, mm) : 181.1 x 85.34 x 1813.05 (mm) Cord Length : 10 ft (3.0 m) Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L6-30P Maximum Input Current : 30A Plug Style : Straight (Twist Lock) Meter Readout : Kilowatts Nominal Output Voltage : 200 - 240 VAC Outlet Banks : 2 Outlets - Front : 24 Outlets - Rear : 0 Outlets - Total : 24 Outlet Type COMPUTED : 20 - IEC-320 C13 Overload Protection : 30A (derated 24A) Overload Protection (Each Bank) : 15A USB Charge Port : No Hardware Connection Port : RJ45 LED Indicators : Load SNMP / HTTP Remote Monitoring : TCP/IP, UDP, DHCP, SNMP, HTTP Adjustable Mounting Brackets : 1 set Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Style : Vertical Rackmount Operating Elevation : 0 - 14760 ft (0 - 4499 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1 certified by ETL Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
Compatibility	CyberPower UPS: PR5000LCDRTXL5U PR6000LCDRTXL5U
Certifications & Standards	UL60950-1 Certified by ETL (USA) CSA C22.2 (Canada) FCC Class A
Energy Star	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
