28 PORT SFP+ SWITCH FULLY MANAGED 24 X 10G SFP+ 4 X SFP28

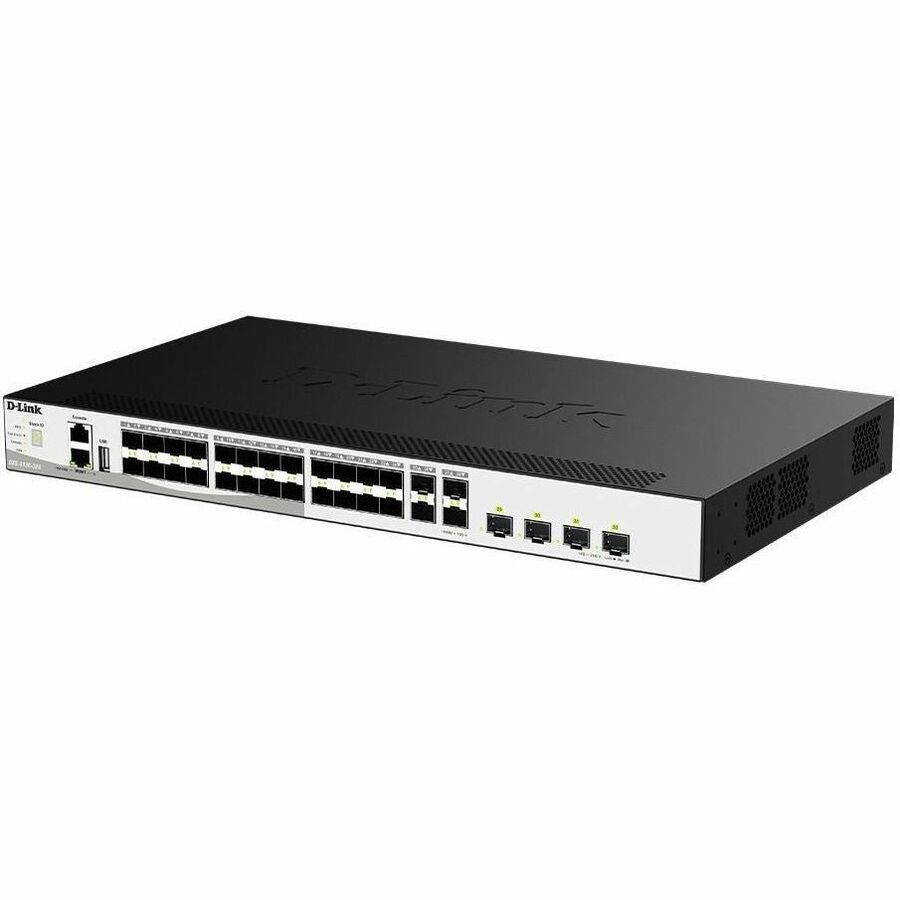

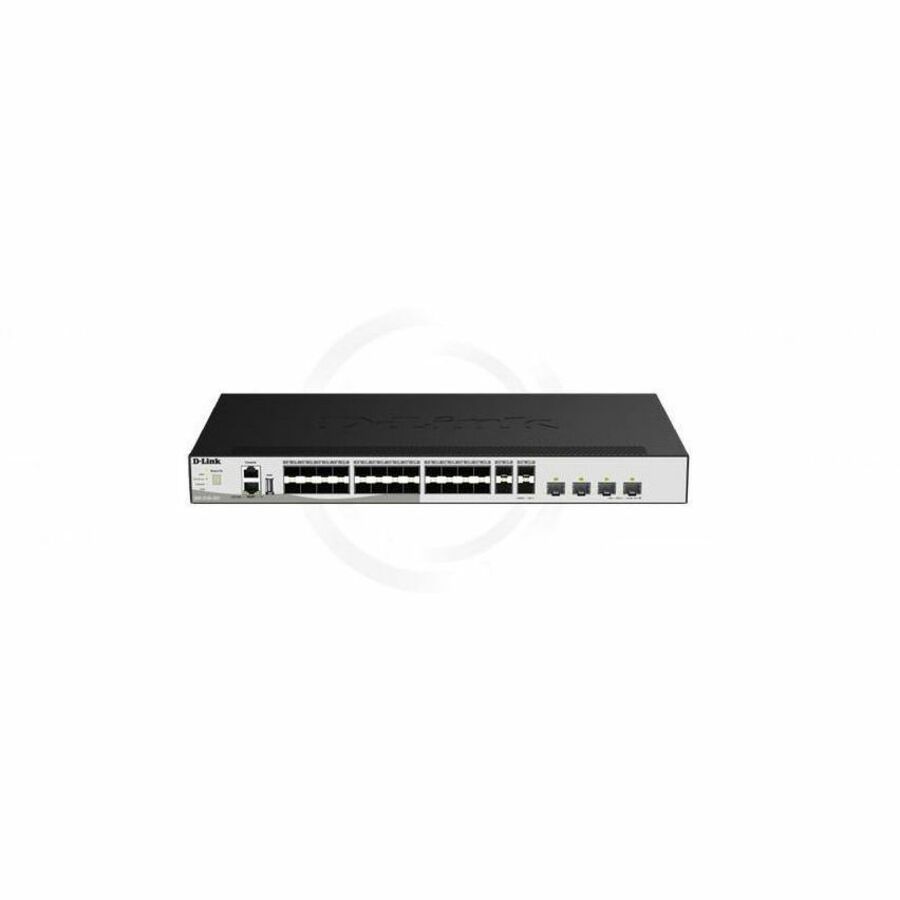

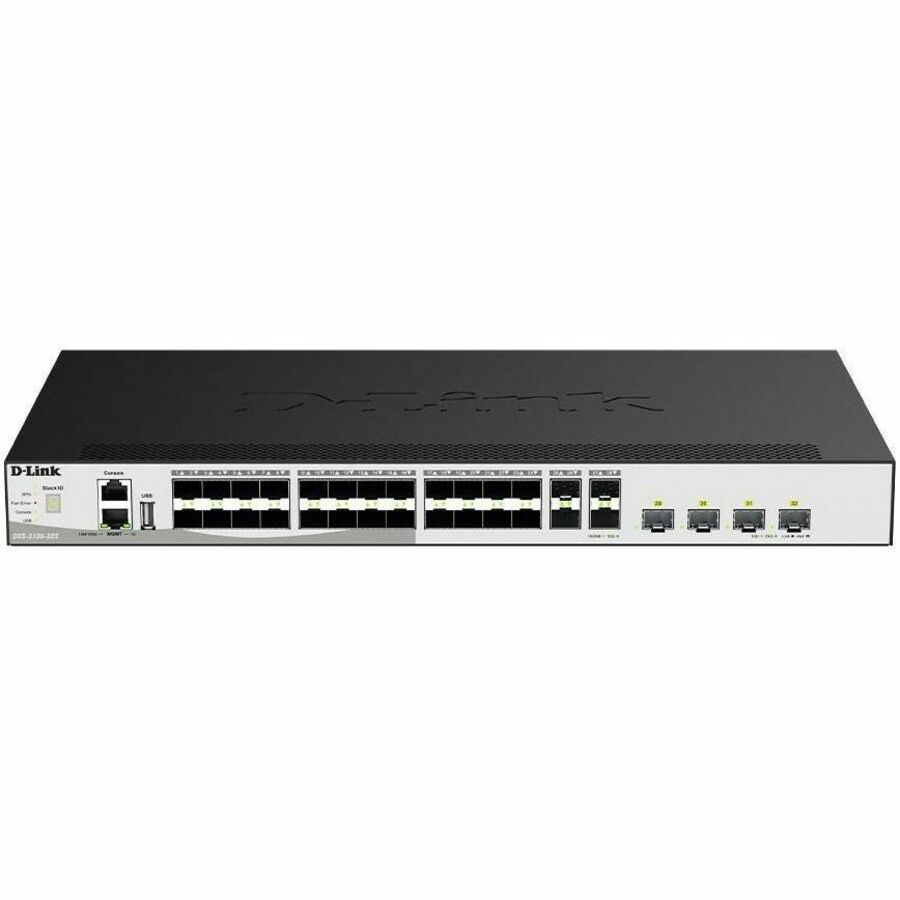

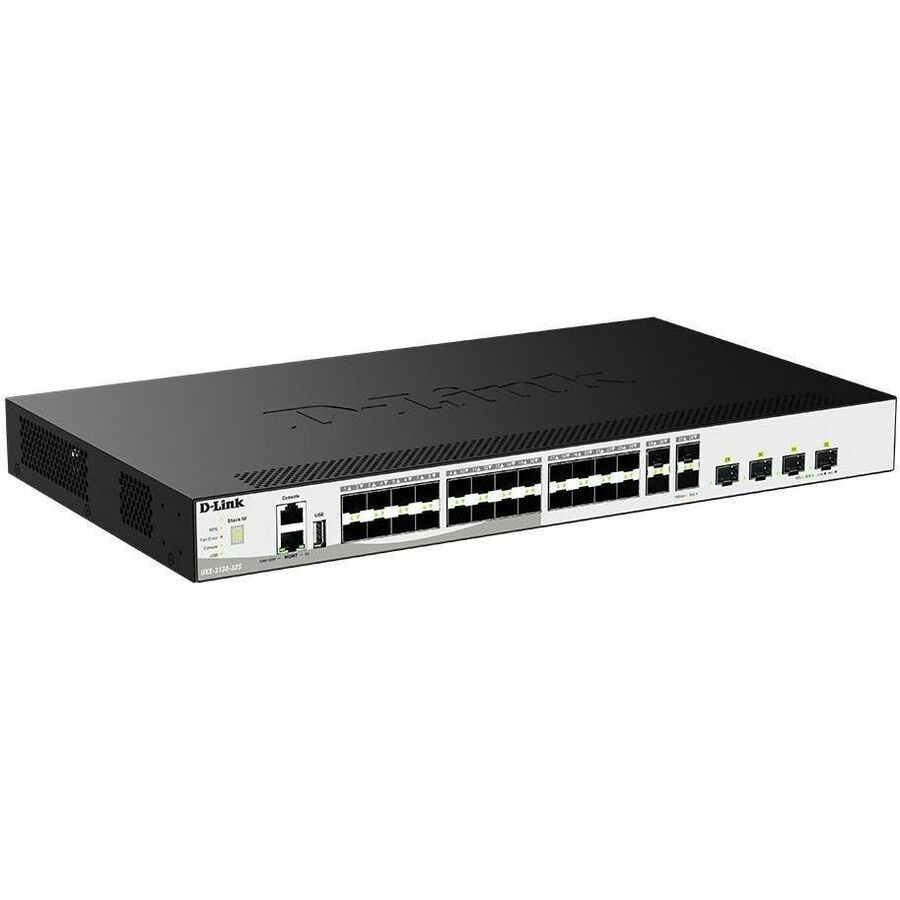

The DXS-3130-32S 10G Layer 3 Stackable Aggregation Managed Switch is for secure connectivity in an enterprise or metro Ethernet access network and supports both multicasting and enhanced security, making it an ideal 10G/multiGigabit access layer solution. The DXS-3130-32S features 28 10G/SFP+ ports and 4 10/25G SFP28 ports, offering a versatile and high-speed networking connection. The switch features 4 10/25G SFP28 ports for enhanced speed and versatility. It also includes a USB 2.0 port, enabling direct booting of images and uploading of configuration files, as well as convenient storage of syslog files on a USB 2.0 device.

Enhanced Network Reliability

The DXS-3130-32S targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. The DXS-3130-32S features redundant power supply (RPS) and incorporate essential features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. G.8032 Ethernet Ring Protection Switching (ERPS) minimizes recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DXS-3130-32S provides dynamic 802.3ad Link Aggregation Port Trunking.

Comprehensive Security

The DXS-3130-32S provides users with the latest security features such as Multilayer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MACPort Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.

Intelligent Fan Operation

The DXS-3130-32S has built-in internal fans which can automatically start working to prevent the device from overheating. The fan speed will be gradually adjusted between 5 levels of cooling according to the operating temperature of the switch. Administrators can also configure the operation state of internal fans through Web UI or command line interface (CLI).

Easy Access Control Policies

The DXS-3130-32S supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host.

Versatile Traffic Management

The DXS-3130-32S implements a rich set of multi-layer QoS/CoS features to enable critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features provide bandwidth for these services when the network is busy. L2 Multicast support enables the DXS-3130-32S to handle growing IPTV applications. Host-based IGMP/MLD Snooping feature allows for multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the predefined multicast registration information to subscriber ports quickly and easily.

• Loopback Detection
• Broadcast Storm Control
• Link Aggregation
• Access Control List
• DHCP Snooping
• Virtual LAN (VLAN)
• Quality of Service (QoS)
• Remote Monitoring (RMON)
• Flow Control
• Dynamic ARP Inspection
• Energy Efficient
• DHCP Relay
• Built-in Fan

• 28 x 10 Gigabit Ethernet Expansion Slot
• 4 x 10/25 Gigabit Ethernet Expansion Slot
• 1 x USB 2.0 Type A port

• Gigabit Ethernet
• 25 Gigabit Ethernet

• SFP+
• SFP28

• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3ah
• IEEE 802.1ag
• IEEE 802.3ad
• IEEE 802.1x
• IEEE 802.3x
• IEEE 802.1AX
• IEEE 802.1Q
• IEEE 802.1v
• IEEE 802.1p
• IEEE 802.3

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Power Supply
• AC

• Network
• Enterprise
• Security
• Server
• Traffic
• IP Surveillance Network
• Workstation
