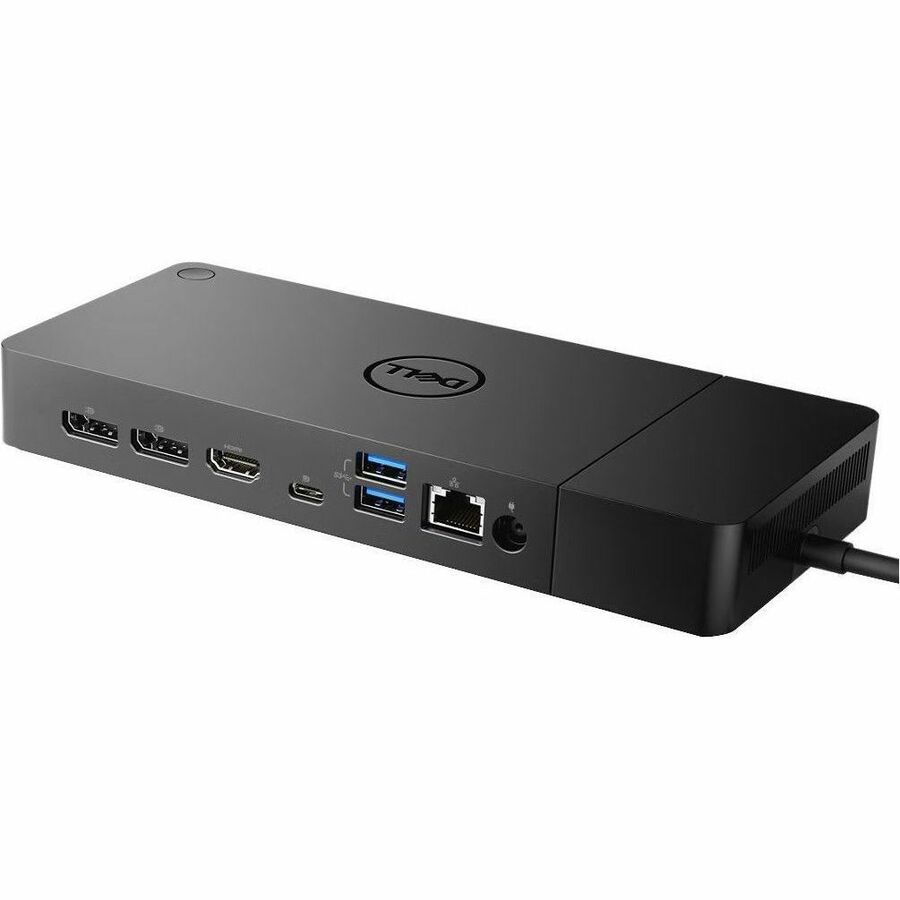

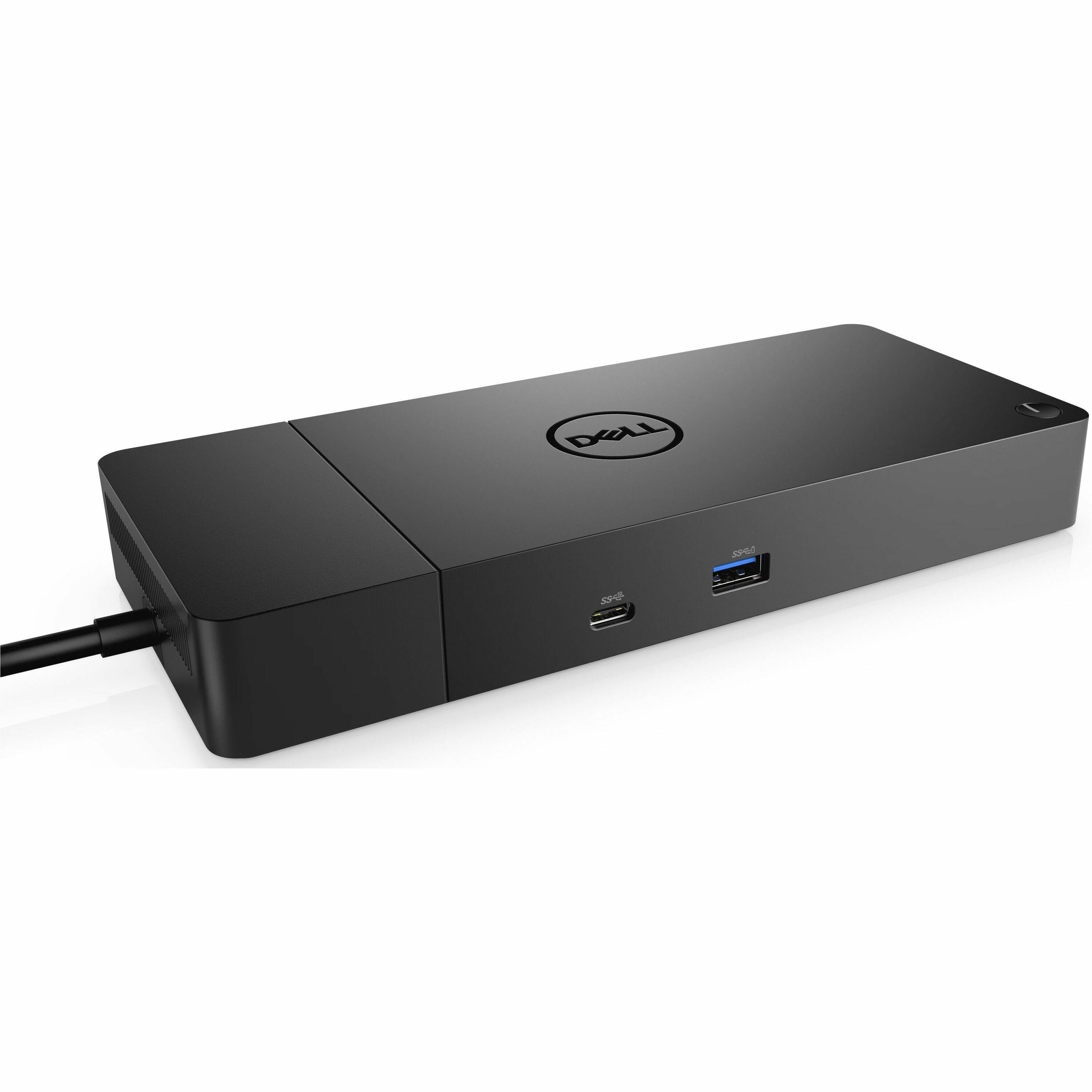

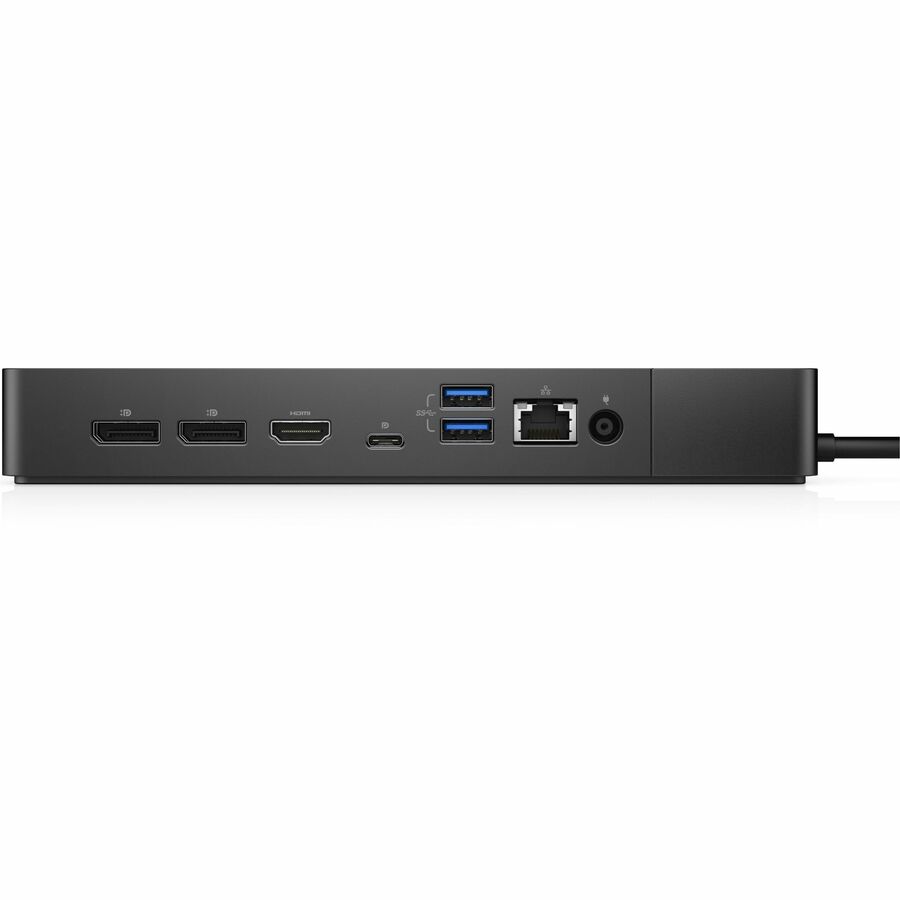

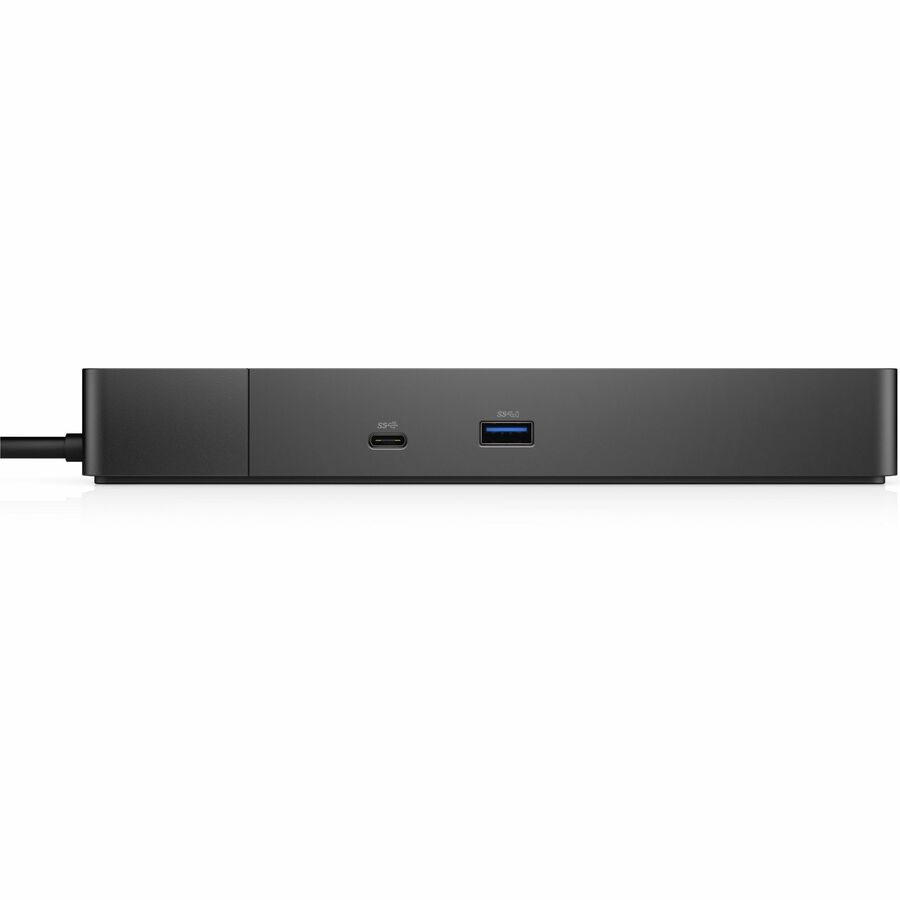

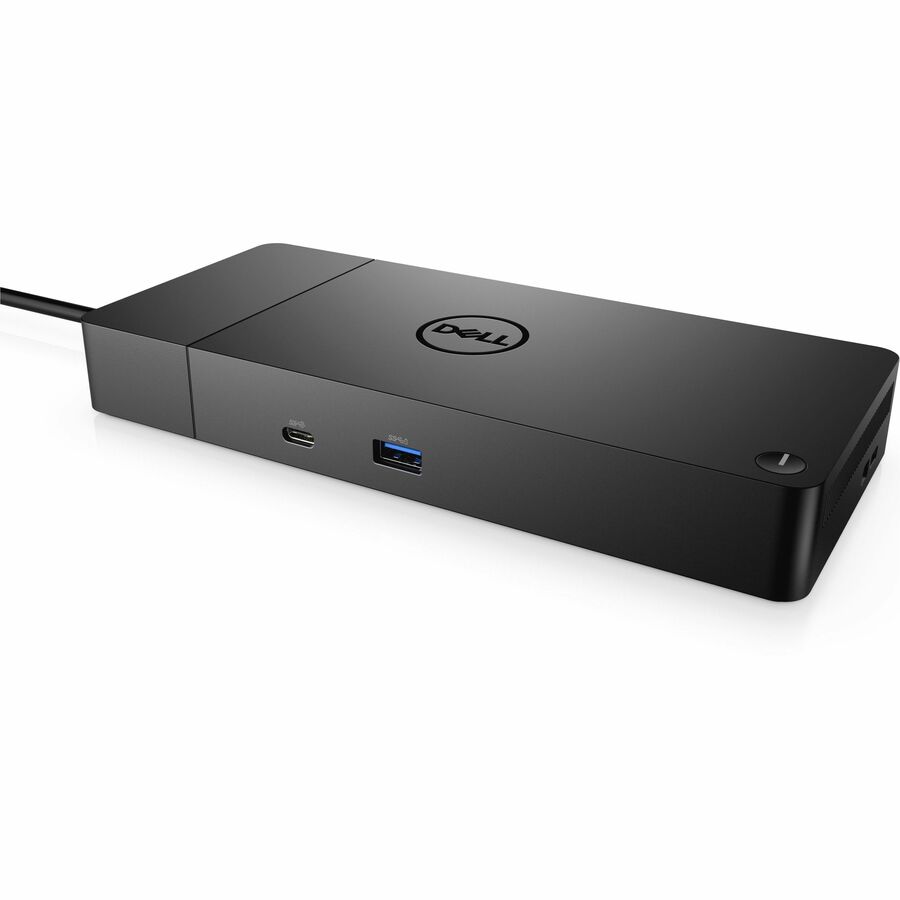

DELL DOCK WD19S 180W 130W POWER DELIVERY USB-C 4K DOCKING STATION

Name: DELL DOCK WD19S 180W 130W POWER DELIVERY USB-C 4K DOCKING STATION
Brand: DELL
SKU: Z27095
Price: 308.21 USD
Availability: InStock

DELL

PCN#

Z27095

MFG#

210-AZCS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$308.21

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Notebook, Monitor
Charging Capability
180 W
USB Type C
2 Displays Supported
4K @ 60Hz, QHD @ 60Hz
3840 x 2160, 2560 x 1440
5 x USB Ports
3 x USB Type
A Ports
USB Type
A
2 x USB Type
C Ports
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
1 x HDMI Ports
HDMI
2 x DisplayPorts
DisplayPort
Black
Wired
Gigabit Ethernet
Red Hat Enterprise Linux, Windows 10, Windows 11, Ubuntu 18.04

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

DELL SOURCING - NEW Dock - WD19S 180W

Overview

Tech Specs

Specifications

Manufacturer	DELL SOURCING - NEW
Manufacturer Part Number	210-AZCS
Brand Name	DELL SOURCING - NEW
Product Model	WD19S
Product Name	Dock - WD19S 180W
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Notebook Monitor
Cable Length	3.28 ft
Features	Power Delivery Pass-through Security Lock
Management Features	MAC Address Pass-through PXE Boot Wake-on-LAN
Number of Displays Supported	2
Screen Mode Supported	4K @ 60Hz QHD @ 60Hz
Supported Resolutions	3840 x 2160 2560 x 1440
Maximum Data Transfer Rate	1.25 GB/s
Security Slot Type	Noble Wedge Security Slot Kensington Security Slot
Power Delivery	130W (Dell Systems) 90W (non-Dell Systems)
Video Resolution Details	4K - 60 Hz (Dual Display) QHD - 60 Hz (Triple Display)

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	5
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	3
Number of USB Type-A Ports	3
USB Type-C	Yes
USB Type-C Detail	1 x USB-C 3.2 Gen 2/DisplayPort, 1 x USB-C 3.2 Gen 2 - 24 pin USB-C
Number of USB Type-C Ports	2
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
DisplayPort	Yes
Number of DisplayPorts	2
DisplayPort Version	1.4
HDMI	Yes
Number of HDMI Ports	1
HDMI Version	2
Interfaces	2 x display / video - DisplayPort - 20 pin DisplayPort (1.4) 1 x display / video - HDMI - 19 pin HDMI 2.0 1 x USB-C 3.2 Gen 2/DisplayPort 1 x USB-C 3.2 Gen 2 - 24 pin USB-C 2 x USB 3.2 Gen 1 - 9 pin USB Type A 1 x USB 3.2 Gen 1 with PowerShare - 9 pin USB Type A 1 x network - Ethernet 1000 - RJ-45

Software

Operating System Supported

Red Hat Enterprise Linux
Windows 10
Windows 11
Ubuntu 18.04

Power Description

Input Voltage Detail	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Maximum Power Supply Wattage	180 W
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.14"
Width	8.07"
Depth	3.54"
Weight (Approximate)	1.29 lb

Miscellaneous

Brand Compatibility

HP
Lenovo
