DELL 280W USB-C GAN AC ADAPTER

Name: DELL 280W USB-C GAN AC ADAPTER
Brand: DELL
SKU: 560N30
Price: 152.91 USD
Availability: InStock

DELL

PCN#

560N30

MFG#

492-BFCX

$152.91

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 2 lbs.

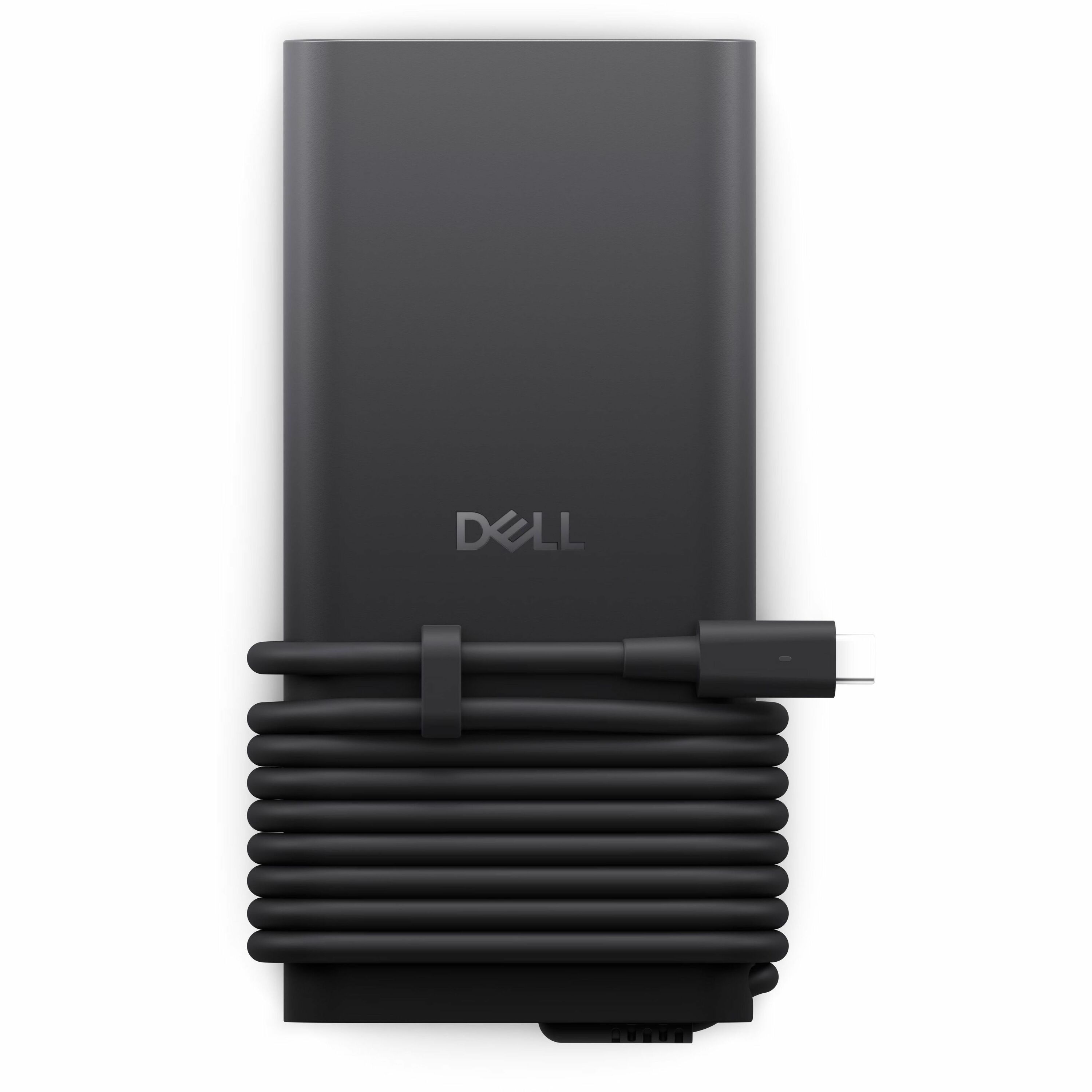

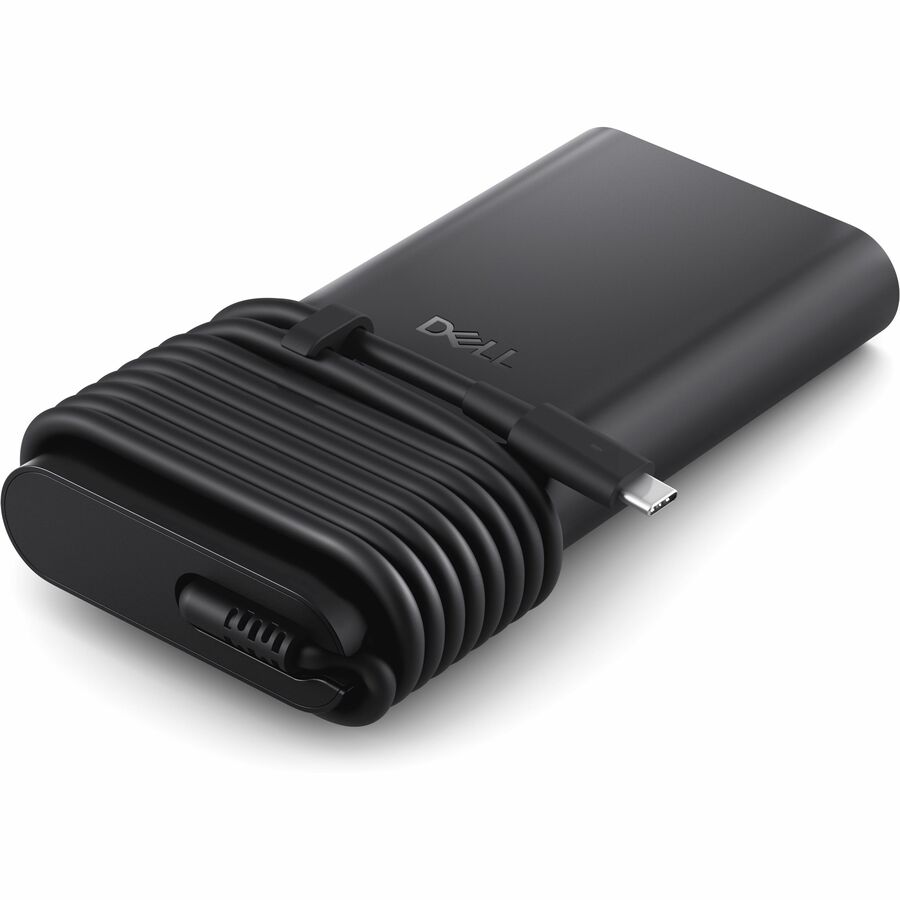

Dell 280W USB-C GaN AC Adapter

Tech Specs

Specifications

Manufacturer	Dell Technologies
Manufacturer Part Number	492-BFCX
Manufacturer Website Address	http://www.delltechnologies.com
Brand Name	Dell
Product Name	280W USB-C GaN AC Adapter
Marketing Information	Stay connected everywhere with a quick-charging USB-C adapter delivering 280W of power.
Packaged Quantity	1
Product Type	AC Adapter

Technical Information

Device Supported	Notebook USB Type A Device
Universal Adapter	Yes
Cable Length	5.91 ft
Features	GaN Technology Cable Clip Robust

Interfaces/Ports

USB Type-C

Yes

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 120 V AC 200 V AC - 240 V AC
Frequency	50 Hz 60 Hz
Output Voltage	48 V DC 36 V DC 28 V DC 20 V DC 15 V DC 9 V DC 5 V DC
Output Voltage Detail	48 V DC @ 5.83 A 36 V DC @ 5.83 A 28 V @ 5.893 A 20 V @ 6.5 A 15 V @ 3 A 9 V @ 3 A 5 V @ 3 A 12 V - 48 V @ 5.3 A
Over-voltage Protection Range	48 V / 50 V 36 V / 40 V 28 V / 30 V 20 V / 22 V 15 V / 17 V 9 V / 11 V
Maximum Output Power	280 W
Maximum Input Current	4 A
Maximum Output Current	7 A
Output Current Limit	5 V / > 3 A 9 V / > 3 A 15 V / > 3 A 20 V / > 4 A 28 V / > 7 A 36 V / > 7 A 48 V / > 7 A

Physical Characteristics

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	95°F (35°C)
Minimum Storage Temperature	-40°F (-40°C)
Maximum Storage Temperature	158°F (70°C)
Maximum Operating Humidity	95%
Maximum Non-operating Humidity	95%
Minimum Operating Altitude	0 mil
Maximum Operating Altitude	16400 ft

Miscellaneous

Package Contents	280W USB-C GaN AC Adapter 5.9ft (1.8m) Power Cord
Compatibility	Dell Pro Max Notebooks: 16 Plus MB16250 18 Plus MB18250 GB10 FCM1253
Certifications & Standards	IEC EN UL 62368-1
Post-consumer-waste%	95%
Country of Origin	China

Warranty

Limited Warranty

1 Year
