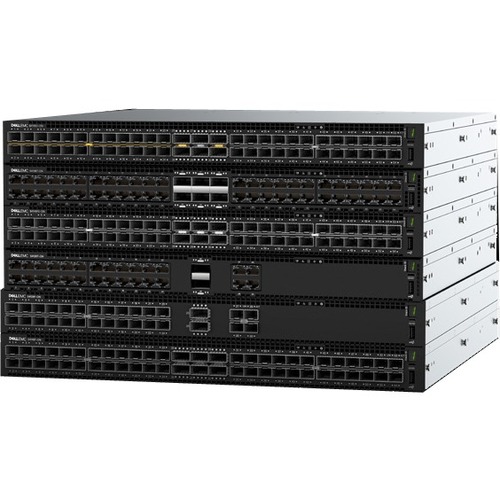

Dell EMC PowerSwitch S4148F-ON Ethernet Switch

Name: Dell EMC PowerSwitch S4148F-ON Ethernet Switch
Brand: DELL
SKU: SQ3557
Price: 6270.75 USD
Availability: InStock

DELL

PCN#

SQ3557

MFG#

S4148F-ON

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$6,270.75

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Free Shipping

Estimated Shipment:

Product Highlights:

Manageable
3 Layer Supported
Modular
370 W Power Consumption
Optical Fiber
1U
Rack
mountable
1 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

Dell EMC PowerSwitch S4148F-ON Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Dell Technologies
Manufacturer Part Number	S4148F-ON
Manufacturer Website Address	http://www.delltechnologies.com
Brand Name	Dell EMC
Product Line	PowerSwitch
Product Series	S4100-ON
Product Model	S4148F-ON
Product Name	PowerSwitch S4148F-ON Ethernet Switch
Marketing Information	High-performance open networking top-of-rack switches with multirate Gigabit Ethernet and unified ports The S4100-ON 10GbE switches comprise DellTechnologies' latest disaggregated hardware and software data center networking solutions, providing state-of-the-art 100GbE uplinks, fibre channel connectivity and a broad range of functionality to meet the growing demands of today's data center environment. These innovative, next-generation top-of-rack open networking switches offer optimum flexibility and cost-effectiveness for the enterprise, midmarket and tier 2 cloud service providers with demanding compute and storage traffic environments. The compact S4100-ON models provide industry-leading density with up to 48 ports of 10GbE or up to 48 ports of 10GBaseT ports, 2 ports of 40GbE and 4 ports of 100GbE in a 1RU form factor. The S4148U-ON model can support up to 28 8/16G fibre channel ports, or 16 ports of 32G fibre channel ports. The S4112-ON is a half-rack width model that supports up to 12 ports of 10GbE or 12 ports 10GBaseT, and 3 ports of 100GbE. Using industry-leading hardware and a choice of Dell EMC SmartFabric OS10 or select 3rd party network operating systems and tools, the S4100-ON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S4100-ON models provide multirate speed, enabling denser footprints and simplifying migration to 100Gbps. Also unique to the S4100- ON series is the ability to meet the demands of converged and virtualized data centers by offering unified ports (S4148U) and hardware support for L2 and L3 VXLAN Gateway. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S4100-ON ideally suited for DCB environments. Dell EMC PowerSwitch S4100-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC SmartFabric OS10 networking operating system, as well as of alternative network operating systems Maximum performance and functionality The S4100-ON series are high-performance, multifunction, 1/10/25/40/50/100 GbE and 8/16/32G FC top-of-rack (ToR) switches purpose-built for applications in high-performance data center, cloud and computing environments. Architectural features to optimize data center network flexibility, efficiency and availability include IO panel to PSU airflow or PSU to IO panel airflow for hot/cold aisle environments and redundant, hot-swappable power supplies and fans. Key applications Organizations looking to enter the software-defined data center era with a choice of networking technologies designed to maximize flexibility Multi-functional 1/10/25/40/50/100 GbE switching in High Performance Computing Clusters or other business-sensitive deployments requiring the highest bandwidth. High-density 1/10 GbE ToR server access in high-performance data center environments iSCSI and FC storage deployment, including DCB converged lossless transactions Small-scale data center fabric implementation via the S4100-ON switch in leaf and spine along with S-Series 1/10GbE ToR switches VXLAN layer 2/layer 3 gateway support (available in hardware only) Key features 1RU high-density 10/40/100 GbE ToR switches with up to 48 ports of 10 GbE (SFP+) or up to 48 ports of 10GBaseT ports, or up to 28 ports of 8/16 fibre channel, two ports of 40 GbE (QSFP+), and up to four ports of 100GbE (QSFP28) or four ports of 8/16/32G fibre channel
Product Type	Ethernet Switch

Interfaces/Ports

Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	48 x 10 Gigabit Ethernet Expansion Slot 2 x 40 Gigabit Ethernet Expansion Slot 4 x 100 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber
Ethernet Technology	10 Gigabit Ethernet 100 Gigabit Ethernet 40 Gigabit Ethernet
Network Technology	10GBase-X 100GBase-X 40GBase-X

I/O Expansions

Total Number of Expansion Slots	54.0
Expansion Slot Type	SFP+ QSFP+ QSFP28
Number of SFP+ Slots	48

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Power Description

Frequency	50 Hz 60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Power Consumption	370 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.8"
Width	17"
Depth	18"
Weight (Approximate)	20.15 lb

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

1 Year
