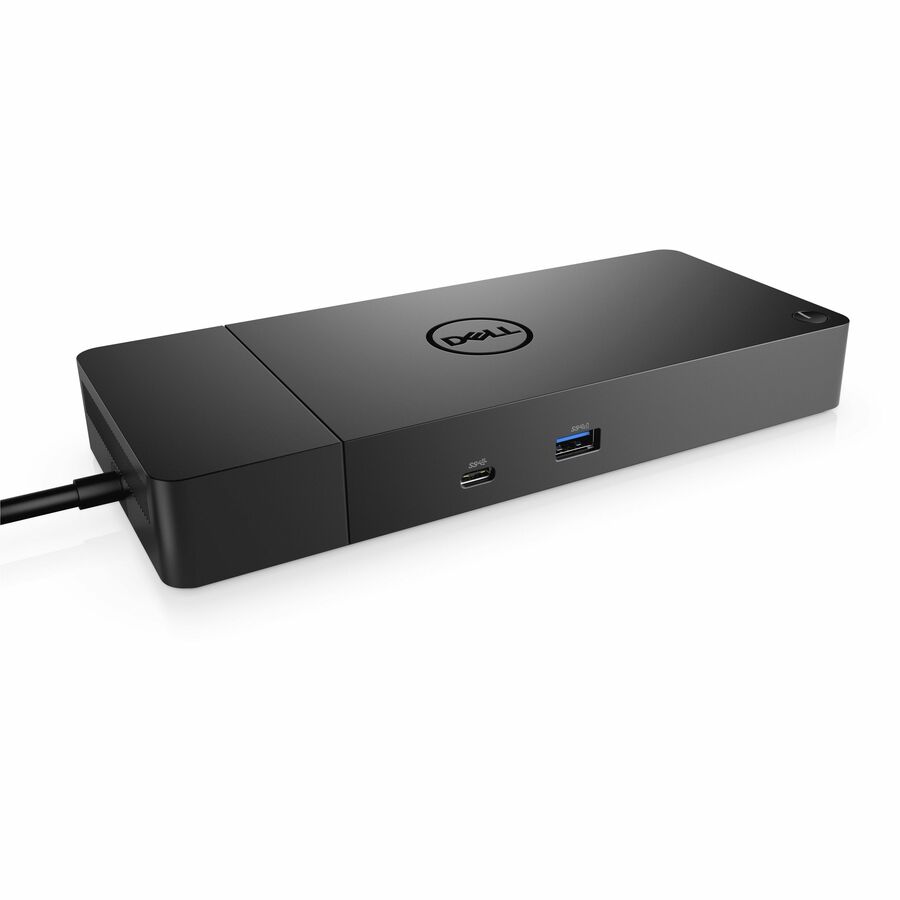

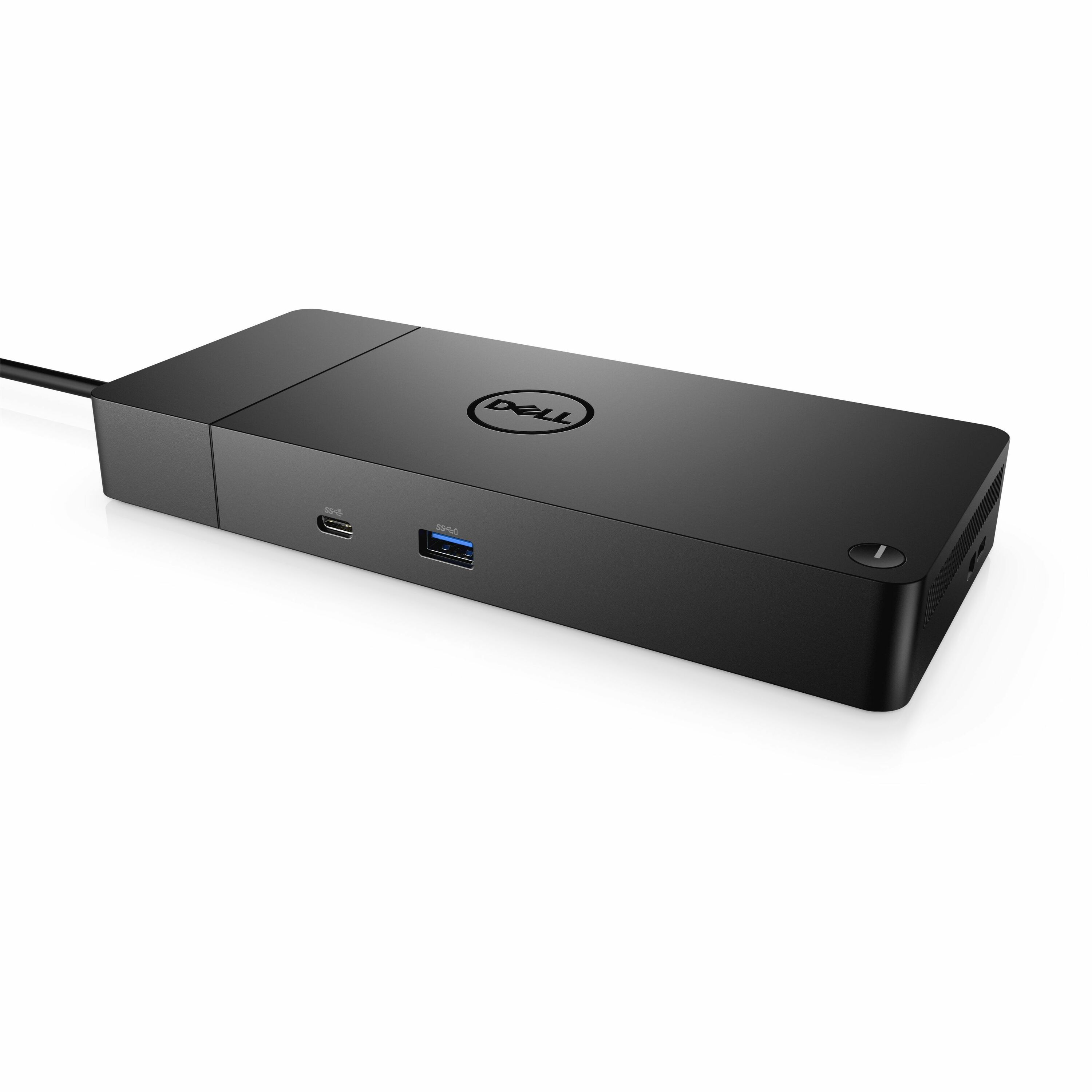

Dell WD19S Docking Station

Name: Dell WD19S Docking Station
Brand: DELL
SKU: 290U45
Price: 358.73 USD
Availability: OutOfStock

DELL

PCN#

290U45

MFG#

WD19S130W

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

for Monitor, Desktop PC, Notebook
Charging Capability
180 W
USB Type C
3 Displays Supported
4K, Full HD, QHD
3840 x 2160, 1920 x 1080, 2560 x 1440
5 x USB Ports
3 x USB Type
A Ports
USB Type
A
2 x USB Type
C Ports
USB Type
C
Network (RJ
45)
1 x HDMI Ports
HDMI
2 x DisplayPorts
DisplayPort
Black
Wired
Gigabit Ethernet
Windows 10, Windows 11, Ubuntu 18.04, Red Hat Enterprise Linux

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Dell WD19S Docking Station

Overview

Tech Specs

Specifications

Manufacturer	Dell Technologies
Manufacturer Part Number	WD19S130W
Manufacturer Website Address	http://www.delltechnologies.com
Brand Name	Dell
Product Model	WD19S
Product Name	WD19S Docking Station

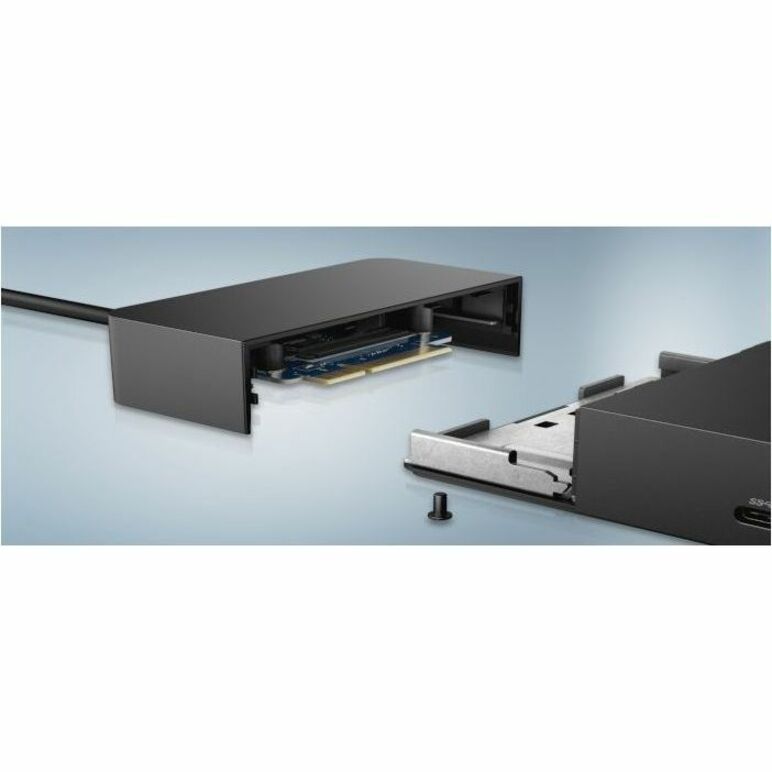

Marketing Information	FASTEST CHARGING Boost your PC's power with ExpressCharge on the World's most powerful USB-C® dock. ENHANCED PRODUCTIVITY Do your best work faster with a dock that offers the ability to connect to monitors and peripherals all with a single connection to the PC. FUTURE-READY DESIGN Evolve as your needs change with the World's first modular dock with upgradeable power and connectivity. INTELLIGENT MANAGEMENT Work without disruptions utilizing a single firmware on our most manageable docks ever. Work at full speed \| Power your productivity. Dell Commercial Docks boost productivity for end users by making it easy to connect to and charge their PCs faster than any other dock available. Our docks offer the greatest compatibility across Dell Commercial laptops and are easy to deploy, manage and upgrade so IT staff can have added peace of mind. The WD19S docks are also compatible with notebooks from other manufacturers such as HP and Lenovo which support industry standards for USB-C docking. For functional limitations with notebooks from other manufacturers in comparison to Dell Commercial notebooks, please see this support article. FASTEST CHARGING Increase your power delivery and charge quicker with a dock that delivers up to 130 Watts of power allowing for an 80% charge in one hour with Dell ExpressCharge. Get more done even faster, with Dell ExpressCharge Boost, a feature that provides up to a 35% charge in just 20 minutes5 on compatible systems. ENHANCED PRODUCTIVITY Enhance your productivity with the World's most powerful USB-C dock. USB-C technology delivers data transfer speeds of up to 10Gbps and supports up to three QHD displays so you can work more efficiently. INTELLIGENT MANAGEMENT Streamline the deployment and management of all of the docks in the family, regardless of their connectivity with a single firmware. Dell's docks are support enabled in our laptops' BIOS from the factory. Perform firmware updates in minutes without needing to reboot the system, allowing end users to continue working without disruption. SUPPORT Dell Commercial Docks come with a standard, 3 Year Limited Hardware Warranty with Advanced Exchange. If the customer has an issue that cannot be resolved over the phone, Dell will send a replacement dock out next business day. Dell offers the option for customers to extend this SUPPORT warranty up to 4 or 5 years for an additional fee.
Packaged Quantity	1
Package Type	Retail
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Monitor Desktop PC Notebook
Cable Length	3.28 ft
Features	Power Delivery Pass-through
Management Features	MAC Address Pass-through PXE Boot Wake-on-LAN Wake-on-Dock Button Dell Command Update (DCU) Port Disablement
Number of Displays Supported	3
Screen Mode Supported	4K Full HD QHD
Supported Resolutions	3840 x 2160 1920 x 1080 2560 x 1440
Maximum Data Transfer Rate	1.25 GB/s
Security Slot Type	Noble Wedge Security Slot Kensington Security Slot
Power Delivery	130W (Dell Systems) 90W (non-Dell Systems)

Network & Communication

Ethernet Technology

Gigabit Ethernet

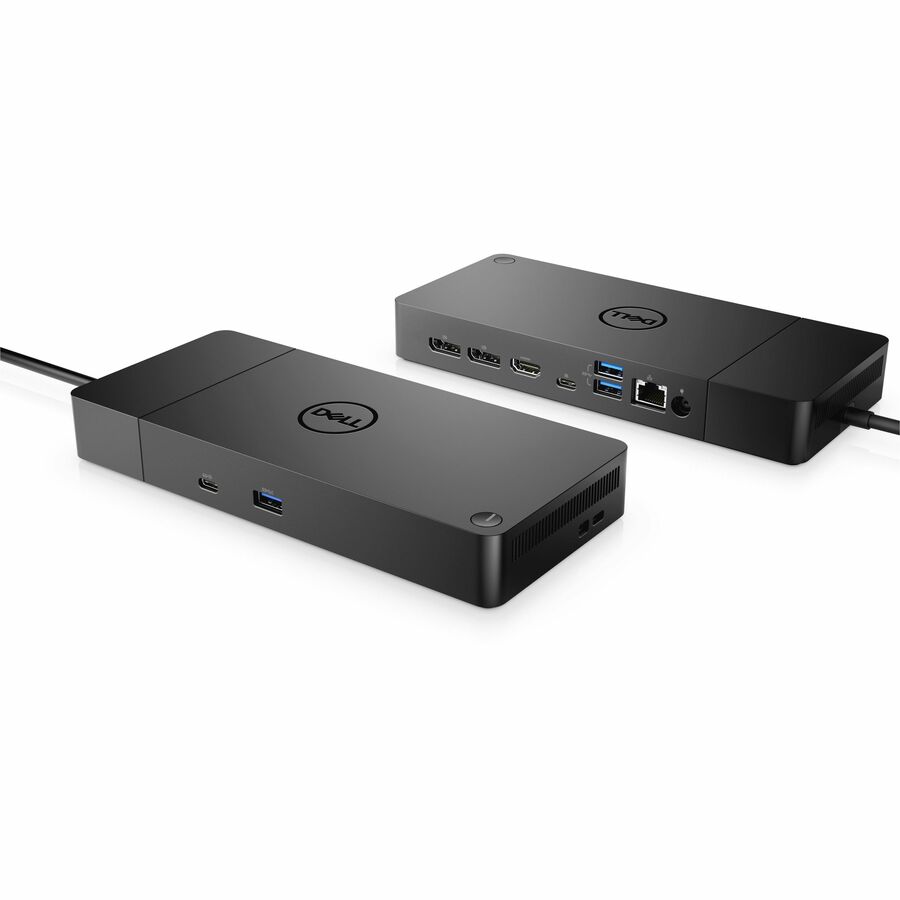

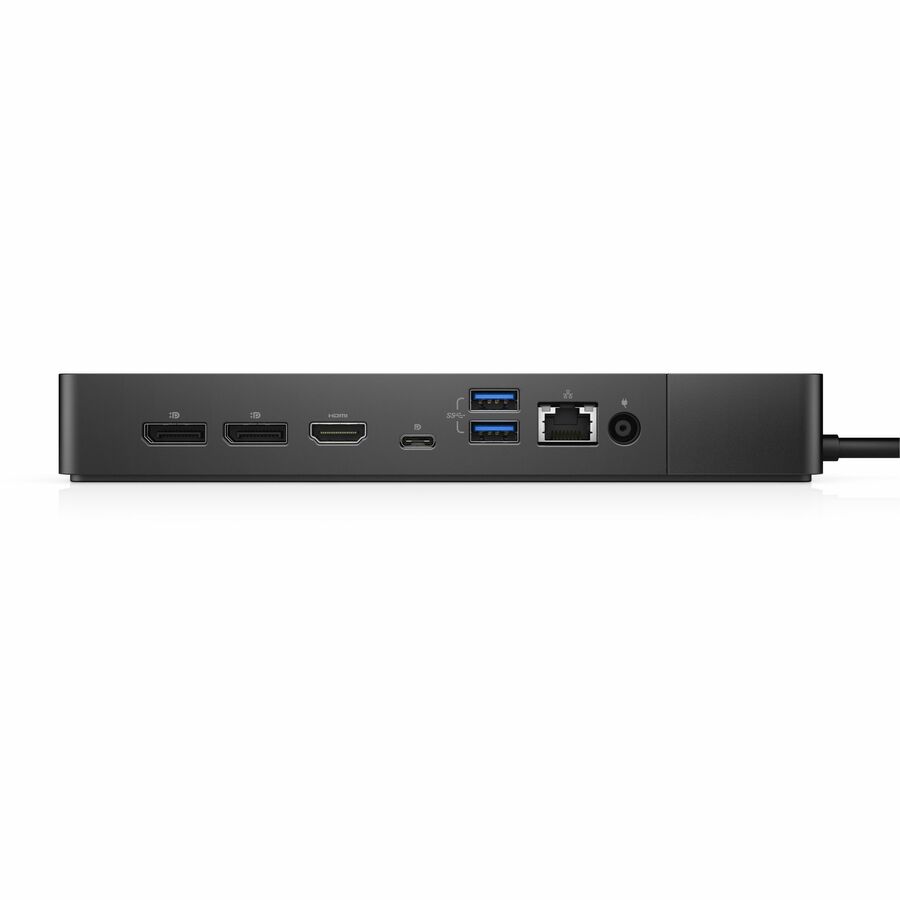

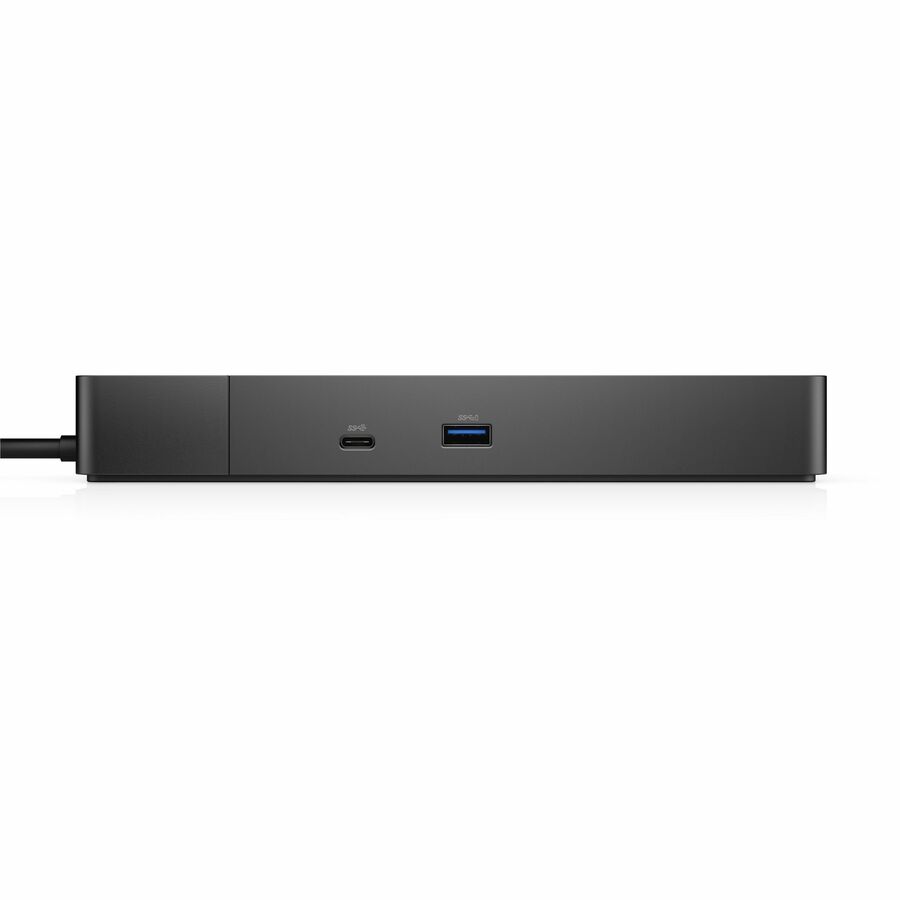

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	5
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	3
Number of USB Type-A Ports	3
USB Type-C	Yes
USB Type-C Detail	2 x USB-C 3.2 Gen 2
Number of USB Type-C Ports	2
Network (RJ-45)	Yes
DisplayPort	Yes
Number of DisplayPorts	2
DisplayPort Version	1.4
HDMI	Yes
Number of HDMI Ports	1

Software

Operating System Supported

Windows 10
Windows 11
Ubuntu 18.04
Red Hat Enterprise Linux

Power Description

Maximum Power Supply Wattage	180 W
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Black
Product Color	Black
Height	8.07"
Width	3.54"
Depth	1.14"
Weight (Approximate)	1.29 lb

Miscellaneous

Package Contents	WD19S Docking Station 1 x 180W Power Adapter
Kensington Security Slot	Yes
Compatibility	HP Notebooks Lenovo Notebooks
Brand Compatibility	Dell HP Lenovo

Warranty

Limited Warranty

3 Year
