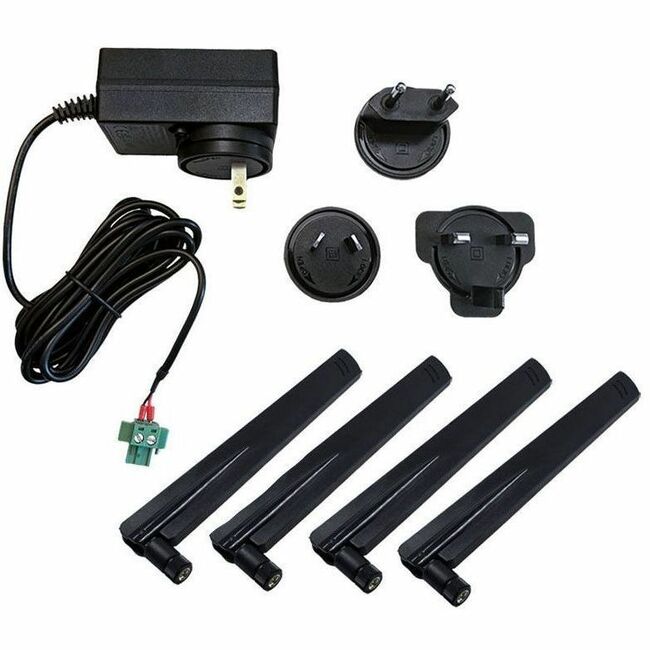

IX 5G ACCESSORY KIT POWER SUPPL Y18VDC 166A WALLMOUNT LEVEL VI IND

• Industrial
• Router

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

Antenna RadomeColor: Black

Antenna Casing: ABS

Power Supply Specifications:

• Size (L x H x W):PSU (excluding lead): 71.2 mm x 43.2 mm x 31 mm excluding removable plug tips; 115 mm x 75 mm x 65 mm in packaging box (with plug tips)

Antenna :

• Antenna size: 221 mm x 26.95 mm x 13.5 mm (8.7 in x 1.06 in x 0.53 in)

Power Supply Specifications:

• Rated input voltage range: 100 - 240 V
• Input frequency: 50 - 60 Hz
• Rated input current: 0.6 A
• Max. in-rush current: 40 A at 230 VAC
• Input plug type: Removable plug tips for US, UK, EU, AU
• Max. load current: 1.66 A
• Min. load current: 0 A
• Output power: 30 W
• Weight: In packaging with plug tips: 300 g (0.66 lb)
• Cord length: 1.83 m +/-50 mm (6 ft +/-2 in)

Antenna specifications:

• Frequency range: 600 to 6000 MHz
• Input impedance: 50 Ω
• VSWR: ≤ 3.0
• Gain: ≤ 5 dBi
• Polarization type: Line
• Connector type: SMA male (center pin)ar

• 30 W Power Supply
• 4 x Wideband Cellular Antennas

Digi:

• IX10
• IX20
• IX40

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

UL/CSA, CE, GS, UKCA, SAA, ROHS, REACH
