93PX 15000VA 15000W N+1 400V 3P CE BYPASS GATEWAY CARDS EXT RUN 21U

by
EATON
PCN#
700V21
MFG#
93PX15KHWNDGPAR

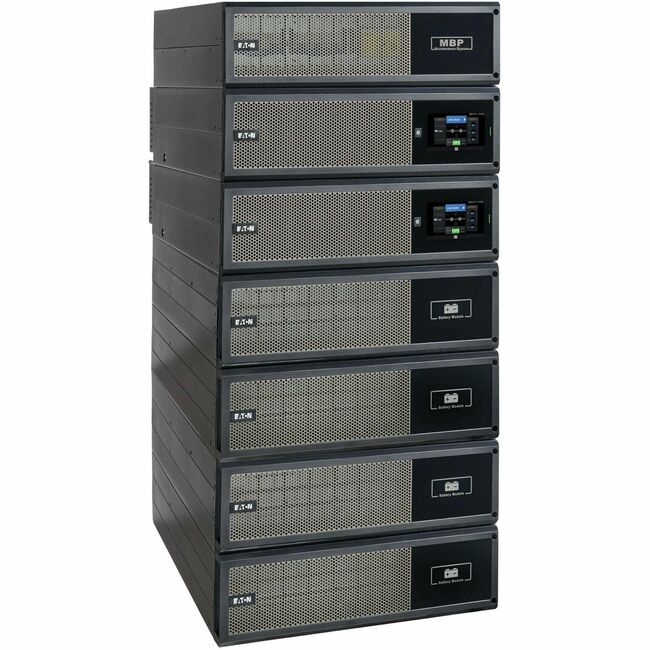

main product photo
fotorama-image
fotorama-image
EATON Authorized Dealer
$26,683.18
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 21U Rack
  • mountable
  • 380 V AC, 400 V AC, 415 V AC Input

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 915 lbs.
Eaton Two 15kW Power Module, 20kW MBP, Four EBMs, Mounting Rails and INDGW-M2 card
Overview
Tech Specs
Specifications

Manufacturer

Eaton Corporation

Manufacturer Part Number

93PX15KHWNDGPAR

Manufacturer Website Address

http://www.eaton.com

Brand Name

Eaton

Product Series

93PX

Product Name

93PX 15kW Rack-mountable UPS

Marketing Information

The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.

Product Type

Double Conversion Online UPS
Technical Information

Plug/Connector Type

Hardwired

Receptacle Type

Hardwired

Protection Type

  • Backfeed
  • Surge

Phase

Three Phase

Application/Usage

  • Data Center
  • IT Infrastructure
  • Switch
  • Server
  • Healthcare
  • Hospital
  • Medical
  • IT Rack
  • Mission Critical Equipment
  • Edge Computing
  • Network
  • Server Room
  • Network Closet
  • Clinic
  • Medical Equipment

Crest Factor

3:1

Efficiency

98.8%
Power Description

Load Capacity (Watt)

15 kW

Input Voltage

  • 380 V AC
  • 400 V AC
  • 415 V AC

Input Voltage Range

  • 173 V AC - 520 V AC
  • 277 V AC - 520 V AC

Output Voltage

  • 380 V AC
  • 220 V AC
  • 400 V AC
  • 230 V AC
  • 415 V AC
  • 240 V AC

Input Frequency

  • 50 Hz
  • 60 Hz
  • 45 Hz
  • 55 Hz
  • 54 Hz
  • 66 Hz

Output Frequency

  • 50 Hz
  • 45 Hz
  • 55 Hz

Input Current

32 A

Waveform Type

Pure Sine Wave

Output Power Factor

1
Display & Graphics

Display

LCD
Management

Network Management

  • RS-232
  • Network-M3 Card
  • INDGW-M3 Card
  • INDGW-M2 Card
Interfaces/Ports

Serial Port

Yes

USB

Yes

EPO Port

Yes
Battery Information

DC System Voltage

240 V DC

Battery Characteristics

Valve-regulated

Battery Chemistry

Lead Acid

Battery Capacity

9000 mAh

Number of External Battery Cabinets

4
Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Storage Temperature

5°F (-15°C) - 140°F (60°C)

Maximum Operating Elevation

3280 ft
Physical Characteristics

Form Factor

Rack-mountable

Rack Height

21U
Miscellaneous

Package Contents

  • 2 x Power Module (PM)
  • Maintenance Bypass Panel (MBP)
  • 4 x Extended Battery Modules (EBMs)

Certifications & Standards

  • IEC 62040-1:2017+A1:2021+A2:2022
  • EN IEC 62040-1:2019+A11:2021 UL1778: 2014 Fifth Edition
  • FCC: Class A; CE: Category C3; FCC CFR Title 47, Part 15, Subpart B; ICES-003: Issue 7
  • IEC 62040-2:2016; EN IEC 62040-2:2018; EN 62040-2:2006
  • IEC/EN-61000-4-5

TAA Compliant

No

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

2 Year
