5KW UPS BUNDLE/KIT MODEL 5KW POWER MODULE 5K-MBP EBM NETWORK-M3

Name: 5KW UPS BUNDLE/KIT MODEL 5KW POWER MODULE 5K-MBP EBM NETWORK-M3
Brand: EATON
SKU: VJ7002
Price: 8245.5 USD
Availability: InStock

EATON

PCN#

VJ7002

MFG#

93PX5K

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$8,245.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $462.99

3-Year $582.99

Estimated Shipment:

Product Highlights:

9U Rack
mountable
5.40 Hour Recharge
230 V AC, 120 V AC Input
208 V AC, 120 V AC Output
Three Phase
Pure Sine Wave
Serial Port
USB
LCD Display
2 x NEMA L21
20R Receptacle(s)
Network
M3 Card, INDGW
M3 Card, RS
232
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 301 lbs.

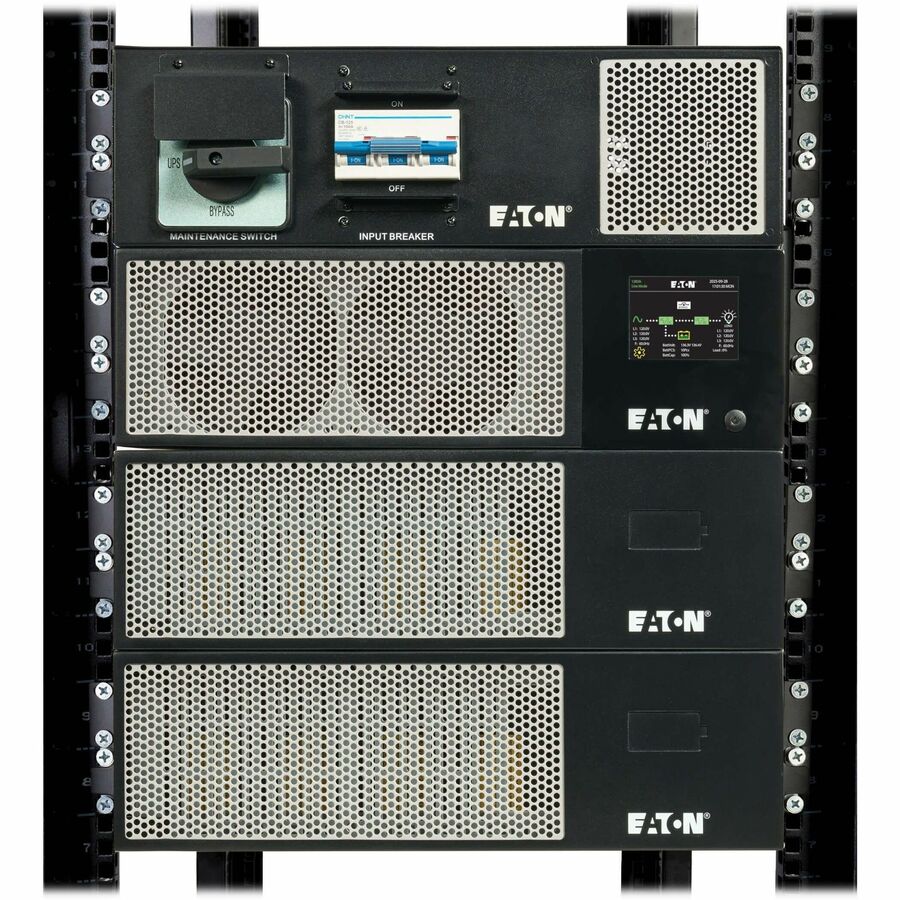

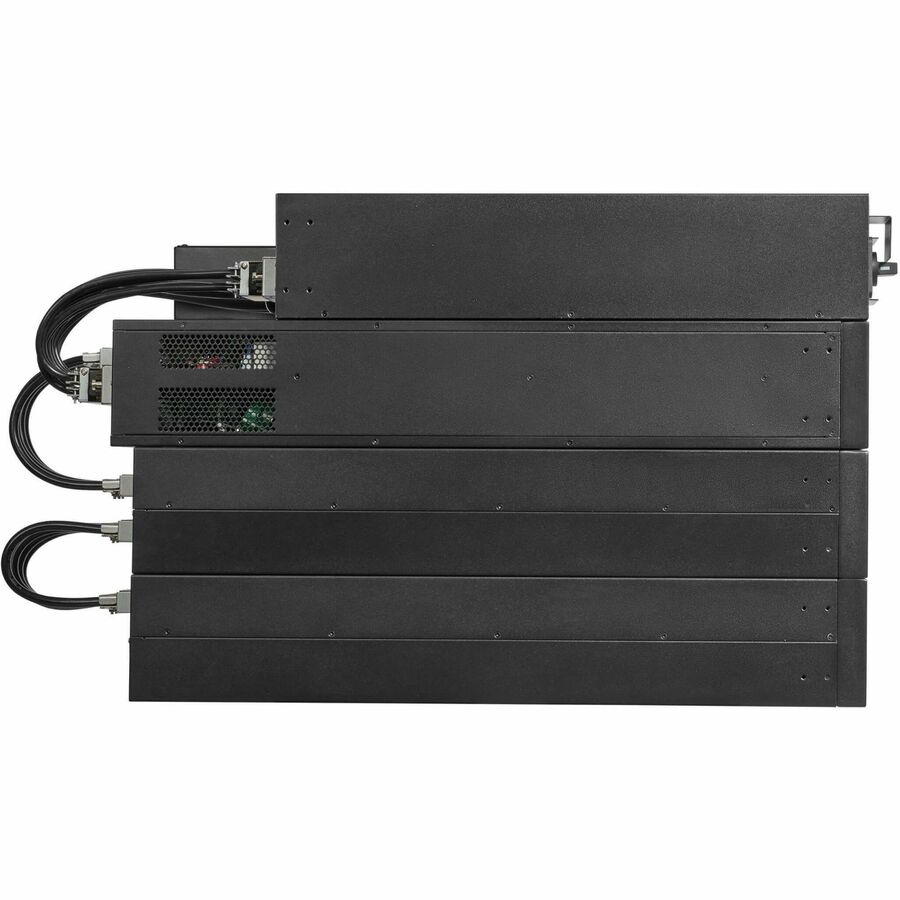

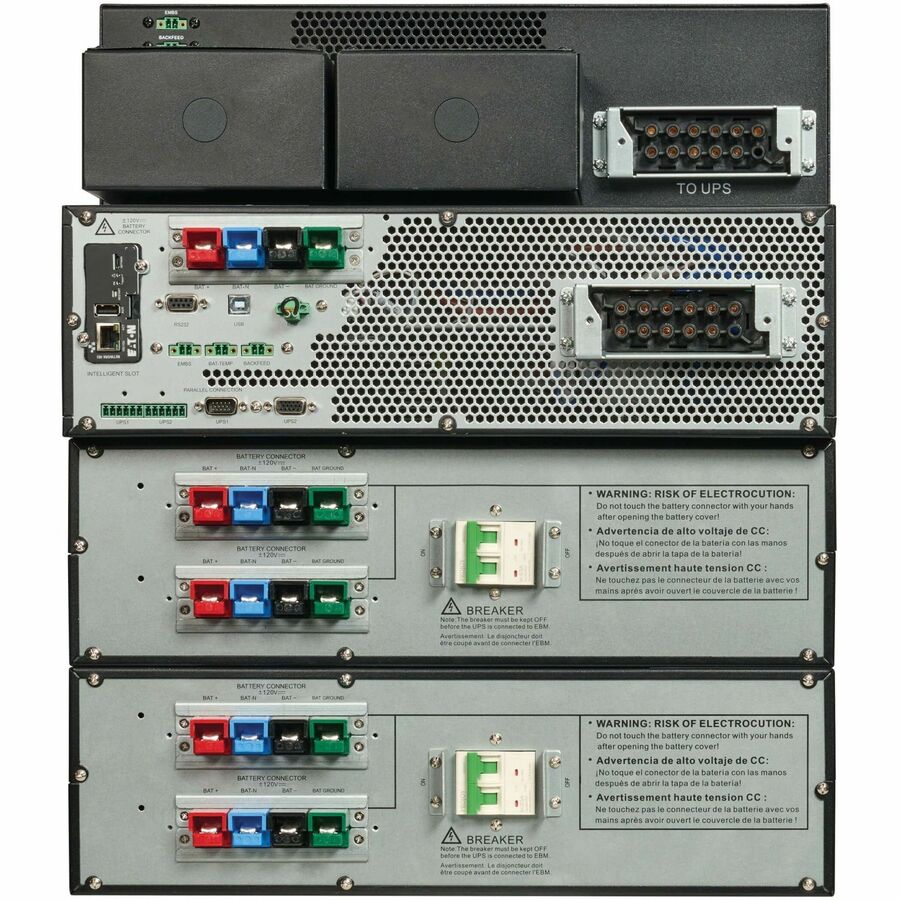

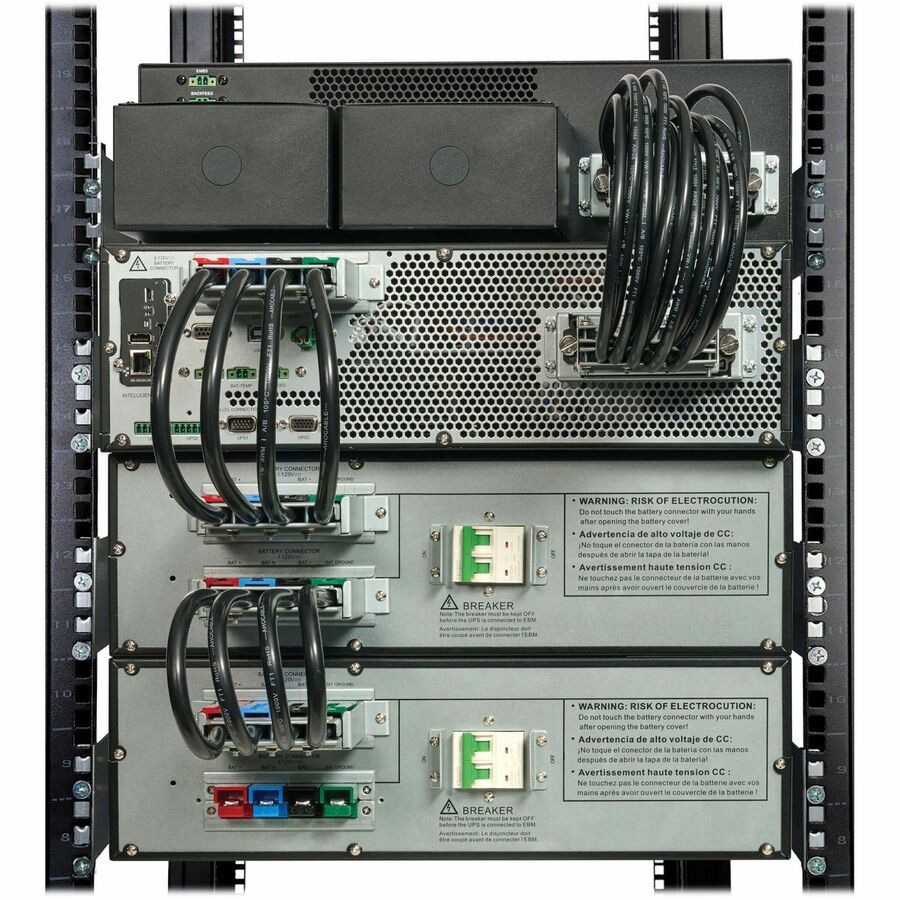

Eaton 5kW UPS bundle/kit model that includes a 5kW Power Module, 5k-MBP, one EBM and NETWORK-M3 card.

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	93PX5K
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Series	93PX
Product Name	93PX 5kW Rack-mountable UPS
Marketing Information	The 93PX double-conversion online UPS 208V (5-20kW) and 400V (15kW / 20kW) offers simple, reliable, and cost-effective power for edge and data center environments. With plug-and-play deployment, high-efficiency, 1.0 power factor, advanced cybersecurity, and scalable redundancy, it ensures continuous protection, surge resistance, and auto-restart-ideal for critical applications requiring high performance and operational resilience.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA L21-20P
Receptacle Type	NEMA L21-20R
Receptacle Detail	2 x NEMA L21-20R
Cord Length	10 ft
Phase	Three Phase
Efficiency Detail	91% (Online Mode) 97% (Eco Mode) 91% (Battery Mode)
Application/Usage	Data Center IT Infrastructure Switch Server IT Rack Healthcare Hospital Medical Mission Critical Equipment Edge Computing Network Server Room Network Closet
Surge Suppression	Yes
Features	Auto Restart

Power Description

Load Capacity (Watt)	5000 W
Input Voltage	230 V AC 120 V AC
Input Voltage Range	121 V AC - 270 V AC 53 V AC - 161 V AC
Input Current	16 A
Output Voltage	208 V AC 120 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Pure Sine Wave
Output Power Factor	1

Display & Graphics

Display

LCD

Management

Network Management

Network-M3 Card
INDGW-M3 Card
RS-232

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	Yes

Battery Information

DC System Voltage	120 V DC
Battery Characteristics	Valve-regulated
Battery Chemistry	Lead Acid
Battery Capacity	10000 mAh
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	13 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	31 Minute
Typical Battery Recharge Time	5.40 Hour

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 140°F (60°C)
Maximum Operating Elevation	3280 ft

Physical Characteristics

Rack Height	9U
Form Factor	Rack-mountable

Miscellaneous

Package Contents	Power Module (PM) Maintenance Bypass Panel (MBP) 1 x Extended Battery Module (EBM) NETWORK-M3
Certifications & Standards	UL1778:2014 (5th Ed) R4-28-2023, CAN/CSA-C22.2 No. 107.3-14 (3rd Ed)+GI1 (R:2017-10) Class A; 47 CFR FCC Part 15 Subpart B; ICES-003 Issue 7 IEC62040-1:2017+A1:2021+A2:2022 EN61000-3-12:2011; IEC62040-2:2016 IEC/EN-61000-4-5 UL/IEC
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
