1X9 VIDEO WALL CONTROLLER 4K 30 1 HDMI INPUT 9 HDMI OUTPUTS 4:4:4

Extends 4K Video from a Single HDMI Source to 9 HDMI Monitors or HDTVs

The B119-1X9-VW captures, converts, routes and distributes 4K video signals in various video wall modes to create one large 1080p image. Ideal for video wall applications in retail settings, concert venues, restaurants and bars, hotels, offices, houses of worship and other applications where large, visually appealing displays are needed, this video wall controller works with older 1080p displays to save you the expense of upgrading.

Creates Up to 13 Different Video Wall Configurations

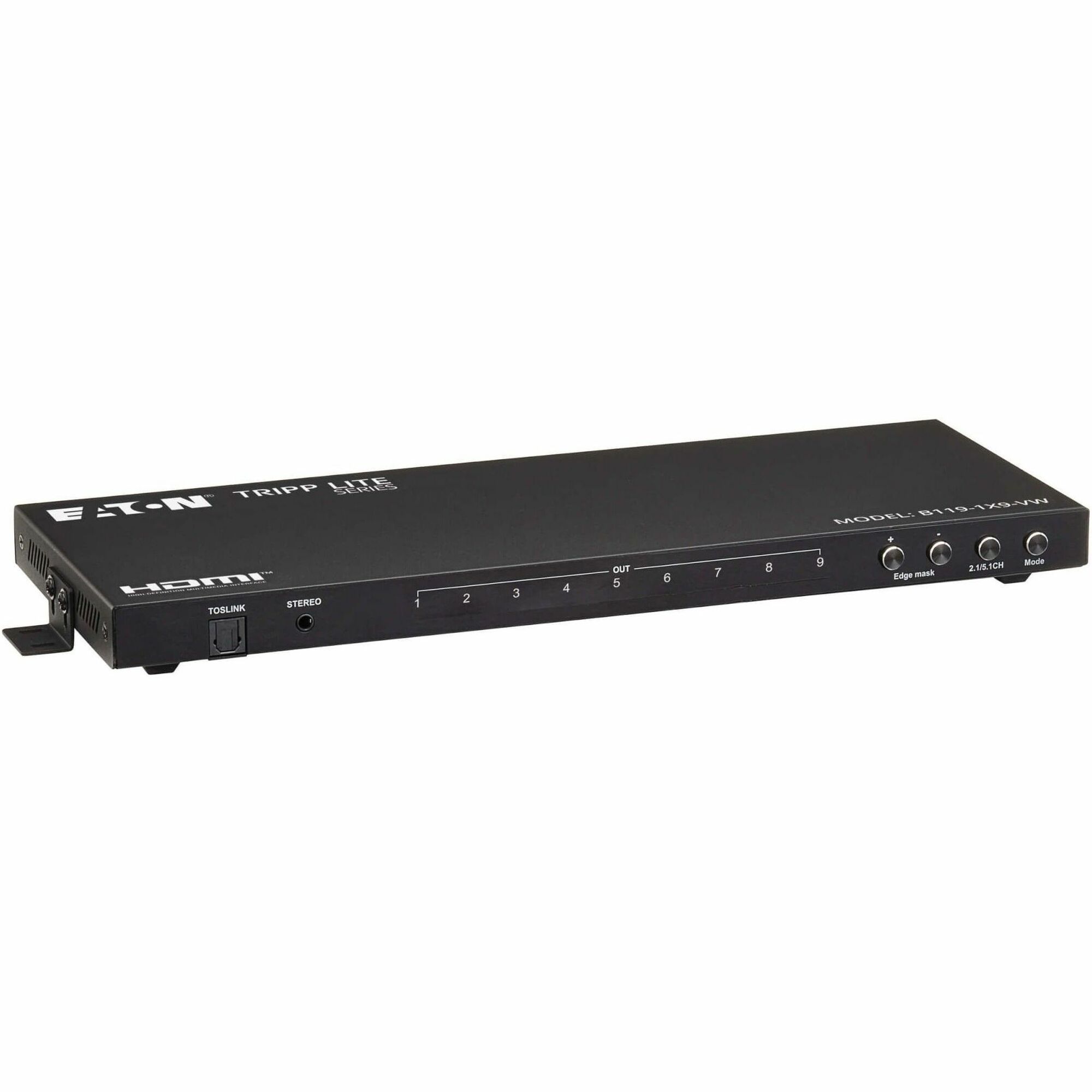

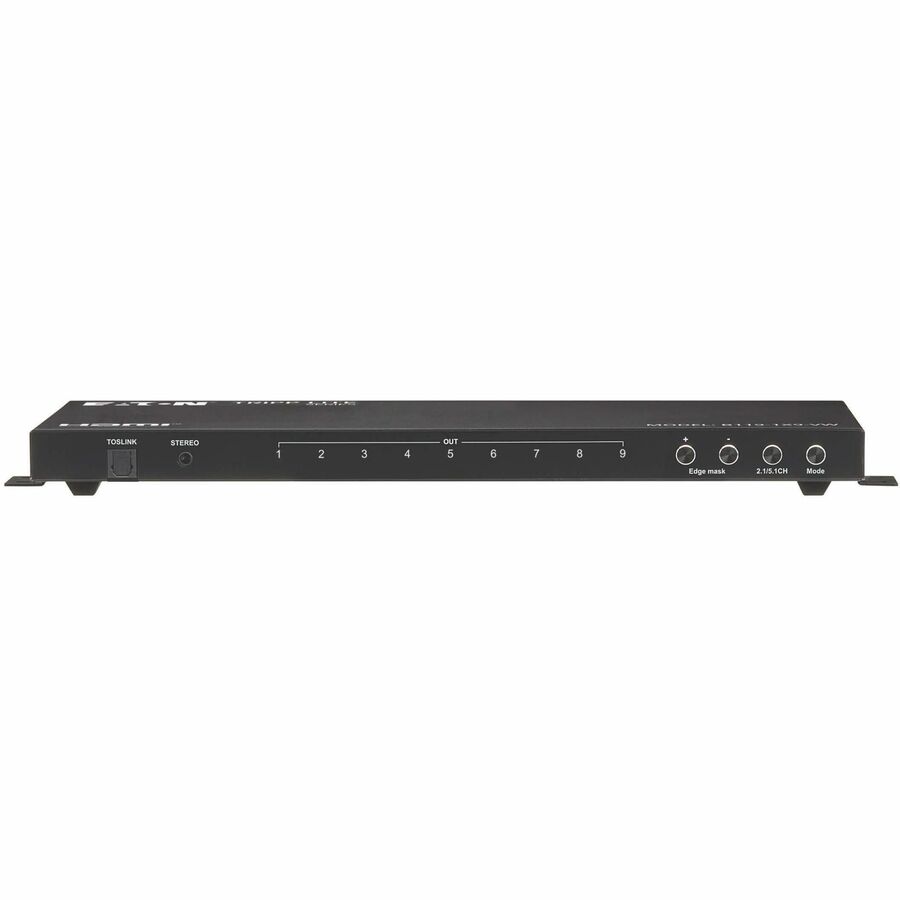

The B119-1X9-VW features one 4K/30 Hz HDMI input and nine 1080p/60 Hz HDMI outputs to create 13 unique video wall splicing modes to be stretched either horizontally or vertically: 3x3, 2x4, 2x3, 4x2, 3x2, 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 and 1x1. You can set display modes via front-panel buttons, the included IR remote or RS-232 commands. The B119-1X9-VW supports On-Screen Display (OSD) readouts to easily identify the current mode and port information for each connected display.

Transmits 1080p Video with 4:4:4 Color

The B119-1X9-VW supports 1080p resolutions at 60 Hz LPCM, Dolby Audio Codec 3 (AC3) and DTS audio. HDCP 1.3/1.4 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Customize Your Video Wall with Edge Masking and Image Rotation

The image borders can be adjusted on the connected displays by expanding or reducing the picture edges using the Edge Masking +/- button on the unit or remote control. Images can be independently rotated by 180-degree increments using the remote control.Note: All video splitter configurations except the 1x1 (Mode 13) can be rotated. The Edge Masking function adjusts the picture border by eight pixels at a time and can be adjusted to 8x20 pixel max. The default setting is zero pixels adjusted.

Plug-and-Play Operation for Quick Setup and Immediate Use

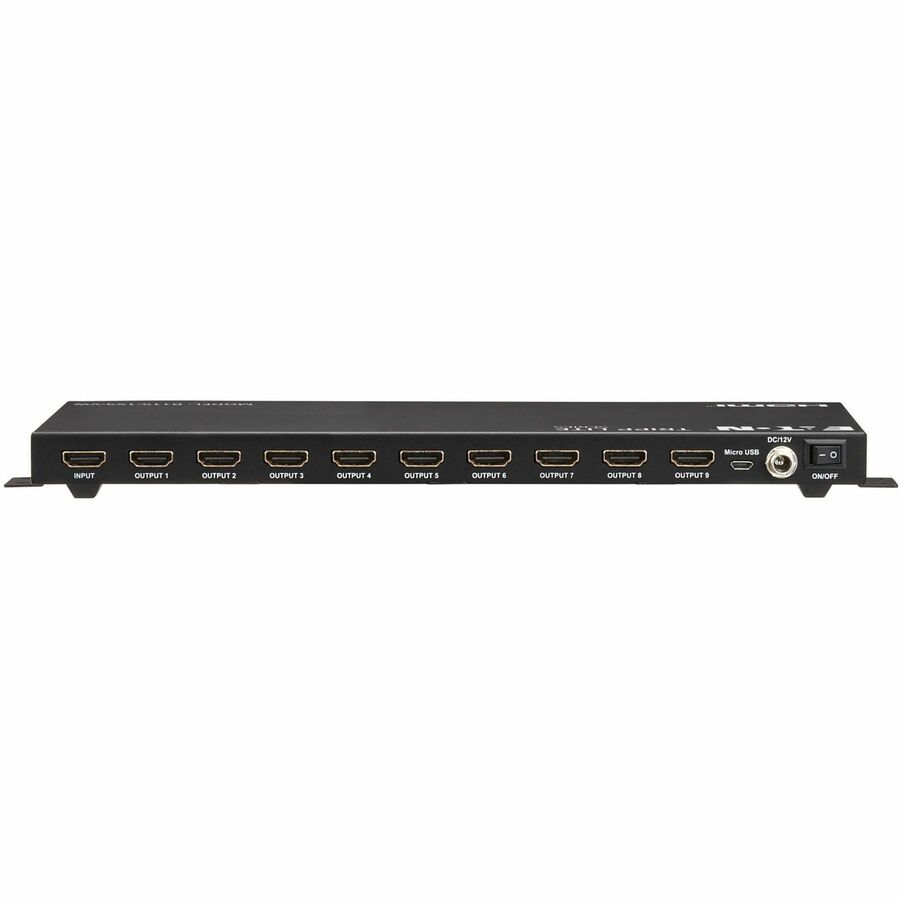

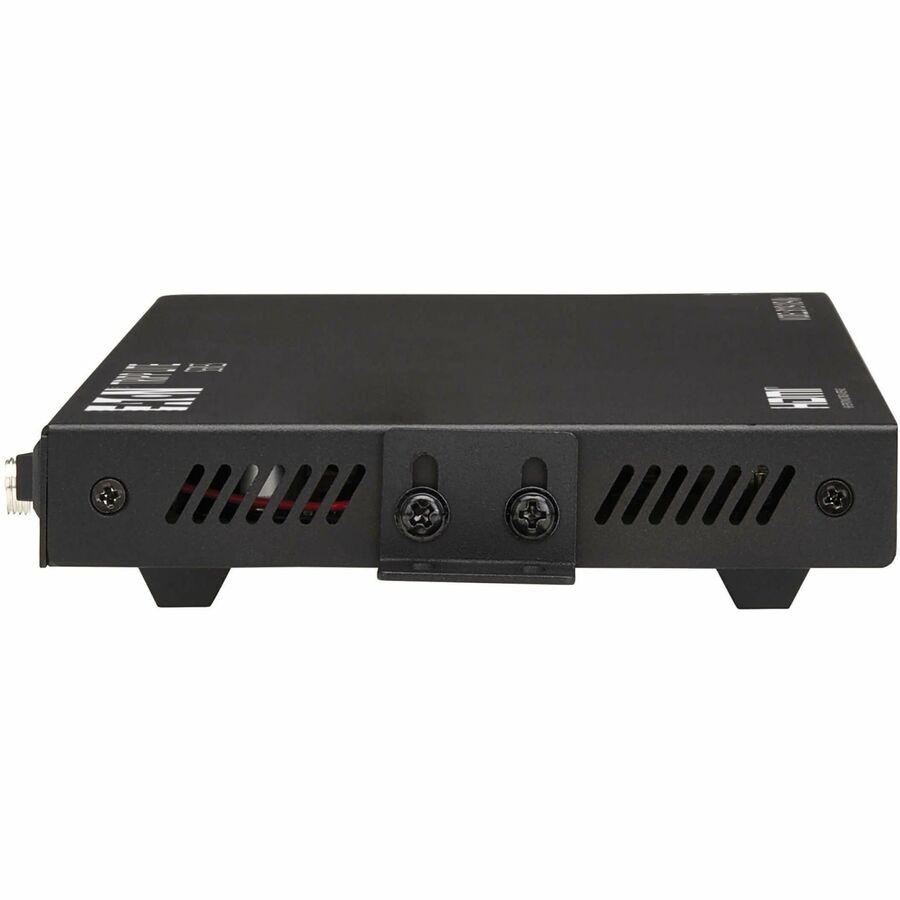

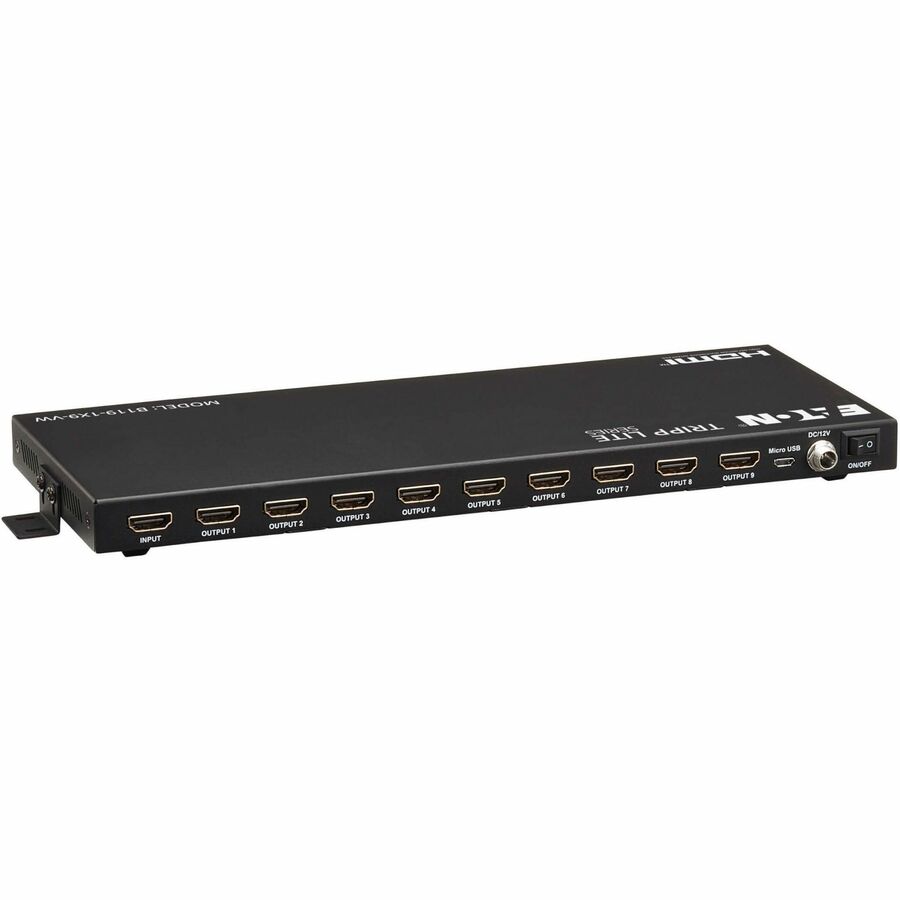

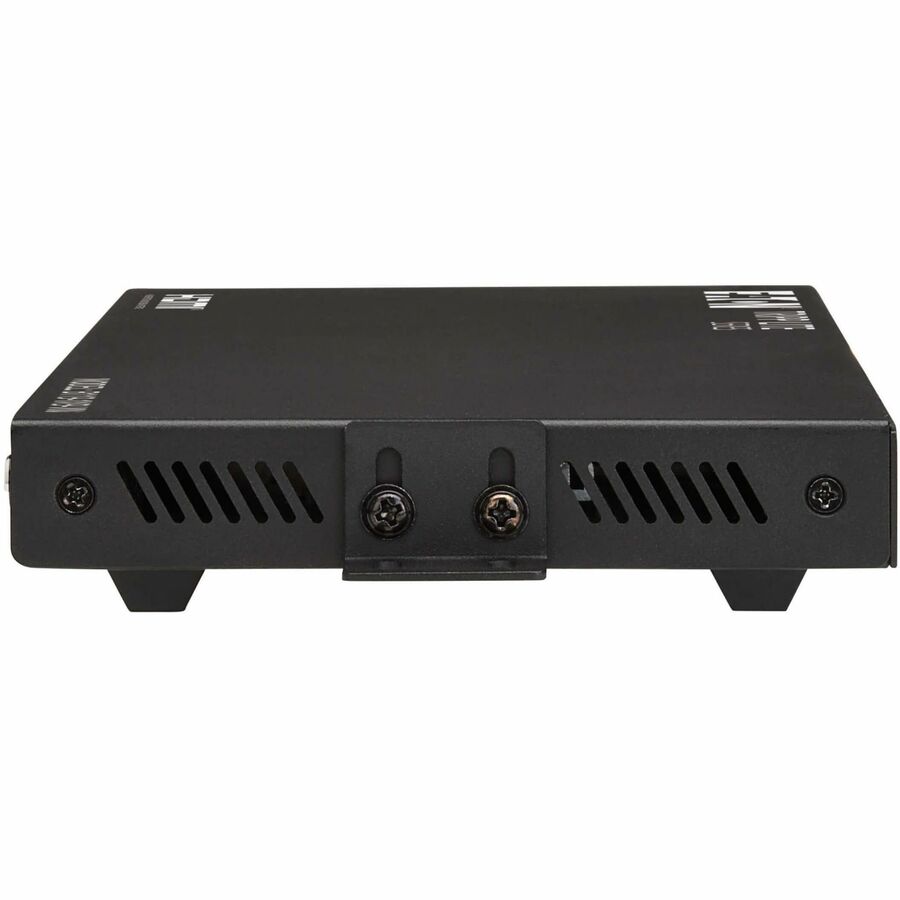

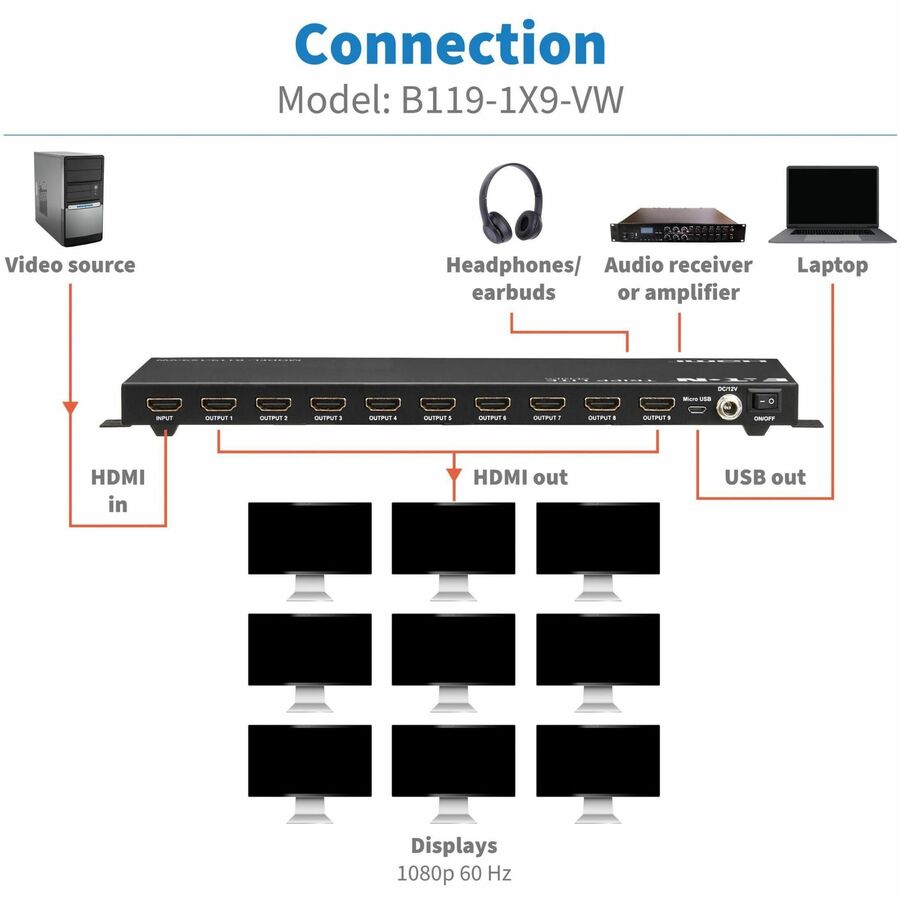

The B119-1X9-VW works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall or other flat surface. Connect a 4K source device to the HDMI input and up to nine 1080p displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere. An intelligent memory function retains the previous configuration settings when the switch is powered off.

• 100 V AC
• 240 V AC

• Acrylonitrile Butadiene Styrene (ABS)
• Metal
• Polycarbonate

• Box Mount
• Wall Mount

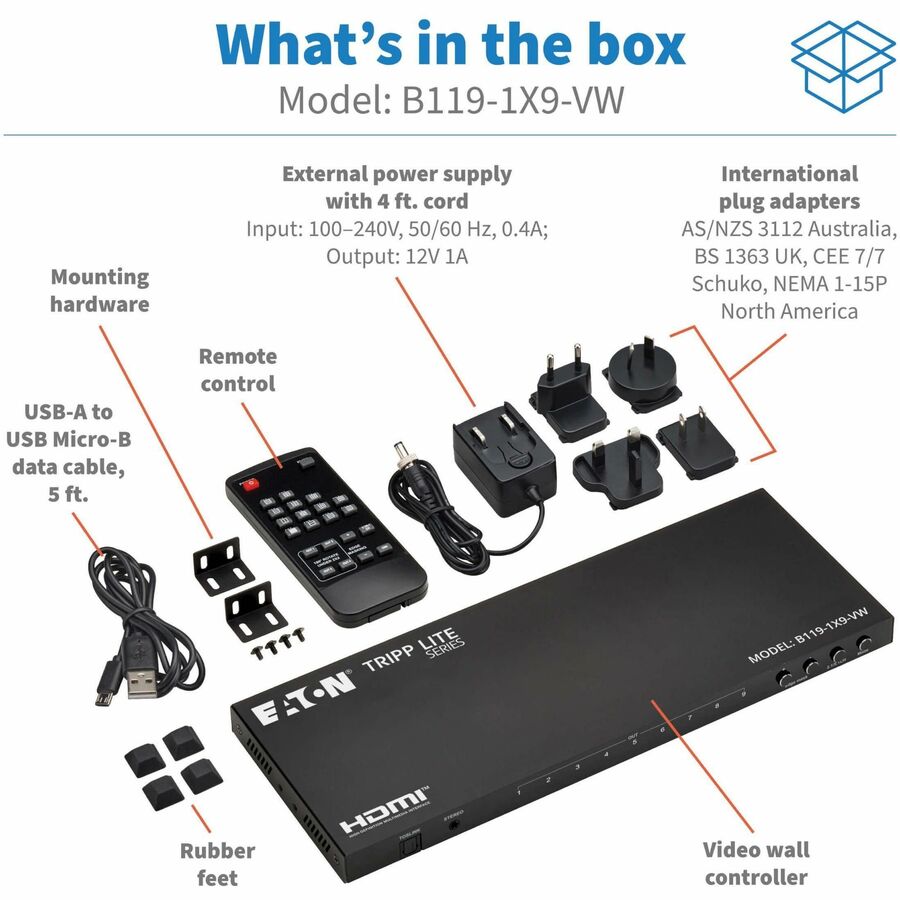

• Video Wall Controller
• Remote Control
• USB-A to USB Micro-B Data Cable, 5 ft. (1.5 m)
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.4A; Output: 12V 1A) with 4 ft. (1.2 m) cord
• 4x International Plug Adapters (AS/NZS 3112 Australia, BS 1363 UK, CEE 7/7 Schuko, NEMA 1-15P North America)
• 4x Rubber Foot Pads
• Mounting Hardware
• Installation Instructions

• Display
• Notebook
• Blu-ray Player
• Video Game Console
• Television
• Monitor
• Projector
• PC
• Restaurant
• Amplifier

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
