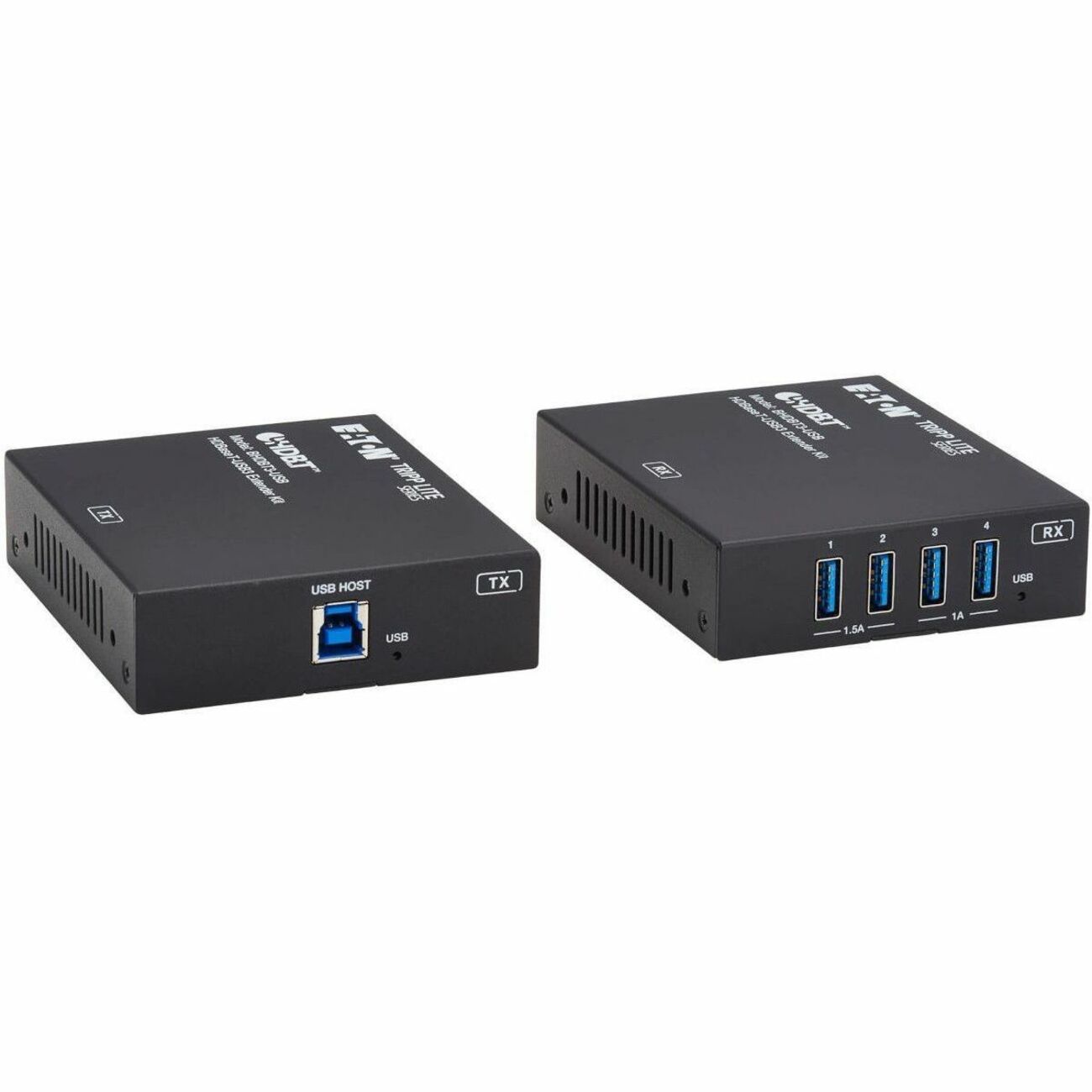

HDBASET-USB3 CAT6A EXTENDER KIT 4 USB-A 3.2 GEN 1 POC RS-232 TAA

Designed with the Newest HDBaseT 3.0 TechnologyThe BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances. Built-In PoC Technology Provides Power to Avoid Bulky External Power BricksBi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet. Plug-and-Play Convenience and Easy InstallationThe BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets. TAA-Compliant for GSA Schedule PurchasesThe BHDBT3-USB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.Product TypeUSB ExtenderTechnical InformationMaximum Extended Range328.08 ftMaximum Data Transfer Rate640 MB/sMaximum Operating Distance328.08 ftInterfaces/PortsNetwork (RJ-45)YesNumber of Network (RJ-45) Ports2USBYesNumber of USB Ports7Power DescriptionInput Voltage240 V ACPhysical CharacteristicsColor FamilyBlackProduct ColorBlackProduct MaterialMetalTransmitter Weight (Approximate)9.12 ozReceiver Weight (Approximate)8.80 ozMiscellaneousPackage Contents

• USB 3.2 Gen 1 transmitter
• USB 3.2 Gen 1 receiver
• Locking power supply (Input
  100-240V, 50/60 Hz, 1.5A; Output
  24V 2A 48W) with 5 ft. (1.5 m) cord
• 4x International power adapters (North America, Australia, Europe, United Kingdom)
• 2x 3.5 mm Phoenix connectors
• Mounting hardware
• Owner's manual

Country of OriginChinaTAA CompliantYesEnvironmental Compliance

• Restriction of Hazardous Substances (RoHS) 3
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

WarrantyLimited Warranty1 Year
