MAINT BYPASS SELECT 3KVA 6KVA UPS HW 2 L6-20R AND 2 L6-30R 0URM

by
EATON
PCN#
SN0865
MFG#
MBP6K208G2

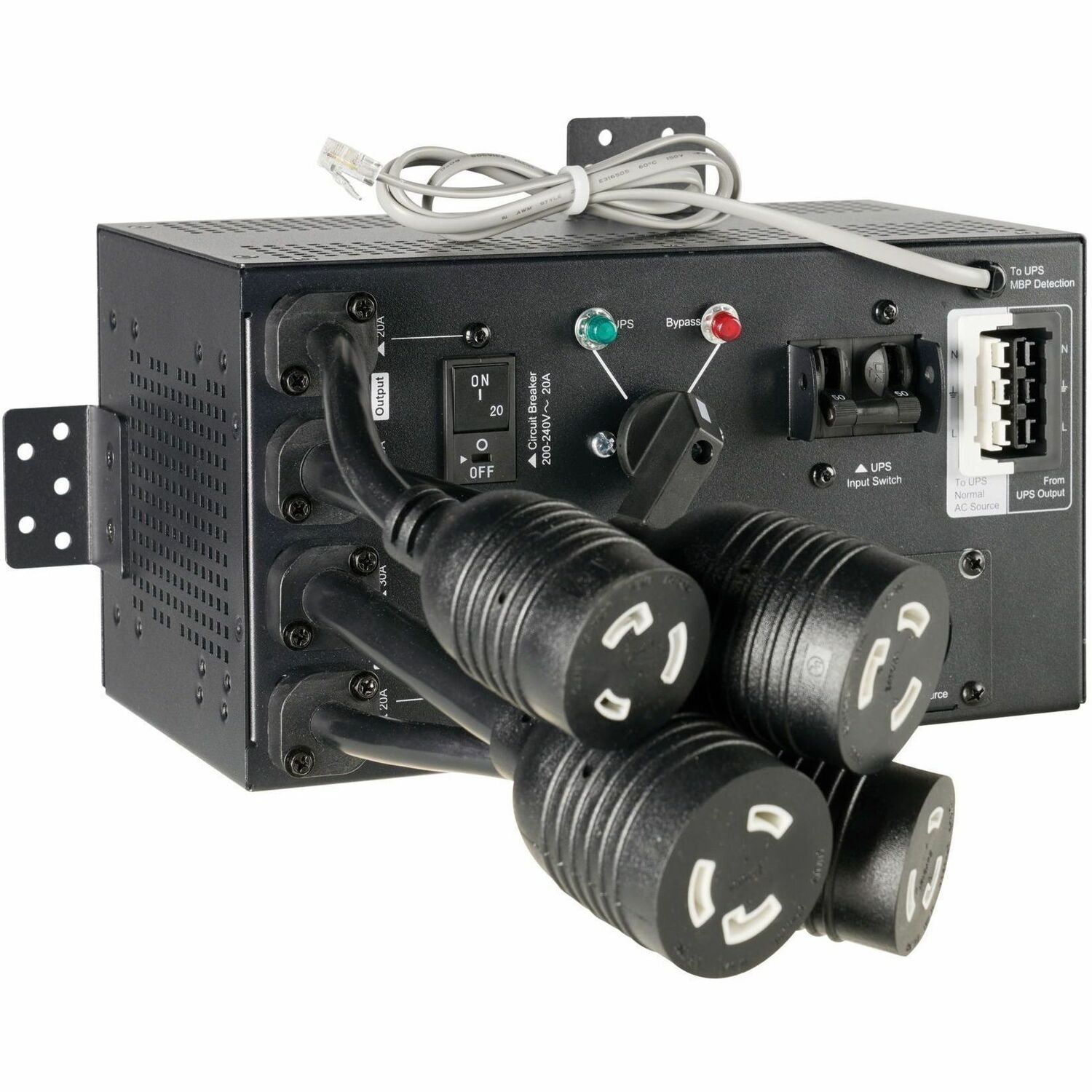

main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
fotorama-image
fotorama-image
EATON Authorized Dealer
$558.23
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x Hardwired, 2 x NEMA L6
  • 20R, 2 x NEMA L6
  • 30R

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 12 lbs.
Eaton 9PX G2 Maintenance Bypass for Select 3kVA to 6kVA UPS Systems, Hardwired Input/Output, 2 L6-20R and 2 L6-30R Outlets, 0U Rack/Tower/Wall

Overview
Features | Compatible with Select Eaton 3kVA/5kVA/6kVA UPS SystemsThe MBP6K208G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.Product TypeBypass SwitchTechnical InformationPlug/Connector TypeHardwiredNEMA L6-30PReceptacles1 x Hardwired2 x NEMA L6-20R2 x NEMA L6-30RPower DescriptionLoad Capacity (VA)6000 WLoad Capacity (Watt)6000 WOutput Voltage208 V AC220 V AC230 V AC240 V ACPhysical CharacteristicsForm FactorRackmount/Tower/Wall-mountableRack Height0UHeight5.1"Width9.4"Depth4.9"MiscellaneousPackage ContentsMBP6K208G2 Bypass SwitchInput/output UPS Cable Set2 x Cable GlandsMounting HardwareCompatibility
Tech Specs
Versatile Connection and Installation OptionsThe MBP6K208G2 features hardwired input and output connections, as well as two NEMA L6-20R and two NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.Product TypeBypass SwitchTechnical InformationPlug/Connector Type
  • Hardwired
  • NEMA L6-30P
Receptacles
  • 1 x Hardwired
  • 2 x NEMA L6-20R
  • 2 x NEMA L6-30R
Power DescriptionLoad Capacity (VA)6000 WLoad Capacity (Watt)6000 WOutput Voltage
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC
Physical CharacteristicsForm FactorRackmount/Tower/Wall-mountableRack Height0UHeight5.1"Width9.4"Depth4.9"MiscellaneousPackage Contents
  • MBP6K208G2 Bypass Switch
  • Input/output UPS Cable Set
  • 2 x Cable Glands
  • Mounting Hardware
Compatibility Eaton 9PX G2 UPS Systems
  • 9PX3K3UG2
  • 9PX3K3UNTF5G2
  • 9PX5KG2
  • 9PX5KTF5G2
  • 9PX6K-L
  • 9PX6KG2
  • 9PX6KTF5G2
Certifications & Standards
  • cUL Listed
  • NOM (Mexico)
Country of OriginPhilippinesEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
