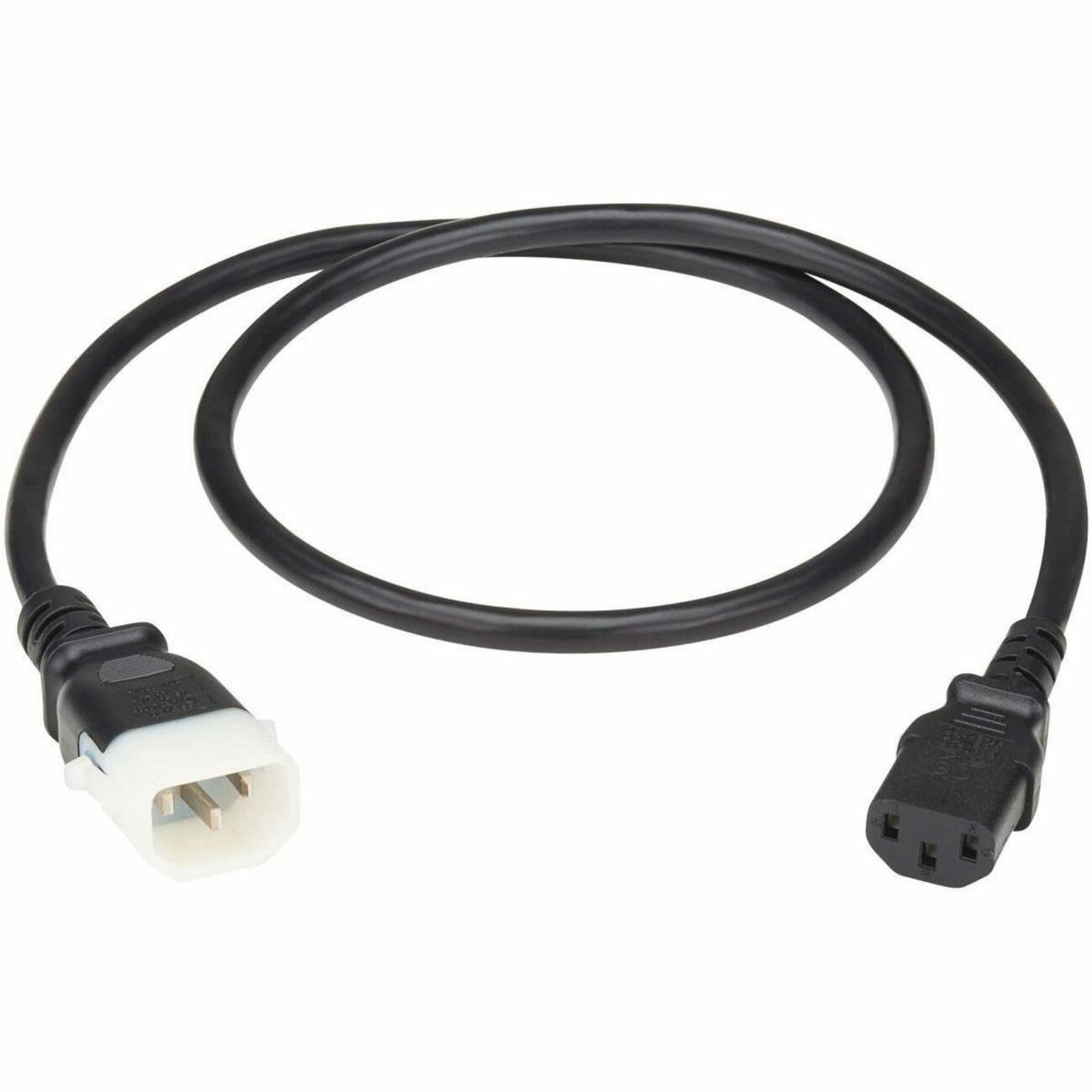

PDU POWER CORD C13 P-LOCK C14 N.A. EU RATED 10A 250V 4FT BLACK

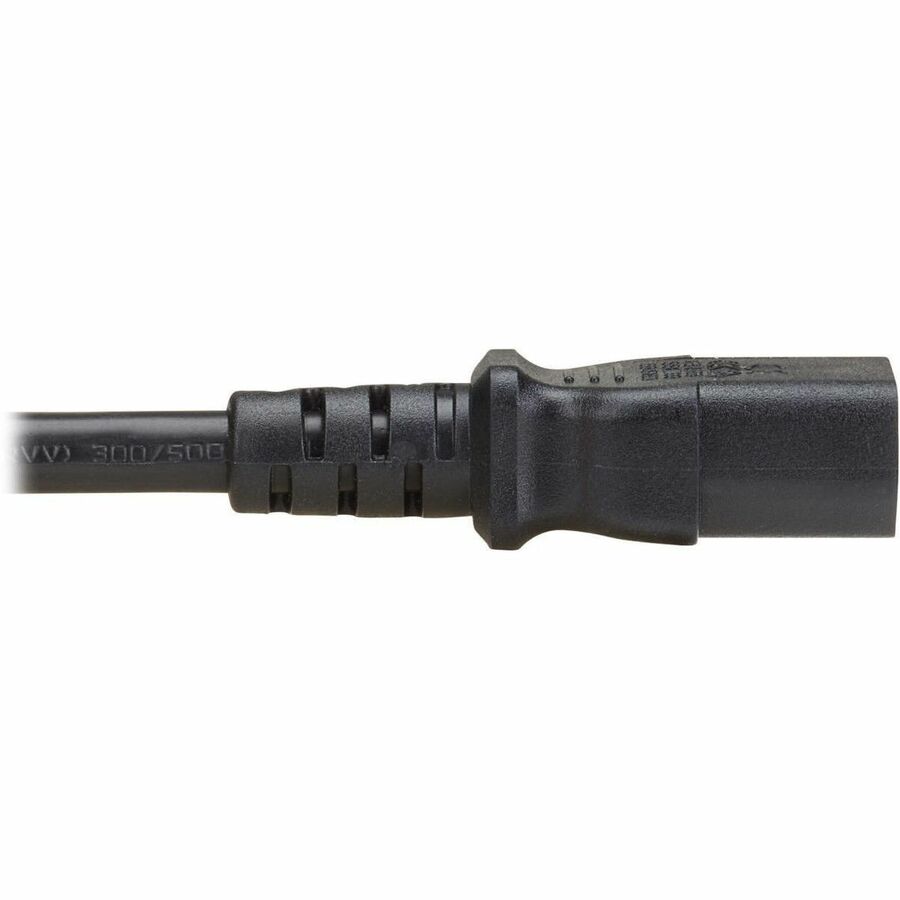

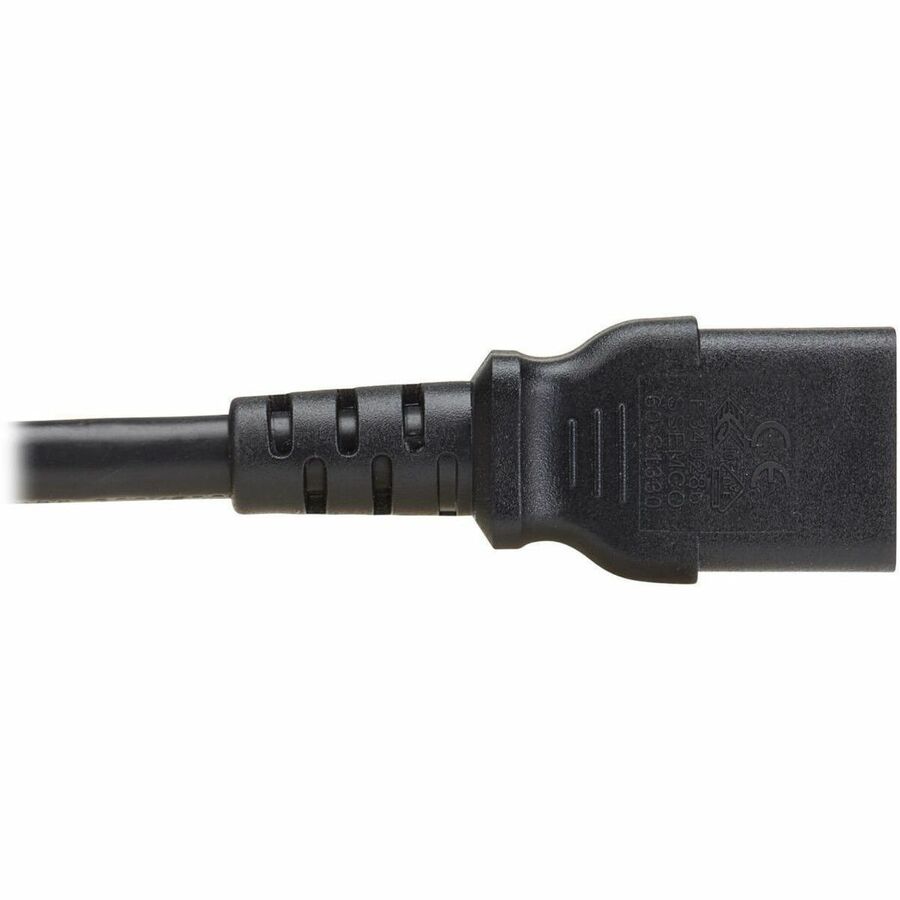

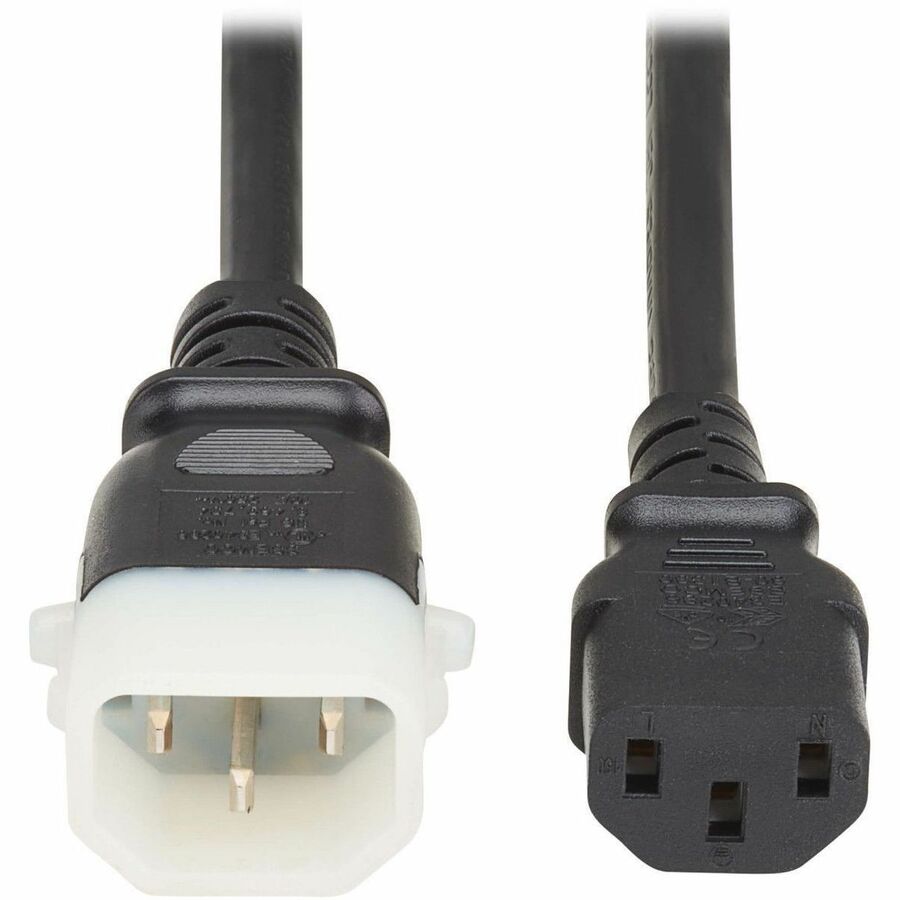

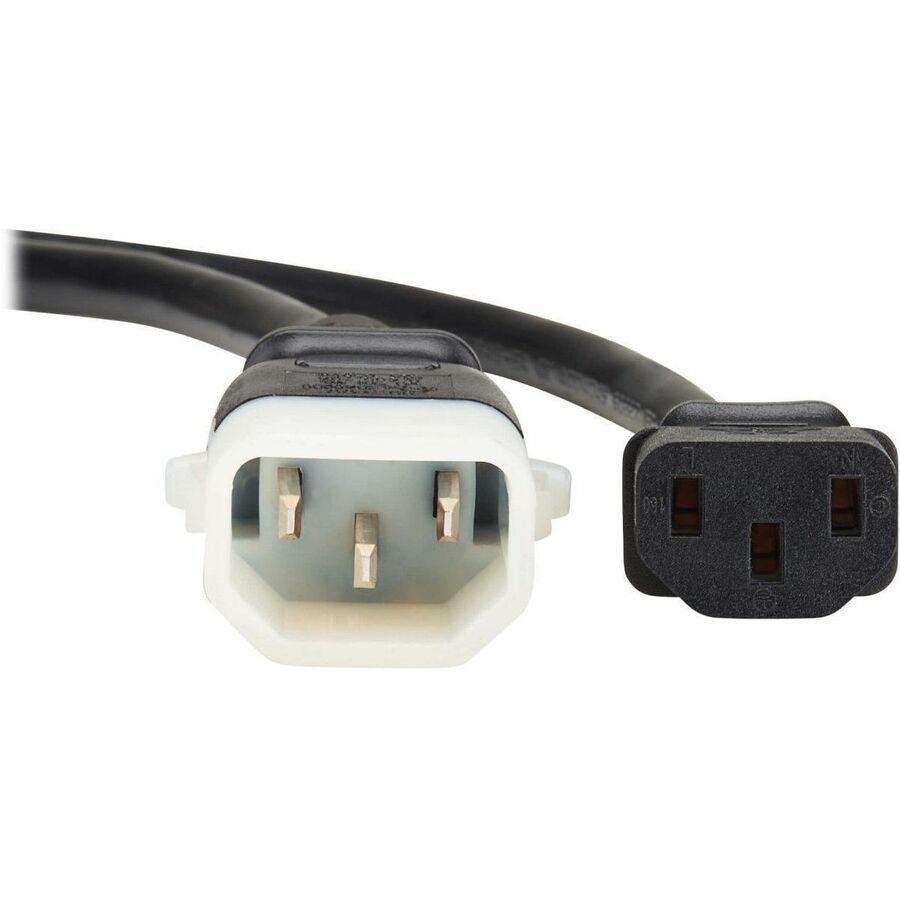

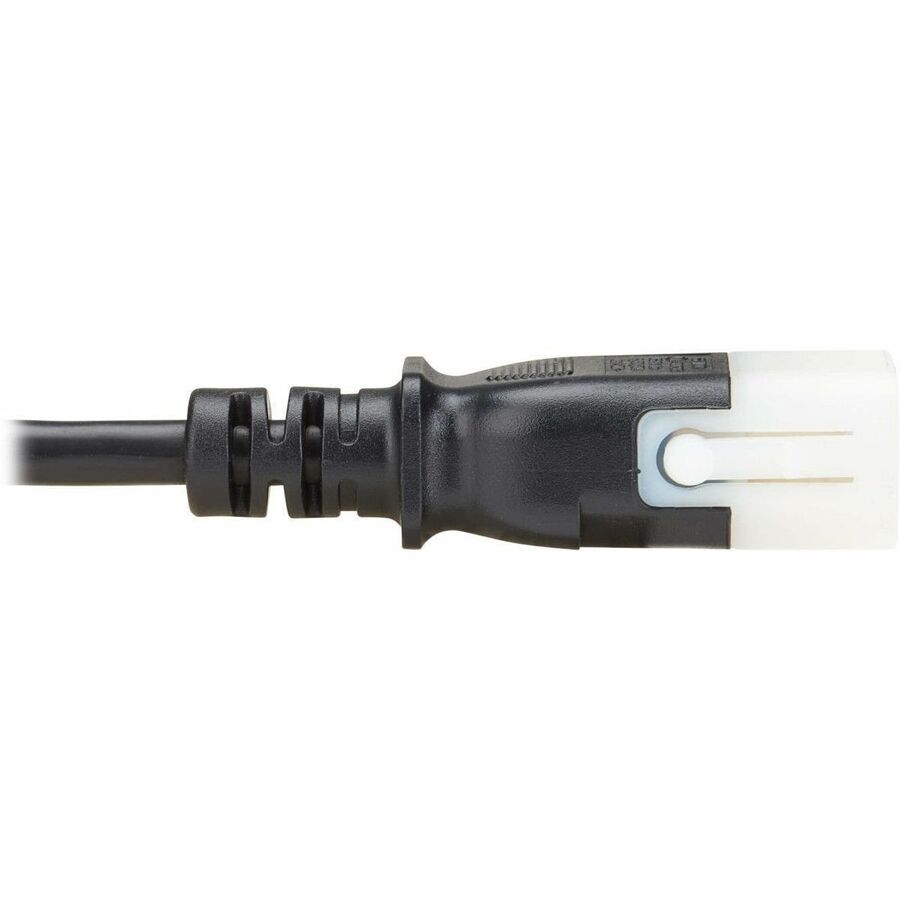

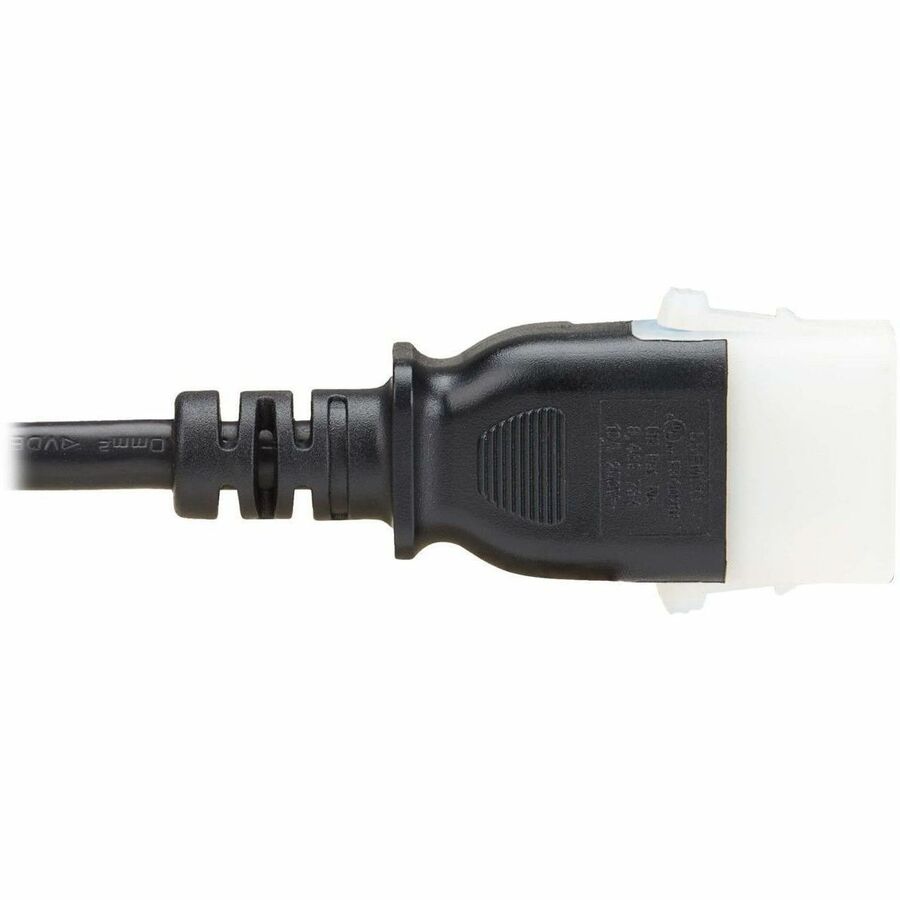

Forms a Special Locking Connection with a P-Lock OutletThe P-Lock C14 connector forms a secure connection with a PDU with a P-Lock outlet, including Eaton G4 and newer PDUs with C13 and C39 outlets. The P-Lock connection helps reduce costly downtime caused by accidental cable disconnections in a crowded rack or PDU space. The P004-E04 lets you replace a non-locking C14/C13 cable or upgrade an entire PDU application by pairing with an Eaton PDU or other PDU with P-Lock outlets.Product TypeStandard Power CordTechnical InformationFirst End Connector TypeIEC 60320 C13First End Connector Detail1 x 3-pin IEC 60320 C13 FemaleSecond End Connector TypeIEC 60320 C14Second End Connector Detail1 x 3-pin IEC 60320 C14 MaleDevice Supported

• PDU
• Computer
• Monitor
• HDTV
• Printer
• Server
• UPS
• Network Device
• Switch
• Workstation
• Rack

LocalizationInternationalGauge18Number of Conductors3FeaturesP-LockPower DescriptionVoltage Rating

• 120 V AC
• 230 V AC

Current Rating10 APhysical CharacteristicsColor FamilyBlackProduct ColorBlackJacket Material

• Polyvinyl Chloride (PVC)
• Service Junior Thermoplastic (SJT)

Cord Length4 ftEnvironmental ConditionsMinimum Operating Temperature23°F (-5°C)Maximum Operating Temperature158°F (70°C)Minimum Storage Temperature14°F (-10°C)Maximum Storage Temperature140°F (60°C)MiscellaneousCompatibilityEaton G4 and Newer PDUsCertifications & Standards

• cUL Listed
• UL Listed
• CE (Europe)
• UKCA

Environmental Compliance

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS) 3
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

WarrantyLimited WarrantyLifetime
