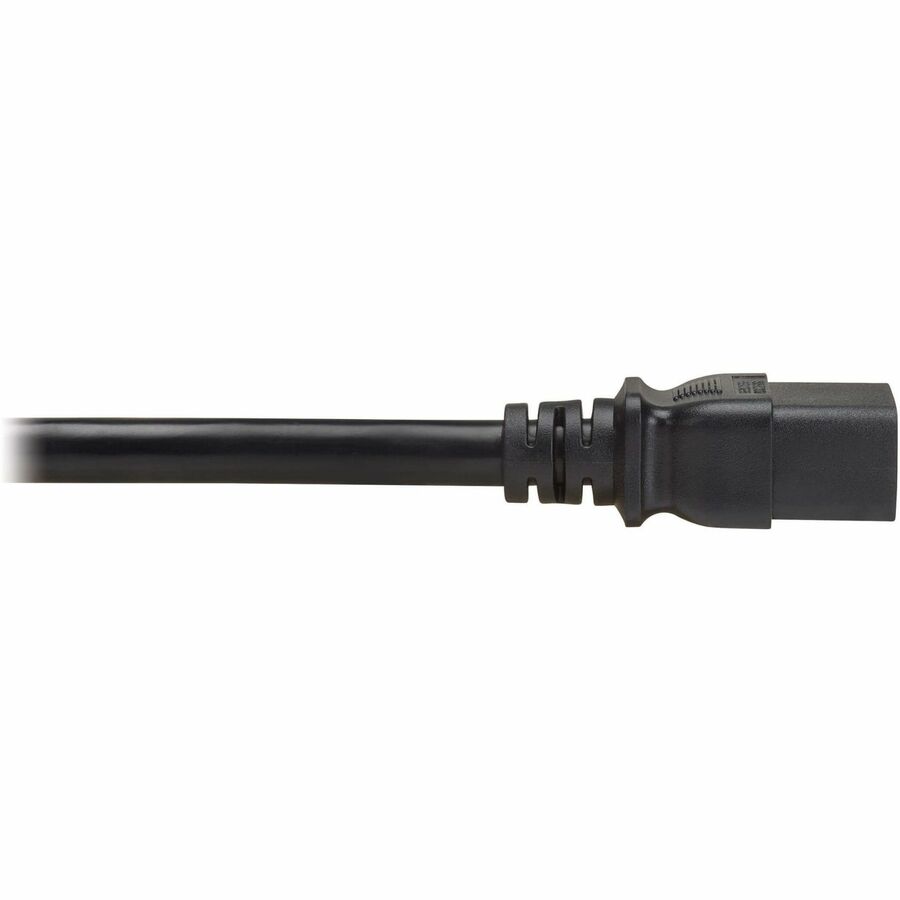

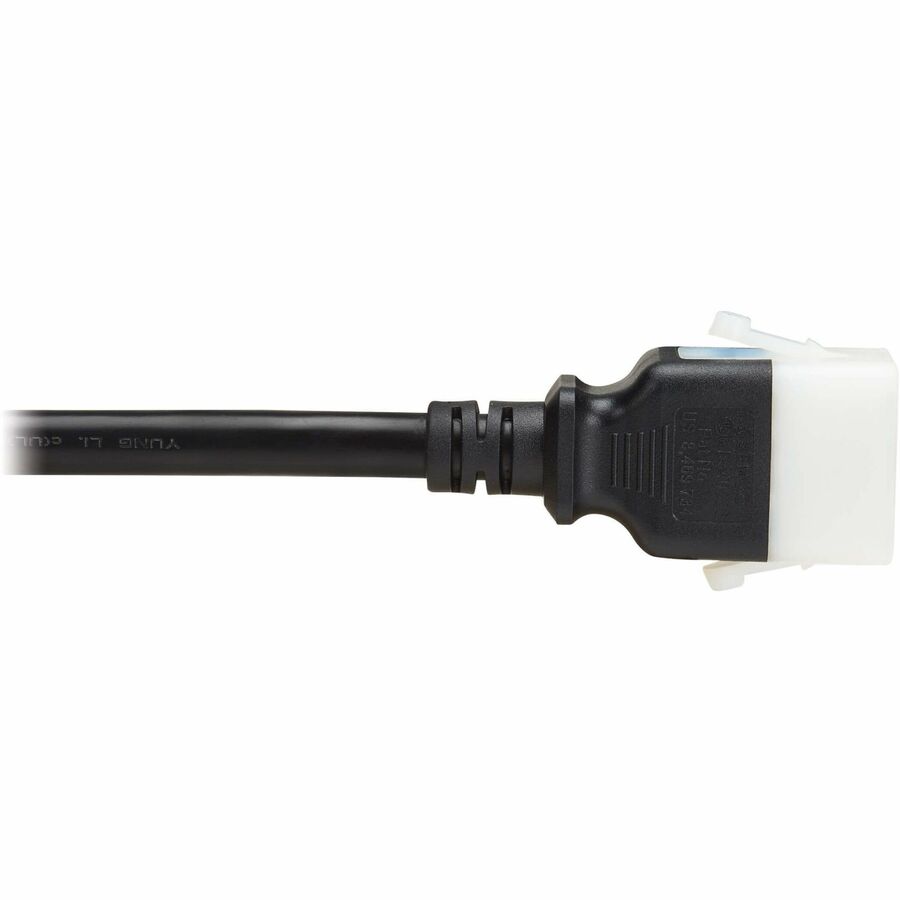

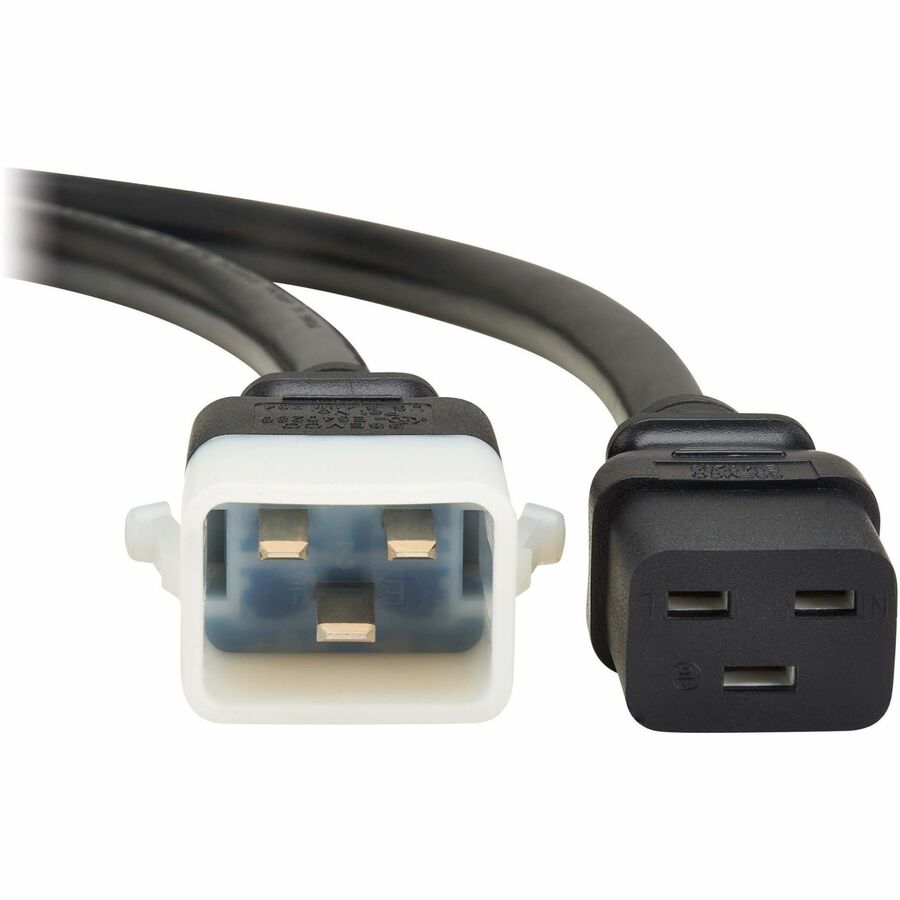

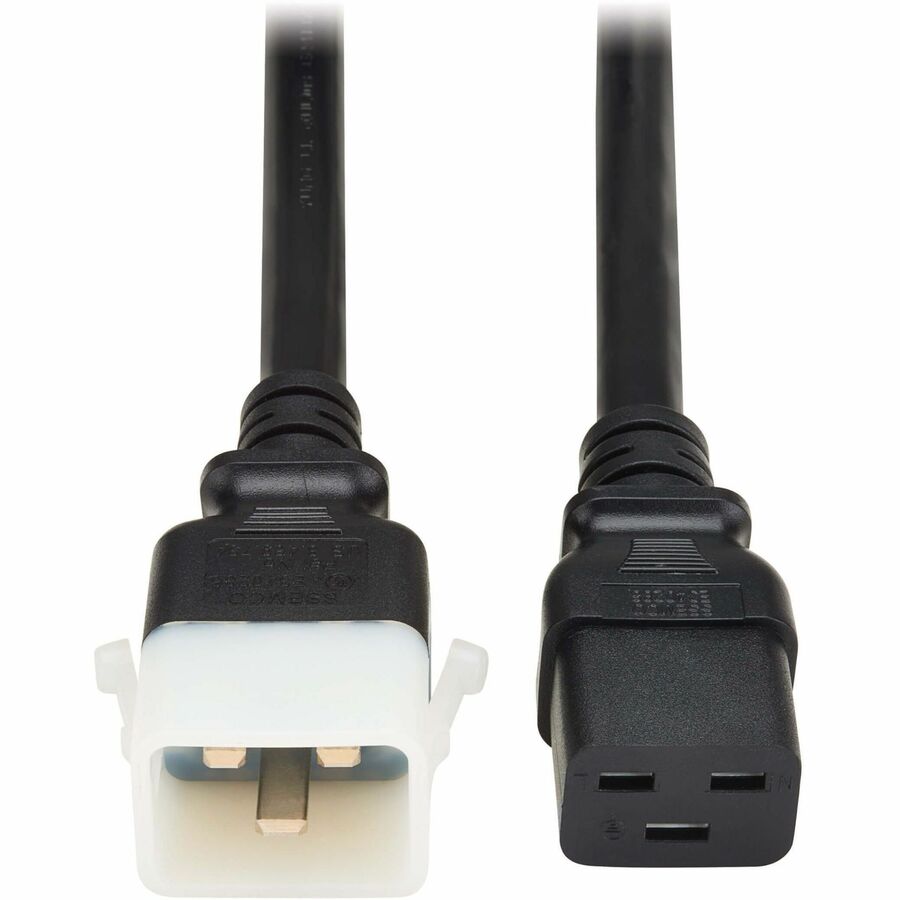

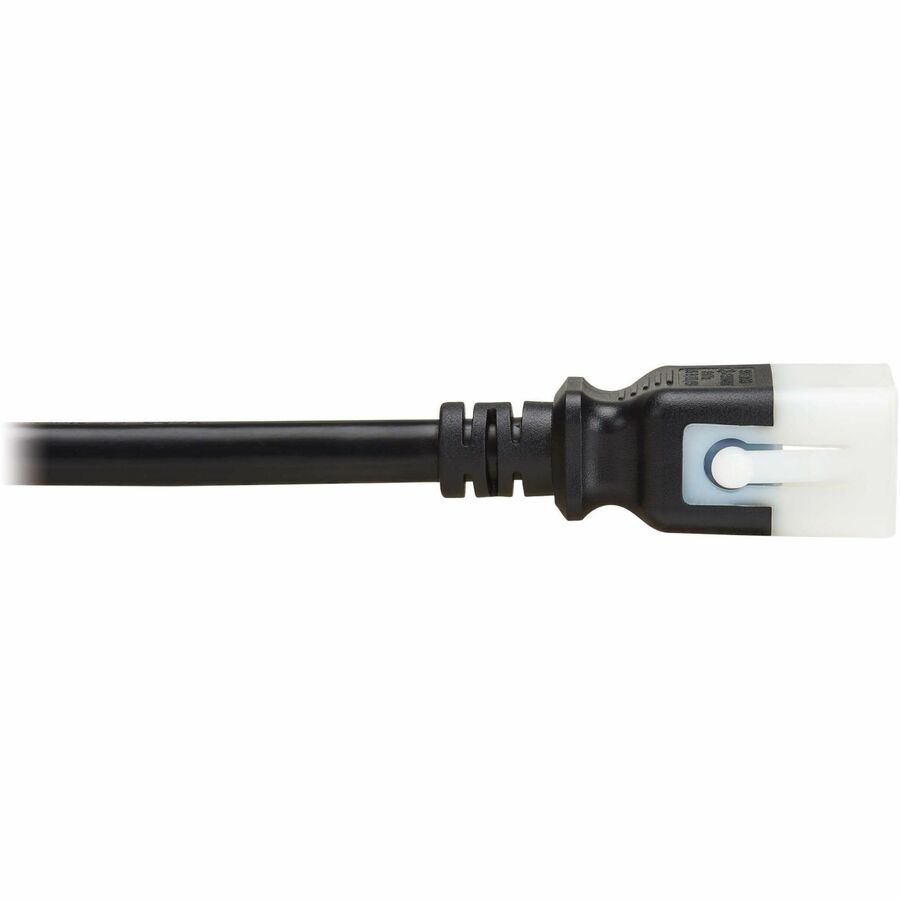

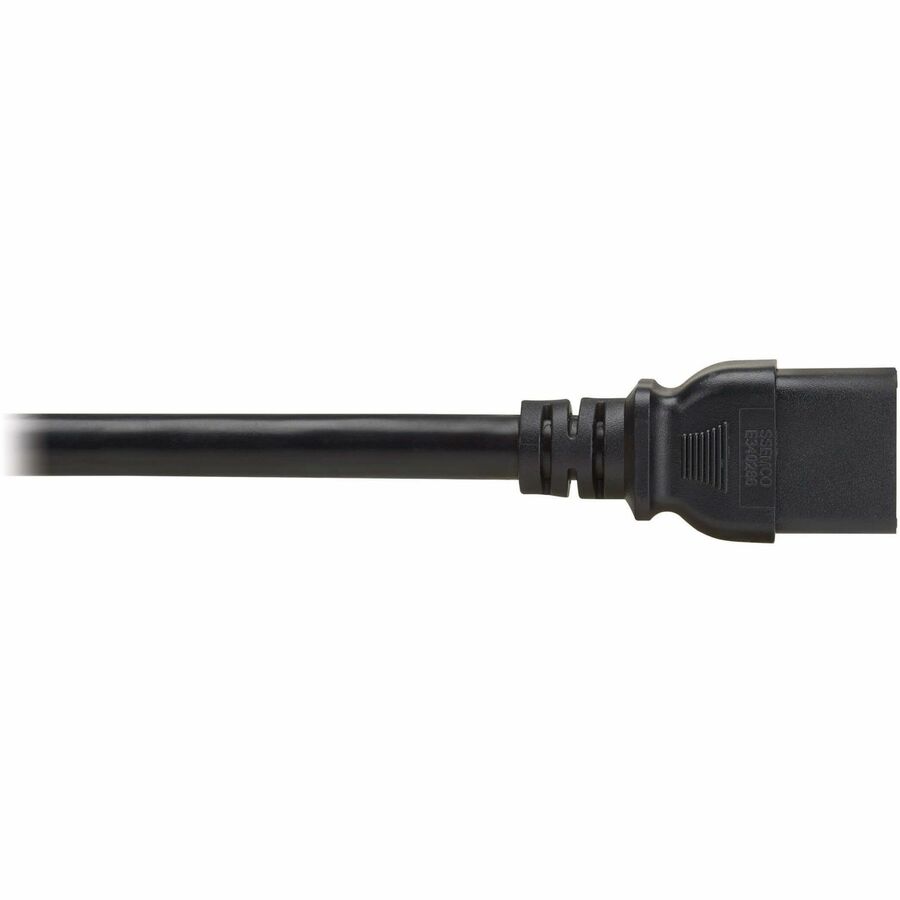

PDU POWER CORDS C19 P-LOCK C20 HEAVY-DUTY 20A 12AWG 3FT BLACK 6PCK

Name: PDU POWER CORDS C19 P-LOCK C20 HEAVY-DUTY 20A 12AWG 3FT BLACK 6PCK
Brand: EATON
SKU: VJ9859
Price: 199.78 USD
Availability: InStock

EATON

PCN#

VJ9859

MFG#

P036-E03-6

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$199.78

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Computer, Monitor, HDTV, PDU, Printer, Server, Tablet, UPS, Network Switch, Blade Server
12 Gauge
250 V AC / 20 A
Black
3 ft Cord Length
IEC 60320 C19 / IEC 60320 C20
North America
P
Lock, Heavy Duty
6 Pack

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 4 lbs.

Eaton Tripp Lite Series PDU Power Cords, C19 to P-Lock C20 - Heavy-Duty, 20A, 250V, 12 AWG, 3 ft. (0.9 m), Black, 6 Pack

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	P036-E03-6
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	P036-E03-6
Product Name	P036-E03-6 Power Extension Cord
Marketing Information	C20-to-C19 Power Cables for Network Devices That Require a Heavy-Gauge Connection These power extension cords feature 12 AWG wire suitable for high power connections, making them a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. The P036-E03-6 can be used to connect servers, routers, network switches or blade server enclosures to a UPS system or PDU. The three-foot (0.9-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU in a crowded rack enclosure. Six PDU power cables are included, an ideal pack for large-scale equipment rollouts. Forms a Special Locking Connection with a P-Lock Outlet The P-Lock C20 connector forms a secure connection with a PDU with a P-Lock outlet, including Eaton G4 and newer PDUs with C39 outlets. The P-Lock connection helps reduce costly downtime caused by accidental cable disconnections in a crowded rack or PDU space. The P036-E03-6 lets you replace non-locking C19/C20 cables or upgrade an entire PDU application by pairing with an Eaton PDU or other PDU with P-Lock outlets.
Packaged Quantity	6 Pack
Product Type	Power Extension Cord

Technical Information

First End Connector Type	IEC 60320 C19
First End Connector Detail	3-pin IEC 60320 C19 Female
Second End Connector Type	IEC 60320 C20
Second End Connector Detail	3-pin IEC 60320 C20 Male
Device Supported	Computer Monitor HDTV PDU Printer Server Tablet UPS Network Switch Blade Server
Localization	North America
Gauge	12
Number of Conductors	3
Features	P-Lock Heavy Duty

Power Description

Voltage Rating	250 V AC
Current Rating	20 A

Physical Characteristics

Color Family	Black
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Height	11"
Width	7"
Depth	0.5"
Cord Length	3 ft

Environmental Conditions

Minimum Operating Temperature	23°F (-5°C)
Maximum Operating Temperature	158°F (70°C)
Minimum Storage Temperature	14°F (-10°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Compatibility	Eaton Rack PDU G4
Certifications & Standards	cUL Listed UL Listed

Warranty

Limited Warranty

Lifetime
